Description
Description

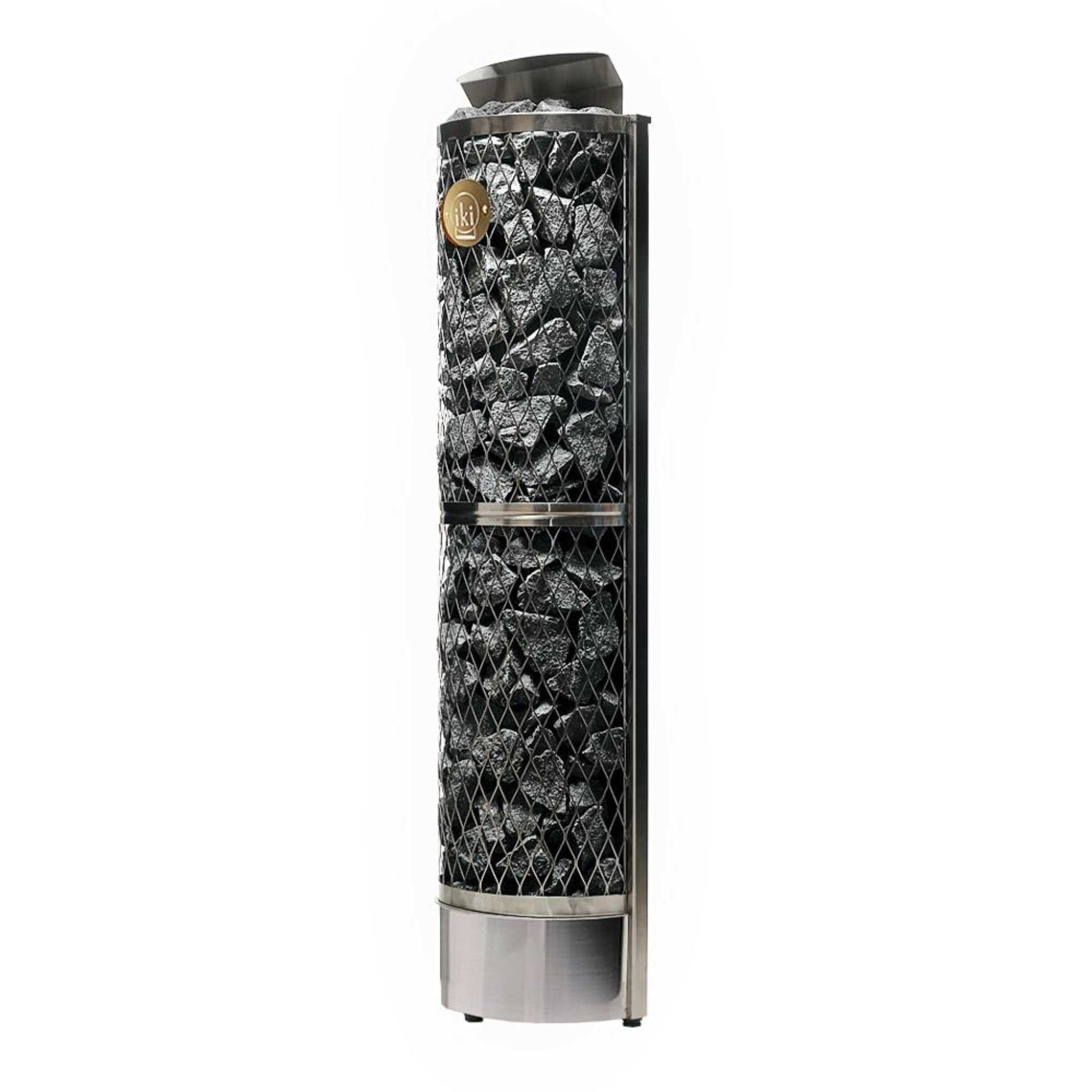

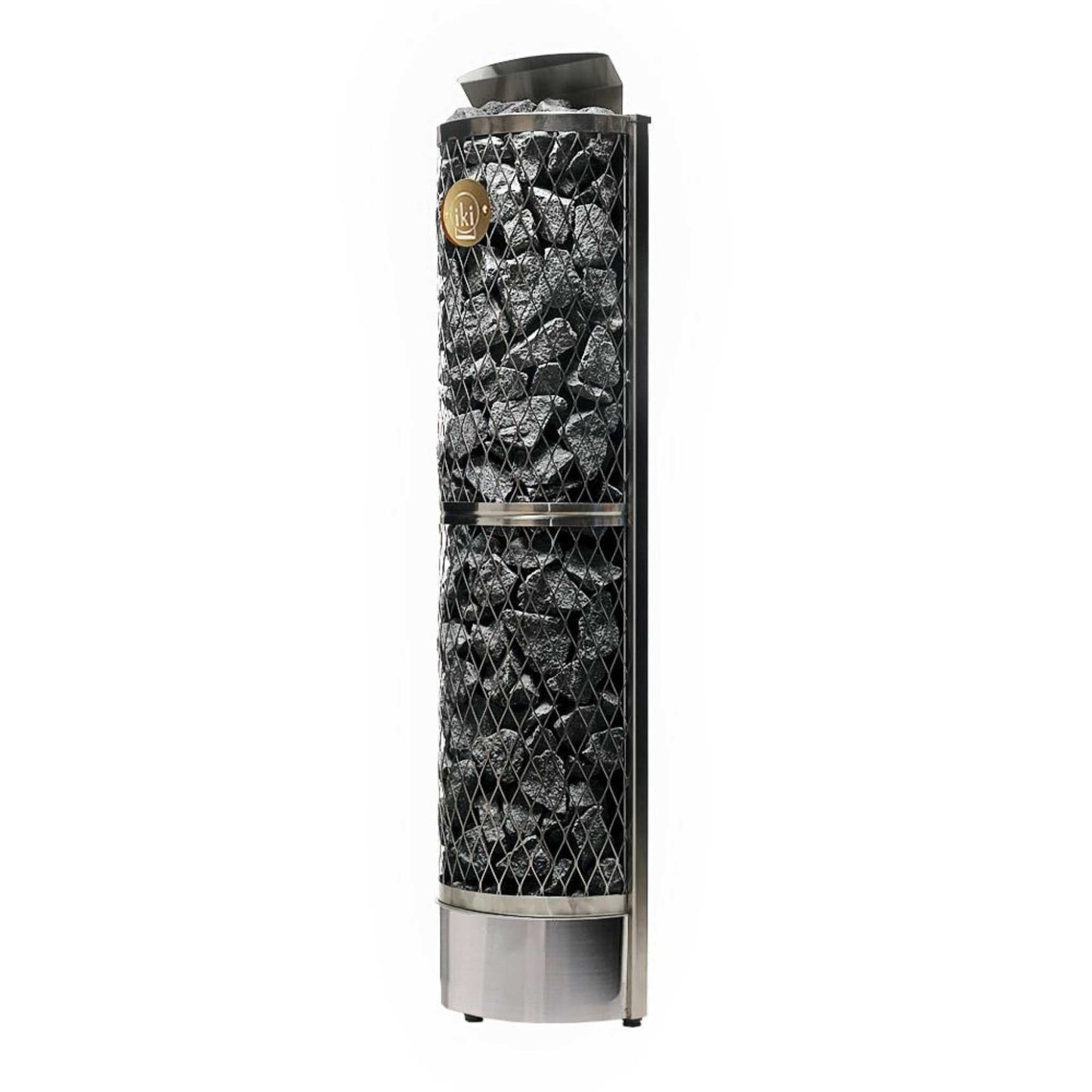

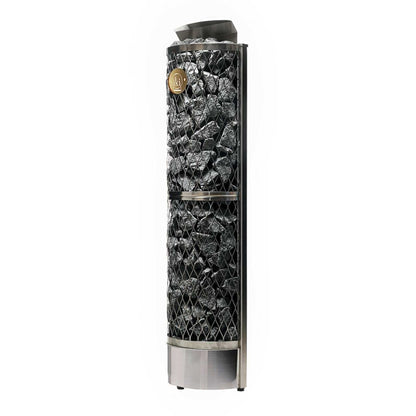

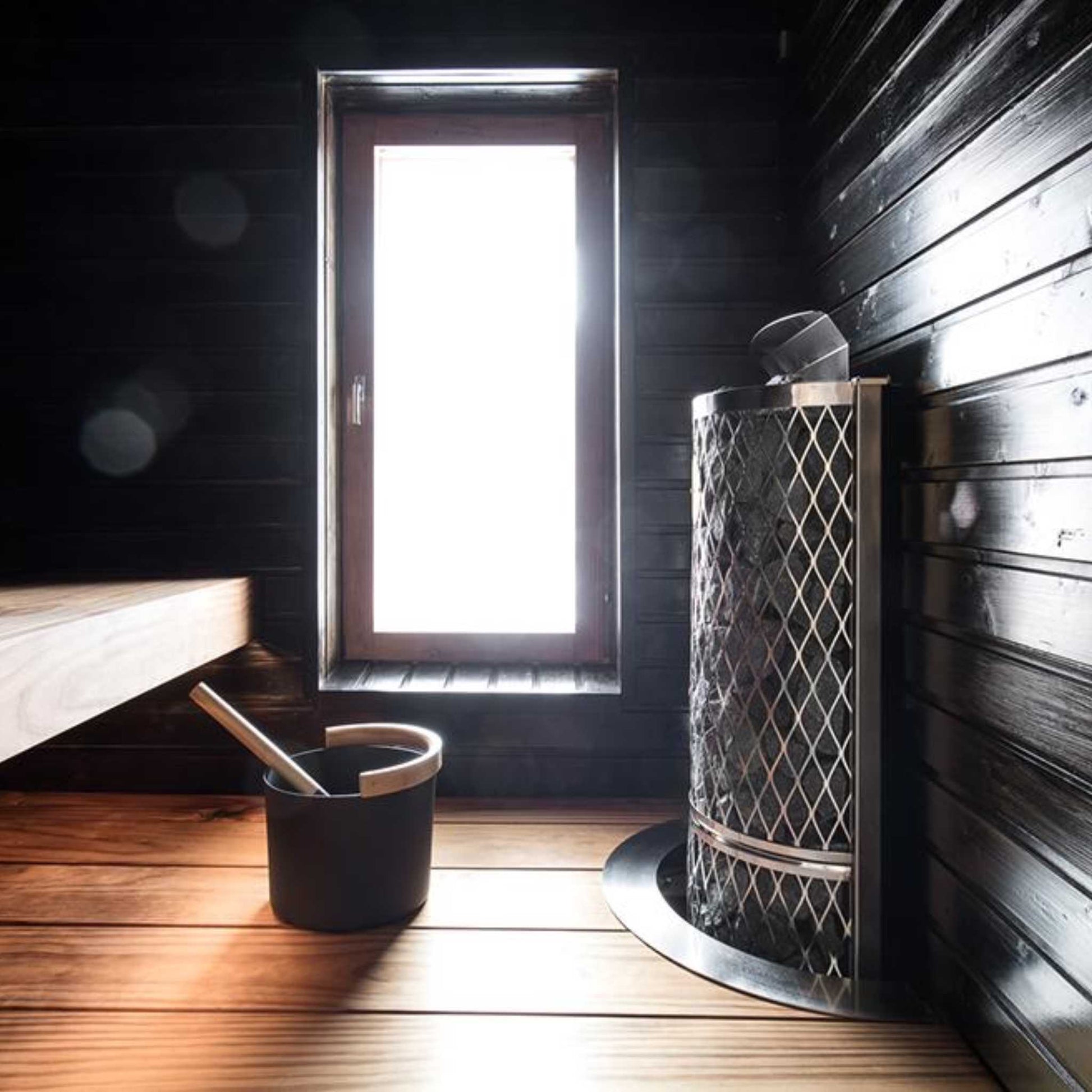

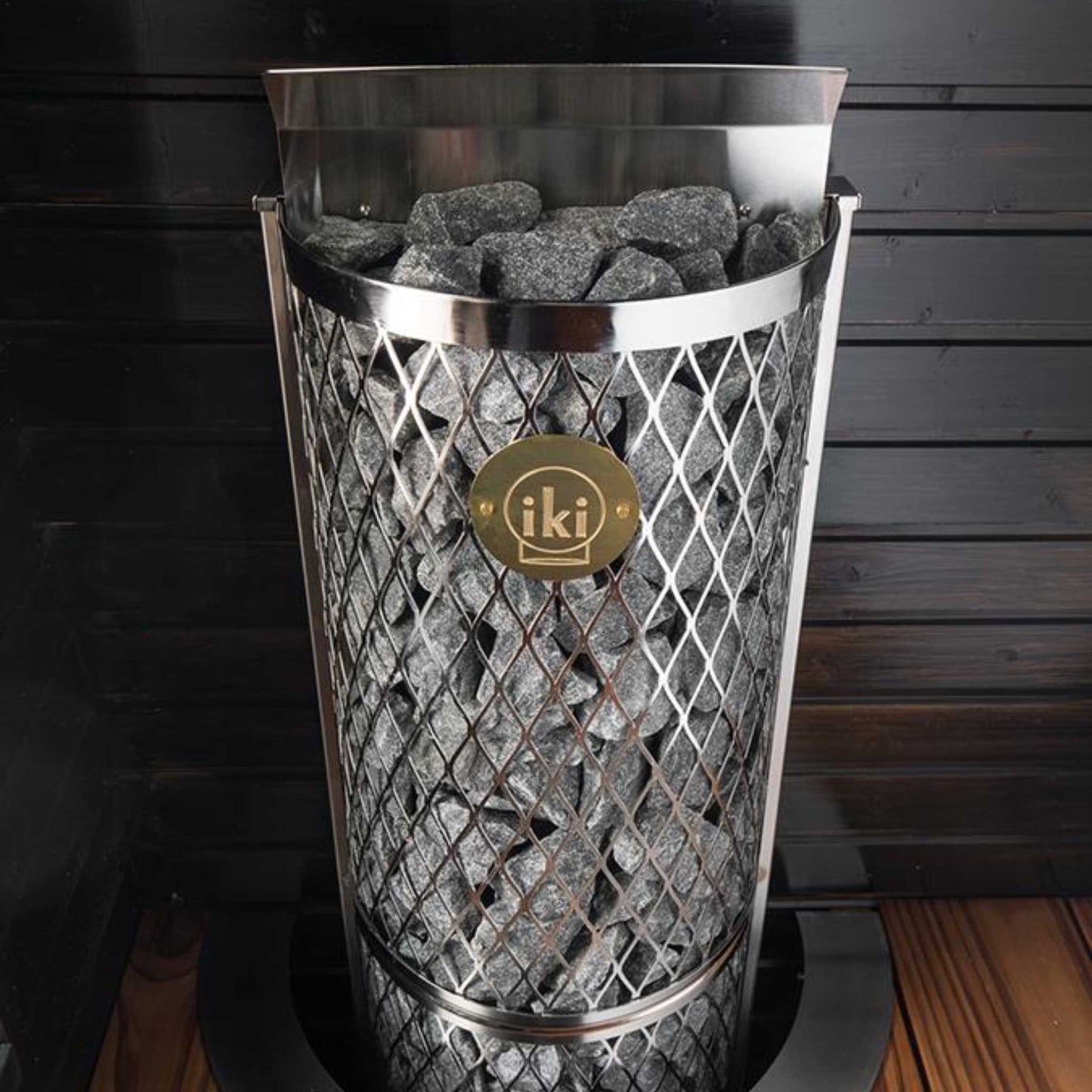

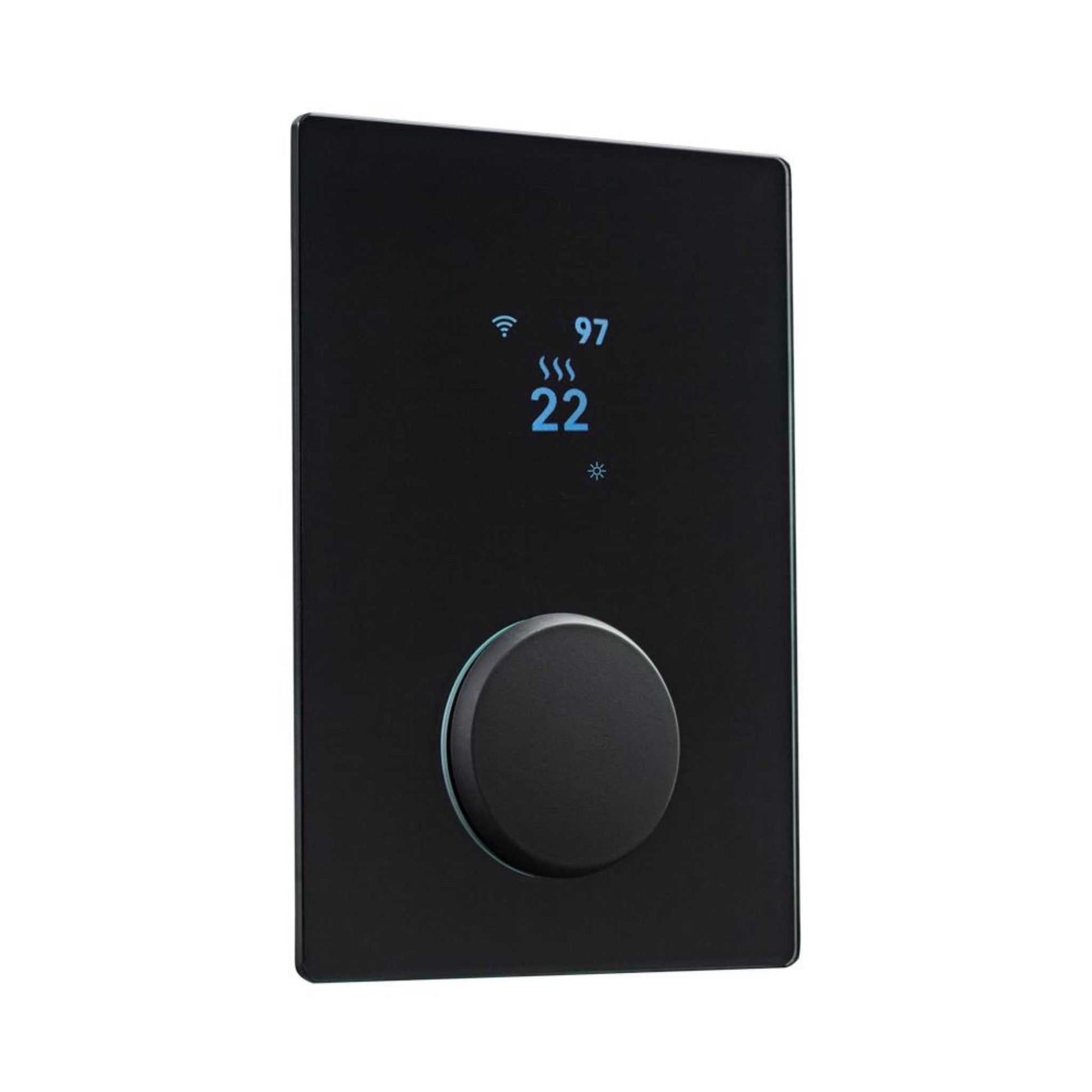

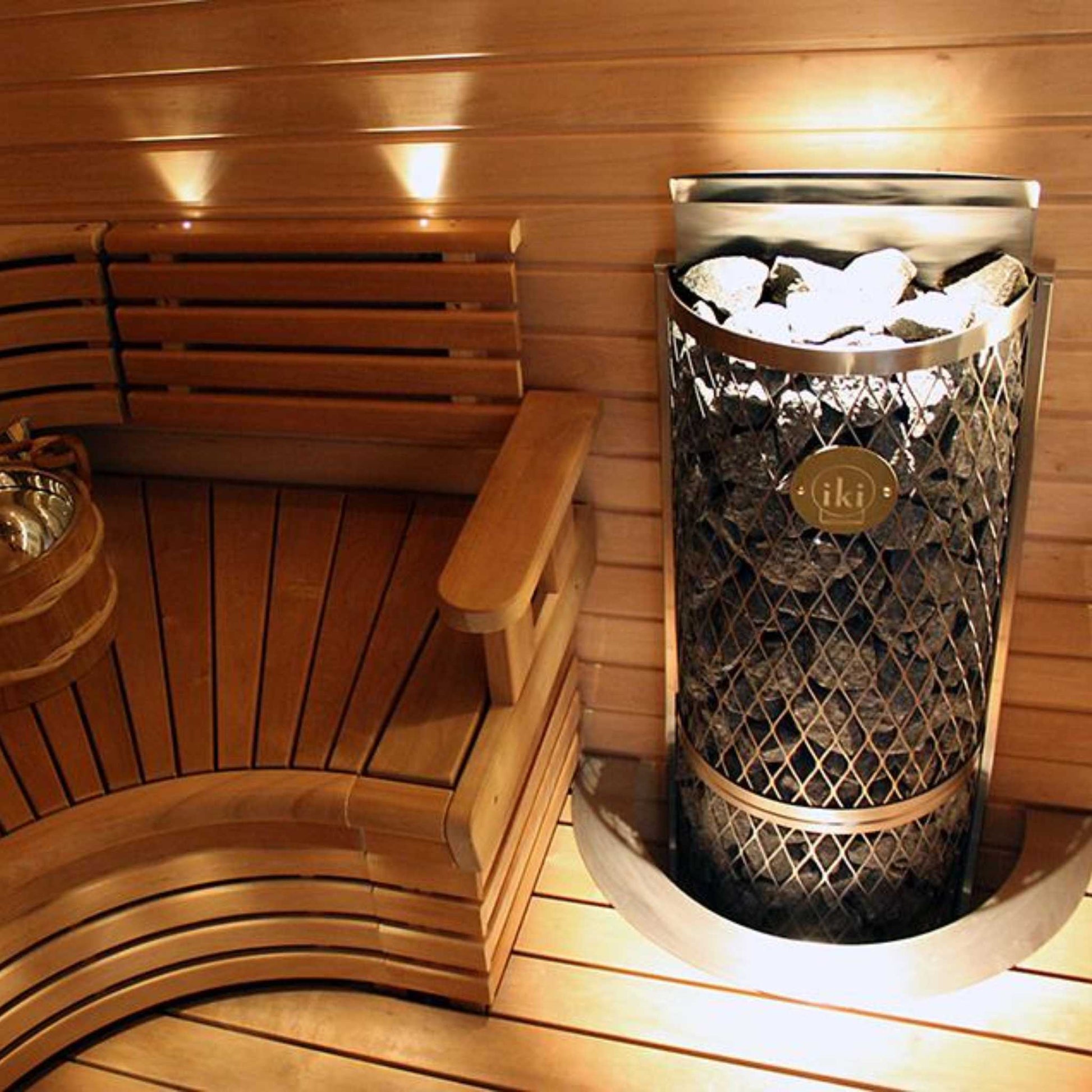

The Wall IKI is an electric sauna heater from the Finnish maker IKI Kiuas, designed to stand flat against a wall: at only 230 mm deep in the 6 kW model and 270 mm in the 9 kW model it takes very little space, leaving room for creative bench design. The front is fully open stainless steel mesh, while the solid stainless steel back plate helps the large stone mass, 80 kg in the 6 kW model and 140 kg in the 9 kW model, hold its heat for a moist, comfortable löyly that reaches the lower benches. The 6 kW version suits sauna rooms of 5–9 m³ and the 9 kW version 8–16 m³; both run on a three-phase supply and are hand-made in Finland. A separate control unit is required and is not included: the heater pairs with a compatible controller of your choice, such as the UKU Wi-Fi control unit, which manages heaters up to 18 kW. A sufficient quantity of sauna stones must be purchased separately.
Features
Technical Specification
| All models | |
| Type | Electric sauna heater (three-phase) |
| Construction | Stainless steel; open mesh front with solid stainless steel back plate |
| Mounting | Floor-standing against a wall, fixed with steel supports |
| Heating time | 45–60 min |
| Recommended bathing temperature | 50–70 °C |
| Safety clearance (sides and back) | 100 mm minimum |
| Safety clearance (ceiling) | 600–800 mm above the stone surface (see installation manual) |
| Water guide | Adds 100 mm to the heater height |
| Connecting cable type | H07RN-F rubber cable (PVC-insulated cable must not be used) |
| Junction box height | No more than 400 mm above the floor |
| Recommended stones | Olivine or olivine-dolerite, under 100 mm; sold separately |
| Wall IKI 6 kW | |
| Output | 6 kW |
| Recommended room volume | 5–9 m³ |
| Stone capacity (max.) | 80 kg |
| Dimensions (H × W × D) | 1,390 × 390 × 230 mm (without water guide) |
| Heating elements | 3 × 2,000 W |
| Fuses | 3 × 10 A |
| Connecting cable | 5 × 1.5 mm² |
| Wall IKI 9 kW | |
| Output | 9 kW |
| Recommended room volume | 8–16 m³ |
| Stone capacity (max.) | 140 kg |
| Dimensions (H × W × D) | 1,290 × 470 × 270 mm (without water guide) |
| Heating elements | 3 × 3,000 W |
| Fuses | 3 × 16 A |
| Connecting cable | 5 × 2.5 mm² |
Installation
Installation and maintenance must be carried out by a certified electrician, with the electricity supply isolated at the fuse panel before any work begins. Under IEC 60364-7-703 and BS 7671:2018 an electric sauna heater does not have to be connected through an RCD, and for reliable operation the manufacturer recommends that the heater supply is not run through one; other electrical devices in the sauna room should be RCD protected. A local point of isolation covering all live conductors is recommended. The installation manual in the Downloads tab and local wiring regulations must be followed. The heater is connected semi-stationarily with an H07RN-F rubber cable or equivalent (PVC-insulated cable is prohibited), with the junction box no more than 400 mm above the floor; the heater is affixed to the wall with the steel supports, and a separate control unit is required.
Sauna stones

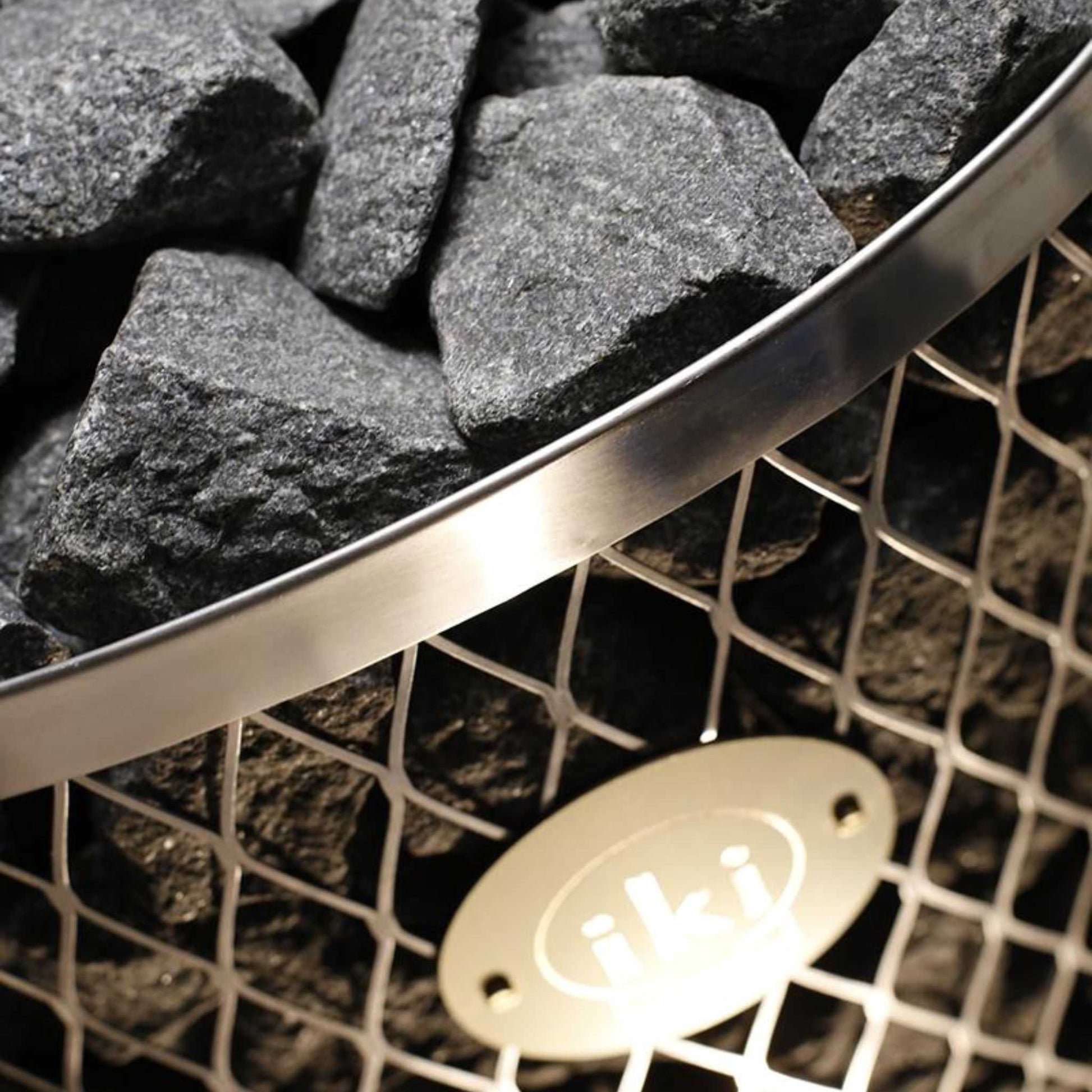

Sauna stones are not included and must be purchased separately. IKI recommends olivine or olivine-dolerite stones under 100 mm in diameter, laid loosely so air can flow between them; in communal or public saunas Kerkes ceramic stones should be used around the heating elements. Soapstone and rounded natural stones may only be used on the outer edges and the top of the stone mass, and the condition of the stones should be checked yearly.
Brand
IKI Kiuas is a Finnish specialist in open, large-stone-mass sauna heaters, hand-crafted in Pieksämäki by welders with decades of experience in stainless steel and black iron. Each heater is welded by hand and may show small tooling marks on the stainless steel rim.
Delivery & Returns
Delivery
We offer fast and reliable delivery to customers across the UK and beyond. For full details on shipping times and costs, please review our delivery policy.
Returns
We offer hassle-free returns within 30 days of purchase, so you can shop with complete confidence. For details, see our returns policy.
Warranty & Quality Promise
We are committed to delivering products of the highest quality, for details surrounding warranty please contact us.
