HUUM

UKU Sauna Control Panel - Gold Glass (Panel Only)

UKU Sauna Control Panel - Gold Glass (Panel Only)

Free UK Delivery Over £1500*

This product has a lead time, enquire for more information.

Regular price €423,95
Sale price €423,95 Regular price
Email when available
View full details
Description

Description

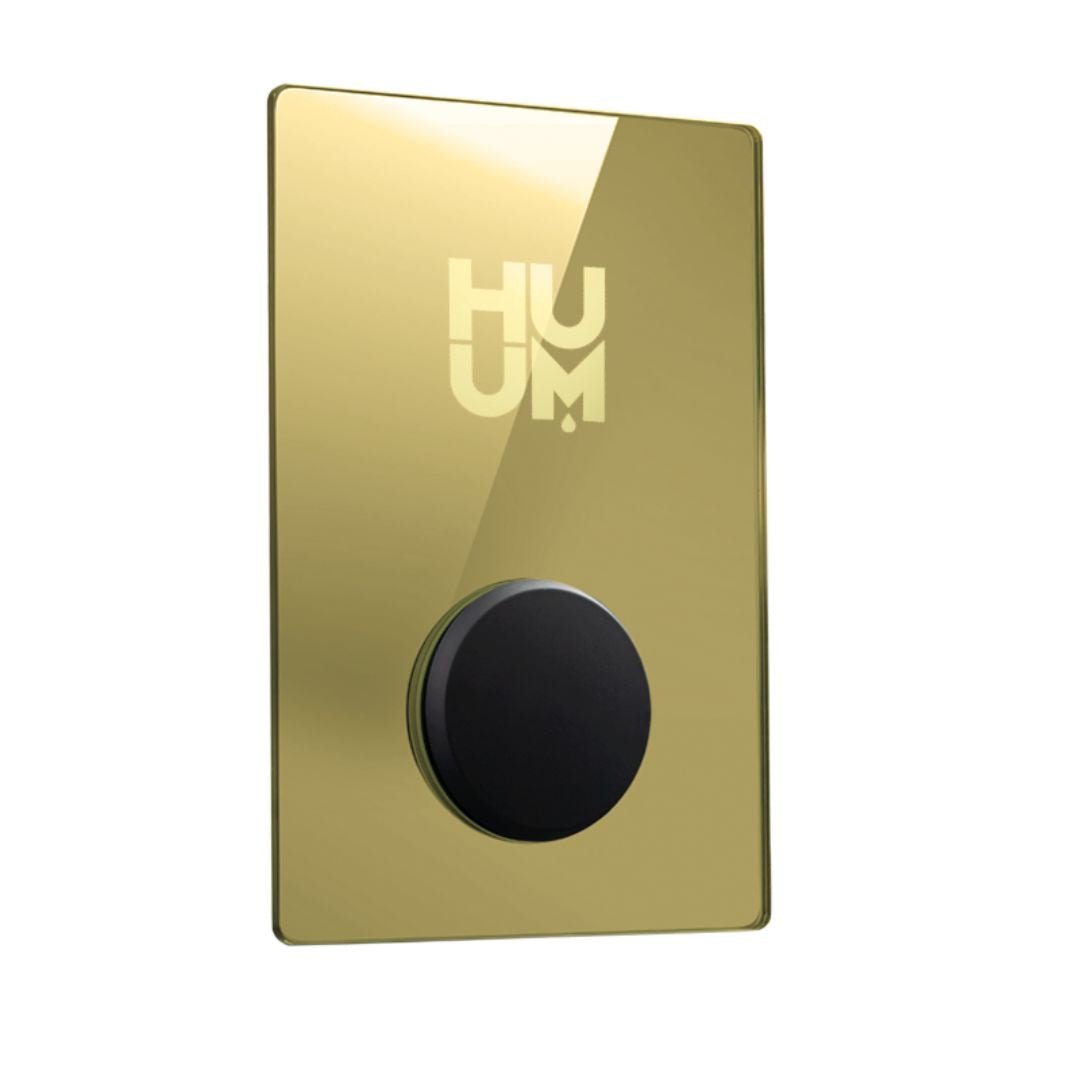

The UKU sauna control panel in gold glass is the wall-mounted interface for HUUM’s UKU control system, sold as the panel only. It operates the electric sauna heater’s functions with a few clicks of its single button and carries a child safety lock for added security. The panel requires a UKU control system with main module to function, so this listing suits replacements or a change of finish rather than a first installation. Glass panels recess into the sauna wall, or mount proud of it with the UKU surface mounting frame, sold separately, and may be installed inside the sauna room subject to the placement rules in the manual.

Features

  • Panel only: This listing is the control panel alone; it requires a UKU control system with main module to function.
  • Minimalist gold glass face: A glass fascia with a single control for a clean, user-friendly interface.
  • Child safety lock: A built-in child lock prevents unsupervised starting of the heater.
  • Recessed or surface mounted: Recesses into the wall, or sits proud of it with the UKU surface mounting frame, sold separately.
  • Sauna-room installation: May be fitted inside the sauna with its upper edge no higher than 1 m from the floor and away from exhaust ventilation.
  • Straightforward fitting: The glass front is held by magnets and lifts off for wiring; fitting needs only hand tools.
Technical Specification
TypeGlass control panel for the UKU sauna control system (panel only)
RequiresUKU control system with main module, sold separately
FinishGold glass
Dimensions (L × W × D)105 × 55 × 22 mm
Wall recess for flush fitting65 × 105 × 27 mm (or use the UKU surface mounting frame)
PlacementInside the sauna permitted; upper edge no higher than 1 m from the floor, at least 50 cm from exhaust ventilation
Child lockYes
SKUH2002091

Installation

Connection must be carried out by a certified electrician with the power isolated. The glass panel recesses into the wall, with a 65 × 105 × 27 mm recess made before fitting, or mounts on the surface using the UKU mounting frame (H310301), sold separately. The glass front is held by magnets and lifts off for wiring; tighten screws by hand only. Inside the sauna the panel must sit with its upper edge no higher than 1 m from the floor and at least 50 cm from any exhaust ventilation, and its cable must not run parallel to high-current cables. If the wall contains conductive materials, cover the cable screw heads with insulating tape. The installation manual in the Downloads tab and local wiring regulations must be followed.

Brand

HUUM is an Estonian sauna brand that pairs age-old sauna knowledge with modern Nordic design. Its DROP heater won the Red Dot Award for Product Design in 2015.

Warranty

The warranty card is available in the Downloads tab.

Ordering note

Check your heater model, heater power and controller generation (UKU 4.1 or 4.2) before ordering. Electrical installation must be carried out by a certified electrician.
