Description
Description

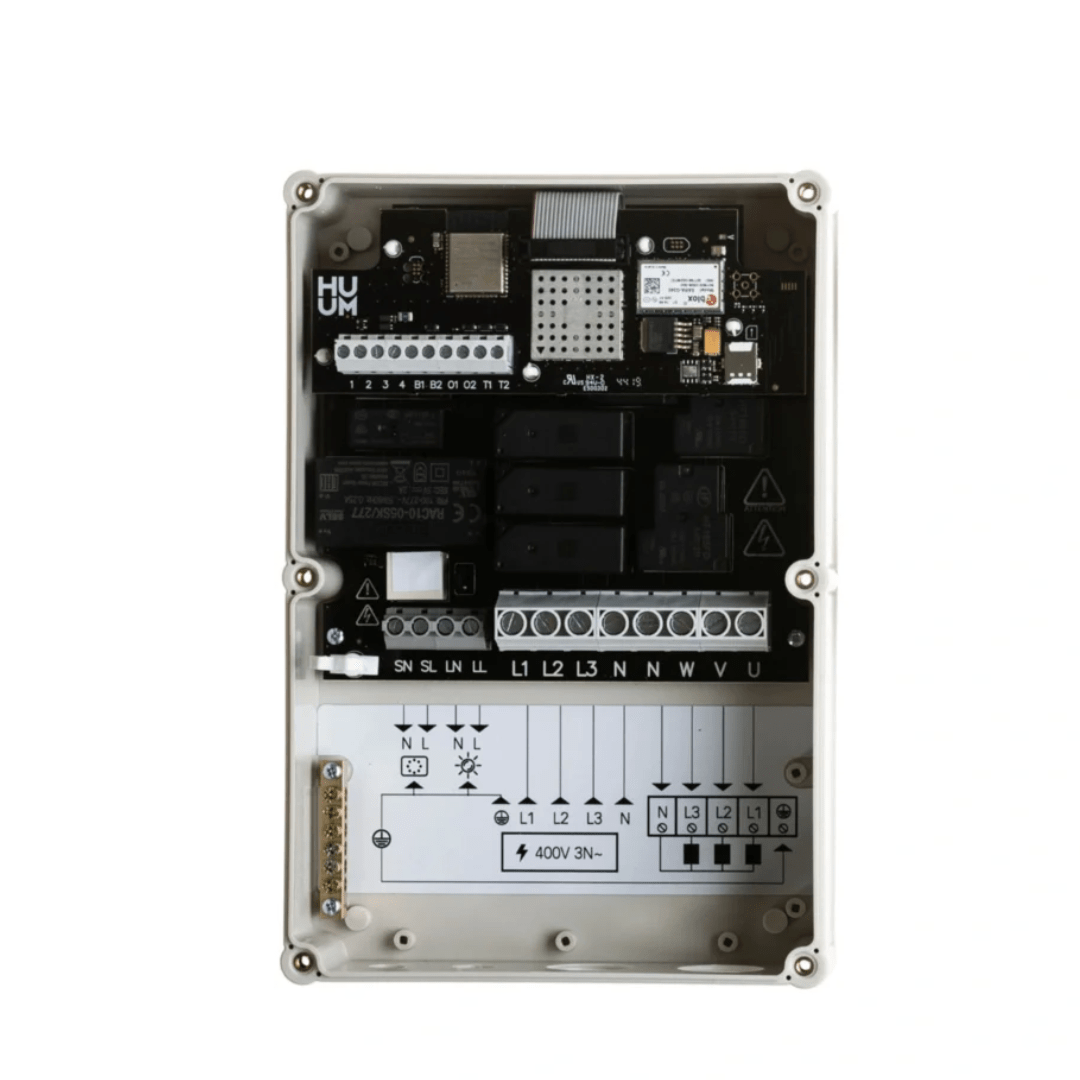

This is the UKU Local control system by HUUM supplied without the control panel and cover: the panel must be purchased separately, and the system will not operate without one. The set includes the main module, temperature sensor, door sensor, a 5 + 5 m sensor cable and a 3 m control panel cable. Once paired with a UKU control panel it runs electric sauna heaters up to 18 kW from different manufacturers, sets the sauna between 40 °C and 110 °C, and provides overheating protection, a timer, door monitoring and a child safety lock, with outputs for a steamer and sauna lighting or ventilation.
Features
Technical Specification
| Maximum heater power | 18 kW (maximum 6 kW per heating circuit) |
| Target temperature | 40–110 °C |
| Heating time options | 3 or 6 h (private saunas); 12 h (semi-public); 18 h (public) |
| Electrical supply | 230 V 1N~ (heaters up to 12 kW) or 400 V 3N~ (heaters up to 18 kW) |
| Control panel | Not included; purchase a UKU control panel separately |
| Main module (L × W × D) | 175 × 75 × 250 mm; IP67 with the supplied cable glands fitted |
| Control panel cable | 3 m; 4 × 0.34 mm²; maximum length 20 m |
| Temperature/door sensor cable | 5 + 5 m; 2 × 0.23 mm² |
| Steamer output | Up to 2,500 W, 230 V |
| Lamp/ventilation output | Up to 100 W, 230 V |
| Designed to standard | EN 60335-2-53 |
| SKU | H2005051 |
Installation
Installation must be carried out by a licensed electrician, with the power turned off at the circuit while work takes place. The main module must be installed in a dry place on a dedicated circuit; it carries an IP67 rating when the supplied cable glands are used, and the manufacturer recommends connecting the system to the mains without a residual current circuit breaker. Placement rules for the control panel depend on the panel chosen and are set out in the manual. The installation manual in the Downloads tab and local wiring regulations must be followed.
Brand
HUUM is an Estonian sauna brand that pairs age-old sauna knowledge with modern Nordic design. Its DROP heater won the Red Dot Award for Product Design in 2015.
Warranty
The warranty card is available in the Downloads tab.
Ordering note
Check your heater model, heater power and controller generation (UKU 4.1 or 4.2) before ordering. Electrical installation must be carried out by a certified electrician.
