Description

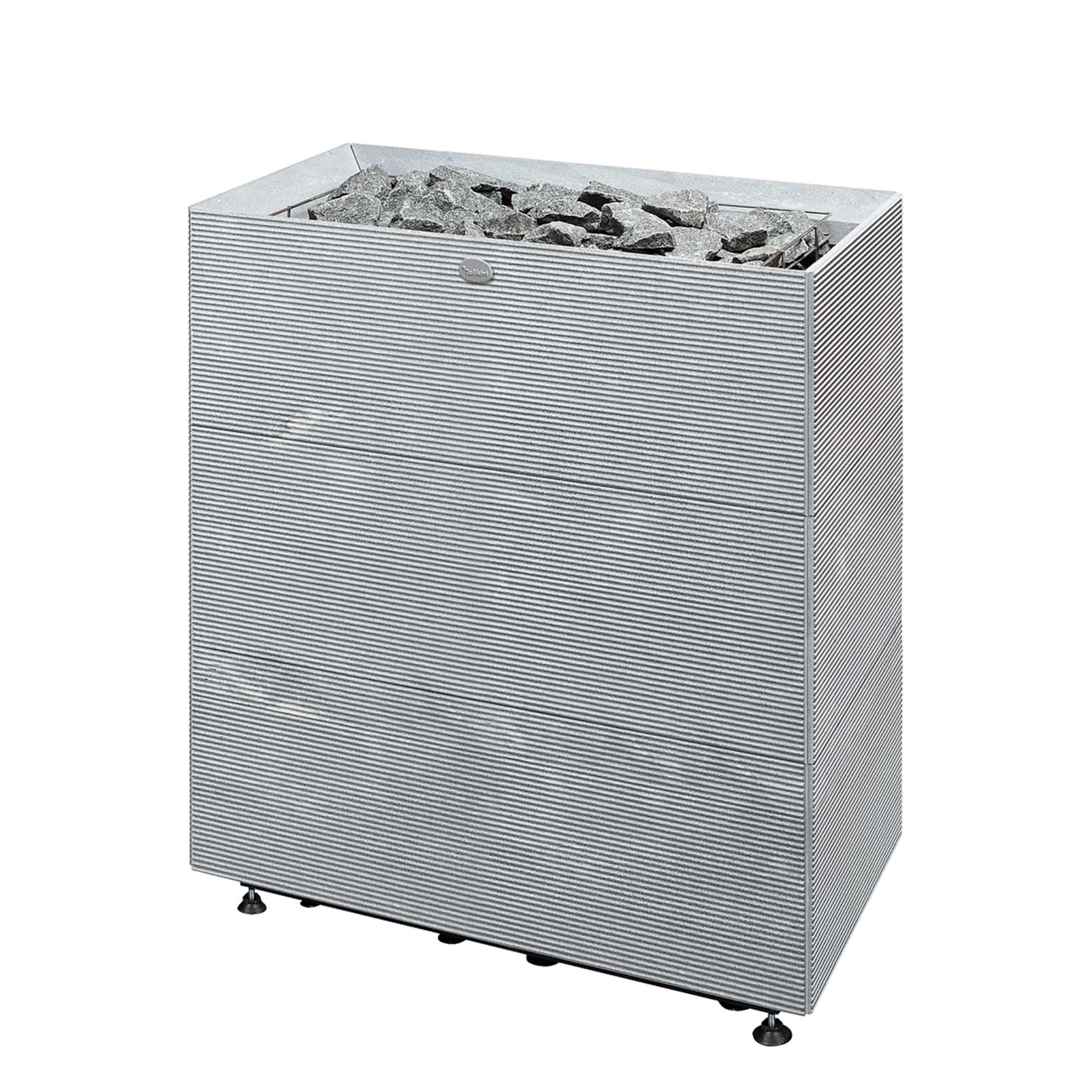

The Tuisku XL electric sauna heater blends elegant design with advanced technology to deliver a soft and humid sauna experience. The heater's exterior is clad in lavishly ribbed Finnish soapstone, which not only enhances its luxurious appearance but it also retains heat effectively, ensuring the sauna dries efficiently after use. The robust XL is an excellent choice in larger saunas, spas and gyms.
Small Safety Distances - The Tuisku XL can be easily integrated into the sauna benches due to its small safety distances to combustible materials.
The ribbed soapstone of Rigata enhances and lightens the stone's surface, creating a striking visual effect. Its captivating texture can be further highlighted with strategic sauna lighting.
To Be Bought Together With
Two Sauna Heater Bodys: Tulikivi D-Body with heating elements. Available in 6.8kW, 9kW or 10.5kW. Two are required for the Tuisku XL heater cladding:
Sauna Stones: 120kg ⌀ 5-10cm sauna stones (Olivine, Vulcanite or Rounded Olivine). The white cover stones can also be bought separately, but they are mainly decorative and should only make up the top layer.
Control Unit: Tulikivi Complete Wi-Fi Control System or the HUUM UKU Range. These heaters can also be integrated into a Smart-Home system with the optional KNX SIM Relay Card.
Product Specification
| Model | Tuisku XL 136 Rigata | Tuisku XL 180 Rigata | Tuisku XL 210 Rigata |
| Computational volume | 12–20 m³ | 18–30 m³ | 24–36 m³ |
| Group effect | 6.8 kW + 6.8 kW | 9 kW + 9 kW | 10.5 + 10.5 kW |
| Total effect | 13.6 kW | 18 kW | 21 kW |
| Cladding material / finish | Soapstone - Rigata | Soapstone - Rigata | Soapstone - Rigata |
| Dimensions | |||
| Height | 950 mm | 950 mm | 950 mm |
| Width | 766 mm | 766 mm | 766 mm |
| Depth | 430 mm | 430 mm | 430 mm |
| Empty weight | 300 KG | 300 KG | 300 KG |
| Stone capacity | 120 KG | 120 KG | 120 KG |
| Electrical (3N~ 400V) | |||
| Front Fuse | 3 x 10 A (X2) | 3 x 16 A (X2) | 3 x 16 A (X2) |
| Cable Gauge |
5-core 1.5 mm² H07RN-F (X2) |
5-core 2.5 mm² H07RN-F (X2) |
5-core 2.5 mm² H07RN-F (X2) |
| Compatible Controllers | Tulikivi Wi-Fi Complete Set, Tulikivi KNX* or HUUM UKU Range | ||
| Safety distances** | |||
| To the sides (above 900 mm) | 50 mm | 50 mm | 50 mm |
| To the sides (below 900 mm) | 20 mm | 20 mm | 20 mm |
| To the wall | 50 mm | 50 mm | 50 mm |
| To the ceiling | 950 mm | 950 mm | 950 mm |
* The Tulikivi KNX SIM Relay Card for Smart-Home integration is an optional accessory and will require a Tulikivi Contactor Box, included with the Tulikivi Wi-Fi Complete Set.
** Minimum distances to combustible materials
Warranty
The warranty shall be valid for 24 months following the date of purchase of the product or the date of receiving it at the building site where the product is to be located, whichever is the later date.
For saunas in commercial or shared use the warranty is valid for 12 months.
Please note that the heating elements are not included in the warranty.
Please see the "Downloads" tab for full warranty details.
