              Description



          About this Sauna Heater

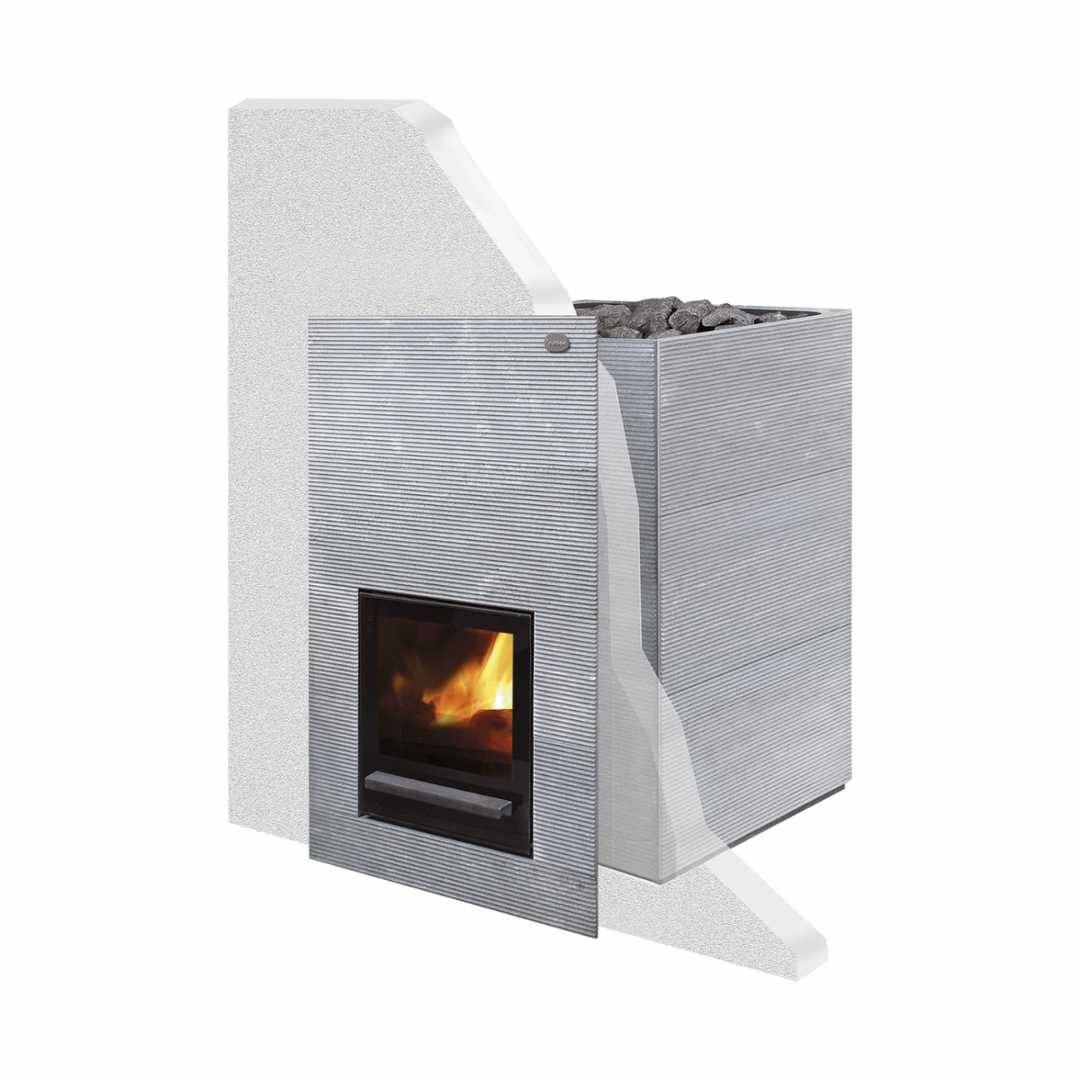

The Kinos sauna stove provides a soft, comfortable sauna experience and an atmospheric fireplace for your home.
Kinos is fired through a door that opens into a room next to the sauna. This wood burning stove allows you to heat up the sauna from another room, whilst simultaneously serving as a fireplace. A soapstone frame can be installed around the large glass door of the heater, turning the firebox into a modern and stylish fireplace. The soapstone sauna stove frame is to be purchased separately. Please get in touch with our sauna specialists to enquire.
The horizontally grooved Rigata cladding creates a brighter look to the surface of the soapstone, which can be emphasized with lighting.
*Correct amount of stones and the flue kit to be purchased separately*
This heater requires up to 60kg sauna stones. We recommend using 3 x 20kg boxes of 10-15cm Olivine Diabase or Vulcanite Sauna Stones for optimal performance.
Key Features of the Tulikivi Kinos Rigata Wood Burning Sauna Heater
- Innovative Finnish Design and Production
- High efficiency and low emissions
- Large glass door and a simple but elegant handle
- The height of the optional protective ring is adjustable
- The large stone compartment provides a long lasting, humid and soft heat
Technical Specification:
Dimensions:
| Width | 500 mm |
| Depth | 600 mm |
| Height | 900mm |
| Weight | 300 kg |
| Firebox width | 400 mm |
| Firebox depth | 400 mm |
Heating Technology:
| Heater output | 20 kW |
| Amount of wood | 8 kg/h |
| Size of sauna room | 8-20 m3 |
| Flue class | T600 |
| Amount of stones | 60 kg |
Safety Distances:
| Side and back | 200 mm |
| Front | 1000 mm |
| To the ceiling | 1000 mm |
| To the floor | 40 mm |
Flue connection details:
| Location of smoke outlet, Rear (from the floor to centre of the outlet) | 770 mm |
| Location of smoke outlet, Top (from the rear edge to the middle of the outlet) | 175 mm |
| Smoke outlet diameter | 115 mm |


              Technical Specification



          Technical Specification:
Dimensions:
| Width | 500 mm |
| Depth | 600 mm |
| Height | 900mm |
| Weight | 300 kg |
| Firebox width | 400 mm |
| Firebox depth | 400 mm |
Heating Technology:
| Heater output | 20 kW |
| Amount of wood | 8 kg/h |
| Size of sauna room | 8-20 m3 |
| Flue class | T600 |
| Amount of stones | 60 kg |
Safety Distances:
| Side and back | 200 mm |
| Front | 1000 mm |
| To the ceiling | 1000 mm |
| To the floor | 40 mm |
Flue connection details:
| Location of smoke outlet, Rear (from the floor to centre of the outlet) | 770 mm |
| Location of smoke outlet, Top (from the rear edge to the middle of the outlet) | 175 mm |
| Smoke outlet diameter | 115 mm |
