Finnmark Sauna

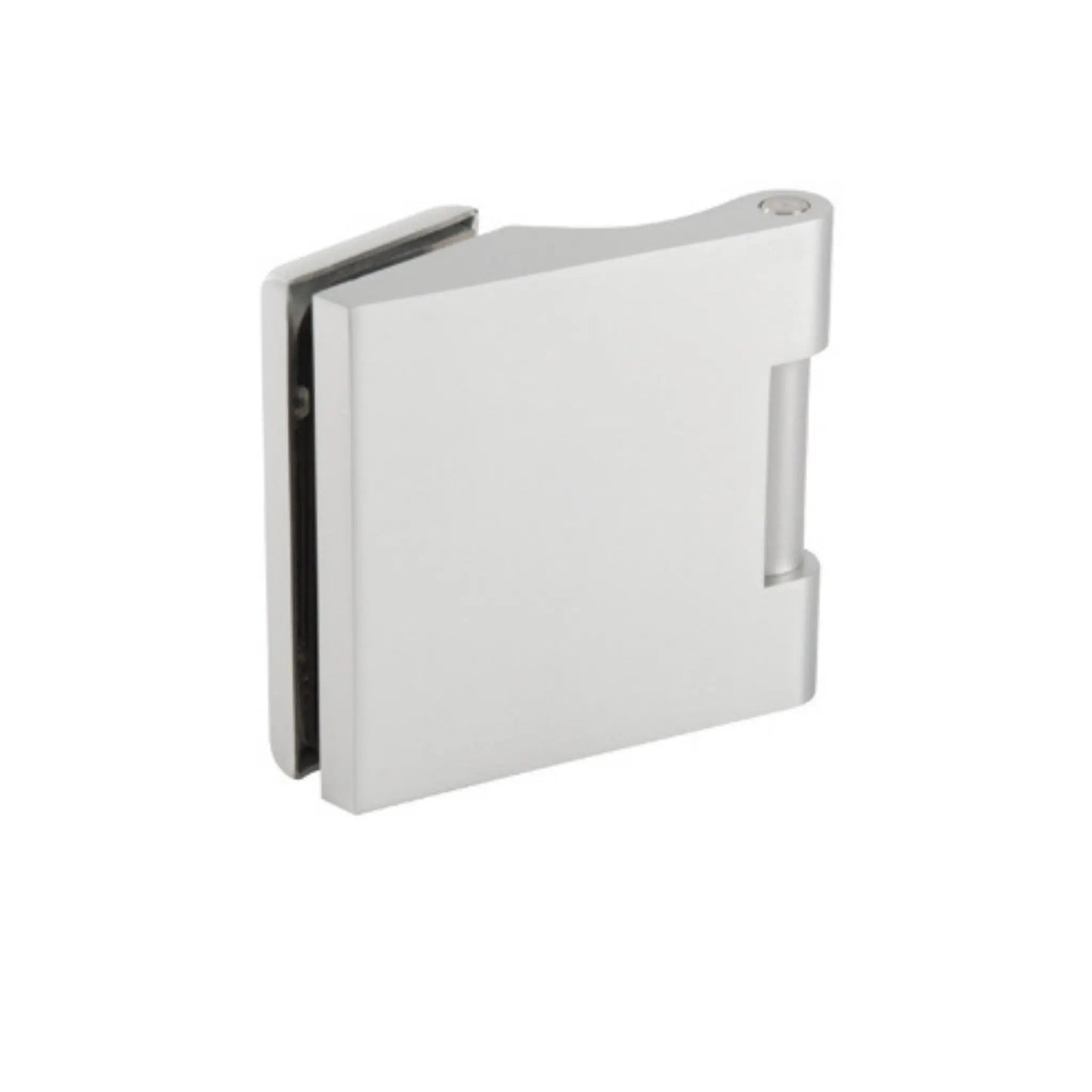

Sauna Glass Door Aluminium Hinge (3-part with Sleeve)
Sauna Glass Door Aluminium Hinge (3-part with Sleeve)
Couldn't load pickup availability
Description
Description
An aluminium three-part hinge with sleeve for sauna glass doors, from the Alea line, designed for sleeve installation in frames according to DIN 18101/18111. It suits tempered glass of 8–10 mm or laminated glass of 8.76–10.76 mm, with a rebate depth of 24 mm for 8 mm glass and 26 mm for 10 mm glass. A pair carries doors up to 42 kg and 1000 mm wide, and we recommend two hinges per door; prices shown are per single hinge. The suitable sauna frame pivot is sold separately, and we recommend ordering it with the hinge.
Features
Technical Specification
| Technical data | |
| Line | Alea |
| Material | Aluminium |
| Installation | Sleeve installation in frames according to DIN 18101/18111 |
| Rebate depth | 24 mm (for 8 mm glass); 26 mm (for 10 mm glass) |
| Glass thickness | Tempered glass 8–10 mm; laminated glass 8.76–10.76 mm |
| Door type | Stopper |
| Mounting | Not stated by the manufacturer |
| Max. door weight per pair | 42 kg |
| Max. door height | Not stated by the manufacturer |
| Max. door width | 1000 mm |
| Hold position | Not stated by the manufacturer |
| Self-closing function | No |
| Quantity | 2 hinges recommended per door; prices shown are per 1 item |
Ordering
The suitable sauna frame pivot is sold separately, and we recommend ordering it with the hinge. If you are unsure which pivot you need, contact support@finnmarksauna.com.
