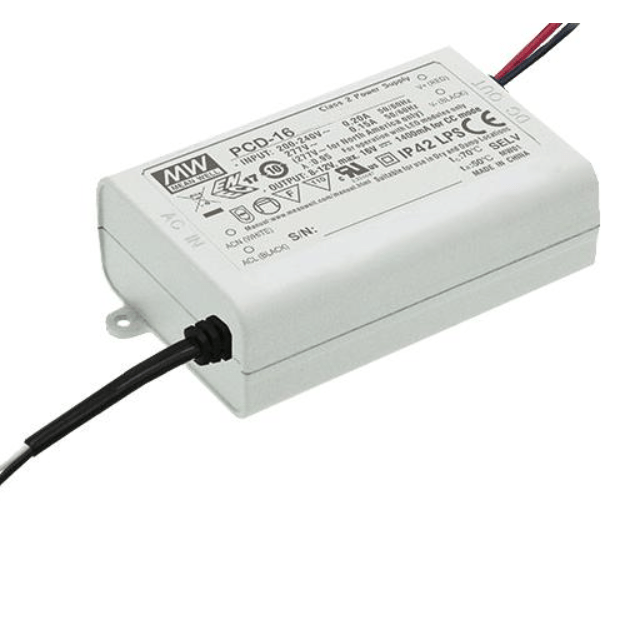

PCD-16-350B LED Driver (16.8W, 48V, 350mA)

Description

PCD-16 series single output AC dimmable LED power supply, suitable for sauna lighting.

Product Specification

AC phase-cut dimming
Works with leading edge and trailing edge TRIAC dimmers
Protections: Short circuit / over temperature
IP42 design, class II power unit, no FG
100% full load burn-in test
16.8W output rated power, 82% typical efficiency
Built-in active PFC function, constant current design
Cooling by free air convection, fully isolated plastic case
350mA output rated current, 24 ~ 48V operating output voltage range
Working temperature range: -30 to +60℃
Dimensions (L x W x H): 84mm x 57mm x 29.5mm

Installation

Downloads

PCD-16 Series Technical Specification

Warranty

Delivery & Returns

For details, see our delivery information here.
