MiFlues

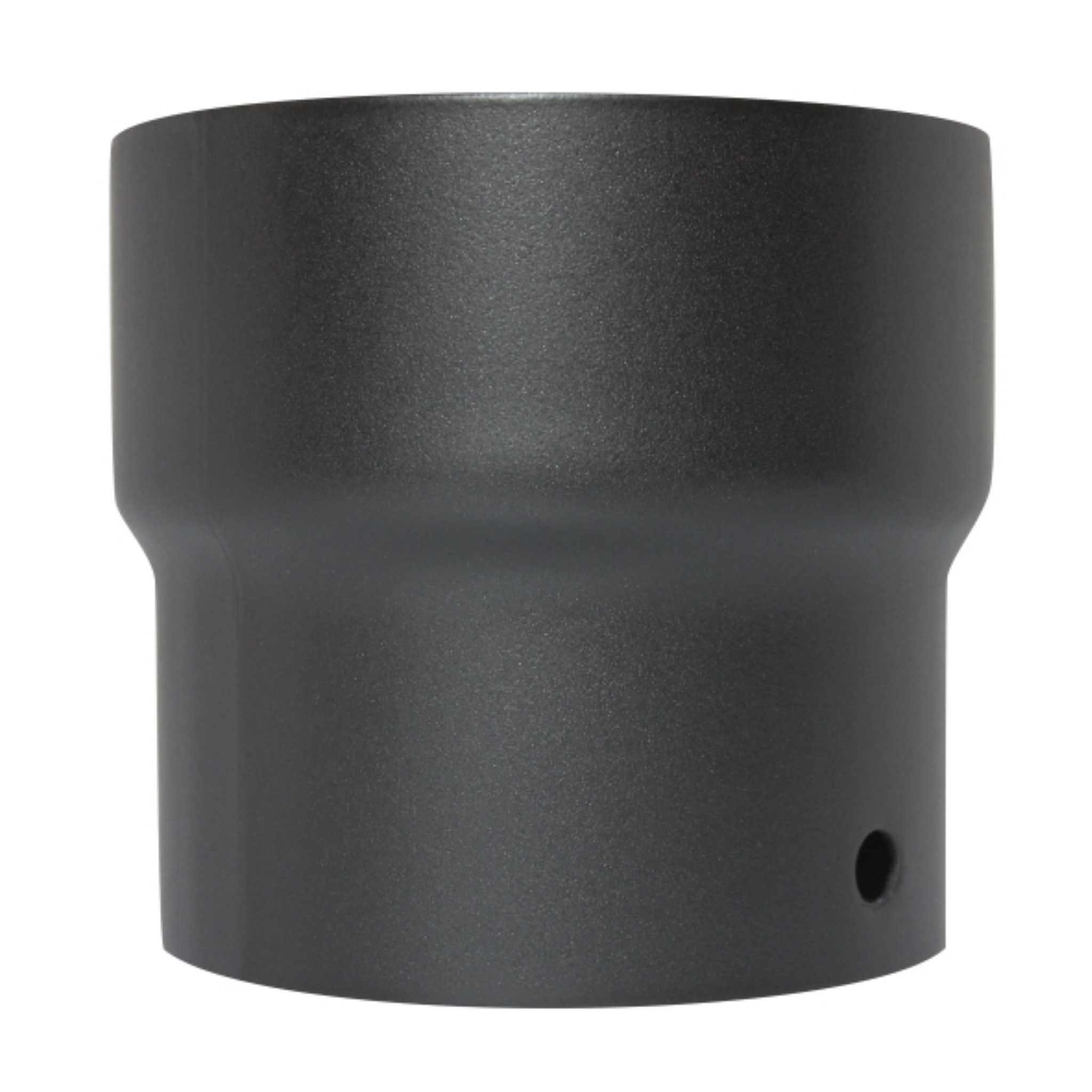

Wood-Burning Stove Adaptor Enamelled Steel Ø 125mm
Wood-Burning Stove Adaptor Enamelled Steel Ø 125mm
Couldn't load pickup availability
Description
Description
This enamelled steel adaptor is the connecting pipe between a stove and its flue liner, chimney stack or twin wall flue system. Part of a single-skin connecting flue range, it is manufactured in zero carbon steel with a powder vitreous enamel coating in matt black, and suits gas, oil and solid fuel appliances at temperatures up to 600°C. The joints are a friction fit, so no sealing is required, and the pipe is designed to be cut to length where needed. It is for connection only: it must not be used to pass through ceilings or combustible walls, and should be kept at least 375 mm from combustible materials.
Features
Technical Specification

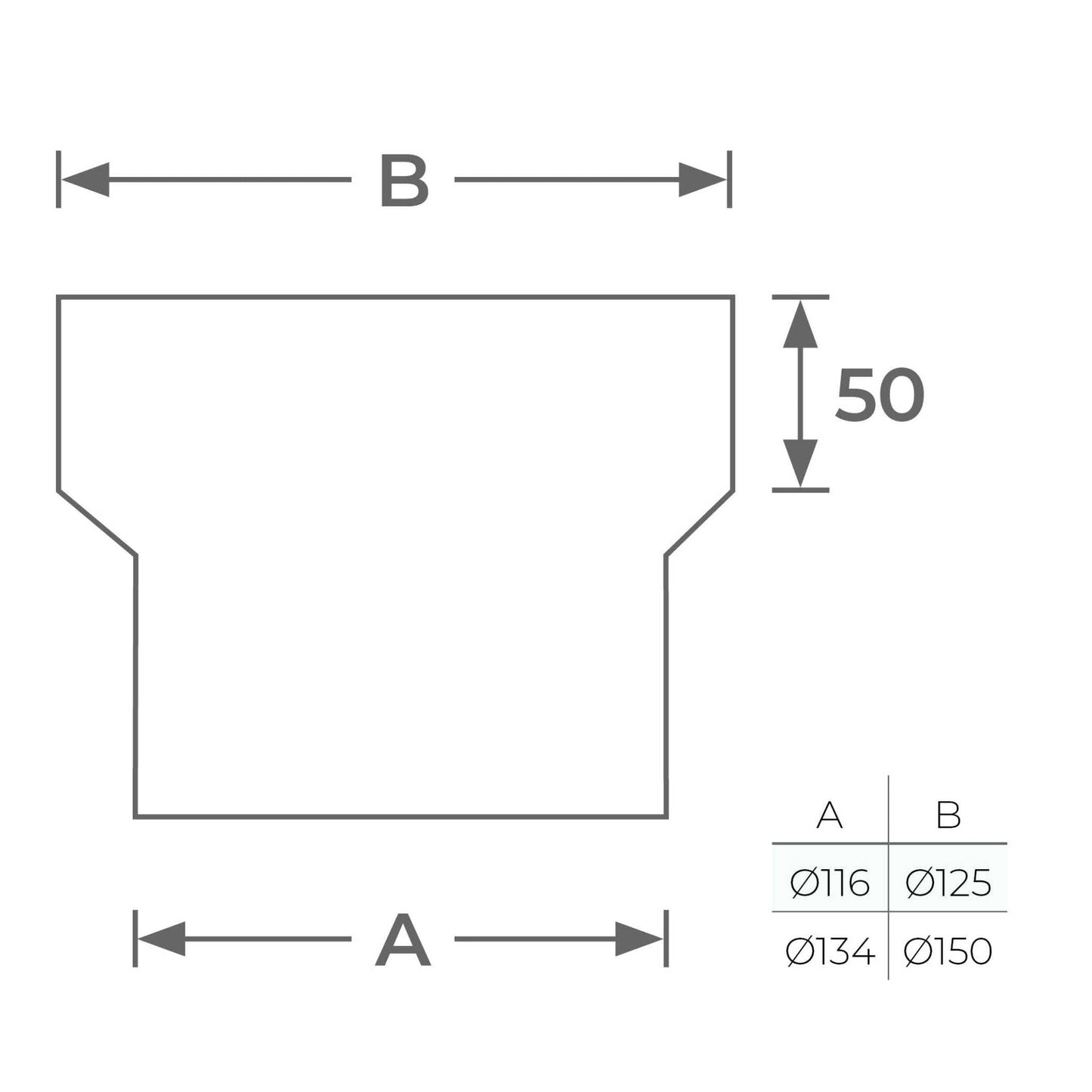

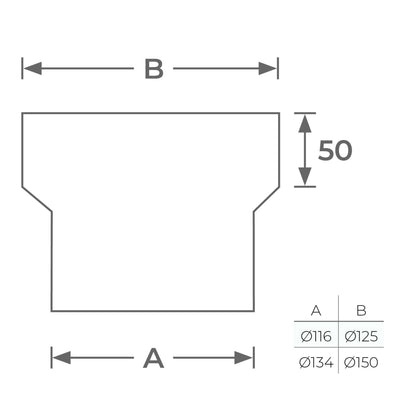

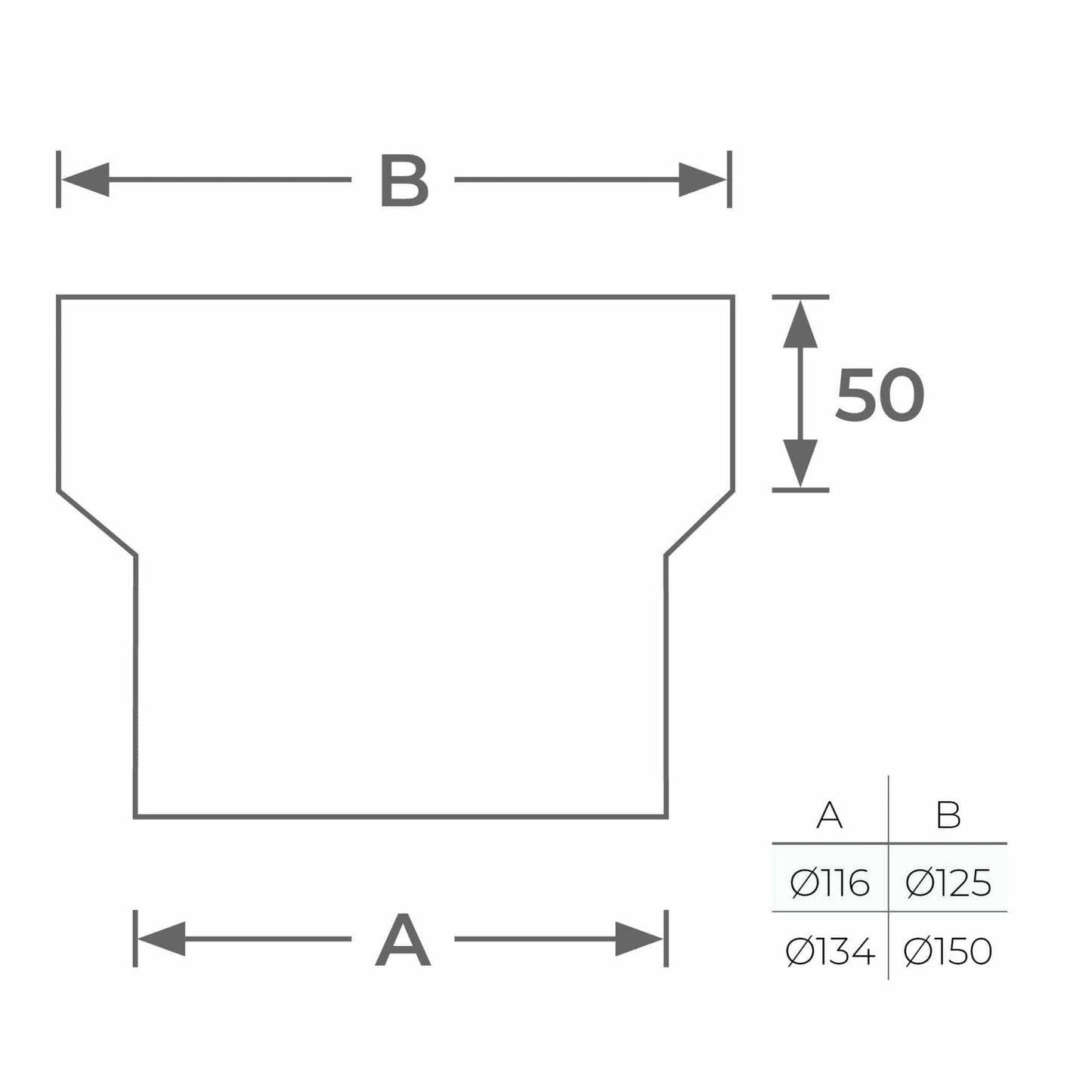

| Specification | |
| Diameter | Ø 125 mm |
| Construction | Single-skin connecting flue system in zero carbon steel |
| Finish | Powder vitreous enamel coating, matt black |
| Temperature rating | Up to 600°C |
| Suitable appliances | Gas, oil and solid fuel |
| Application | Connecting pipe between appliance and flue liner, chimney stack or twin wall flue system only; not for passing through ceilings or combustible walls |
| Brand | MiFlues |
| SKU | 67-125-001 |
Installation
Do not install the adaptor within 375 mm of combustible material such as wood or plasterboard. Fit it the correct way up, with the smaller diameter pointing downward, so condensates stay within the flue system and do not pass to the outside. The friction fit joint does not require sealing; for extra security, each joint can be coated with a jointing compound such as fire cement or high-temperature silicone sealant, which also ensures no condensate can escape and spoil the appearance of the pipe. The adaptor is designed to be cut, but any exposed steel must be covered with high-temperature paint or it will rust over time. Appropriate PPE should be worn at all times when installing.
Maintenance
Make provision for inspecting and cleaning the chimney, which is particularly important on solid fuel installations; access doors at changes of direction achieve this. Chimneys serving solid fuel appliances should be swept and maintained as frequently as necessary, and at least once a year.
Ordering
We recommend that flue and chimney products are installed by a suitably qualified fitter; Finnmark Limited accepts no liability for loss or injury caused by incorrect installation. If you are unsure this part fits your stove, contact support@finnmarksauna.com with your stove model before ordering.
