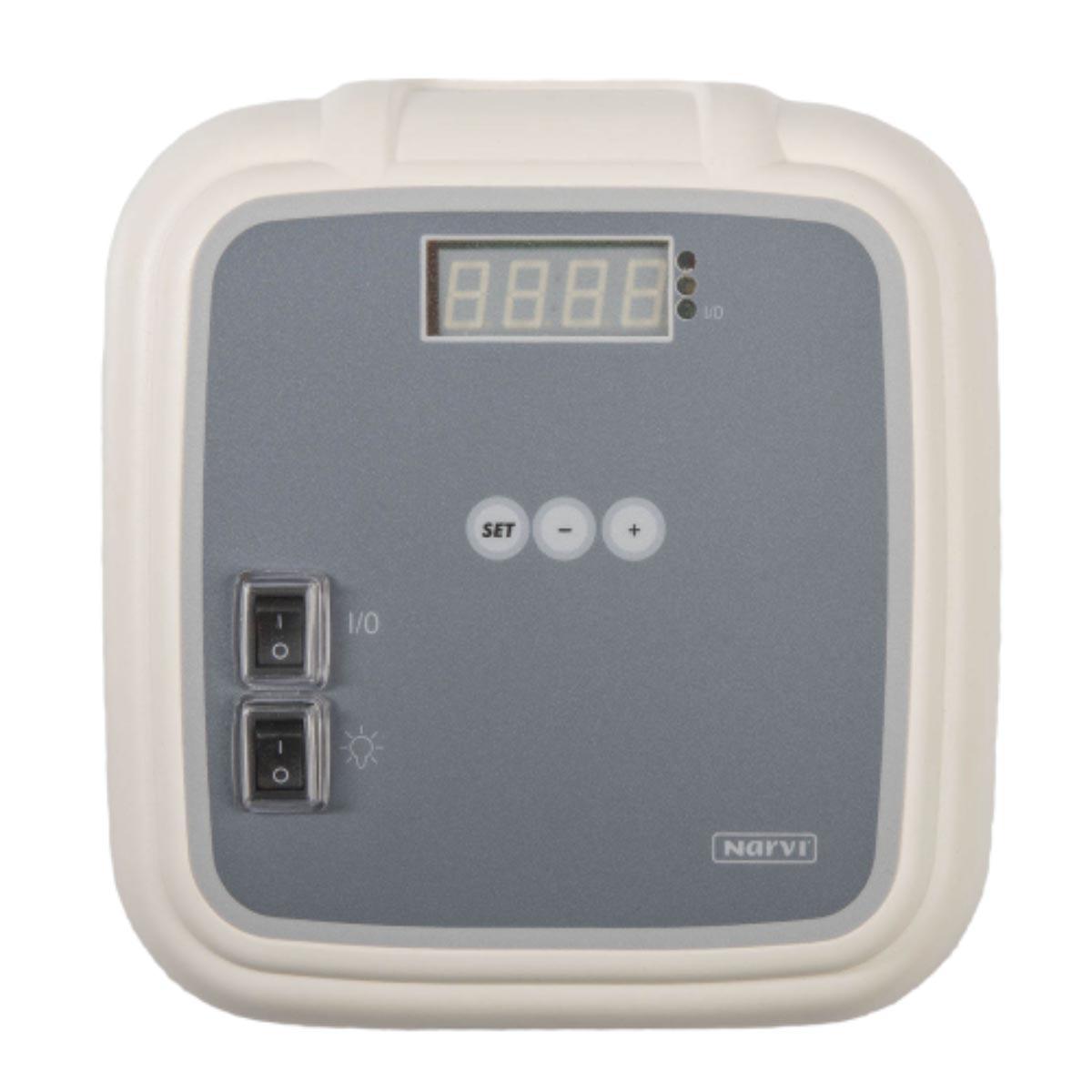

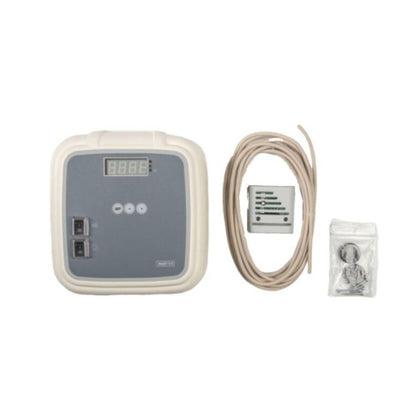

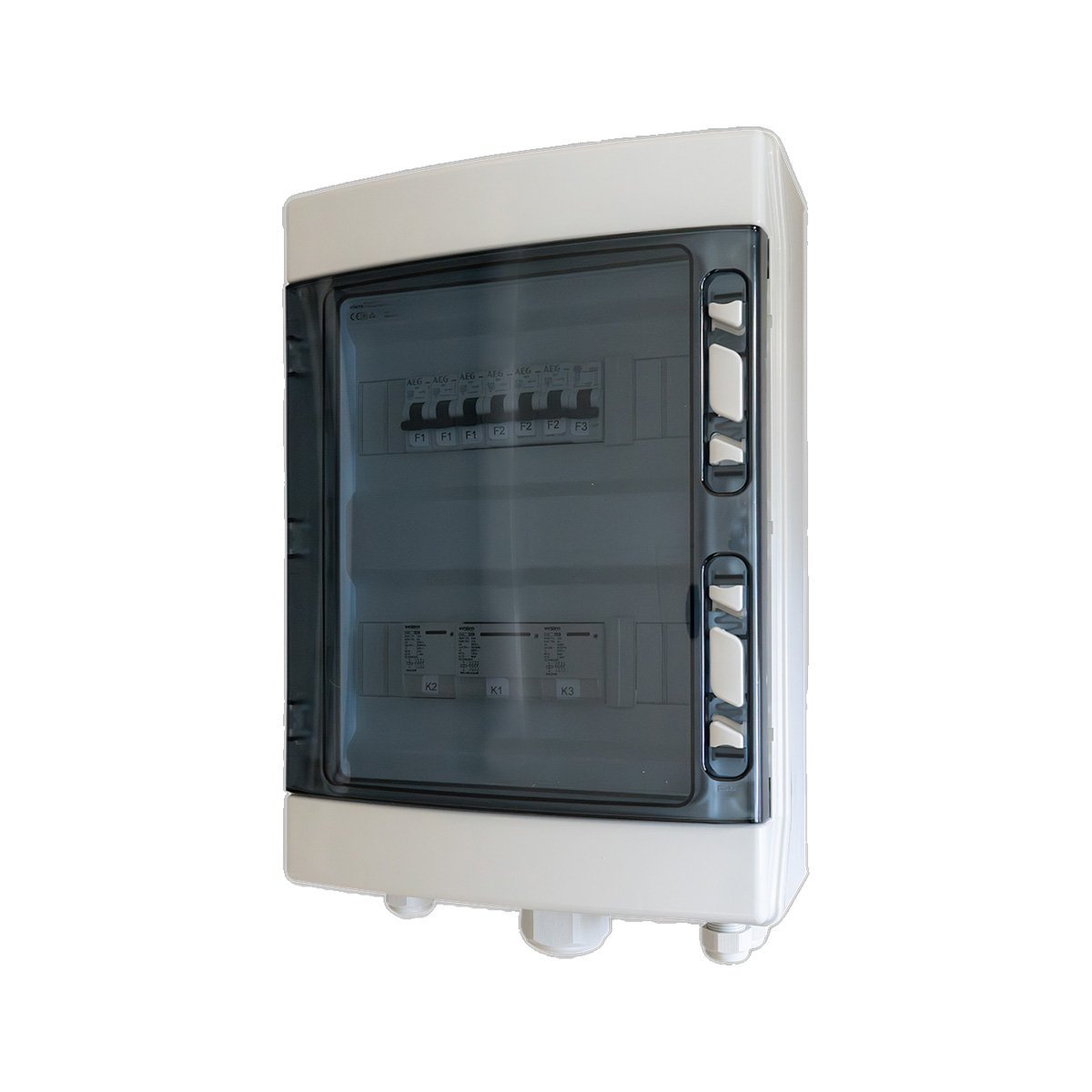

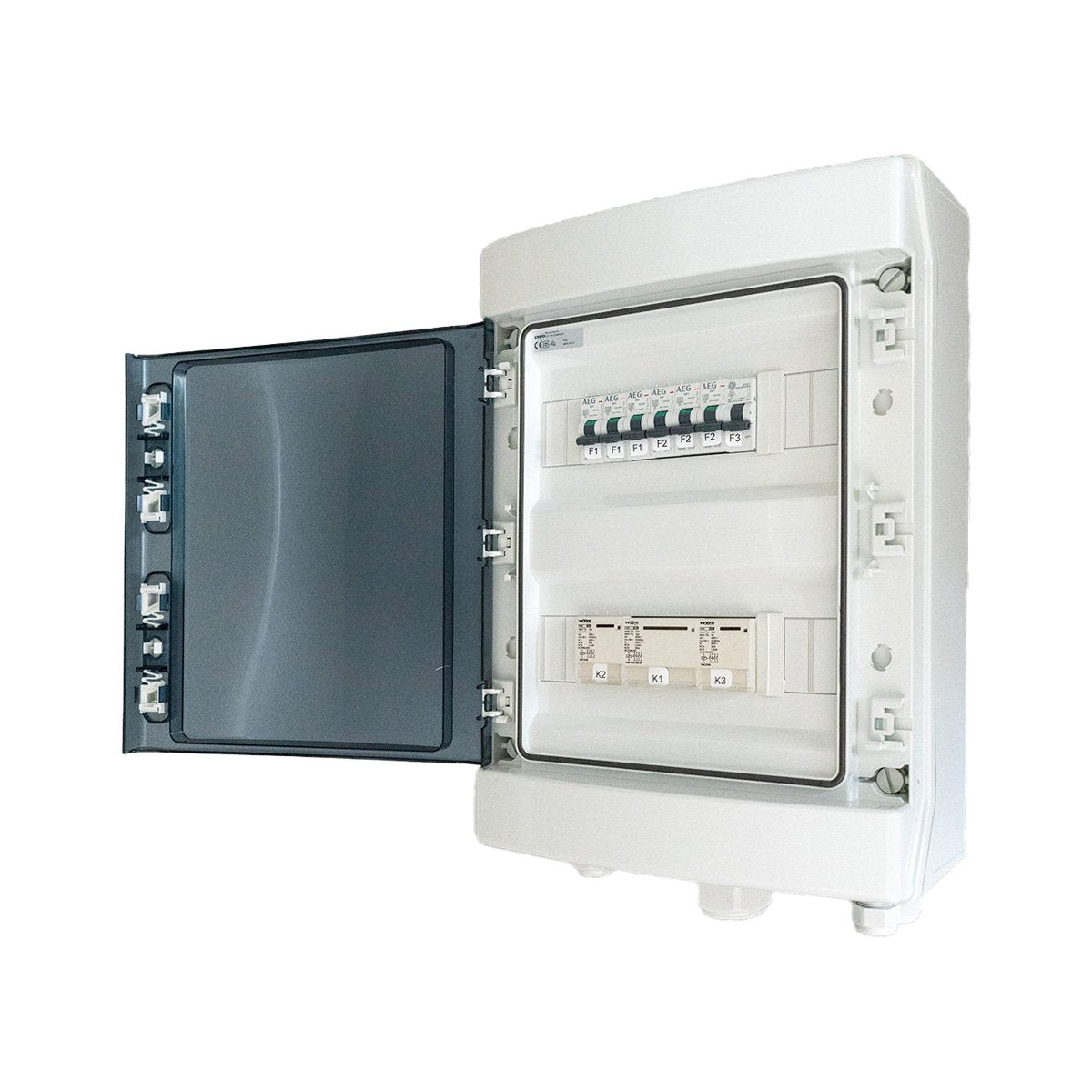

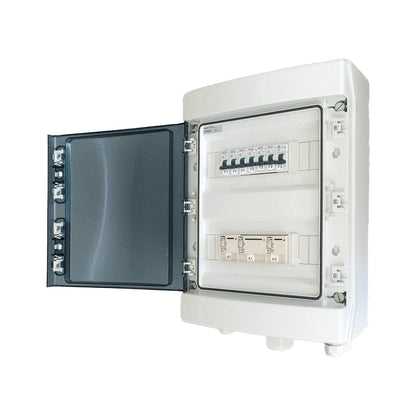

The Narvi Ultra Big commercial sauna heater, with its 18–33 kW output, requires an independent power supply unit, and this listing covers the parts that run it: the F-2003 power supply unit, an external electrical cabinet that switches the heater’s full load, and the C-2003 control unit that commands it. Choose the power supply unit alone, the control unit alone, or both together as a set; the F-2003 only operates with a C-2003, and the C-2003 requires the F-2003 to switch the heater (neither is needed for the Ultra or Ultra Small, which use their own controls). The C-2003 is designed for public saunas, with a weekly clock holding 14 memory slots so two sessions can be programmed for each day, a lighting switch and an external temperature sensor, and it installs outside the sauna room, typically in a technical room or reception. Because commercial installations vary, no cabling is included, which leaves the installer free to specify runs to suit the site.
Features
Technical Specification
| F-2003 power supply unit | |
| Heater output range | 18–33 kW |
| Format | External electrical cabinet |
| Required control panel | Narvi C-2003 (sold separately or as a set) |
| C-2003 control unit | |
| For heaters | 18–33 kW, switched through the F-2003 power supply unit (required) |
| Intended use | Public saunas |
| Temperature adjustment range | 40–115°C, in 1°C steps |
| Temperature display range | 20–125°C |
| Pre-selection timer | Up to 24 h |
| Weekly clock | 14 memory slots (two sessions per day) |
| Maximum switching-on time | 6, 12 or 18 h, or continuous, set by the installer |
| Lighting output | Max 100 W |
| Temperature sensor | External sensor included |
| Mounting | Surface-mounted outside the sauna room; not suitable for flush mounting |
| All options | |
| Cabling | Not included; specified by the installer |
Installation
The C-2003 control unit must be installed outside the sauna room, surface-mounted and fixed to the wall with three screws, with the external sensor installed in the sauna as shown in the manual. The maximum switching-on time is set by the installer using the DIP switches inside the enclosure; in the continuous position the heater switches on as soon as the unit is powered. Electrical installation of the power supply unit and control unit must be carried out by a certified electrician, following the installation manual and local wiring regulations.
Brand
Narvi is a Finnish manufacturer of sauna heaters and control equipment, based in Lappi, Finland. Narvi equipment is CE tested and carries the Finnish Key Flag as a mark of genuine Finnish design and manufacture.
Ordering note
Check your heater model, its rated output and, where relevant, the controller generation before ordering. Electrical installation and replacement of control equipment must be carried out by a certified electrician.
