Narvi

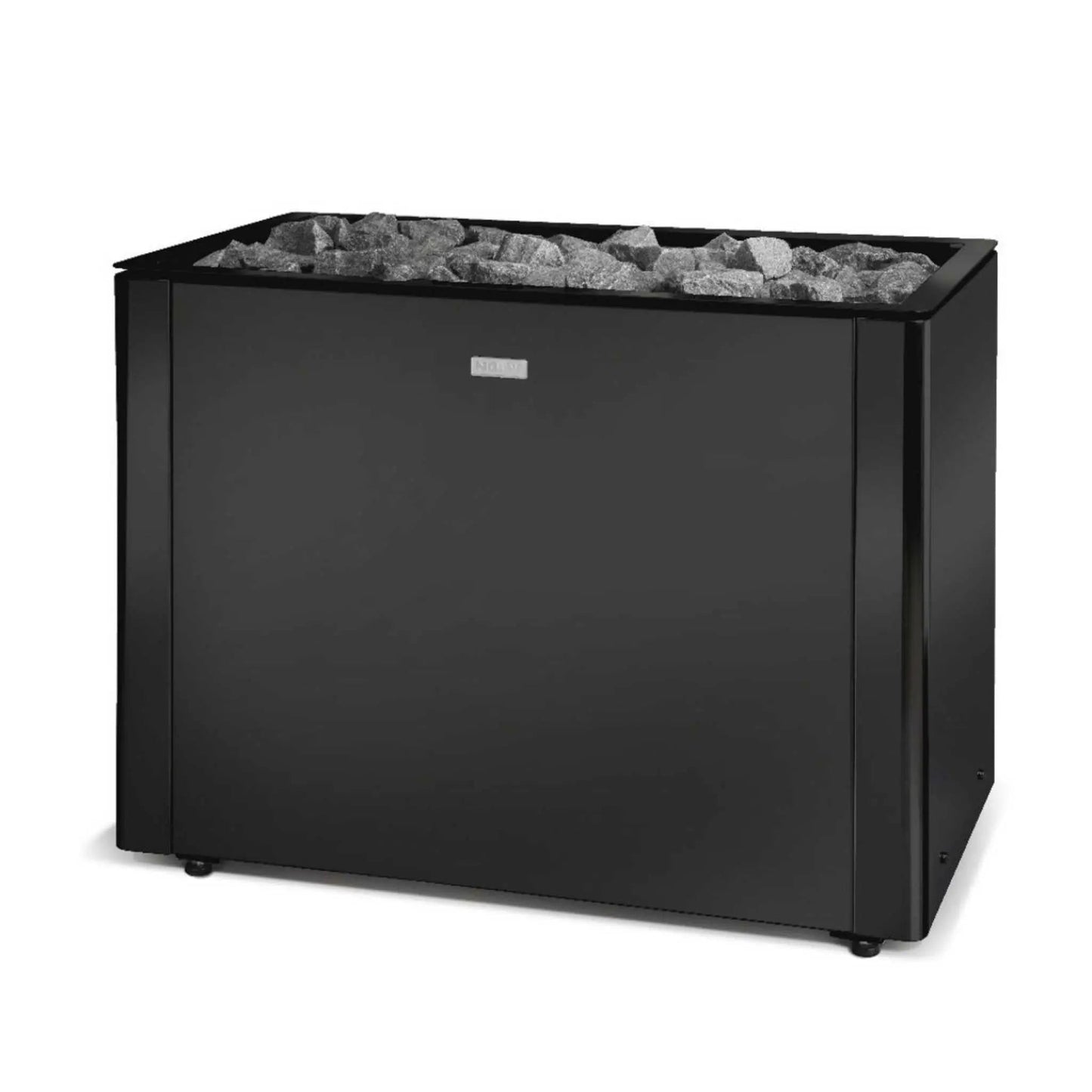

Narvi Ultra Big Black Commercial Electric Sauna Heater

Narvi Ultra Big Black Commercial Electric Sauna Heater

Free Delivery Over £500*

Available to purchase – Special order lead times apply.*

Regular price €2.552,95
Sale price €2.552,95 Regular price
Buy together with:
Learn more about finance
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa

Add to Compare

View full details
Description

Designed for large commercial saunas.



Note: Sauna stones to be purchased separately

This heater requires up to 120kg of sauna stones. We recommend using 5-10cm Olivine Diabase or Vulcanite Sauna Stones for optimal performance.



Product Description

The Narvi Ultra Big large commercial electric sauna heater is ideal electric heaters for large commercial saunas fitted in gyms, spas, hotels and wellness retreats. These heaters can also be fitted in large personal or group saunas. They are the perfect choice for demanding usage requirements, such as being active all day, every day. The Ultra Big is a truly unique, one-of-a-kind commercial heater. No other sauna heater on the market combines the authentic Finnish sauna experience that comes with such a large stone capacity, with such an outstanding build quality and durability. When it comes to heating large authentic commercial saunas, there is no better option that the Narvi Ultra Big.

The Ultra Big is a larger version of the Narvi Ultra and similarly is stainless steel inside and out, with some of the highest material thicknesses on the market. The elements have a market leading thickness and grade, making this the ideal heater for frequent use where water can and should be poured over the stones.

It is certainly true that there are sauna heaters and there are sauna heaters. This is also very much the case for commercial heaters. Most modern hidden/behind-the-bench heaters and commercial heaters simply act as a heater with no stones. This creates an unpleasant löyly and is nothing like the very relaxing and enjoyable experience of authentic Finnish sauna. Sadly however, this is the experience that many of the British public attribute to sauna from their brief encounter with their local health club. This heater will set your sauna apart from the competition by being one of the few truly authentic Finnish electric sauna heaters in the U.K.

The Ultra Big series combines Narvi's renowned build quality and longevity with their market leading stone capacity to provide a commercial heater that is simply like no other on the market. Show your customers what it means to relax and enjoy a true Finnish sauna, with a genuine Finish-made, Finnish-designed commercial sauna heater.

The sauna heater is controlled from a separate control panel that can be installed where required.

Control panel C-2003 for use with the Narvi Ultra Big.

- Heater temperature control 40°C - 115°C (in 1°C steps)
- Temperature display 20°C - 125°C
- 14 memory locations for switch on time (2 times a day)
- The programmed switching-on time can be bypassed
- Switching-on time 6h, 12h, 18h or continuous time
- Control for sauna room lights
- External temperature sensor for sauna room
- Same timer as weekly timer, but two settings/day possible

There is also a thermostat unit, separate from the control panel that ensures that the sauna is kept at the desired temperature. The Ultra Big Control panel C-2003 can be purchased together with the heater at a discount and is also sold separately. The Narvi Ultra Big Power Supply Unit is to be purchased separately.

Product Specification

Model

Ultra Big 18

Ultra Big 24

Ultra Big 30

Computational volume

15-24 m³

20-32 m³

26-40 m³

Effect

9 kW + 9 kW

12 kW + 12 kW

15 kW + 15 kW

Outer casing

Painted black

Painted black

Painted black

Dimensions







Height

680 mm

680 mm

680 mm

Width

860 mm

860 mm

860 mm

Depth

490 mm

490 mm

490 mm

Empty weight

50 KG

50 KG

50 KG

Stone capacity

120 KG

120 KG

120 KG

Electrical (3N~ 400V)





Front Fuse

3 X 35 A

3 X 50 A

3 X 50 A

Supply Cable

5-core 10mm² SWA

5-core 16mm² SWA

5-core 16mm² SWA

Group Fuse 1:
Group Fuse 2:

3 X 16 A
3 X 16 A

3 X 25 A
3 X 25 A

3 X 25 A
3 X 25 A

Group Cable 1:
Group Cable 2:

5-core 2.5 mm² H07RN-F
5-core 2.5 mm² H07RN-F

5-core 4 mm² H07RN-F
5-core 4 mm² H07RN-F

5-core 6 mm² H07RN-F
5-core 6 mm² H07RN-F

Safety distances*







To the sides

160 mm

160 mm

200 mm

To the front

200 mm

200 mm

200 mm

To the ceiling

1400 mm

1400 mm

1500 mm

To the floor

68 mm

68 mm

68 mm

* Minimum distances to combustible materials.

Warranty

The warranty on this Narvi Sauna Heater is 2 years. The heating elements have a 6-month warranty.


About Narvi Oy

Browse our wider Narvi sauna heater collection



Product Disclaimers

All Narvi commercial sauna heaters are CE tested and bear the Finnish Key Flag Symbol. This is awarded to sauna heaters that are made and designed in Finland, where over 95% or more of the production must be within Finland itself. There are many brands that claim to be made in Finland but are actually made in the Far East or Russia and merely assembled or labeled in Finland. Watch out for these symbols as a mark of an authentic, Finnish-made, safe, quality product:

Finnish Key Flag and CE Marked

As part of Finnmark Sauna's Endurance Ethos, we only deal in products that are market leaders in quality. We commit ourselves to search exhaustively for the highest quality authentic Finnish sauna products.

Please note, we recommend that electric sauna heaters should be installed by a suitably qualified electrician/builder/fitter. Finnmark Limited accepts no liability for loss or injury caused by the incorrect installation of your sauna heater. Please Contact Us if you require information on our recommended fitters.
