Narvi Smooth Electric Sauna Heater
Narvi Smooth Electric Sauna Heater
Black Friday£25 Off When You Spend £500 on Selected Heaters & Stones
Available to purchase – Special order lead times apply.*
Couldn't load pickup availability
Buy together with:
Description
Description

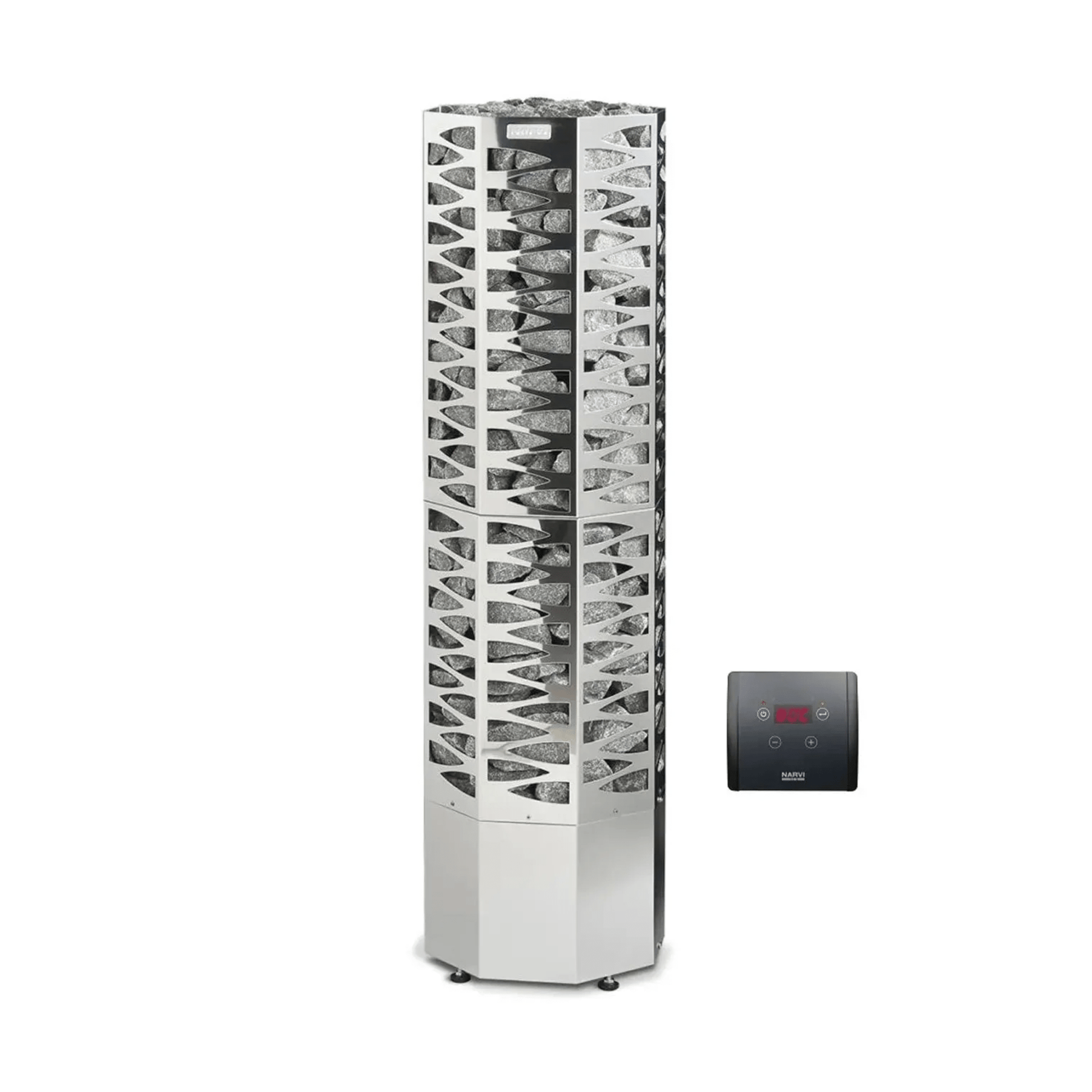

The Narvi Smooth is a Finnish-made tower heater that pairs Narvi’s renowned build quality with an understated Nordic column design, sold here as the 9 kW model in a stainless steel finish with a Narvi control unit included. Its freestanding column holds 100 kg of stones, heated by three full-length 8.5 mm elements that bring the sauna up to temperature quickly and create an excellent soft löyly when water is thrown. The upper part of the casing lifts off, so the lower stones can be placed easily during installation and changed without dismantling the heater. Safety clearances of just 100 mm to the sides and front allow the Smooth to sit in compact saunas and corner positions, and an optional installation flange (shared with the Narvi Softy) lets it be fixed within the benching. The 9 kW model suits sauna rooms of 8–14 m³ and can be connected to a single-phase or three-phase supply; sauna stones are sold separately.
Features
Technical Specification
| All models | |
| Finish | Stainless steel |
| Dimensions (H × W × D) | 1,210 × 320 × 320 mm |
| Weight (without stones) | 15 kg |
| Stone capacity | 100 kg (5–10 cm stones) |
| Control | Narvi control unit included |
| Connection cable type | H07RN-F rubber cable or equivalent |
| Certification | CE tested; Finnish Key Flag |
| Smooth 9 kW | |
| Sauna room volume | 8–14 m³ |
| Minimum sauna room height | 1,900 mm |
| Clearance to the sides | 100 mm |
| Clearance to the front | 100 mm |
| Clearance to the ceiling | 700 mm |
| Clearance to the floor | 30 mm |
| Electrical connection (400 V 3N~) | 5-core 2.5 mm²; fuses 3 × 16 A |
| Electrical connection (230 V 1N~) | 3-core 10 mm²; fuse 1 × 40 A |
Installation
Installation and maintenance must be carried out by a certified electrician, with the electricity supply isolated at the fuse panel before any work begins. Under IEC 60364-7-703 and BS 7671:2018 an electric sauna heater does not have to be connected through an RCD, and for reliable operation the manufacturer recommends that the heater supply is not run through one; other electrical devices in the sauna room should be RCD protected. A local point of isolation covering all live conductors is recommended. The installation manual in the Downloads tab and local wiring regulations must be followed. The Smooth is floor-standing, and its shape permits a corner installation to save space. The optional installation flange allows the heater to be fixed within the sauna benching.
Sauna stones
The Smooth takes up to 100 kg of 5–10 cm stones, and we recommend Olivine Diabase or Vulcanite sauna stones, sold separately. The stones must cover the heating elements completely and should be replaced every six months.
Brand
Narvi is a Finnish maker of sauna heaters, and every Narvi heater is CE tested and carries the Finnish Key Flag, awarded to products designed and made in Finland.
Warranty
The warranty on this heater is 2 years in private use, with a 12-month warranty on the heating elements.
