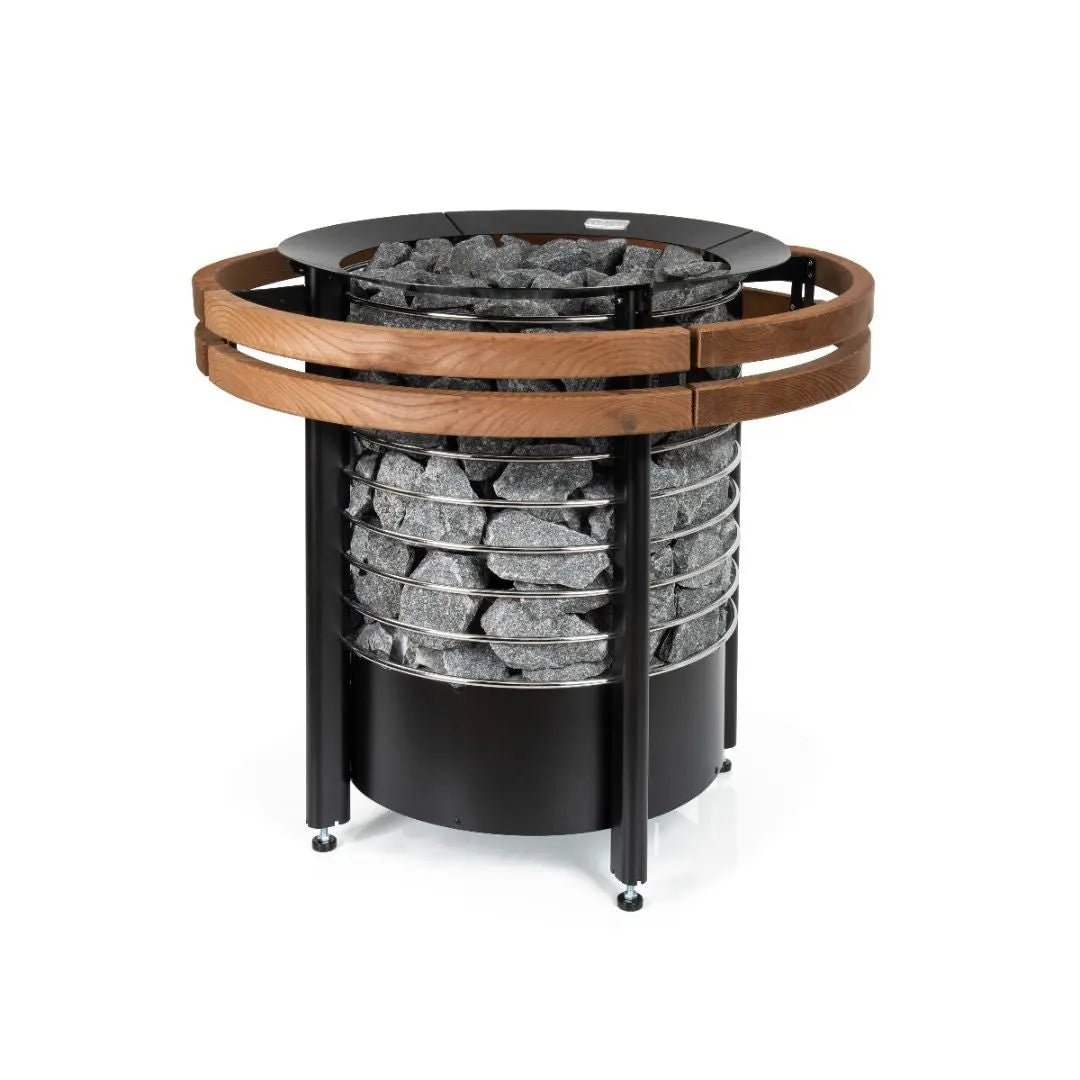

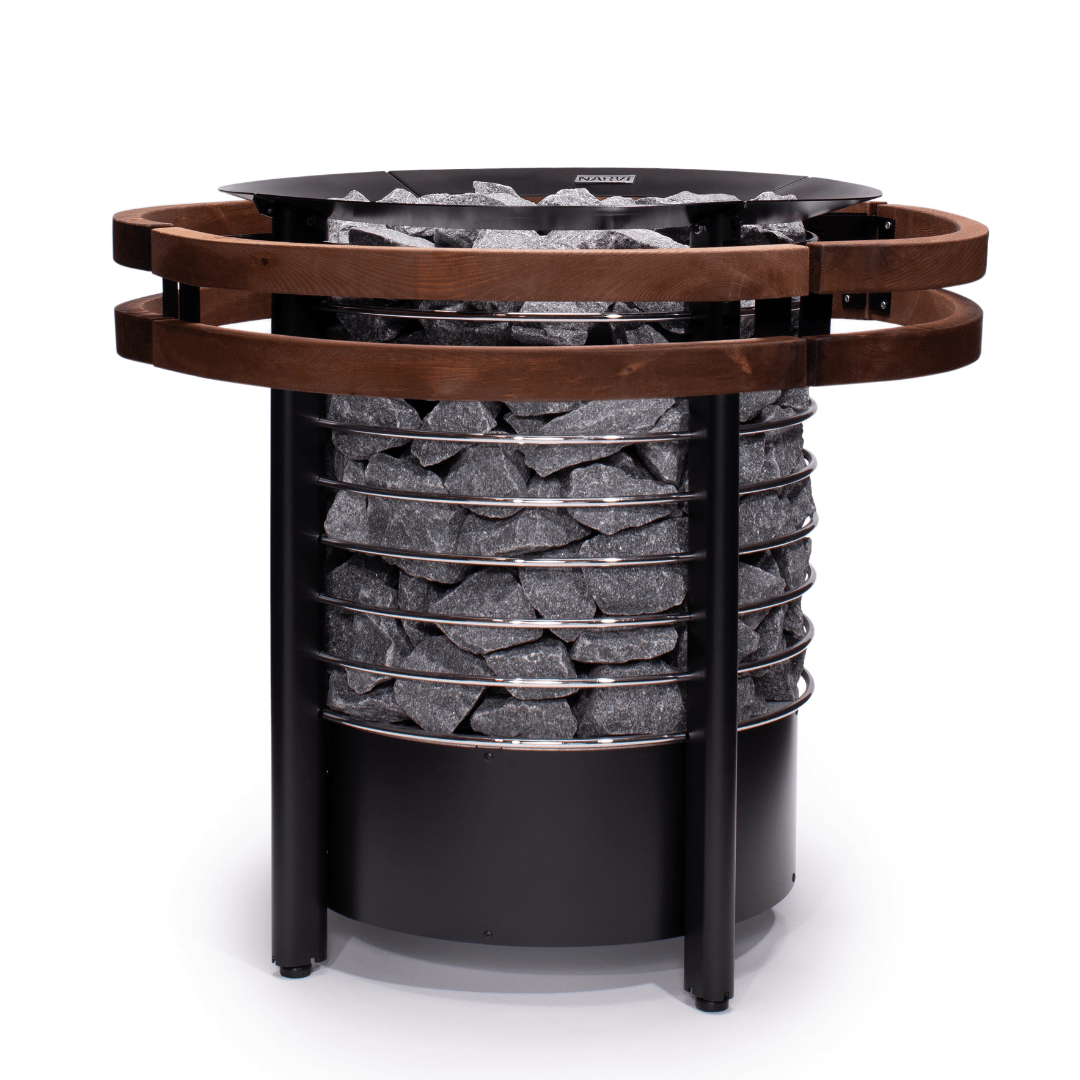

Narvi Peak Commercial Electric Sauna Heater

Translation missing: en.products.product.price.regular_price €2.599,95
Translation missing: en.products.product.price.sale_price €2.599,95 Translation missing: en.products.product.price.regular_price
Tax included.

NOTE:


This product has a lead time, please get in touch for more specific timescales


Learn more about finance
Product Description

About this Narvi Electric Sauna Heater

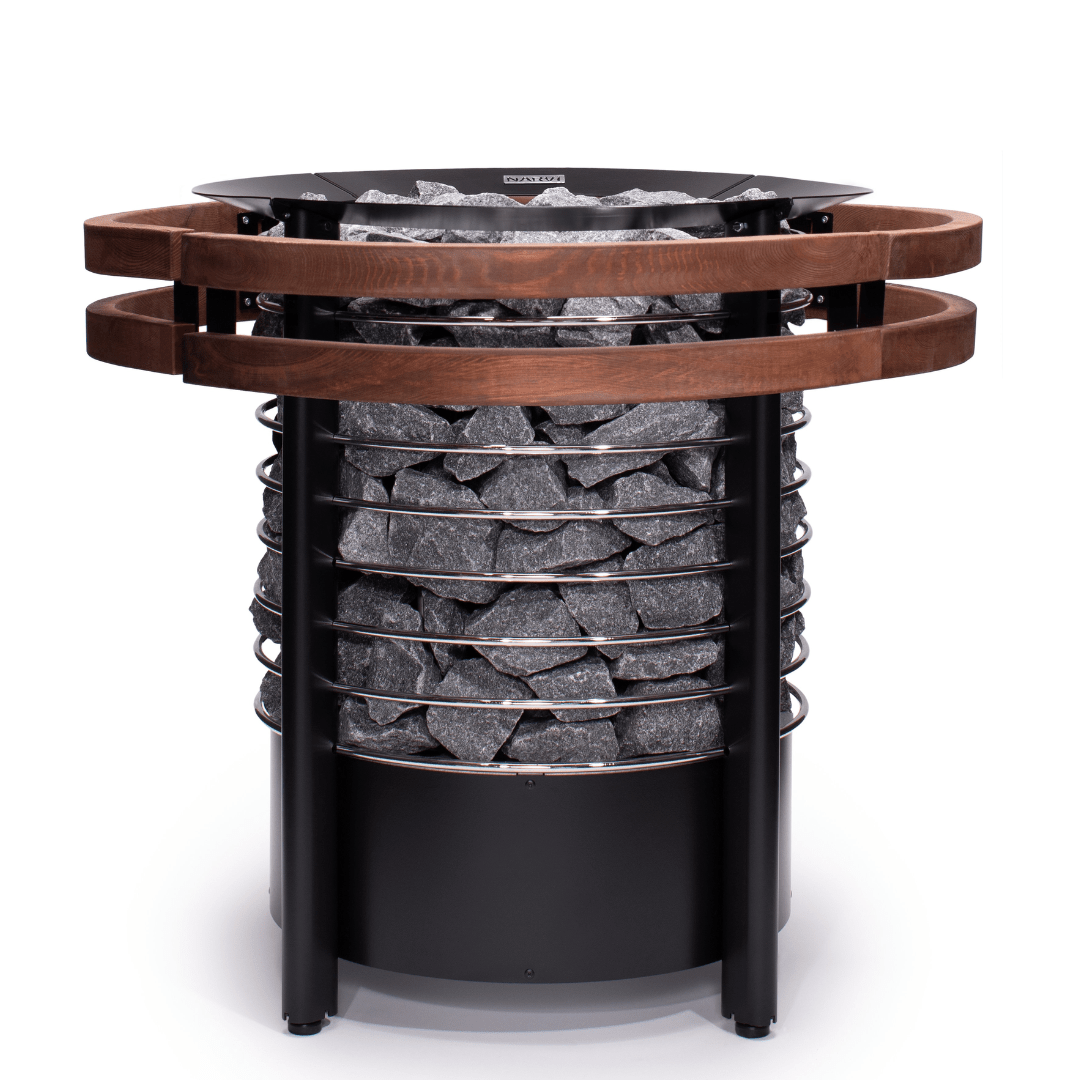

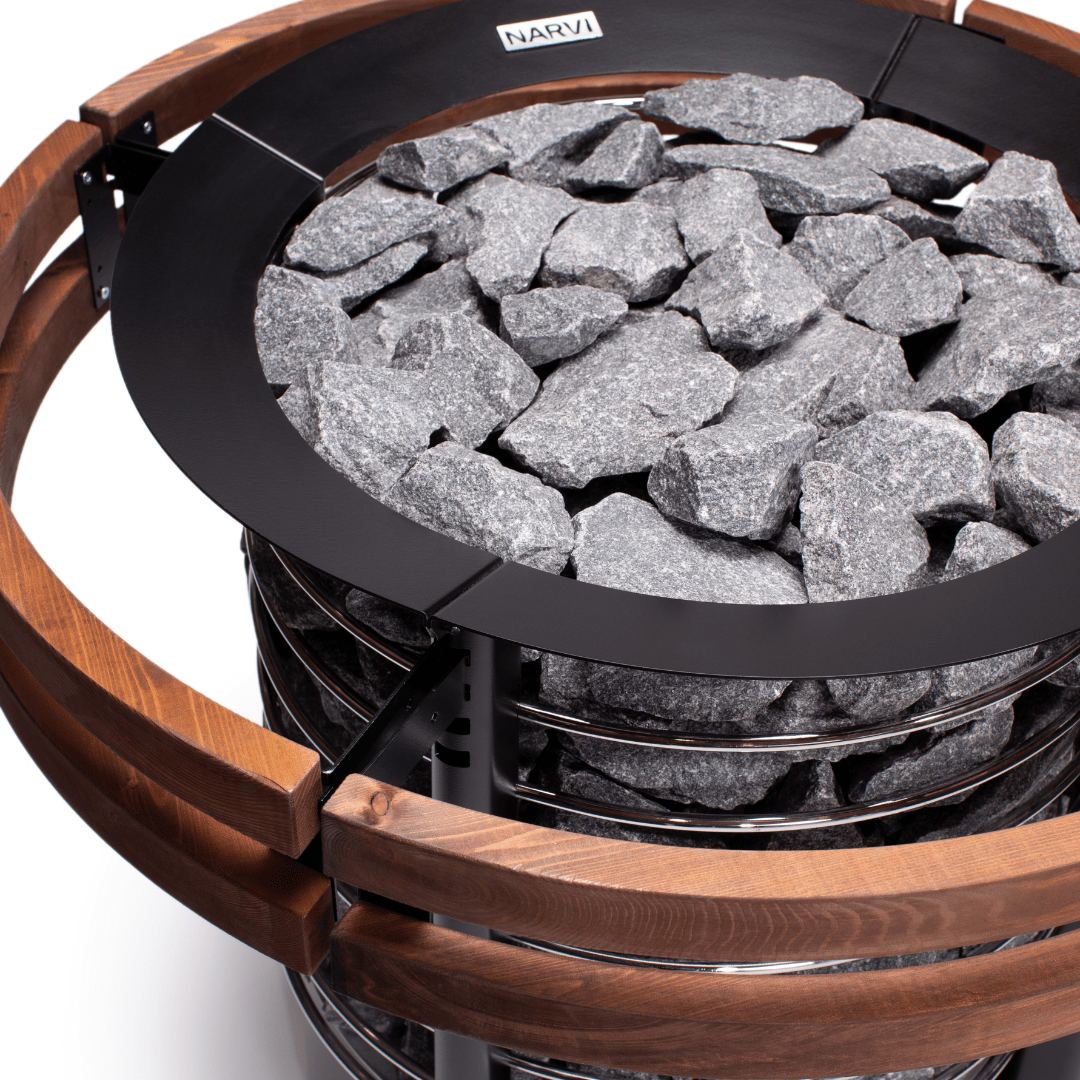

*Stones, thermo pine heater guard & controller to be purchased separately*

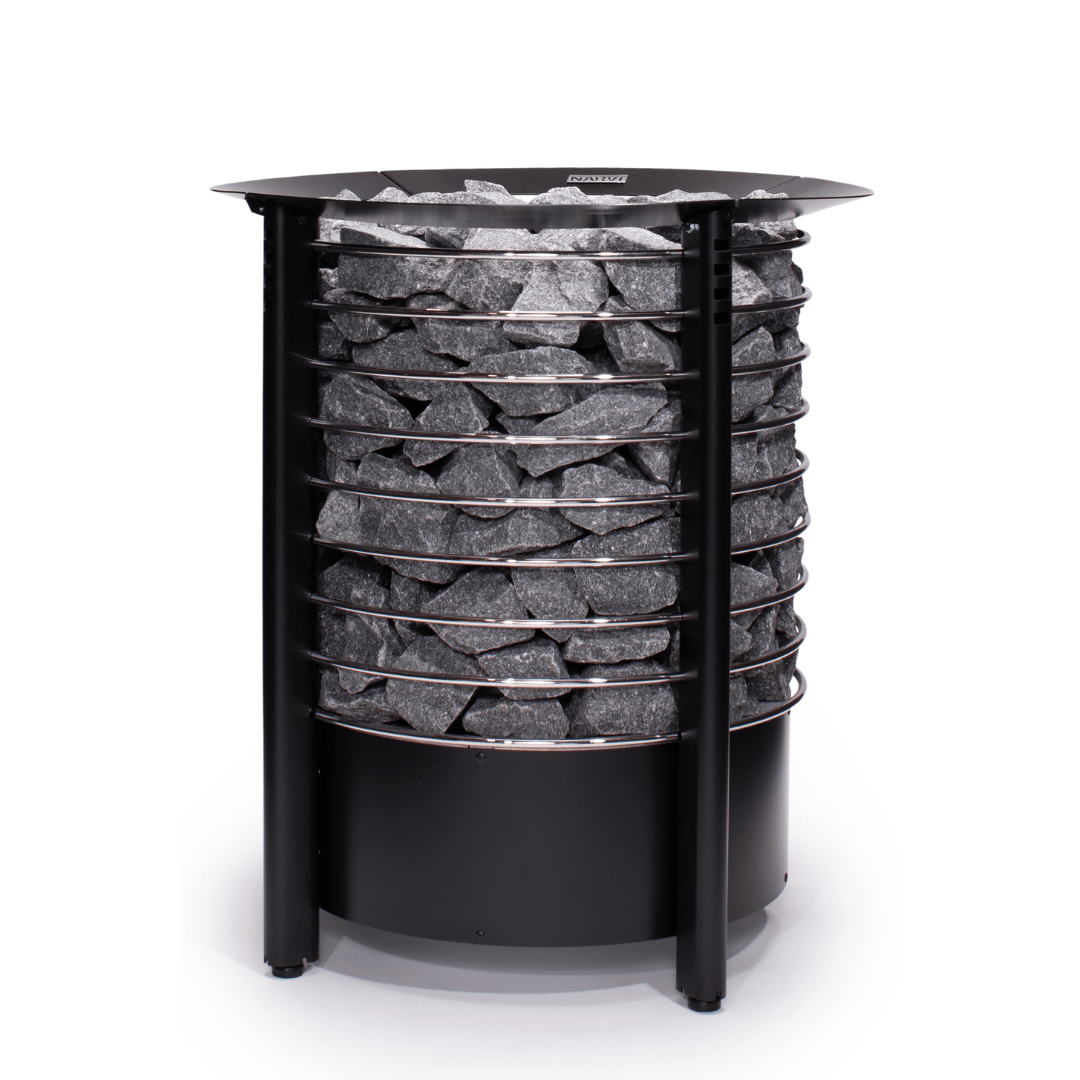

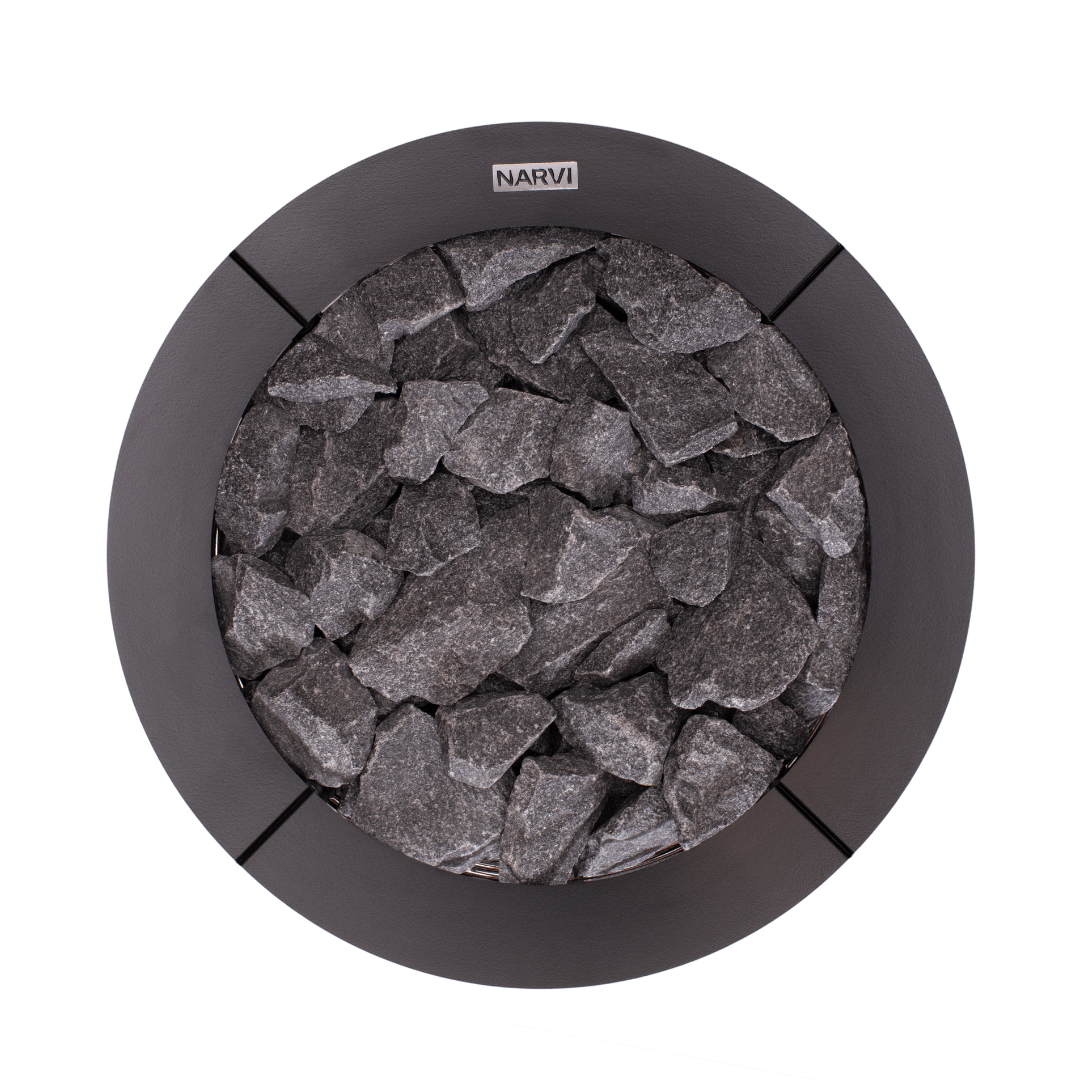

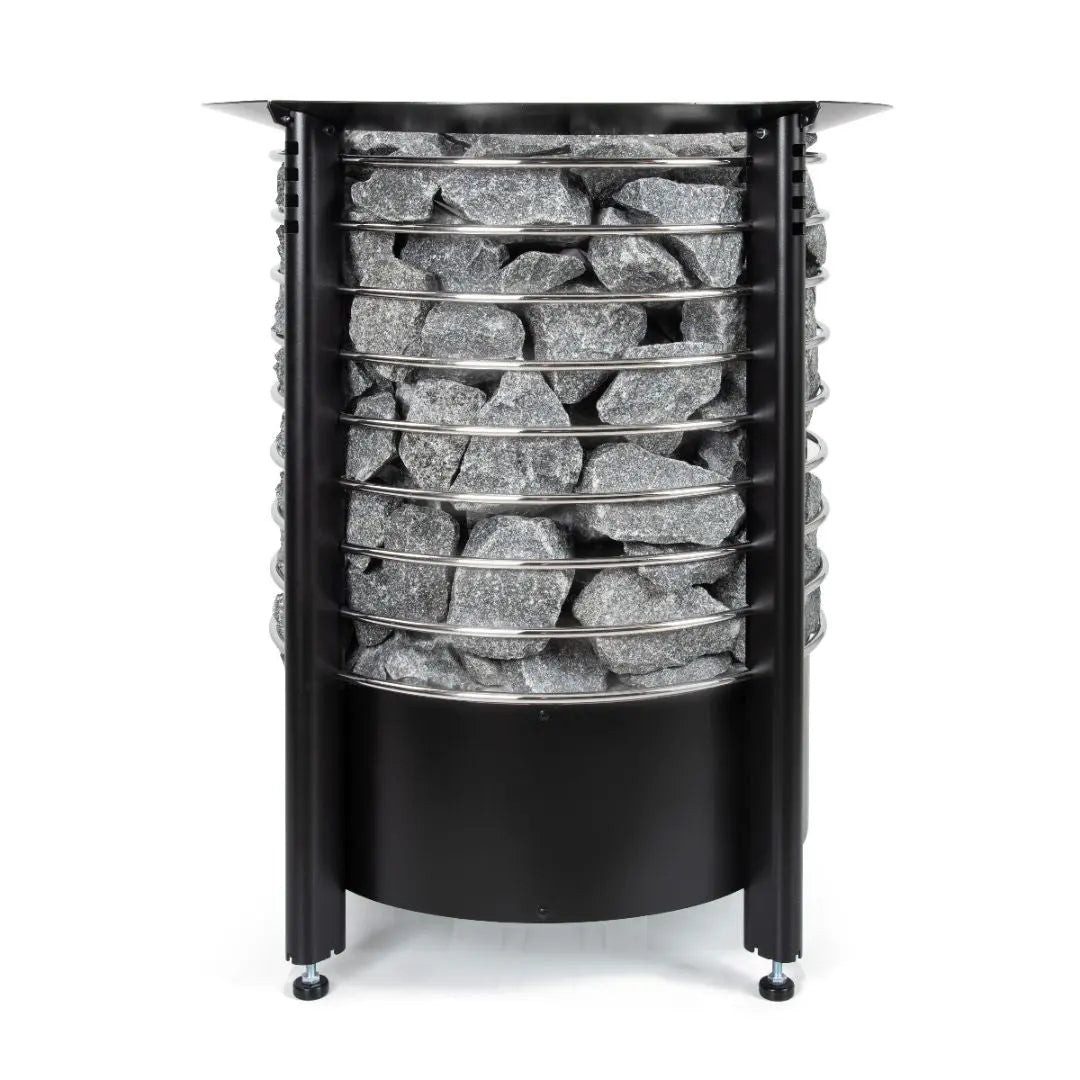

The Narvi Peak offers a top-class spa experience. The Peak heater is a Finnish-made commercial grade electric sauna heater. It provides a high-class spa experience with a stylish look and large stone capacity. This floor-standing sauna heater model has a round shape, which allows for different placement options within the sauna.

The Narvi Peak is designed to endure demanding conditions and heavy use. It is an excellent electric heater choice for spas, community saunas, gyms as well as larger private saunas.



Controller

The heating and timing are controlled by a separate control panel. Additionally, there is a separate thermostat unit, which makes sure that the desired temperature is achieved and maintained over a continuous time period.

Suitable control units:

  • Ultra T-2003, daily timer, suitable for heaters between 6-15kW
  • Ultra B-2003, weekly timer, suitable for heaters between 6-15kW
  • Control unit N2014E, maximum 10.5kW heaters
  • Narvi basic, maximum 10.5kW heaters



This heater should be fitted by a qualified electrician and can be easily installed on both single phase 240v and three phase 400v power supplies.

Correct connection of your Narvi electrical sauna heater in the UK -

*Installation and maintenance must be done by a certified electrician

*Electricity supply must be isolated and/or switched off from the fuse panel prior to any installation or servicing work

*In accordance with European standard IEC 60364-7-703 part 703.412.5 an electrical sauna heater does not have to be connected through a Residual Current Device (RCD). This is also in accordance with BS7671:2018 part 703.411.3.3.

*For reliable operation, Narvi strongly recommends that the power supply should not be connected through a Residual Current Device (RCD)

*Other electrical devices in a sauna room should be connected through a Residual Current Device (RCD)

*The power supply cable must comply with BS7671:2018

*The instruction manual of the product and local electrical regulations must be followed

To learn more about installing electrical heaters on domestic power supplies, see our "How to choose the right electric sauna heater" page.



Product Specification (*Safety distances to combustible materials)



Peak 9 kW

Peak 10.5 kW

Peak 12 kW

Peak 15 kW

Sauna room size

8-12

9-15 m²

10-18 m²

14-24 m²

Effect

9 kW

10.5 kW

12 kW

15 kW

Dimensions









Height

69 cm

69 cm

69 cm

69 cm

Width

58.5 cm

58.5 cm

58.5 cm

58.5 cm

Depth

58.5 cm

58.5 cm

58.5 cm

58.5 cm

Product weight

26 kg

26 kg

26 kg

26 kg

Stone capacity

100 kg

100 kg

100 kg

100 kg

Fuse

3 x 16 A

3 x 16 A

3 x 20 A

3 x 25 A

Connection 400V 3N mm²

5 x 2.5

5 x 2.5

5 x 4

5 x 6

Casing

Painted black, chromium plated

Painted black, chromium plated

Painted black, chromium plated

Painted black, chromium plated

Safety distances*









Sides

10 cm

10 cm

10 cm

10 cm

Front

10 cm

10 cm

10 cm

10 cm

Up

140 cm

140 cm

140 cm

140 cm









Single Phase 230V Power Supply Three Phase 400V Power Supply
Heater Power Rating
Recommended Cable Specification Recommended MCB specification Recommended Cable Specification Recommended MCB specification
3 Core Single Pole 5 Core Triple Pole
(kW) (mm²) (A) (mm²) (A)
4.5 2.5 20 1.5 10
6 6 32 1.5 10
6.8 6 32 1.5 10
9 10 40 2.5 16
10.5 N/A N/A 2.5 16


Warranty

The warranty on this Narvi Sauna Heater is 2 years. The heating elements have a 6-month warranty.

About Narvi Oy

You can browse our wider Narvi collection here


Product Disclaimers

All Narvi sauna heaters are CE tested and bear the Finnish Key Flag Symbol. This is awarded to sauna heaters that are made and designed in Finland, where over 95% or more of the production must be within Finland itself. There are many brands that claim to be made in Finland but are actually made in the Far East or Russia and merely assembled or labelled in Finland. Watch out for these symbols as a mark of an authentic, Finnish-made, safe, quality product:

Finnish Key Flag and CE Marked

As part of Finnmark Sauna's Endurance Ethos, we only deal in products that are market leaders in quality. We commit ourselves to search exhaustively for the highest quality authentic Finnish sauna products.

Please note, we recommend that sauna heaters should be installed by a suitably qualified electrician/builder/fitter. Finnmark Limited accepts no liability for loss or injury caused by the incorrect installation or misuse of your sauna heater. Please Contact Us if you require information on our recommended fitters.
