Narvi
Narvi NS Domestic Electric Sauna Heater
Narvi NS Domestic Electric Sauna Heater
Available to purchase – Special order lead times apply.*
Couldn't load pickup availability
Buy together with:
Description
Description

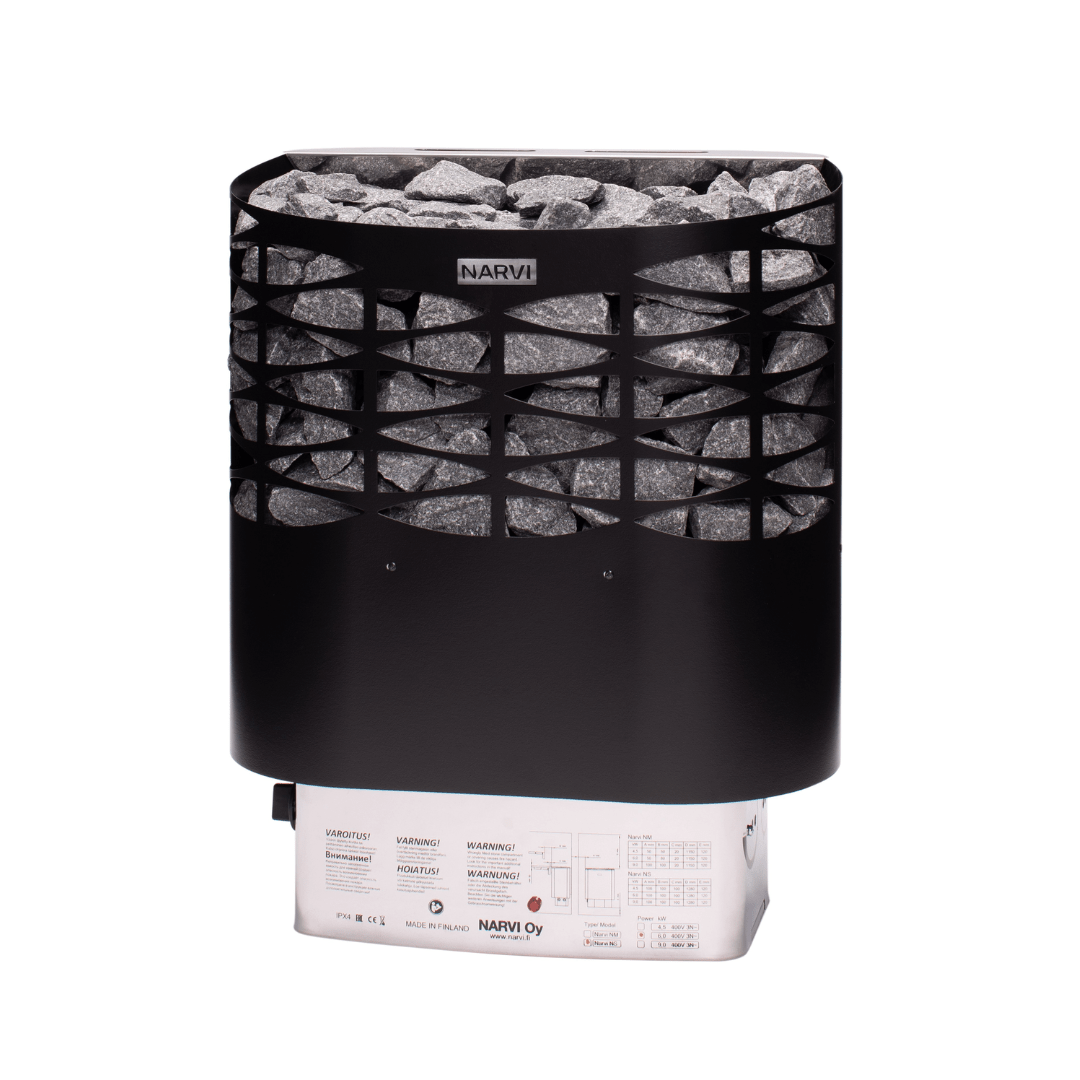

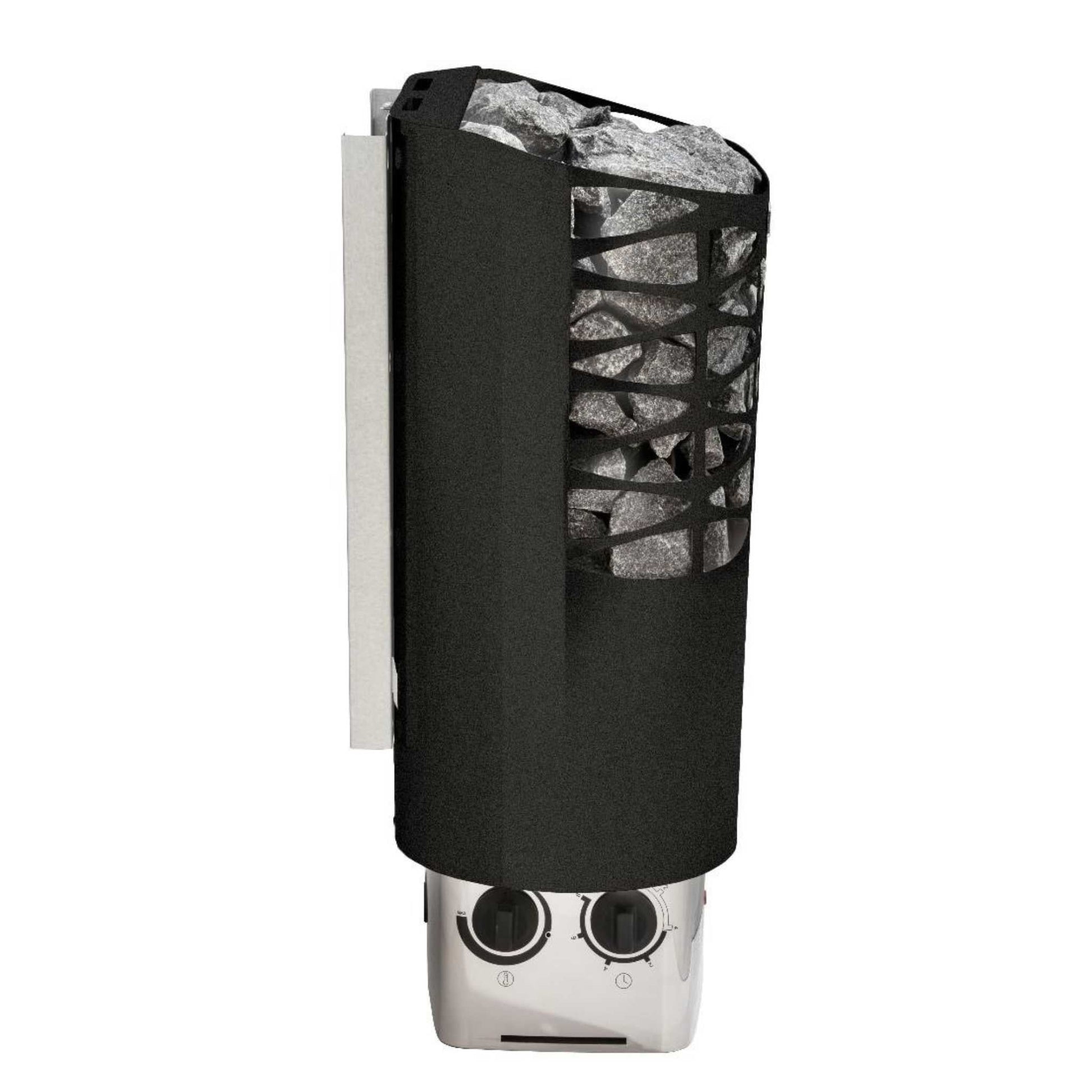

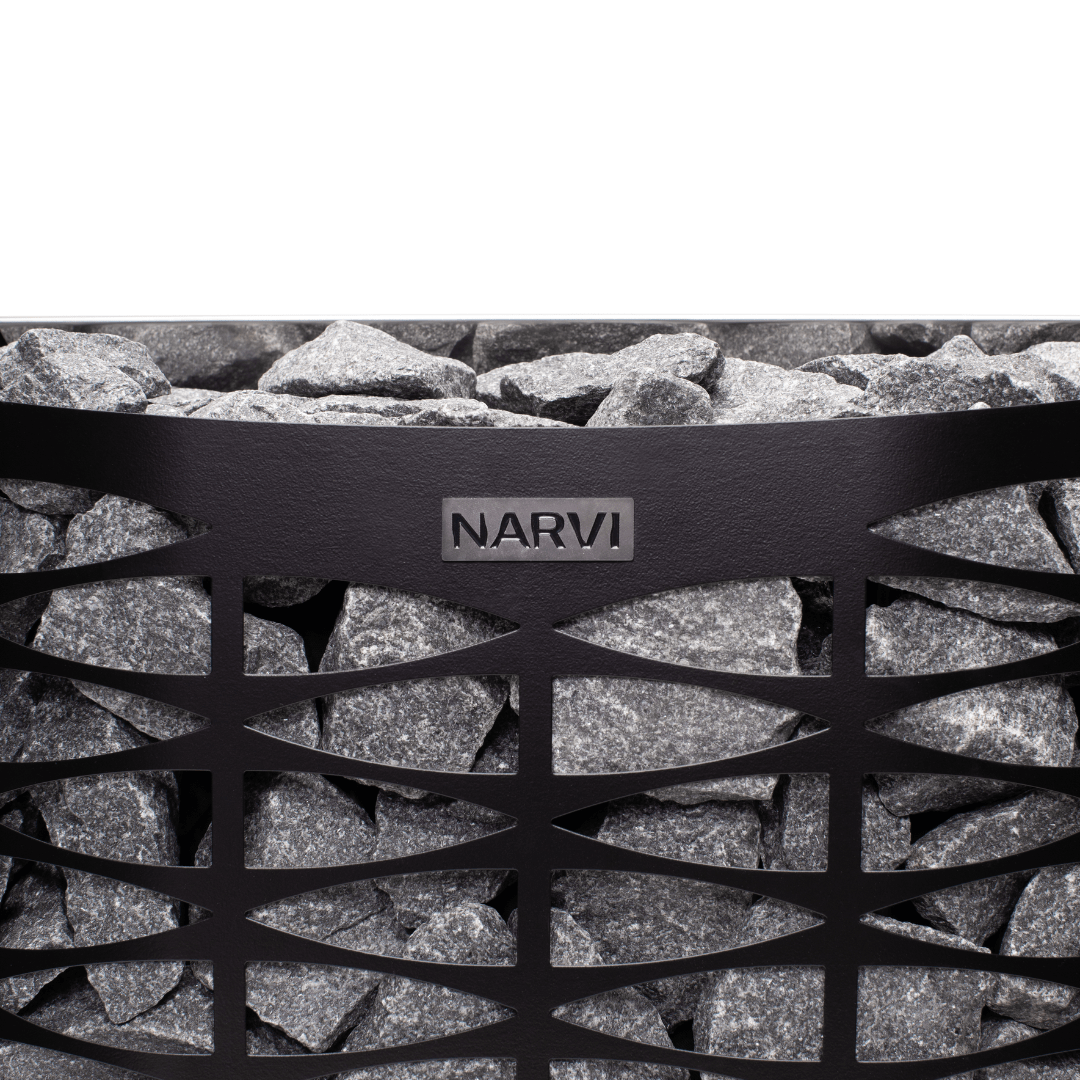

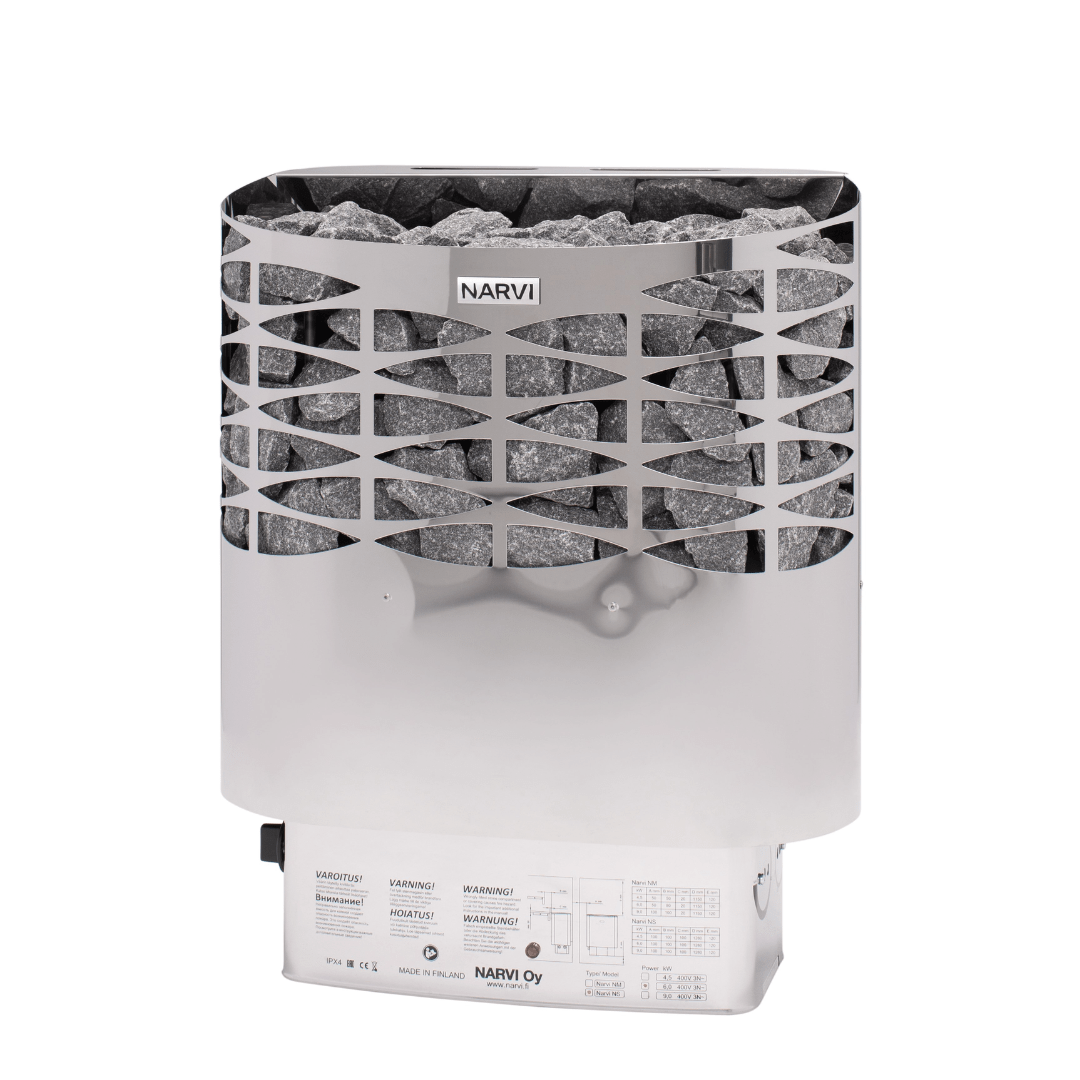

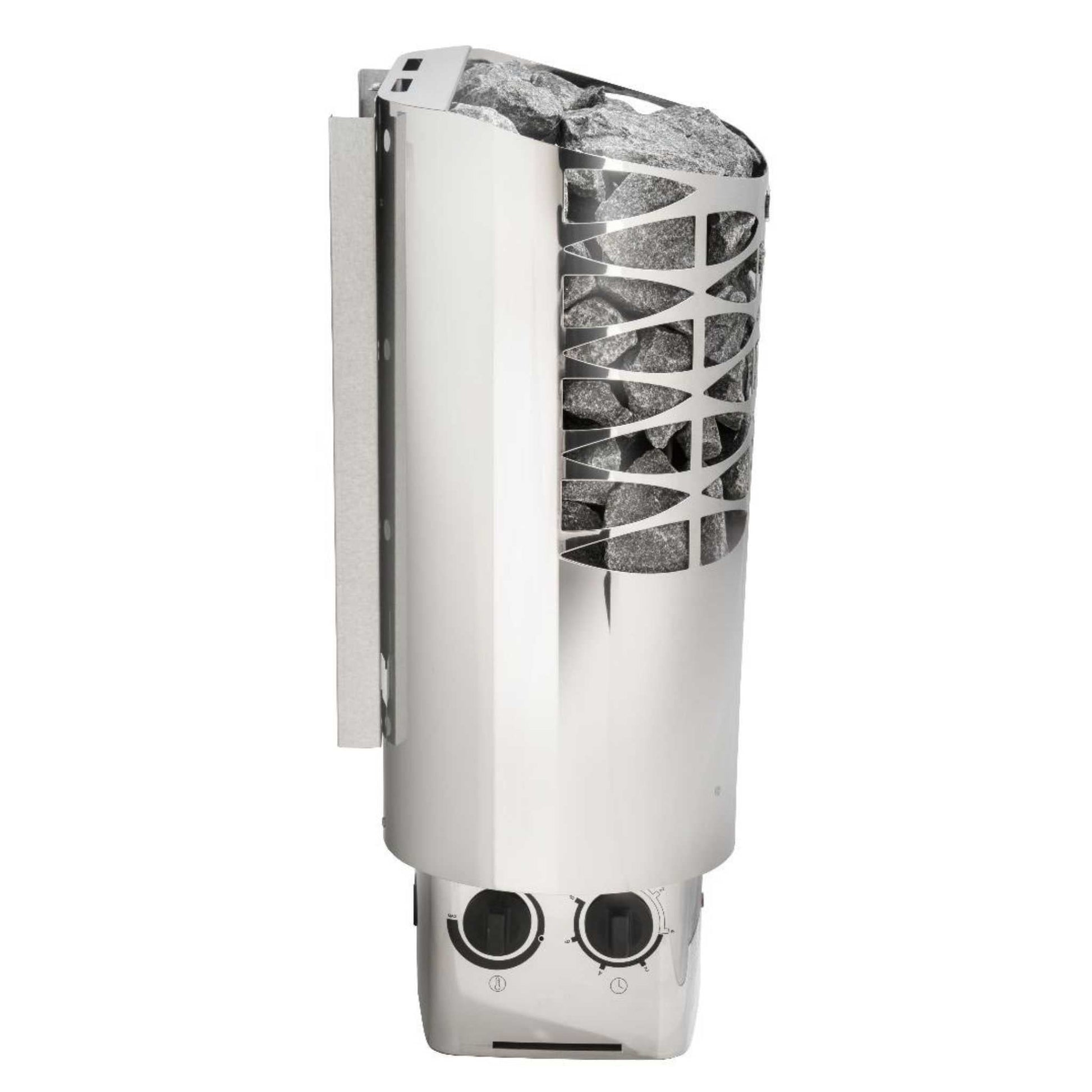

The Narvi NS is a wall-mounted domestic electric sauna heater made in Finland, with a distinctive design that sets it apart from the closed-structure NM and an even larger stone capacity of up to 35 kg, the foundation of a soft, generous löyly. It is offered at 4.5 kW for saunas of 3–6 m³, 6 kW for 5–8 m³ or 9 kW for 8–14 m³, in black or bright (mirror-finish) stainless steel. The 4.5 kW and 6 kW models connect to single-phase or three-phase supplies, while the 9 kW requires three-phase. Temperature and timing are set by dials that can be fitted to the left or right side of the unit, Narvi’s 8.5 mm heating elements give a long service life with a low risk of overheating, and sauna stones are purchased separately.
Features
Technical Specification
| All models | |
| Installation | Wall-mounted |
| Dimensions (H × W × D) | 600 × 470 × 270 mm |
| Weight (without stones) | 9 kg |
| Stone capacity | 35 kg (5–10 cm stones) |
| Outer casing | Stainless steel or painted black |
| Minimum sauna height | 1,900 mm |
| Safety distance to sides | 100 mm |
| Safety distance to front | 100 mm |
| Safety distance to ceiling | 1,180 mm |
| Safety distance to floor | 120 mm |
| NS 450 (4.5 kW) | |
| Sauna room volume | 3–6 m³ |
| Electrical connection (400 V 3N~) | 5-core 1.5 mm² H07RN-F, 3 × 10 A fuses |
| Electrical connection (230 V 1N~) | 3-core 2.5 mm² H07RN-F, 1 × 20 A fuse |
| NS 600 (6 kW) | |
| Sauna room volume | 5–8 m³ |
| Electrical connection (400 V 3N~) | 5-core 1.5 mm² H07RN-F, 3 × 10 A fuses |
| Electrical connection (230 V 1N~) | 3-core 6 mm² H07RN-F, 1 × 35 A fuse |
| NS 900 (9 kW) | |
| Sauna room volume | 8–14 m³ |
| Electrical connection (400 V 3N~) | 5-core 2.5 mm² H07RN-F, 3 × 16 A fuses |
| Electrical connection (230 V 1N~) | Not available; three-phase supply required |
Safety distances are to combustible materials.
Installation
Installation and maintenance must be carried out by a certified electrician, with the electricity supply isolated at the fuse panel before any work begins. Under IEC 60364-7-703 and BS 7671:2018 an electric sauna heater does not have to be connected through an RCD, and for reliable operation the manufacturer recommends that the heater supply is not run through one; other electrical devices in the sauna room should be RCD protected. A local point of isolation covering all live conductors is recommended. The installation manual in the Downloads tab and local wiring regulations must be followed. For the 4.5 kW model on a single-phase supply the manufacturer specifies 3-core 2.5 mm² cable; for longer runs where voltage drop may be a factor, we recommend upgrading the cross-section to 3-core 4 mm².
Sauna stones
This heater requires up to 35 kg of sauna stones, purchased separately. We recommend 5–10 cm olivine diabase or vulcanite stones for the best performance.
Brand
Narvi Oy is a Finnish sauna heater manufacturer, and every Narvi heater is CE tested and carries the Finnish Key Flag symbol, awarded to products designed and made in Finland.
Warranty
The warranty on this Narvi sauna heater is 2 years in private use, and the heating elements carry a 12-month warranty.
