Narvi Control Unit N2014E

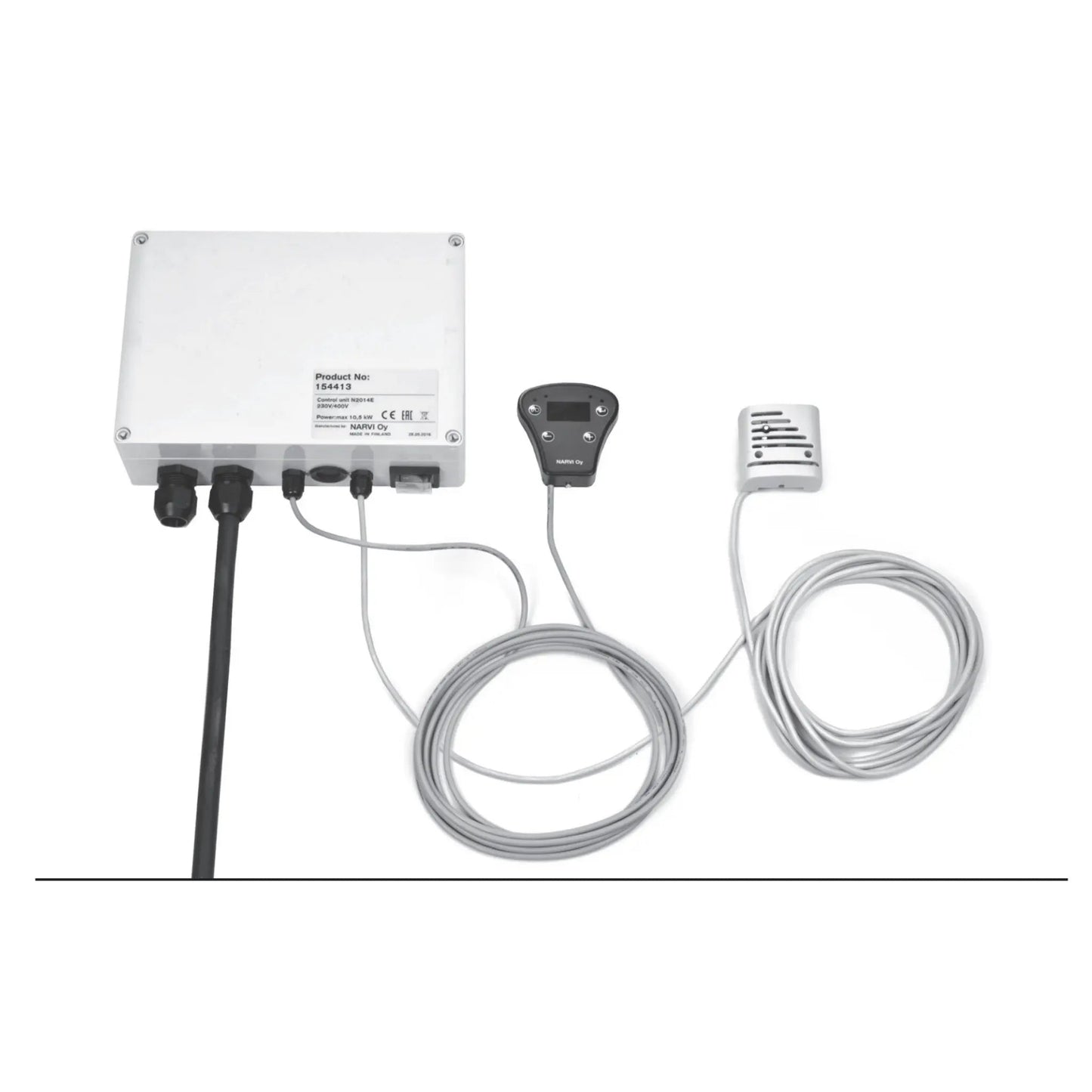

Narvi N2014E comes as a standard controller in many of Narvi’s electric sauna heaters. It consists of an external control unit, an external thermostat and the power card. This controller is multi-voltage, meaning it can be connected in 400V 3N~, 230V 1N~or 230V 3~. The maximum effect is 10,5 kW (9kW in single phase connection).

The control unit can be installed either inside or outside the sauna room, and it has a pre-timing function for 24 hours. Temperature can be set between 60-115°C. The temperature sensor is equipped with an overheat protector.

The square cover is installed on top of the triangle-shaped controller.
