Narvi

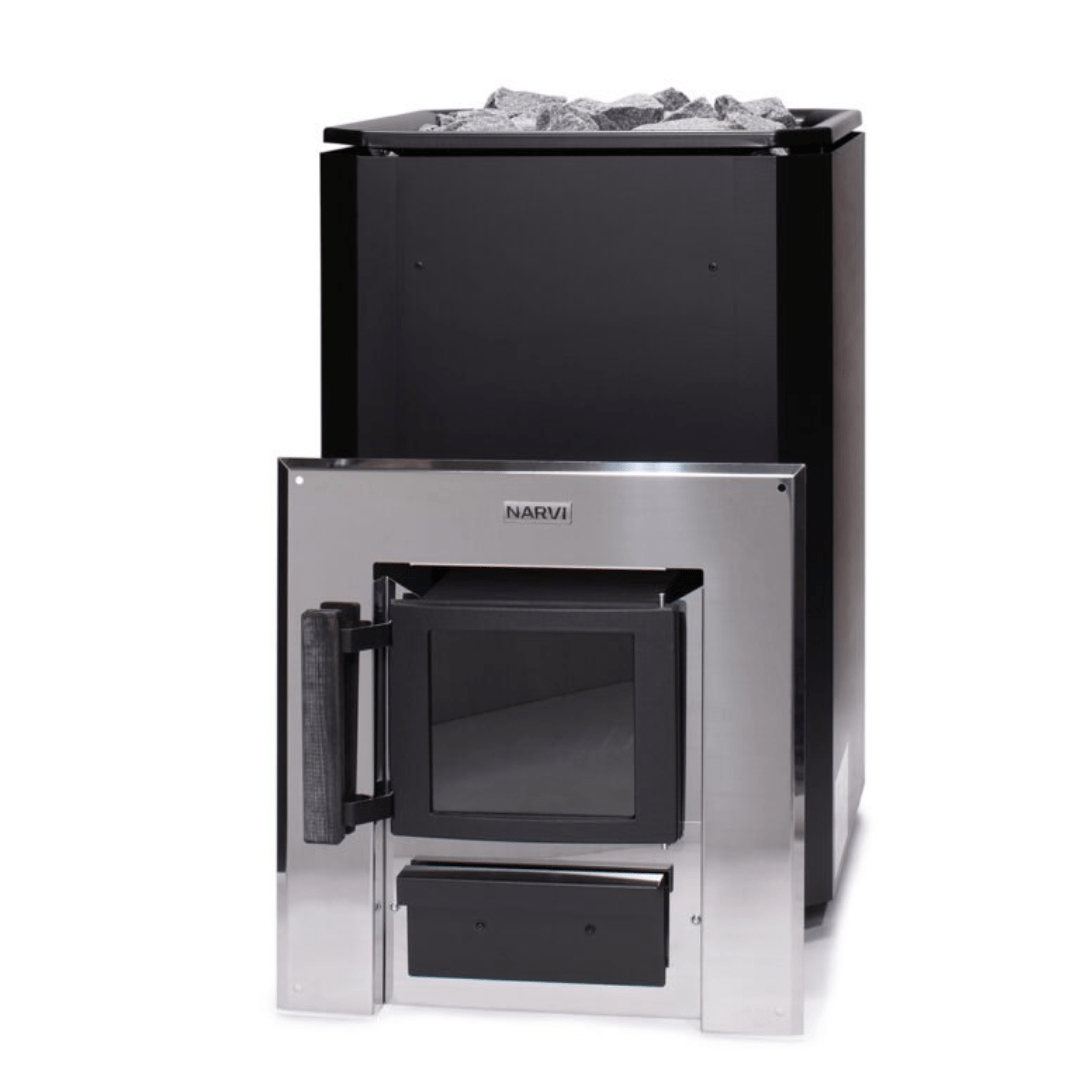

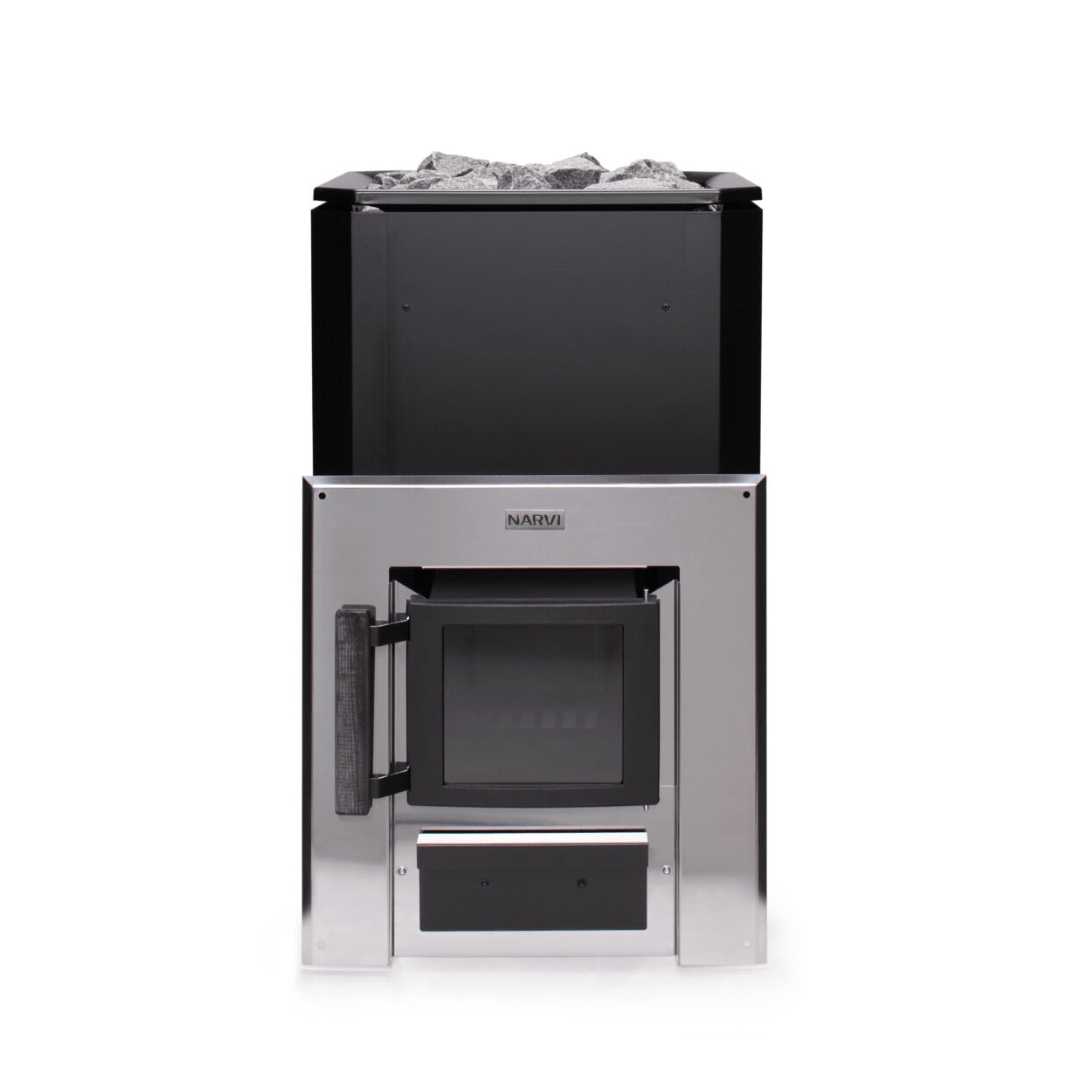

Narvi Black 20 Through-the-Wall Wood-Burning Sauna Heater

Narvi Black 20 Through-the-Wall Wood-Burning Sauna Heater

Black Friday£25 Off When You Spend £500 on Selected Heaters & Stones

Free UK Delivery Over £1500*
Regular price €1.441,95
Sale price €1.441,95 Regular price

Buy together with:

Narvi Black 20 Through-the-Wall Wood-Burning Sauna Heater
+
Narvi Insulated Steel Flue / Chimney Kit 15 D-125mm & Extension Tubes
+
Vulcanite Sauna Stones Finnish Sauna Rocks 20 kg (10-15 cm)
Learn more about finance
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
View full details
Description

Description

The Narvi Black 20 ST is the through-the-wall version of Narvi’s Black 20, fired from the adjoining room through a tunnel section so the sauna itself stays clean and uncluttered while the glazed door warms the room next door. Suited to sauna rooms of 10–20 m³, it holds 60 kg of stones for a long, consistent löyly, with a full-width fire grate and secondary air directed beneath the ash pan for a cleaner, more efficient burn. The firebox is topped with a 10 mm stainless steel roof, the door is glazed cast iron, and adjustable legs make levelling straightforward. The flue kit and sauna stones are sold separately; we recommend the Kota insulated steel chimney kit and 10–15 cm olivine diabase or vulcanite stones.

Features

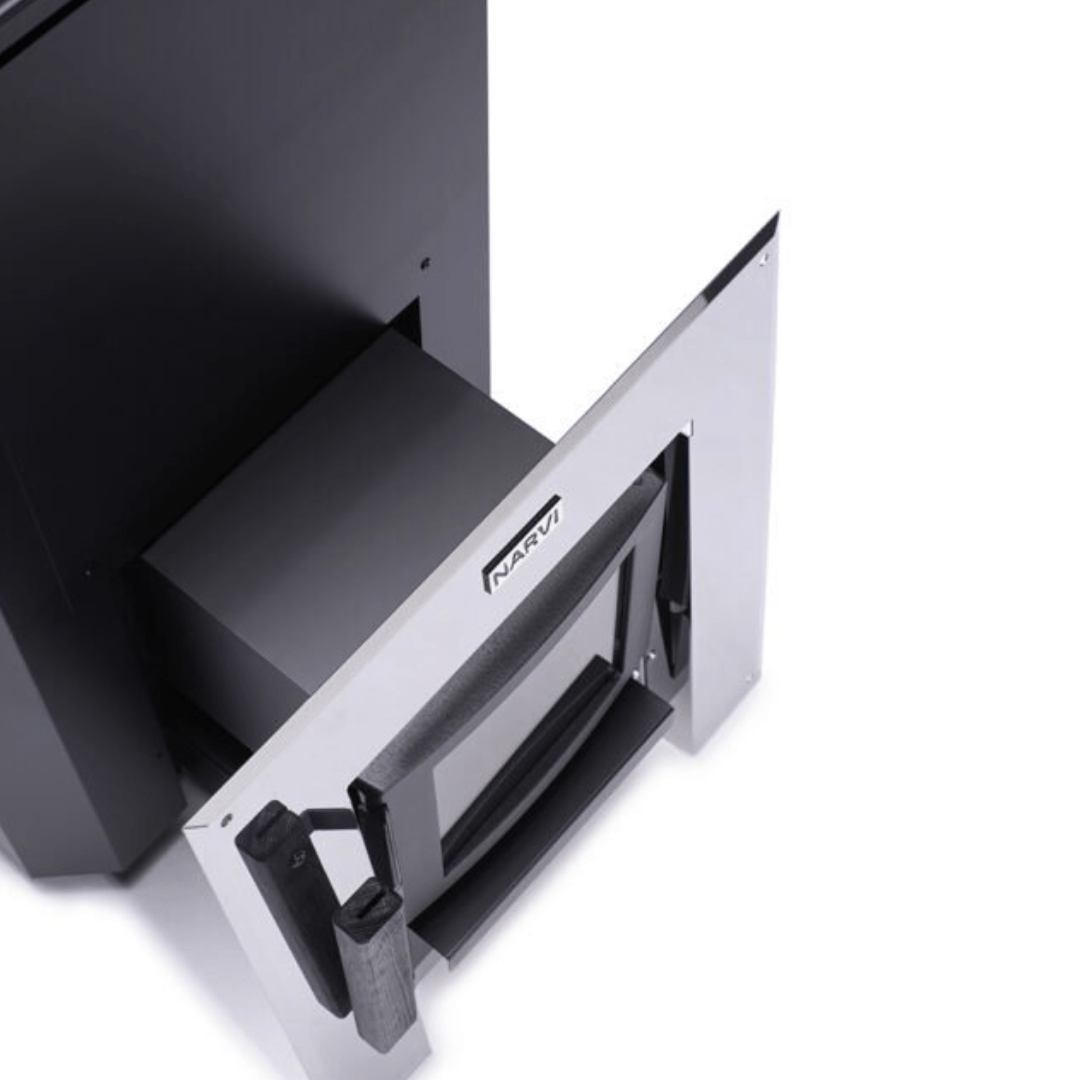

  • Through-the-wall firing: The tunnel section lets you stoke the fire from the adjoining room, keeping the sauna clean.
  • Generous stone capacity: Holds 60 kg of stones for a long, consistent löyly.
  • Efficient combustion: A full-width fire grate and secondary air beneath the ash pan give a cleaner, more efficient burn.
  • Built to endure: The firebox roof is 10 mm thick stainless steel, made for years of intense use.
  • Glazed cast-iron door: Shows the glow of the fire in the adjoining room and helps maintain a steady flame.
  • Certified Finnish build: CE tested to EN 15821 and carries the Finnish Key Flag.
  • Flue and stones sold separately: Takes a 119 mm flue connection; Narvi recommends 10–15 cm olivine diabase or vulcanite stones.
Technical Specification
ModelNarvi Black 20 ST (through-the-wall tunnel model)
Recommended sauna room volume10–20 m³
Nominal heating output21 kW (EN 15821:2010)
Total efficiency68%
Dimensions (H × W × D)760 × 480 × 500 mm
Depth of tunnel section171 mm
Height adjustment (legs)±15 mm
Weight without stones65 kg
Stone capacity60 kg (10–15 cm stones)
Flue outlet diameter119 mm
Flue connectionTop; 680 mm from the floor
Recommended flue draught12 Pa
Maximum firewood consumption7 kg per hour
Safety clearances
To the sides300 mm
To the front500 mm (a 1,000 mm maintenance area in front is recommended)
Above the heater1,270 mm
To the rear200 mm

Installation

Installation should be carried out by a suitably qualified installer and must follow the installation manual in the Downloads tab and local building regulations. For the through-the-wall installation the wall opening is lined and the floor in front of the stoking door is protected with non-combustible material extending at least 100 mm to both sides of the door and 400 mm in front. Firewood should be dry split logs of around 5 cm diameter and 33 cm length.

Sauna stones

Sauna stones are purchased separately. This heater takes 60 kg, and Narvi recommends 10–15 cm olivine diabase or vulcanite stones.

Brand

Narvi is a Finnish maker of wood-burning sauna heaters. All Narvi heaters are CE tested and carry the Finnish Key Flag, awarded to products designed and made in Finland.

Warranty

The warranty on this heater is 2 years in private use.
