Description
Description

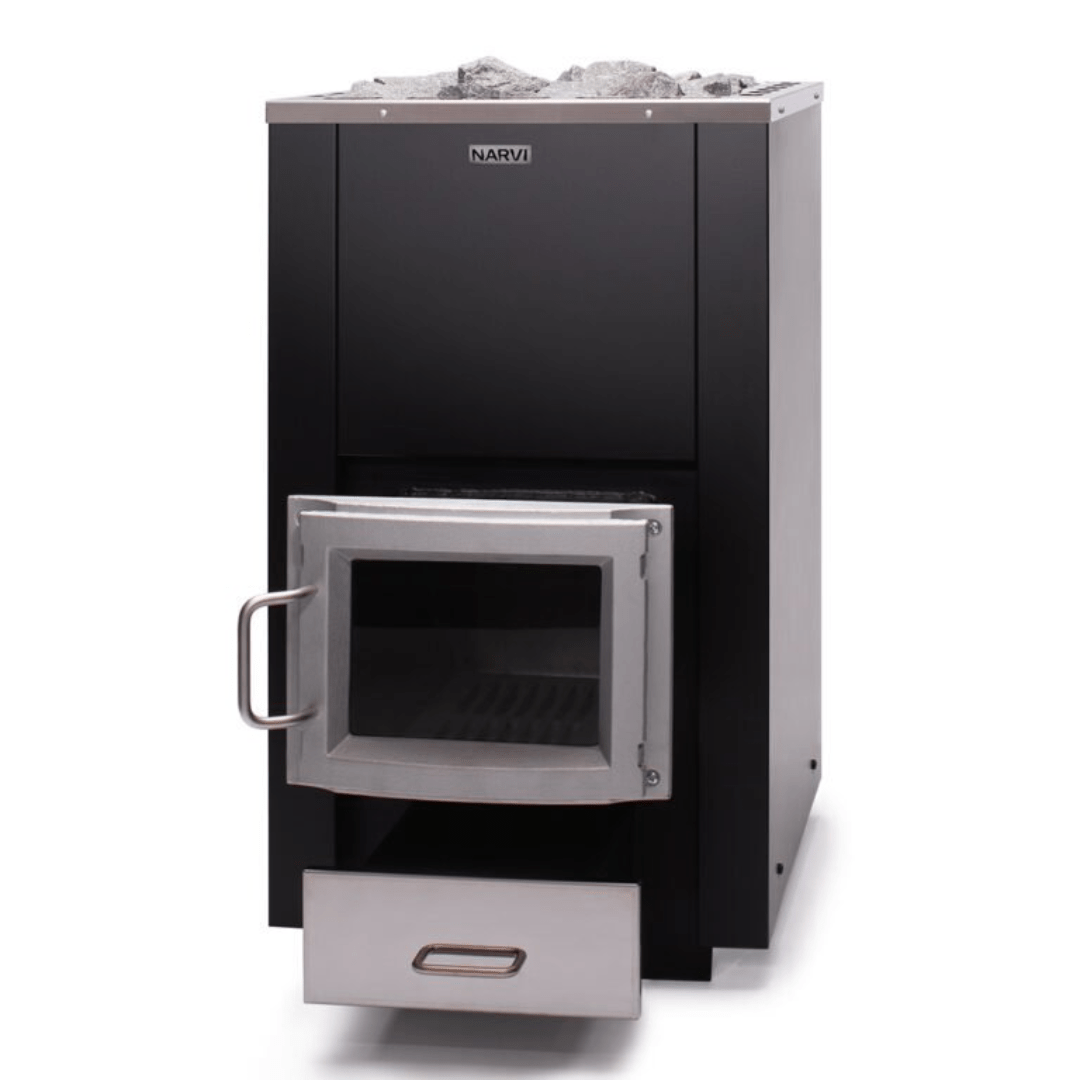

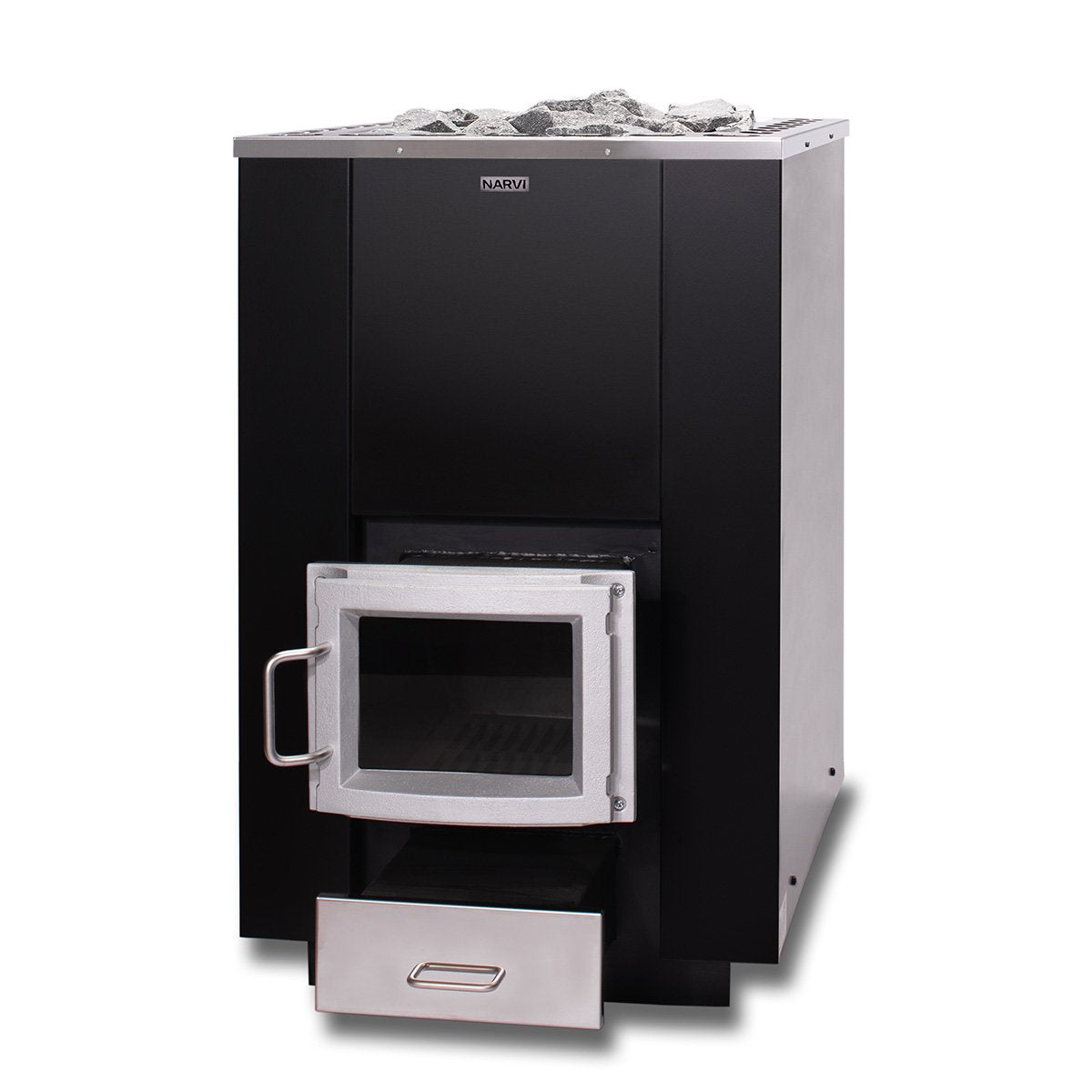

The Narvi 30 and Narvi 50 Through-the-Wall heaters are tunnel versions of Narvi’s largest wood-burning stoves, fired from outside the sauna room so the interior stays uncluttered and bathing is never interrupted. Built for large domestic and commercial saunas, the Narvi 30 Tunnel serves steam rooms of 20–35 m³ and the Narvi 50 Tunnel 45–70 m³, with 65 kg and 100 kg stone capacities delivering the consistent heat and soft steam of an authentic Finnish sauna. The black painted steel casing is understated and hard-wearing, the firebox cover is 10 mm thick on the 30 and 15 mm on the 50, and the chimney connection sits on top of the heater for flexible installation; the Narvi 50 Tunnel is supplied with the stove chimney adapter (part no. 6180). A suitable flue kit and 65–100 kg of sauna stones are purchased separately.
Features
Technical Specification
| All models | |
| Casing | Black painted steel |
| Connective flue outer diameter | 145 mm |
| Chimney connection | Top of heater |
| Recommended stones | 65–100 kg of 10–15 cm olivine dolerite or vulcanite, sold separately |
| Narvi 30 Tunnel | |
| Steam room volume | 20–35 m³ |
| Dimensions (H × W × D) | 950 × 535 × 850 mm |
| Weight (without stones) | 155 kg |
| Stone capacity (Ø 10–15 cm) | 65 kg |
| Flue connection height from floor | 1,600 mm |
| Firebox cover thickness | 10 mm |
| Maximum firewood length | 500 mm |
| Tunnel opening (H × W) | 570 × 390 mm |
| Safety clearances (sides / front / above / rear) | 500 / 1,000 / 1,250 / 500 mm |
| Narvi 50 Tunnel | |
| Steam room volume | 45–70 m³ |
| Dimensions (H × W × D) | 1,100 × 670 × 1,030 mm |
| Weight (without stones) | 280 kg |
| Stone capacity (Ø 10–15 cm) | 100 kg |
| Flue connection height from floor | 1,740 mm |
| Firebox cover thickness | 15 mm |
| Maximum firewood length | 650 mm |
| Tunnel opening (H × W) | 590 × 390 mm |
| Safety clearances (sides / front / above / rear) | 500 / 1,000 / 1,250 / 500 mm |
| Included with Narvi 50 Tunnel | Stove chimney adapter, part no. 6180 |
Installation
The tunnel section passes through a wall of non-combustible material, such as brick, with the joint sealed using a mineral wool slab to allow for thermal expansion; tunnel openings measure 570 × 390 mm (Narvi 30) and 590 × 390 mm (Narvi 50). The heater connects to the chimney from the top via a 145 mm connective flue; the smoke flue must meet class T600, a modular flue must be CE-marked, and the recommended minimum draught is 12 Pa. Floors of combustible material must be protected with a metal plate reaching at least 100 mm beyond each side of the heater and 400 mm in front, and safety clearances can be reduced with protective screens as set out in the manual. Installation must follow the installation manual in the Downloads tab and local building regulations, and we recommend that the heater is fitted by a suitably qualified installer.
Sauna stones

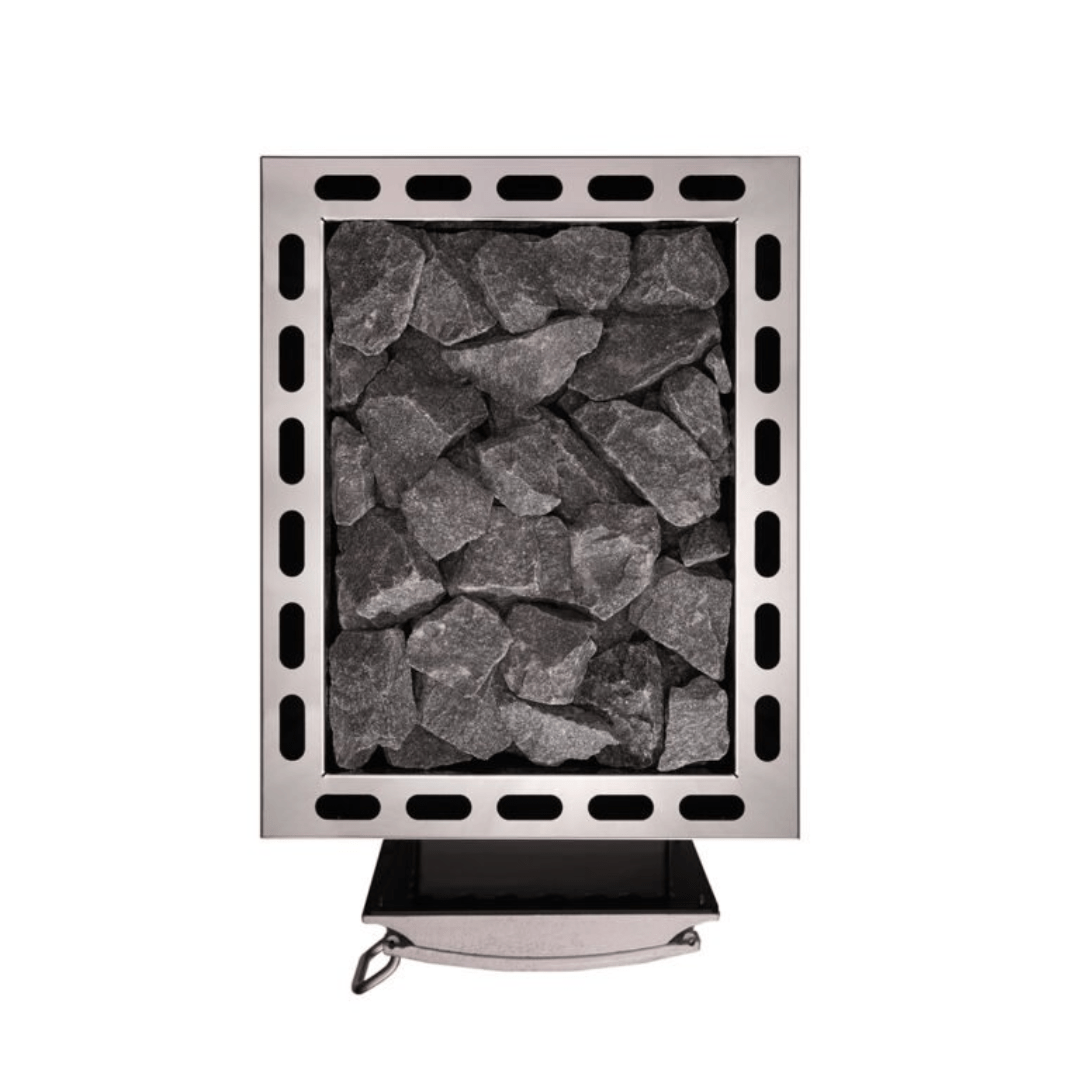

Use 10–15 cm olivine dolerite or vulcanite sauna stones, sold separately: 65 kg for the Narvi 30 Tunnel and 100 kg for the Narvi 50 Tunnel, washed before use and stacked loosely so air moves freely between them. Regular-shaped, light or ceramic stones must not be used.
Brand
Narvi Oy is a Finnish maker of wood-burning sauna heaters. Narvi heaters are CE tested and carry the Finnish Key Flag, awarded to products designed and made in Finland.
Warranty
The warranty on this wood-burning sauna heater is 1 year.
