Monolith IKI Electric Sauna Heater
Monolith IKI Electric Sauna Heater
Available to purchase – Special order lead times apply.*
Couldn't load pickup availability
Buy together with:
Description
Description

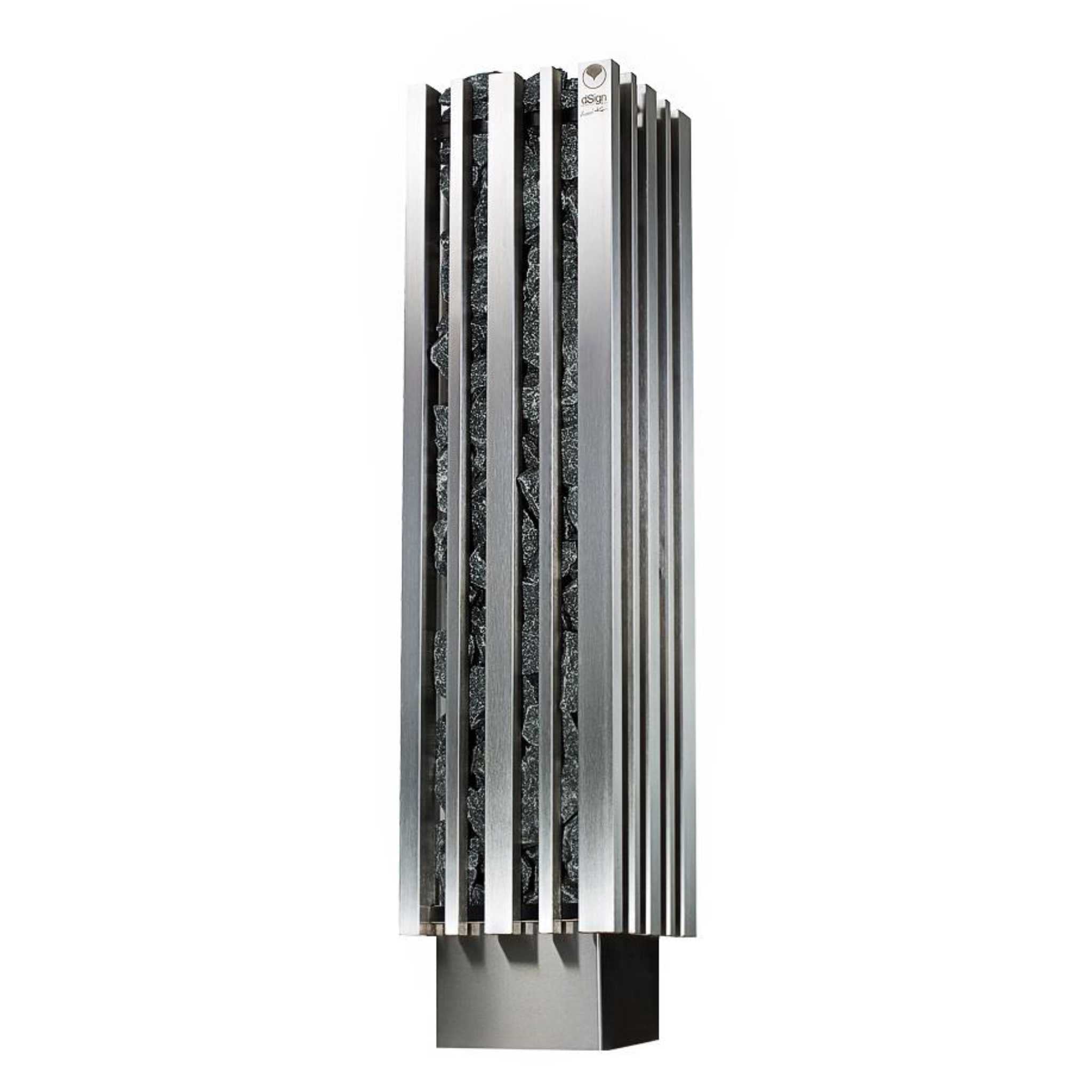

The Monolith, designed by dSign Vertti Kivi & Co with IKI-Kiuas, is a designer heater in the truest sense: a brushed stainless steel column that puts the stones, not the steel, at the centre of the sauna. Its large stone mass (120 kg on the 6.9 and 9 kW models, 220 kg on the 13.8 kW) heats in roughly 45 to 75 minutes and rewards you with dense, humid, oxygen-rich steam. Three three-phase outputs are offered: 6.9 kW for 7 to 12 m³, 9 kW for 9 to 16 m³ and 13.8 kW for 15 to 25 m³. A compatible control unit is required and stones are sold separately. Each Monolith is handcrafted in Pieksämäki, Finland.
Features
Technical Specification
| Model data (from the IKI installation manual) | |
| Sauna volume, 6.9 kW | 7 to 12 m³ |
| Sauna volume, 9 kW | 9 to 16 m³ |
| Sauna volume, 13.8 kW | 15 to 25 m³ |
| Heater height (all models) | 132 cm |
| Column diameter, 6.9 / 9 kW | 30 cm |
| Column diameter, 13.8 kW | 42 cm |
| Stone capacity, 6.9 / 9 kW | 120 kg |
| Stone capacity, 13.8 kW | 220 kg |
| Heating time, 6.9 / 9 kW | 45 to 60 minutes |
| Heating time, 13.8 kW | 45 to 70 minutes |
| Safety clearances (minimums to combustible materials) | |
| Front / sides / back, 6.9 and 9 kW | 10 cm |
| Front / sides / back, 13.8 kW | 20 cm |
| Upwards (all models) | 80 cm |
| Electrical | |
| Supply | Three-phase; five-pole cable to the control unit's terminal block |
| Fuse, 6.9 / 9 / 13.8 kW | 3×10 A / 3×16 A / 3×20 A |
| Connecting cable, 6.9 / 9 / 13.8 kW | 5×1.5 mm² / 5×2.5 mm² / 5×6 mm² |

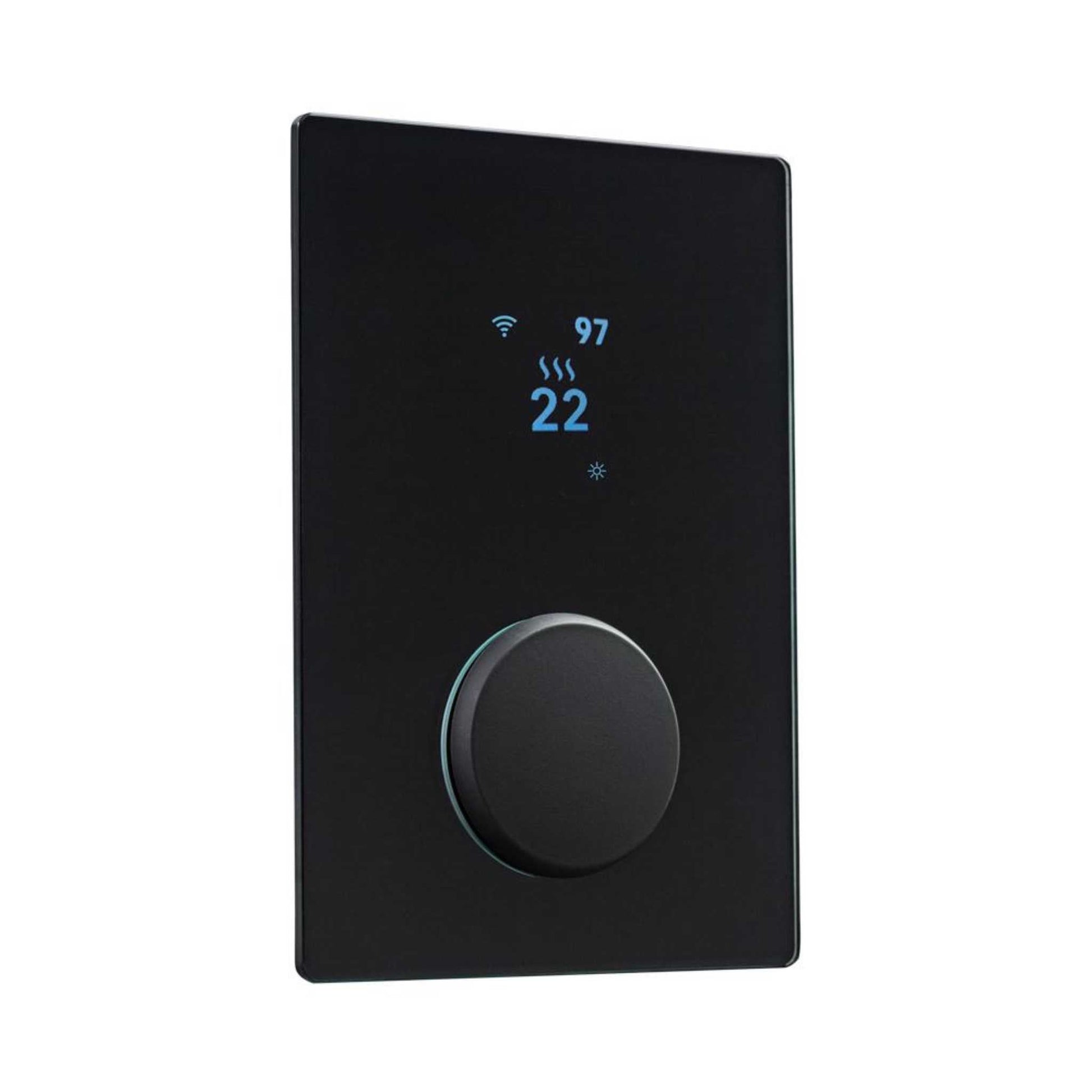

| Control unit | Required; not fitted to the heater. UKU Wi-Fi remote control available; contact us about compatible options |
| Installation | Must be installed by a qualified electrician |
Use
Heat-up takes about 45 to 75 minutes depending on room size and ventilation. The recommended temperature for IKI stone pillars is 50 to 70°C; pouring water raises temperature and humidity, and you can direct it to different parts of the column to control both. Throw at most half a litre at a time and never when others are close to the heater. Check yearly that shifting stones have not exposed the heating elements.
Stones & water
Stones are sold separately. In communal or public saunas, IKI recommends ceramic Kerkes stones around the elements. Water quality matters: chlorinated water and seawater are forbidden, and the manual sets limits for humus, iron, manganese and calcium content.
Brand
IKI Kiuas pioneered open-structured sauna heaters with visible stones in a stainless steel mesh. Its heaters are handcrafted in Pieksämäki, Finland by craftsmen with over 40 years' experience welding black iron and stainless steel. Hand-welded heaters may show small tooling marks on the stainless rim.
Ordering
The installation manual is in the Downloads section. If you are unsure which output or control unit suits your sauna, contact support@finnmarksauna.com before ordering.
