Description
Kastor Saga T through-the-wall, or tunnel sauna heater, is artfully uniting the invigorating heat of a traditional wood-burning sauna stove with the charm of a fireplace. With the heater positioned inside the sauna and the glazed fireplace door opening into an adjacent room - whether a lounge, dressing room, or living area - it creates a seamless flow between sauna bathing and fireside relaxation.
This design not only enhances the experience but also provides efficient secondary heating for the adjoining space, while maintaining the cleanliness of your sauna interior, as any wood debris remains outside.
With its meticulously considered proportions, the Kastor Saga T is as much a design feature as it is a high-performance heater. The carefully engineered firebox and expansive stone capacity with a praiseworthy 140-190kg capacity for sauna stones, ensure long-lasting heat retention, consistent "löyly" (steam rising from the heater), and an atmosphere of refined luxury.
Kastor Saga T is CE-marked for safety, equipped with adjustable legs for easy installation, and built to deliver years of reliable performance. Designed for those who value both exceptional craftsmanship and immersive sauna culture, it transforms the ritual of sauna bathing into a complete sensory experience.

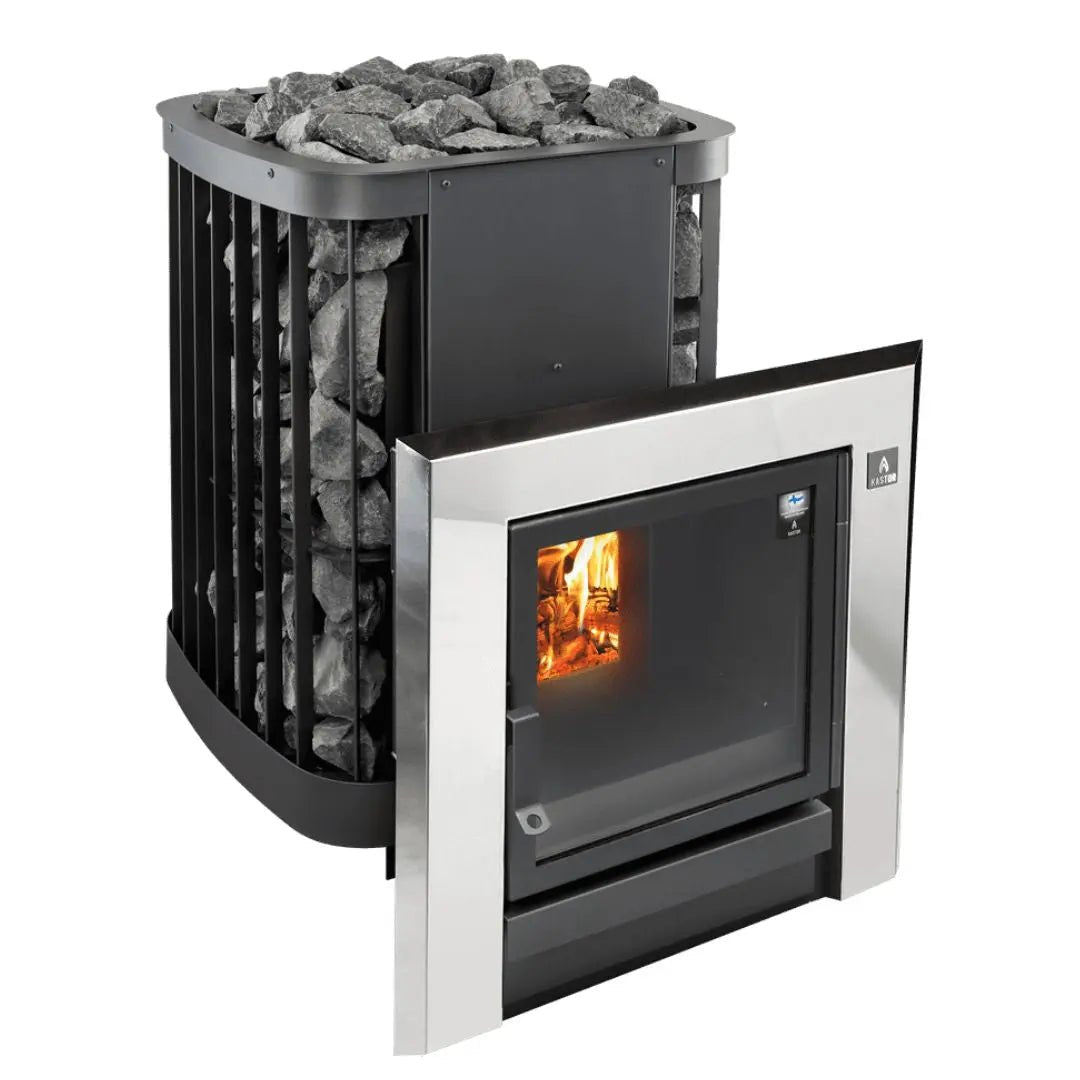

*Suitable amount of sauna stones, flue kit, front frame and heat shielding to be purchased separately. The front frame shown in the third image is for illustrative purposes only and is not supplied with this product.
Specification
Kastor Saga T is available in two sizes: Saga 22 T and Saga 30 T, suitable for saunas between 12-30m3.
Inside diameter of the flue: 115mm.
*Please see the Technical Specification tab above for detailed dimensions and recommended sauna room sizes for each model option.
Extras
The following items are available to be purchased separately:
- 140-190kg of 10-15 cm olivine diabase or vulcanite sauna stones
- Flue kit
- Front Frame for the tunnel section
- Protective base and additional heat shielding
About our Supplier Helo
Helo has brought health and wellbeing to people all over the world for over 100 years. Founded in 1919, it was the first manufacturer of electric sauna heaters. With innovative technology, smart functionality and stylish design, Helo sauna products upgrade the everyday sauna experience.
True to their Finnish origin, the company is creating opportunities for everyone to experience the Nordic sauna no matter where you are in the world.
Helo is a part of the global Sauna360 group, creating top quality sauna products to be a part of everyday healthy living. The incorporated brands of Sauna360 represent traditional Nordic sauna, steam and infrared wellness experiences for a modern lifestyle.
If you want to browse our wider selection of the Helo Sauna Heaters, click on the following link: Helo Wood Burning Sauna Stoves Collection
Click on the technical specification tab to learn more about the Kastor Saga models.
Technical Specification
Kastor Saga Wood Burning Sauna Stove Specification
|
Model: |
Saga 22 |
Saga 30 |
Saga 22 T |
Saga 30 T |
|
Power |
16kW |
18kW |
16kW |
18kW |
|
Sauna room size (m3) |
12-22m3 |
20-30m3 |
12-22m3 |
20-30m3 |
|
Safety Distances: |
|
|
|
|
|
To the sides |
250mm |
250mm |
250mm |
250mm |
|
To the front |
500mm |
500mm |
500mm |
500mm |
|
To the back |
250mm |
250mm |
50mm |
50mm |
|
Upwards |
1400mm |
1300mm |
1400mm |
1300mm |
|
Dimensions: |
|
|
|
|
|
Width |
600mm |
675mm |
600mm |
675mm |
|
Height |
825mm |
930mm |
825mm |
930mm |
|
Depth |
585mm |
585mm |
585mm |
585mm |
|
Weight without stones |
80kg |
109kg |
115kg |
140kg |
|
Stone capacity |
120-130kg |
180-190kg |
130-140kg |
180-190kg |
