KAARNA Electric Sauna Heater by Tulikivi
NOTE:
This product has a lead time, please get in touch for more specific timescales
Product Description
Technical Specification
Downloadable Files
Product DescriptionKaarna Electric Sauna Heater - Tulikivi Kevo Collection
*stones, contactor box & controller to be purchased separately*
(We recommend purchasing 2 x 20 kg boxes of 5-10 cm Olivine Diabase or Vulcanite Sauna Stones with this electric heater. You can find the sauna stones here).
You can purchase the Tulikivi controller here.

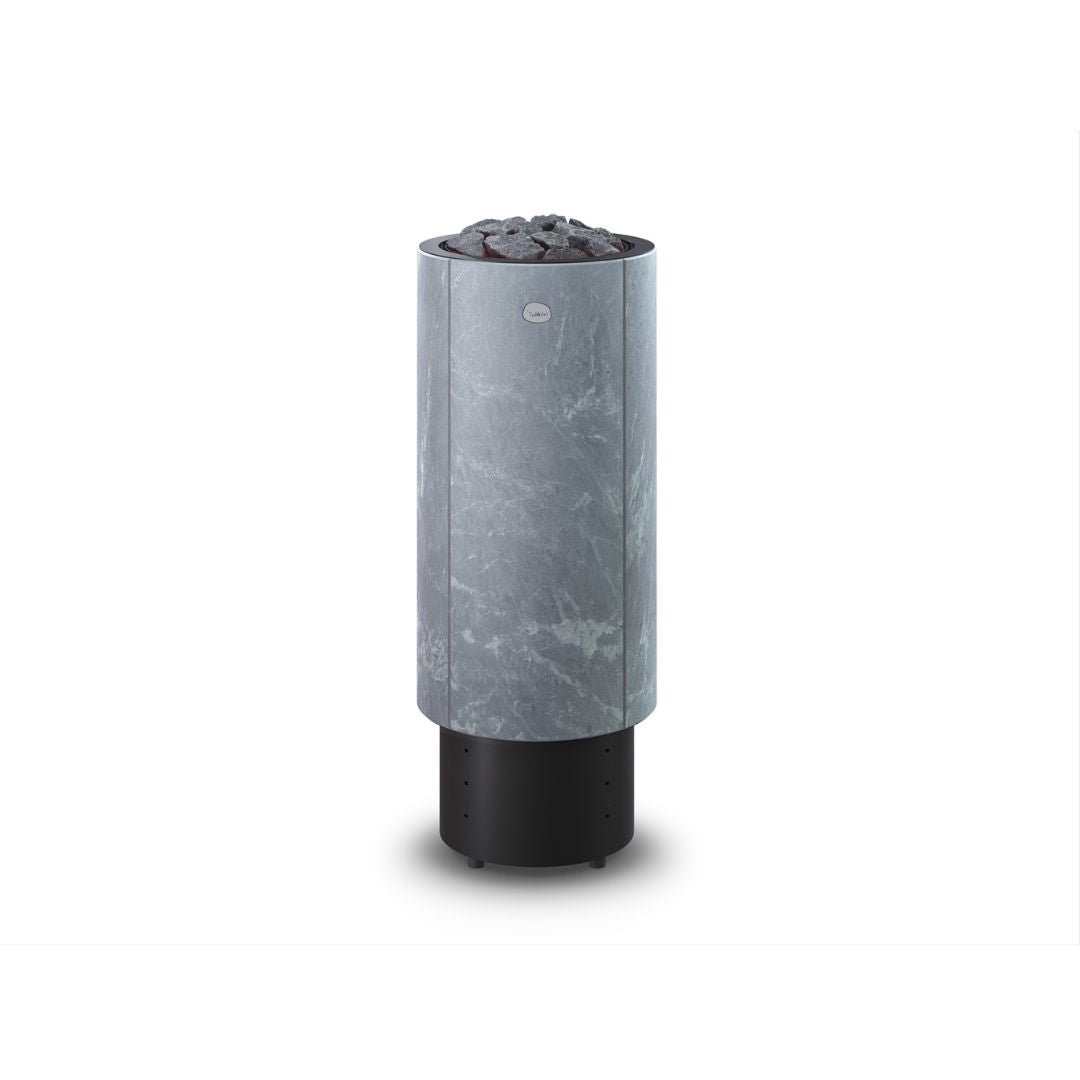

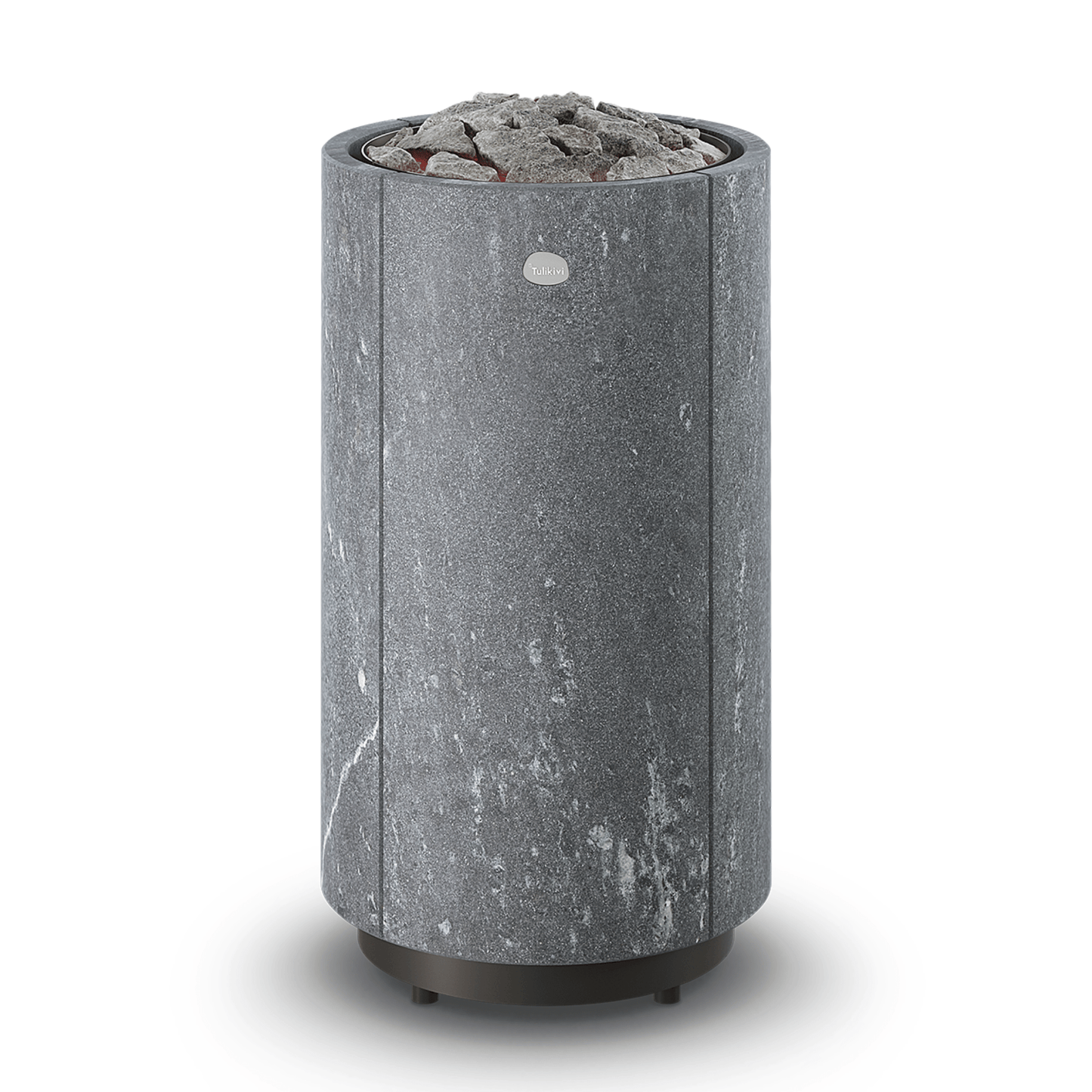

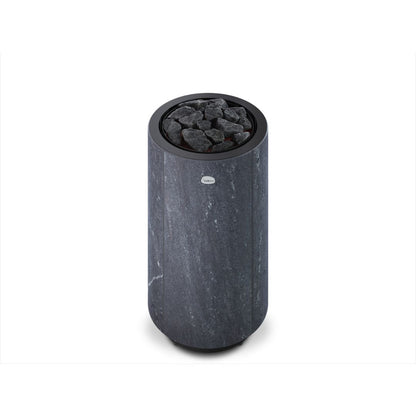

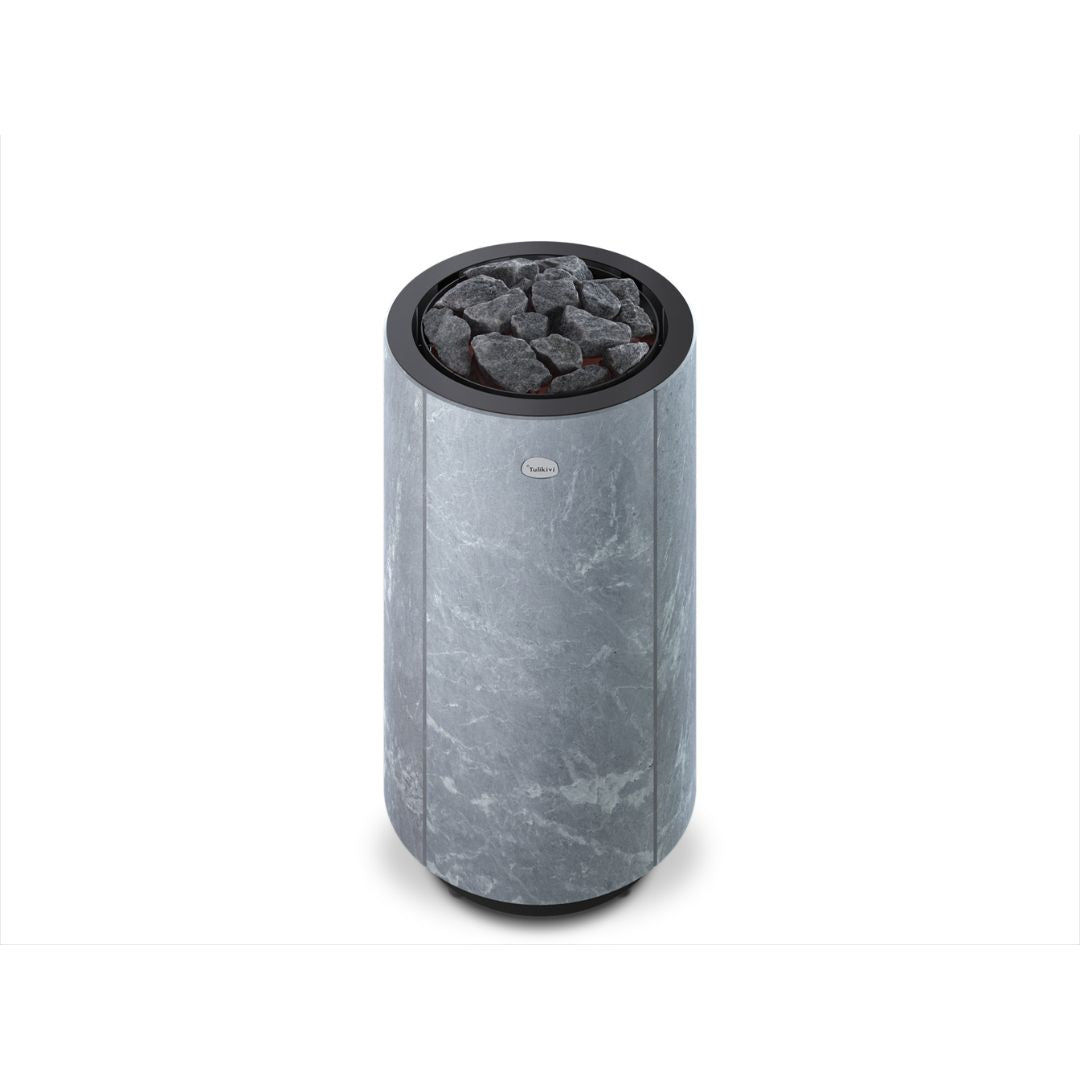

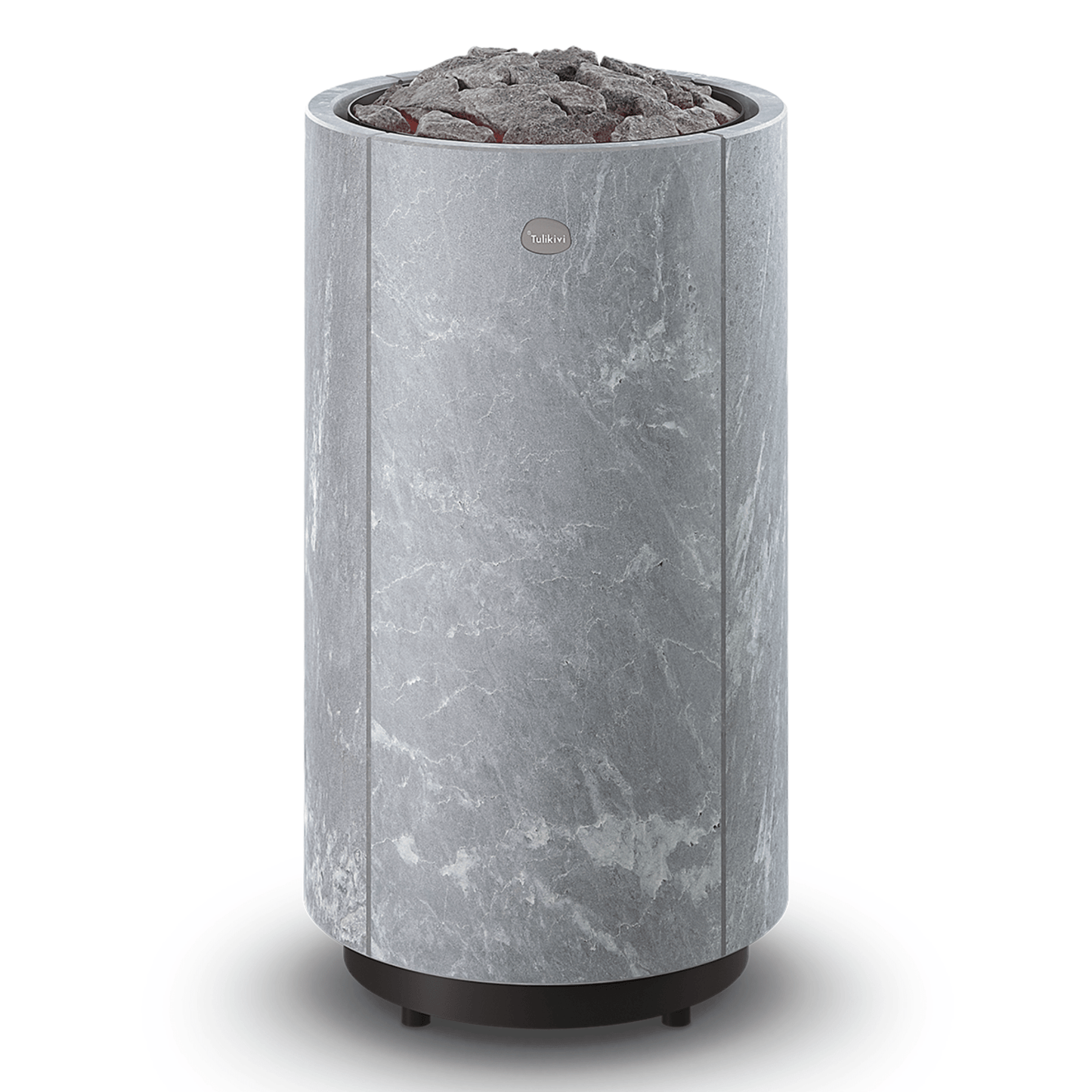

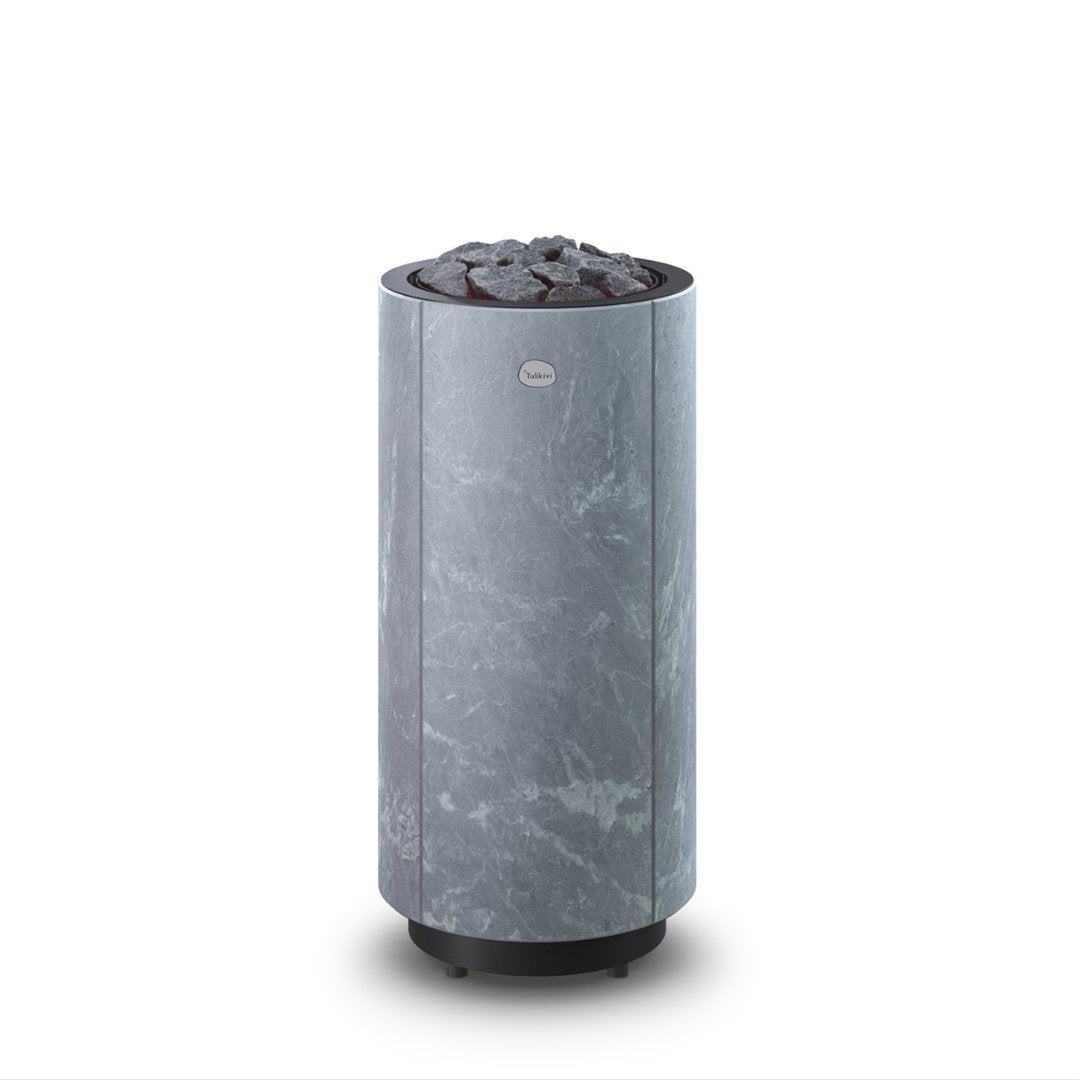

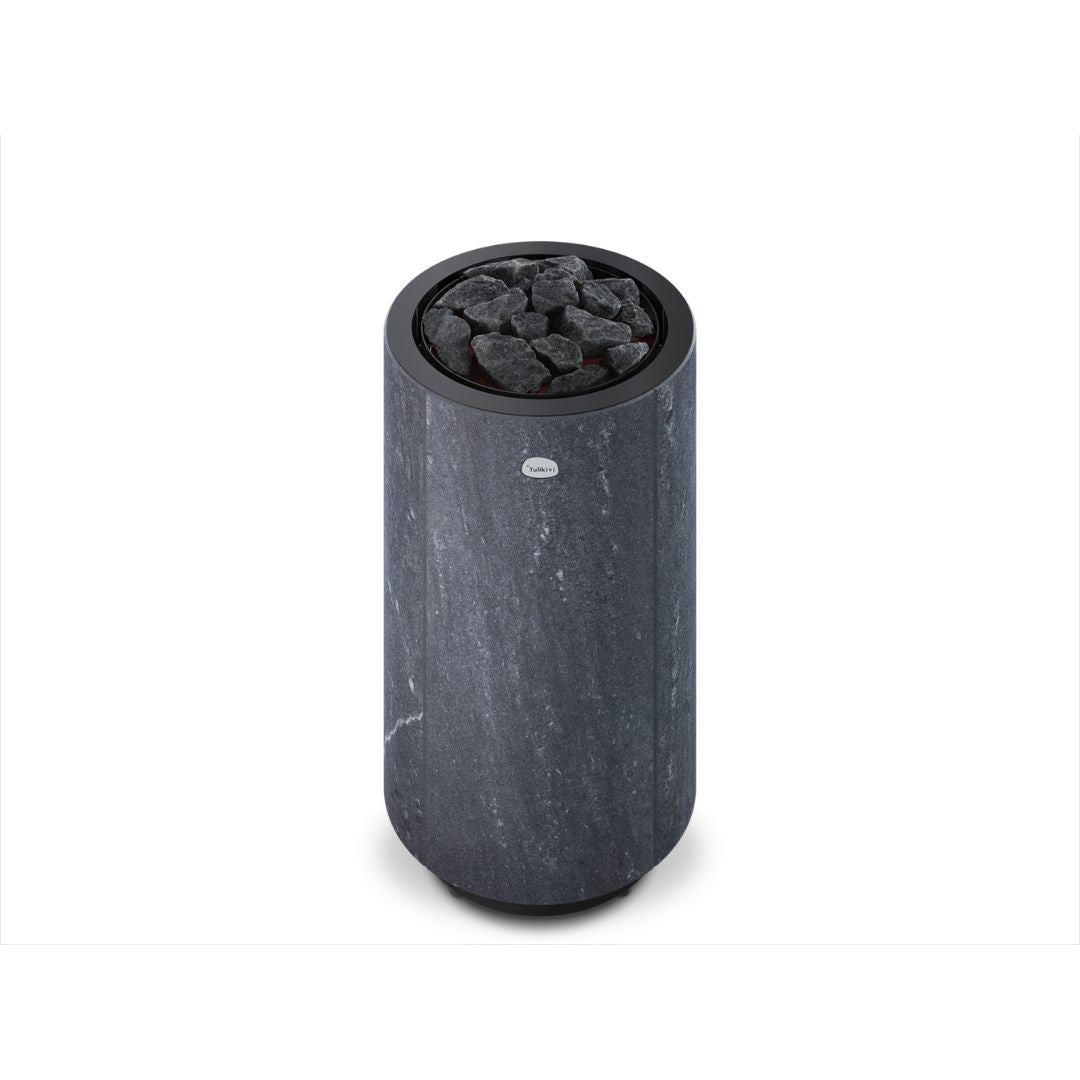

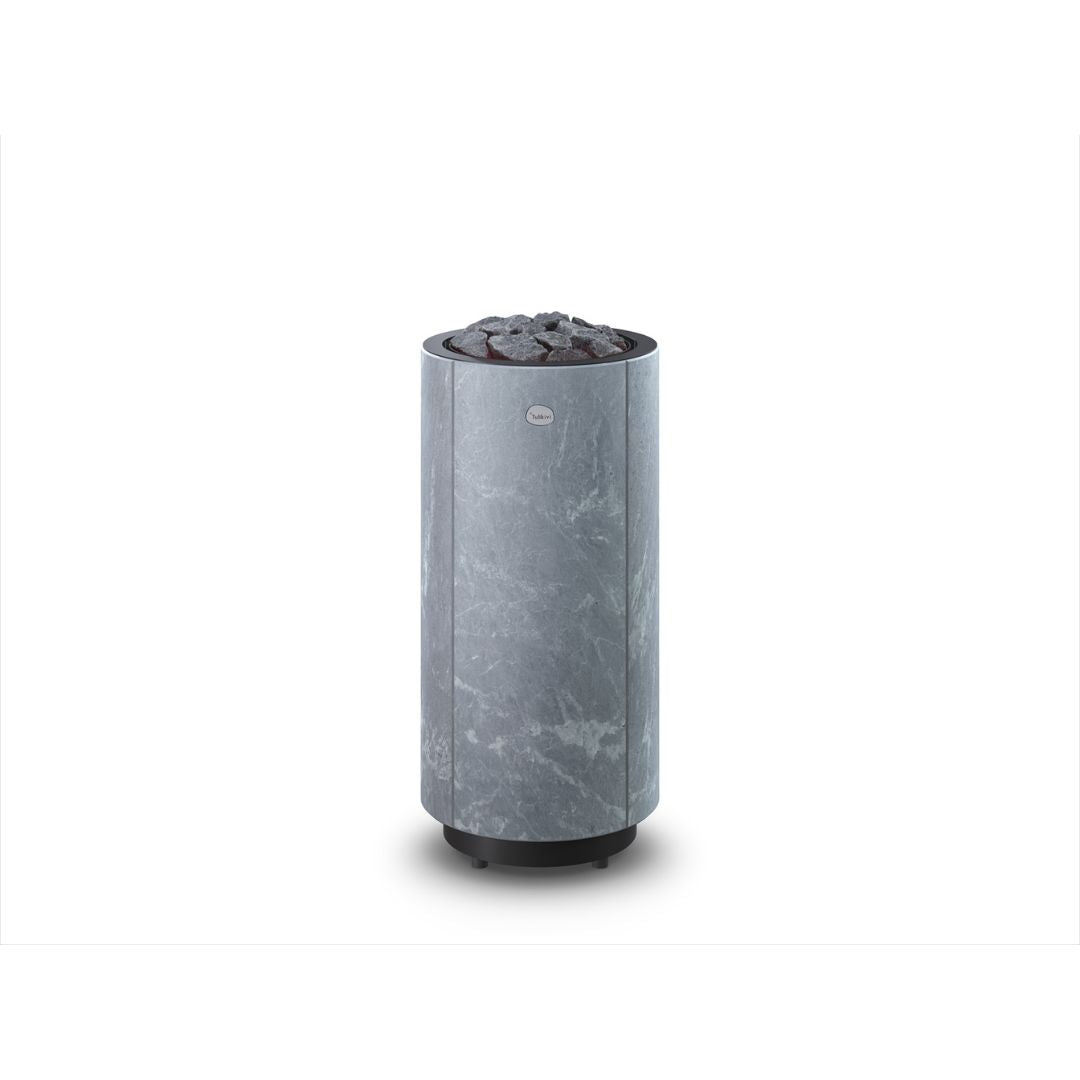

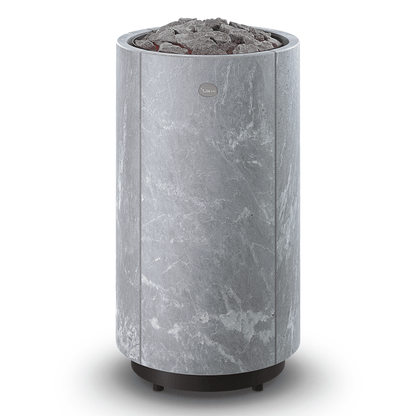

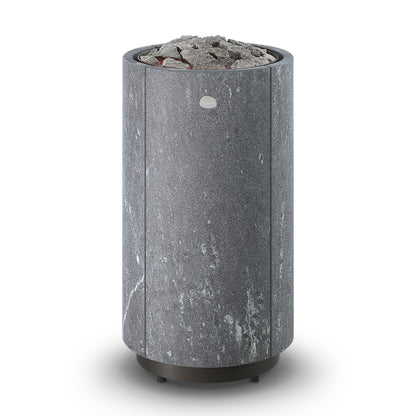

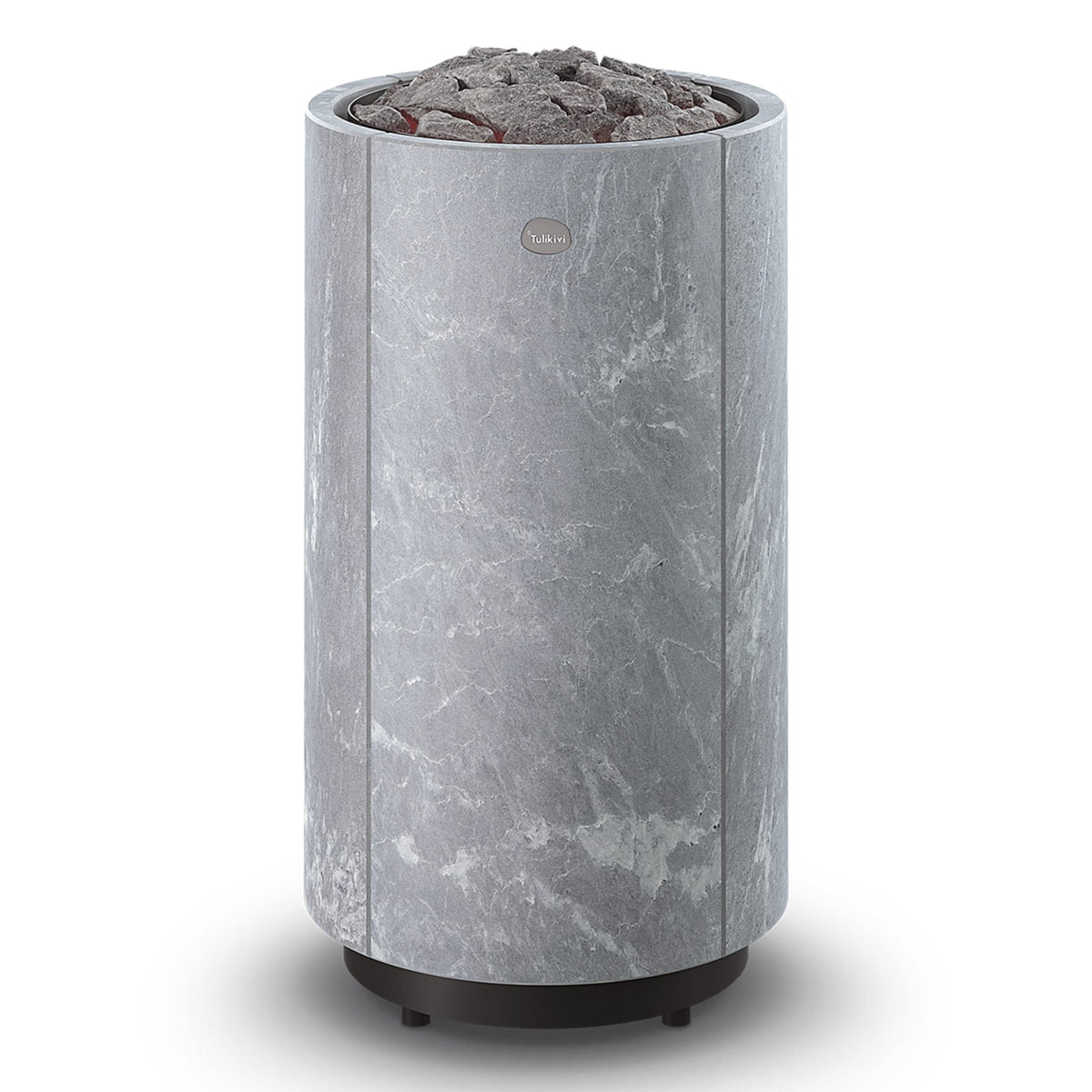

The timeless Kaarna electric sauna heater from Tulikivi Kevo Collection combines top-notch design, natural Finnish soapstone and advanced technology. The soapstone encasing efficiently retains heat and releases it evenly, creating a long-lasting and pleasant steam in the sauna. The Kaarna heater features unique height adjustment and small safety distances. The model is available in two soapstone finishes: A lighter coloured Classic and the darker Nobile.

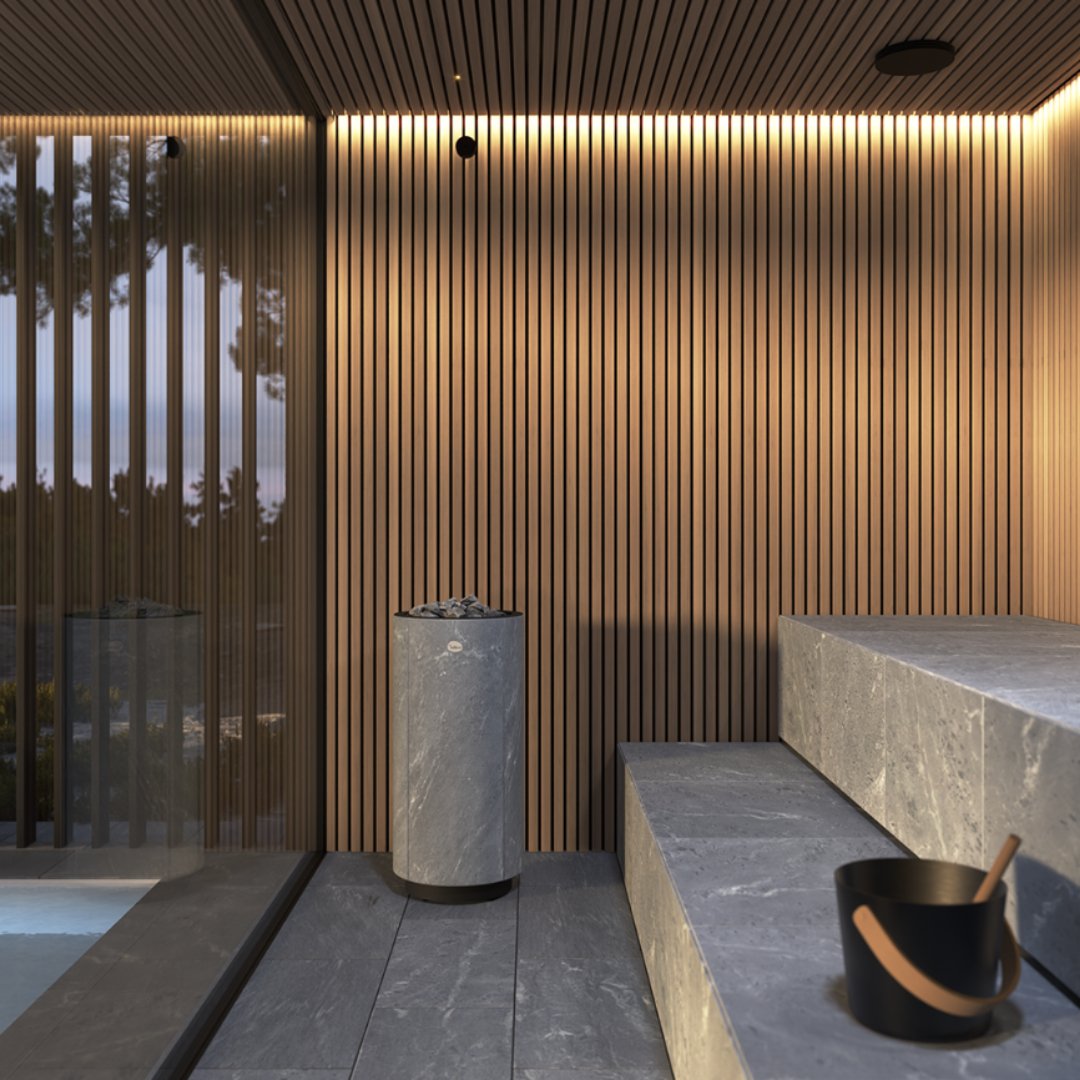

Kaarna electric heater is the perfect choice for a modern-day home sauna or a public sauna.
You can browse the entire Tulikivi collection here.
Key Features of the Kaarna Electric Sauna Heater
-
Bespoke Design: Fennia prize winner
-
Safety Features: The lowest safety distances on the market
-
Wi-Fi Controlling Option: Stylish and intuitive controller that can also be placed inside the sauna
-

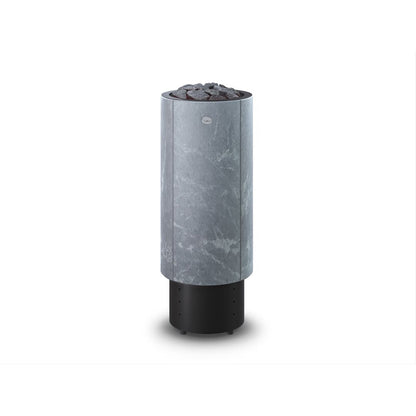

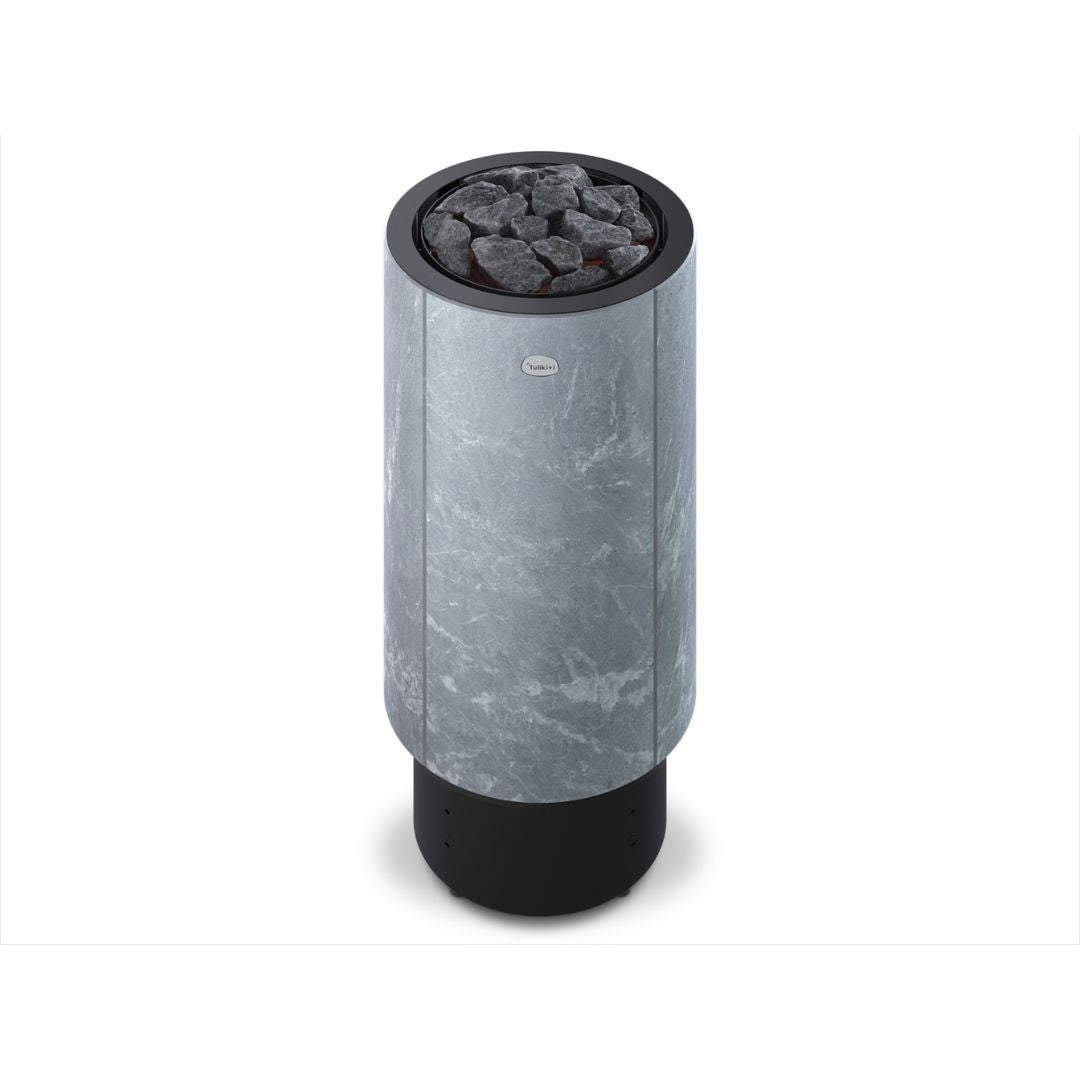

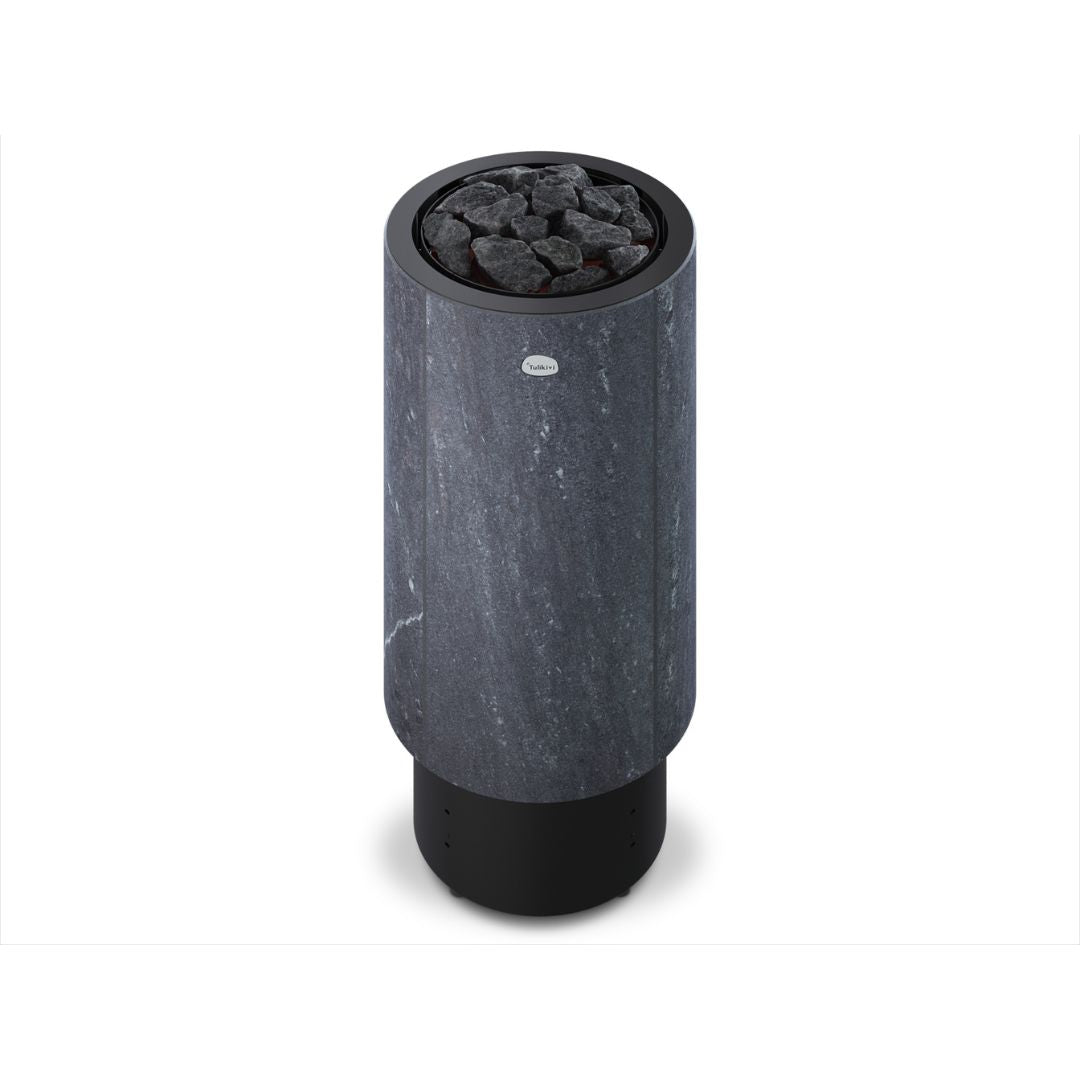

Height Adjustment: Easily integrated into the benches or placed into the sauna as a freestanding heater.
-
Four Size Options: Choose from 4.5kW, 6.8kW, 8.5kW or 10.2kW (10.2kW for 3-Phase Power Supplies). You can use our Sauna Heating Calculator to find out the computational volume of your sauna to determine what is the best sized sauna heater for your needs.
-
Efficient Airflow: Fast heat up times and air draft efficiency
-
“Löyly” & Humidity: The heater can be set to evaporate steam at different speeds. The heater and 35kg stone capacity guarantees a pleasant, soft steam (please note that the correct amount of sauna stones is to be purchased separately).
Technical Specification
-
Height: 790mm – 940mm (adjustable)
-
Diameter: Ø 370mm
-
Weight: 72 kg
-
Stone capacity: Approx. 35 kg
-
Casing Options: Kaarna Classic or Kaarna Nobile Soapstone
The heater can be bought in a couple of different versions:
For 4.5 kW, 6.8 kW or 8.5 kW heaters: You will receive a soapstone cover, a heater body (D-Body) with a 35kg steam stone compartment, with heating elements (a D-Body is a heater body with no controller/PC board. Temperature sensor included.
For 10.2 kW heaters: You will receive a soapstone cover, a heater body (D-Body) with a 35kg steam stone compartment, with heating elements and a compatible 400V PC board (For 3-Phase Power Supplies).
*Click on the Downloadable Files tab above for more information.
Extras
Control Units: In addition, the heater can be controlled with the Tulikivi Sauna Control Panel, which is to be bought separately.
For your information, this can also be controlled with other producers' controlling systems.
Sauna Stones: 35kg of sauna stones is required (Olivine, Vulcanite or Rounded Olivine). We recommend 2 x 20 kg boxes of 5-10 cm sauna stones. The dropdown stone options will provide you with enough stones to fill your heater (e.g. 2 x 20kg Boxes of Grade A Finnish Olivine Sauna Stones). The white cover stones can be bought separately through their own product page.
Technical Specification Tulikivi Kaarna
|
Dimensions: |
4.5kW |
6.8kW |
8.5kW |
10.2kW |
|
Recommend sauna size |
3-6 m3 |
5-9 m3 |
7-13 m3 |
9-15 m3
|
|
Stone Capacity |
35 kg |
35 kg |
35 kg |
35 kg |
|
Diameter |
Ø 370mm
|
Ø 370mm
|
Ø 370mm
|
Ø 370mm
|
|
Height (Adjustable) |
790mm – 940mm |
790mm – 940mm |
790mm – 940mm |
790mm – 940mm |
|
Weight without stones |
72 kg |
72 kg |
72 kg |
72 kg |
|
Materials and Adjusting: |
|
|
|
|
|
Outer Casing |
Soapstone Classic or Nobile |
Soapstone Classic or Nobile |
Soapstone Classic or Nobile |
Soapstone Classic or Nobile |
|
Control method |
Tulikivi Sauna Control Panel |
Tulikivi Sauna Control Panel
|
Tulikivi Sauna Control Panel
|
Tulikivi Sauna Control Panel
|
|
Safety Distances: |
|
|
|
|
|
To the sides |
100mm |
100mm |
100mm |
100mm |
|
To the front |
20mm |
20mm |
20mm |
20mm |
|
To the ceiling |
950mm |
950mm |
950mm |
950mm |
|
To the floor |
50mm |
50mm |
50mm |
50mm |
Technical SpecificationTulikivi Kaarna Technical Specification
|
|
4.5 kW |
6.8 kW |
8.5 kW |
10.2 kW |
|
Dimensions: |
|
|
|
|
|
Recommended sauna size |
3-6 m3 |
5-9 m3 |
7-13 m3 |
9-15 m3 |
|
Stone capacity |
35 kg |
35 kg |
35 kg |
35 kg |
|
Diameter |
Ø 370 mm |
Ø 370 mm
|
Ø 370 mm
|
Ø 370 mm
|
|
Height (adjustable) |
790 mm-940 mm |
790 mm-940 mm
|
790 mm-940 mm
|
790 mm-940 mm
|
|
Weight without stones |
72 kg |
72 kg
|
72 kg
|
72 kg
|
|
Materials and Adjusting: |
|
|
|
|
|
Outer casing |
Soapstone Classic or Nobile |
Soap stone Classic or Nobile |
Soap stone Classic or Nobile |
Soap stone Classic or Nobile |
|
Control method |
Tulikivi sauna control panel |
Tulikivi sauna control panel
|
Tulikivi sauna control panel
|
Tulikivi sauna control panel
|
|
Safety Distances: |
|
|
|
|
|
To the side |
100 mm |
100 mm |
100 mm |
100 mm |
|
To the front |
20 mm |
20 mm |
20 mm |
20 mm |
|
To the ceiling |
950 mm |
950 mm |
950 mm |
950 mm |
|
To the floor |
50 mm |
50 mm |
50 mm |
50 mm |
