HUUM Mounting Collar for HIVE Flow LS (Tunnel) Wood Burning Sauna Heater

HUUM Mounting Collar for HIVE Flow LS (Tunnel) Wood Burning Sauna Heater

Free UK Delivery Over £1500*
Regular price €273,95
Sale price €273,95 Regular price
Finish: Black
View full details
Description

Description

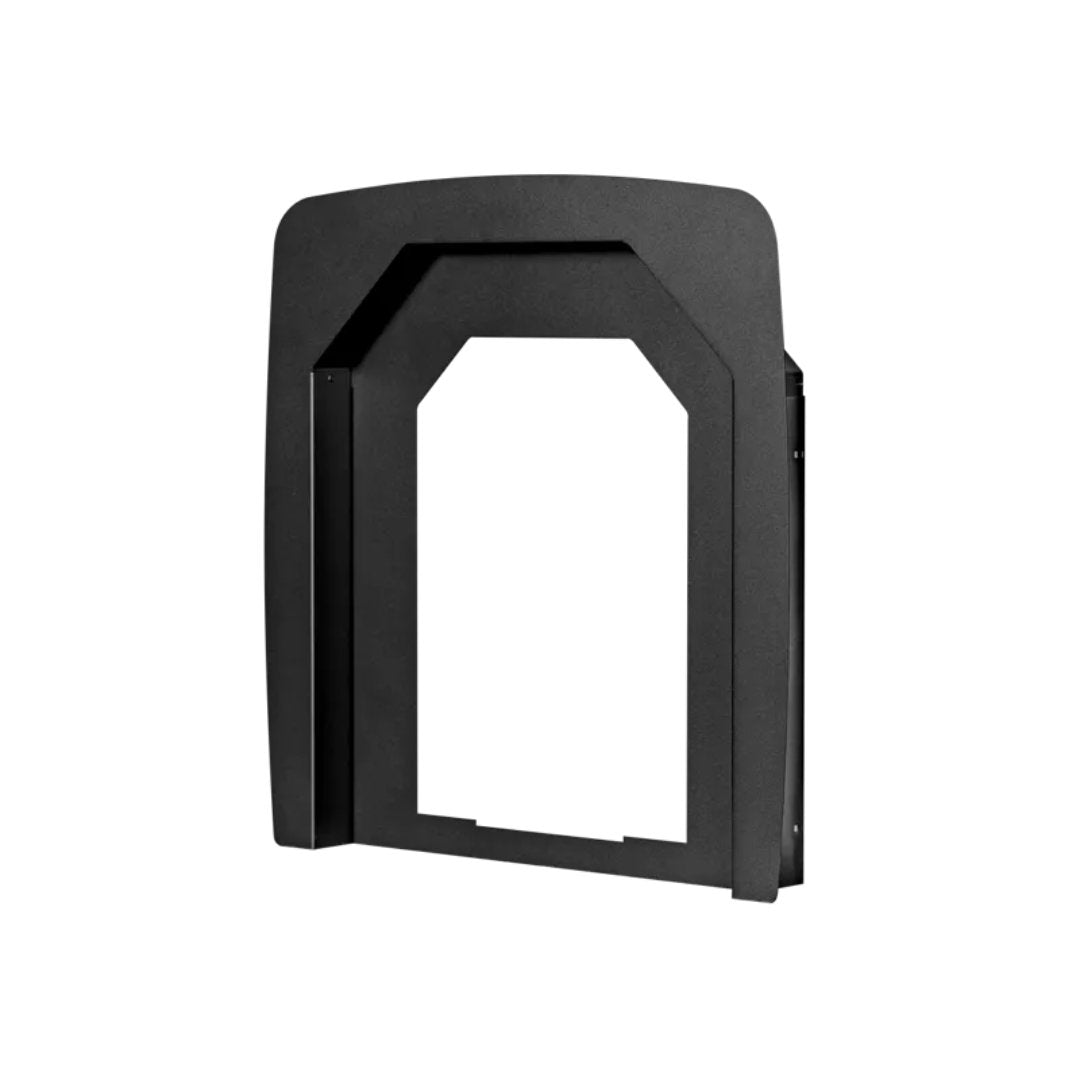

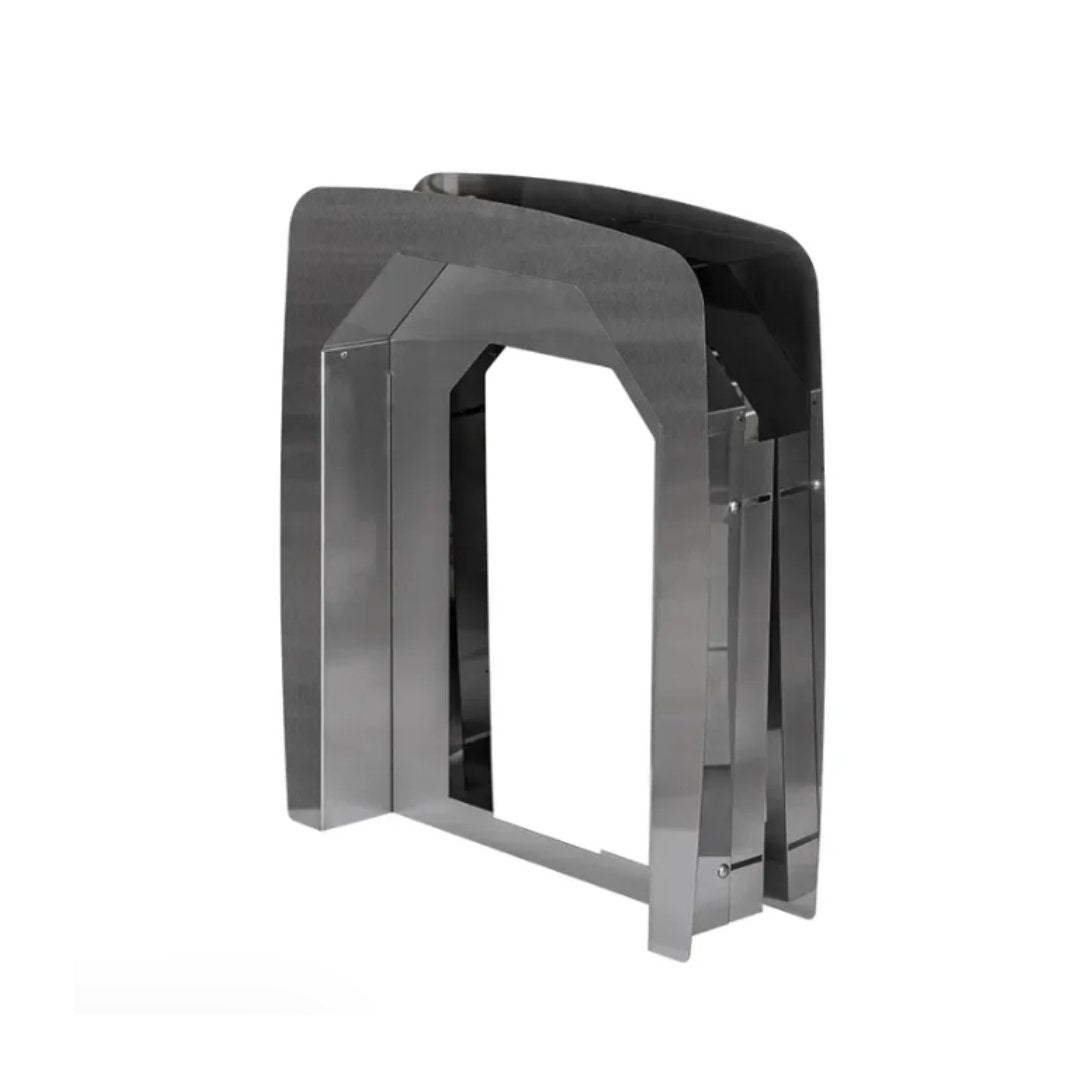

The HUUM mounting collar gives a HIVE Flow LS (Tunnel) wood-burning sauna heater a clean, finished junction where the firebox tunnel passes through the wall. It is designed for installation through a non-combustible wall and adjusts to suit wall thicknesses from 100 mm to 150 mm. The set includes the inner and outer flanges, a cover for the sauna-room side and a plinth plate, which is needed only when the heater stands on the HUUM protective bedding. Two finishes are available: 2 mm stainless steel and black heat-resistant coated aluminium.

Features

  • Model compatibility: Made for the HUUM HIVE Flow LS (Tunnel) wood-burning sauna heaters.
  • Two finishes: Available in 2 mm stainless steel or black heat-resistant coated aluminium.
  • Adjustable depth: Suits wall thicknesses from 100 mm to 150 mm.
  • Complete set: Includes the inner flange, outer flange, sauna-room cover and plinth plate.
  • Non-combustible walls only: Designed for installation through a non-combustible wall.
  • Clean integration: Gives a neat, finished junction between the heater tunnel and the wall.
Technical Specification
CompatibilityHUUM HIVE Flow LS (Tunnel) wood-burning sauna heaters
Finishes2 mm stainless steel; black heat-resistant coated aluminium
Wall typeNon-combustible walls only
Wall thickness adjustment100–150 mm
Set includesInner flange, outer flange, sauna-room-side cover, plinth plate (needed only with the HUUM protective bedding)
Part numbersH3016021 (Stainless Steel); H3016031 (Black)

Installation

The collar is assembled by fitting the inner flange inside the outer flange with the supplied fasteners, then adjusting the depth to the wall: the minimum position suits a 100 mm wall and the maximum position a 150 mm wall. It is designed solely for installation through a non-combustible wall, and the minimum wall and opening dimensions for the HIVE Flow LS and Flow Mini LS are set out in the fitting guide in the Downloads tab. The collar is fixed with a heat-resistant silicone compound (not included) or screwed to the wall material, and the sauna-room cover is fitted last, once the heater sits in its final position with the door moving and locking freely. Solid-fuel installations must follow the heater manual and building regulations.

Brand

HUUM is an Estonian sauna manufacturer known for minimalist design and smart heater technology; its DROP heater won the Red Dot Award for Product Design in 2015.

Ordering note

Check your heater model before ordering: the fitting guide gives different collar and wall-opening dimensions for the HIVE Flow LS and the HIVE Flow Mini LS, so confirm which tunnel model you own.
