HUUM HIVE Mini Electric Sauna Heater
HUUM HIVE Mini Electric Sauna Heater
Couldn't load pickup availability
Buy together with:
Description
Description

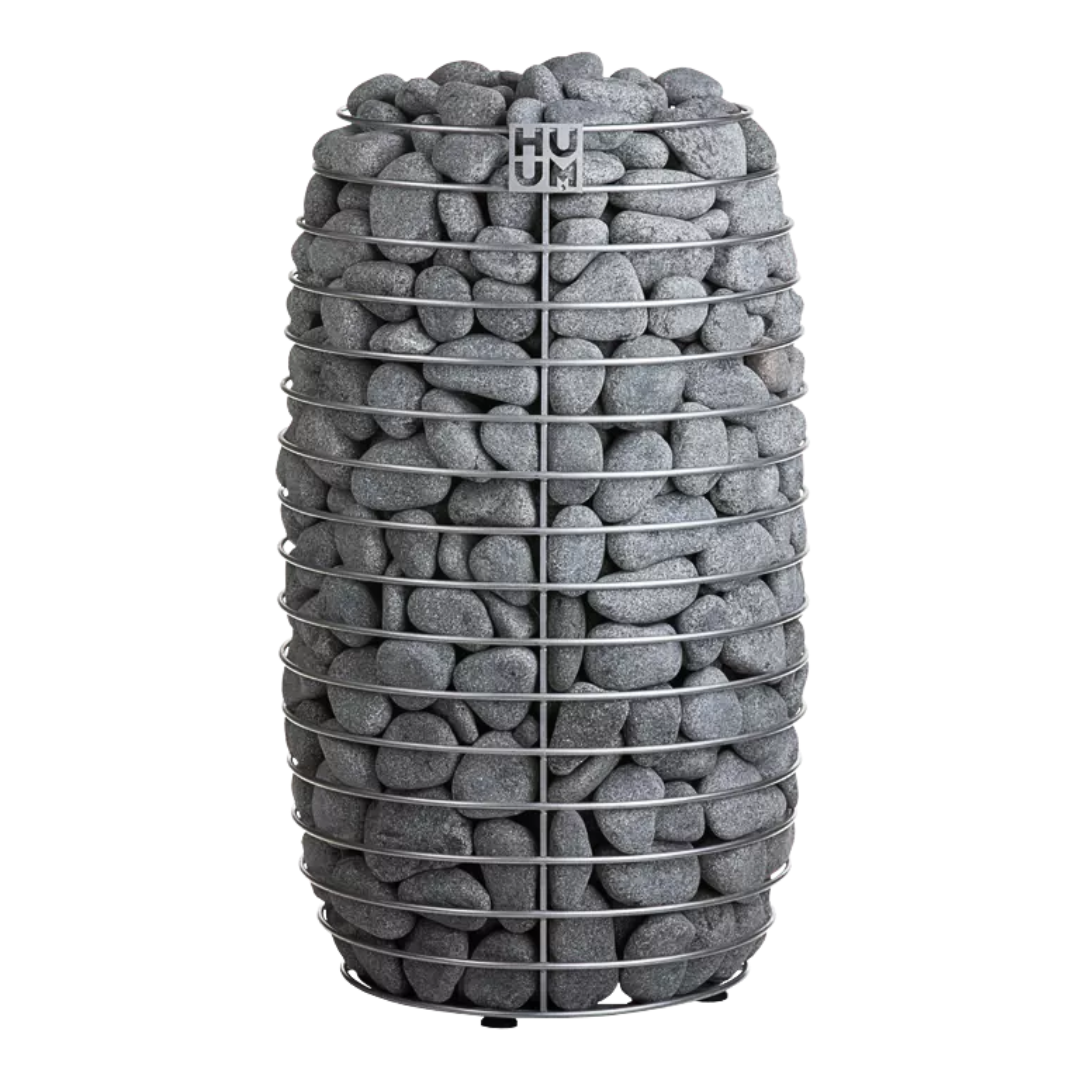

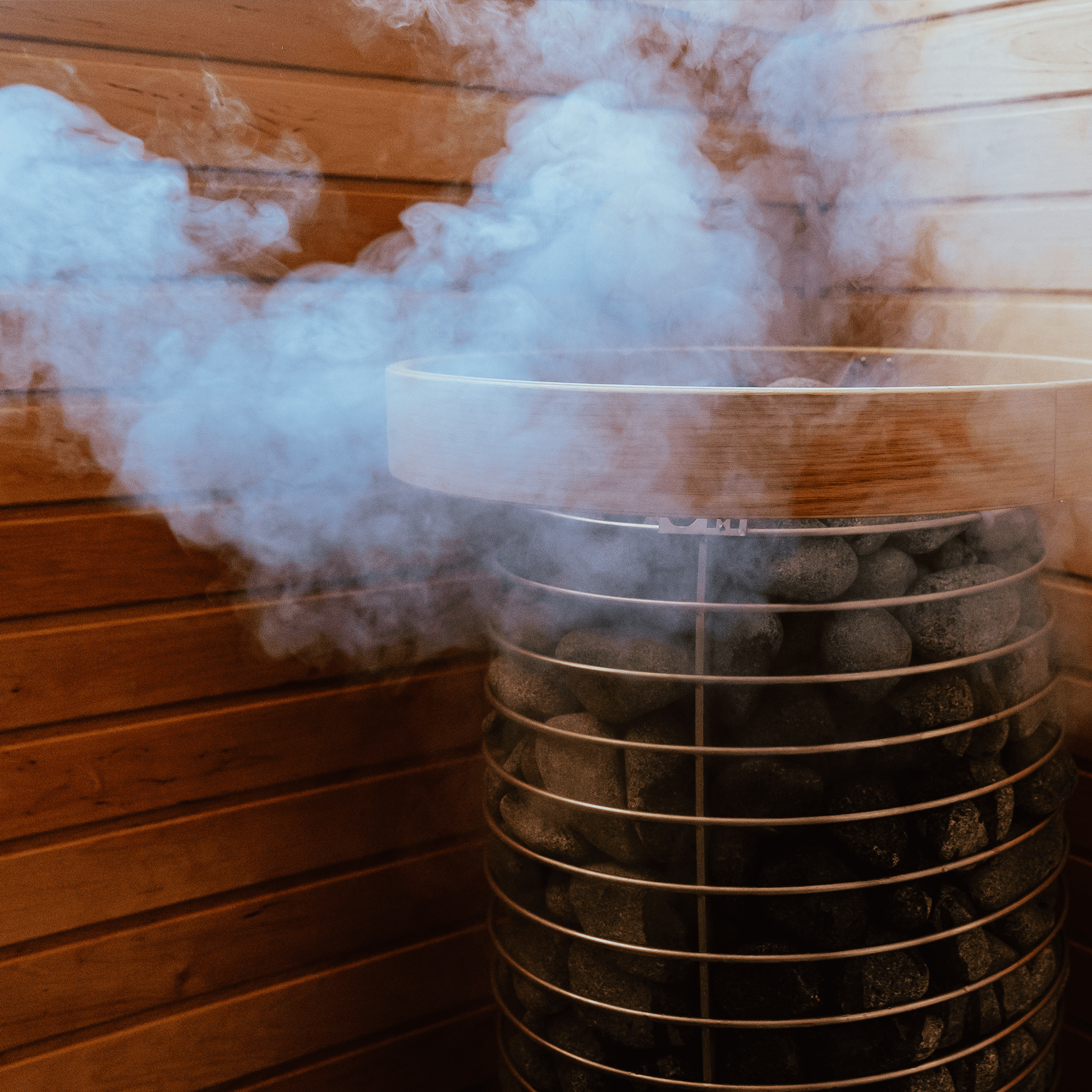

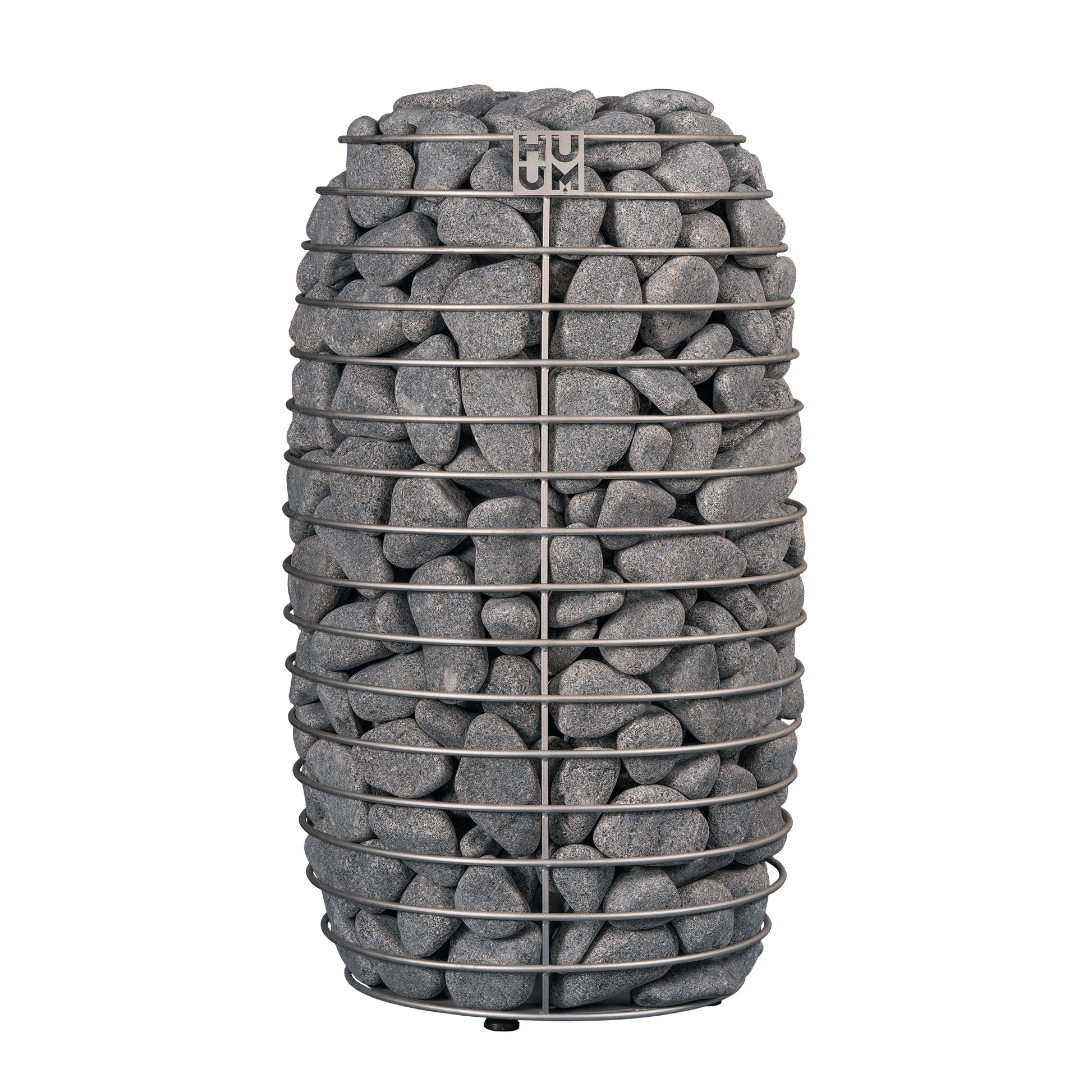

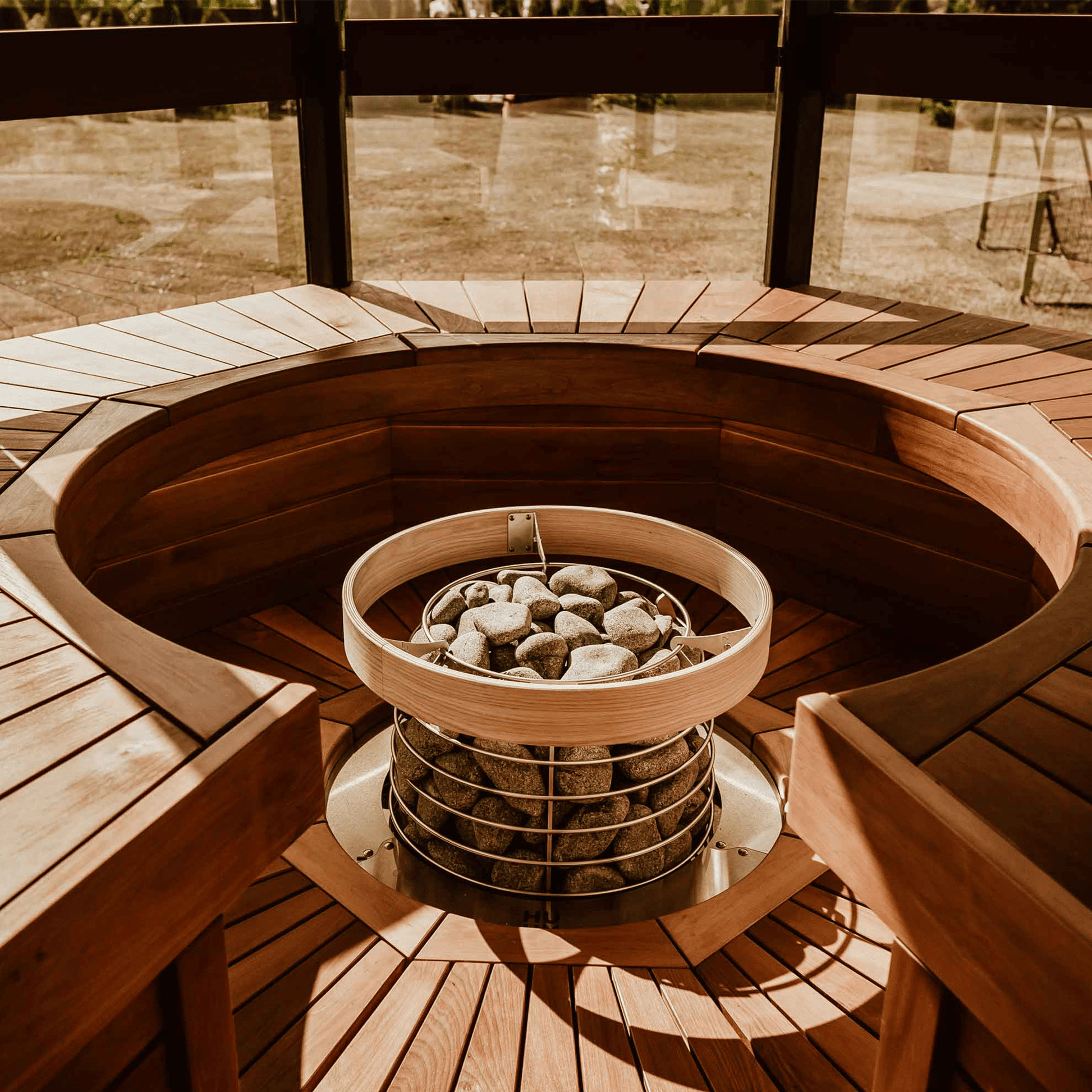

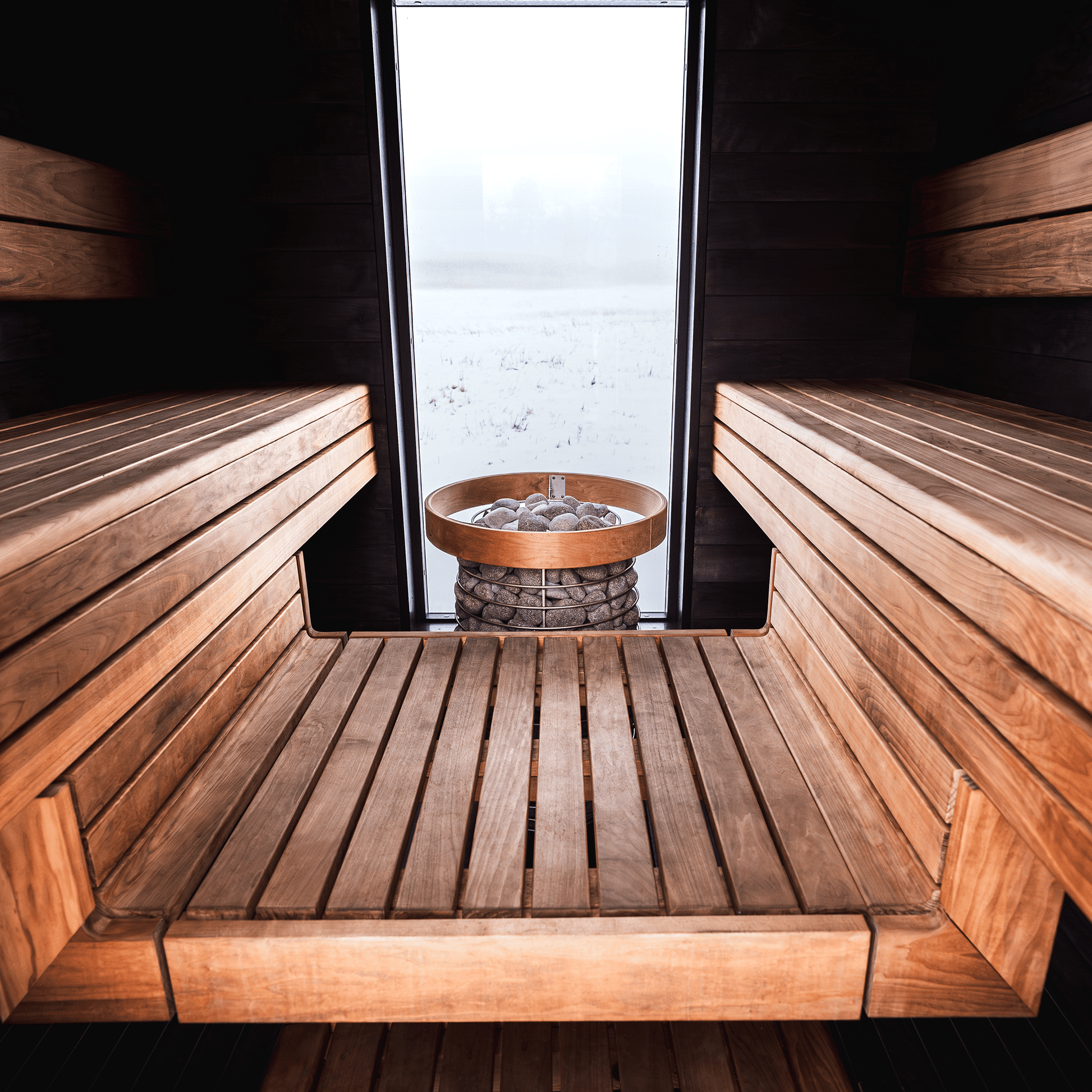

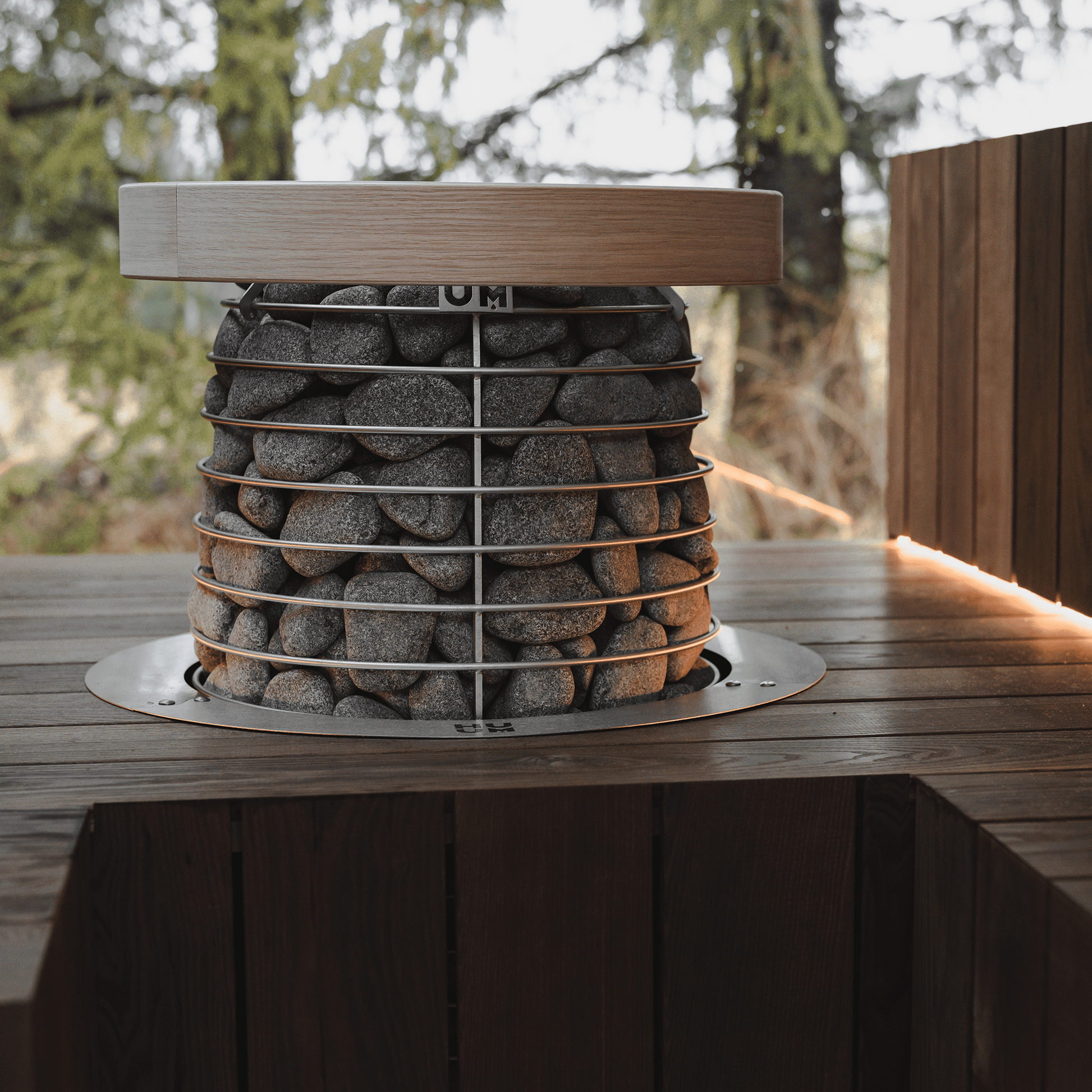

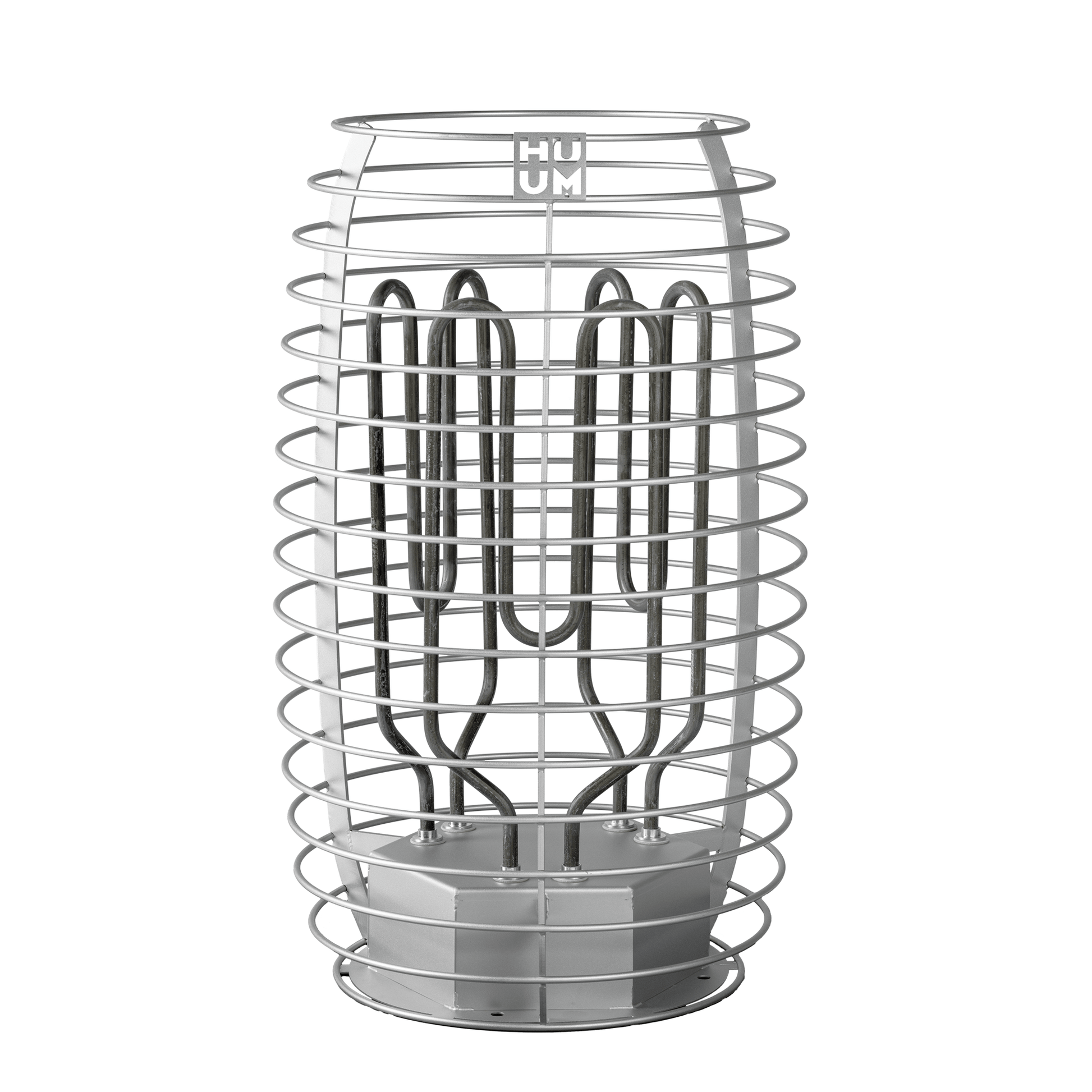

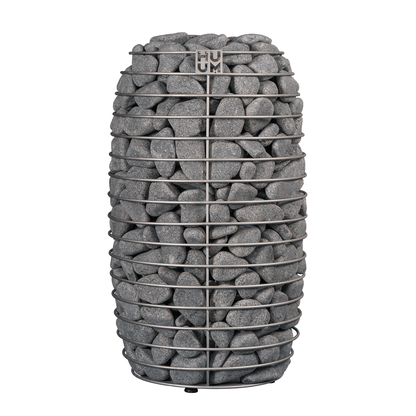

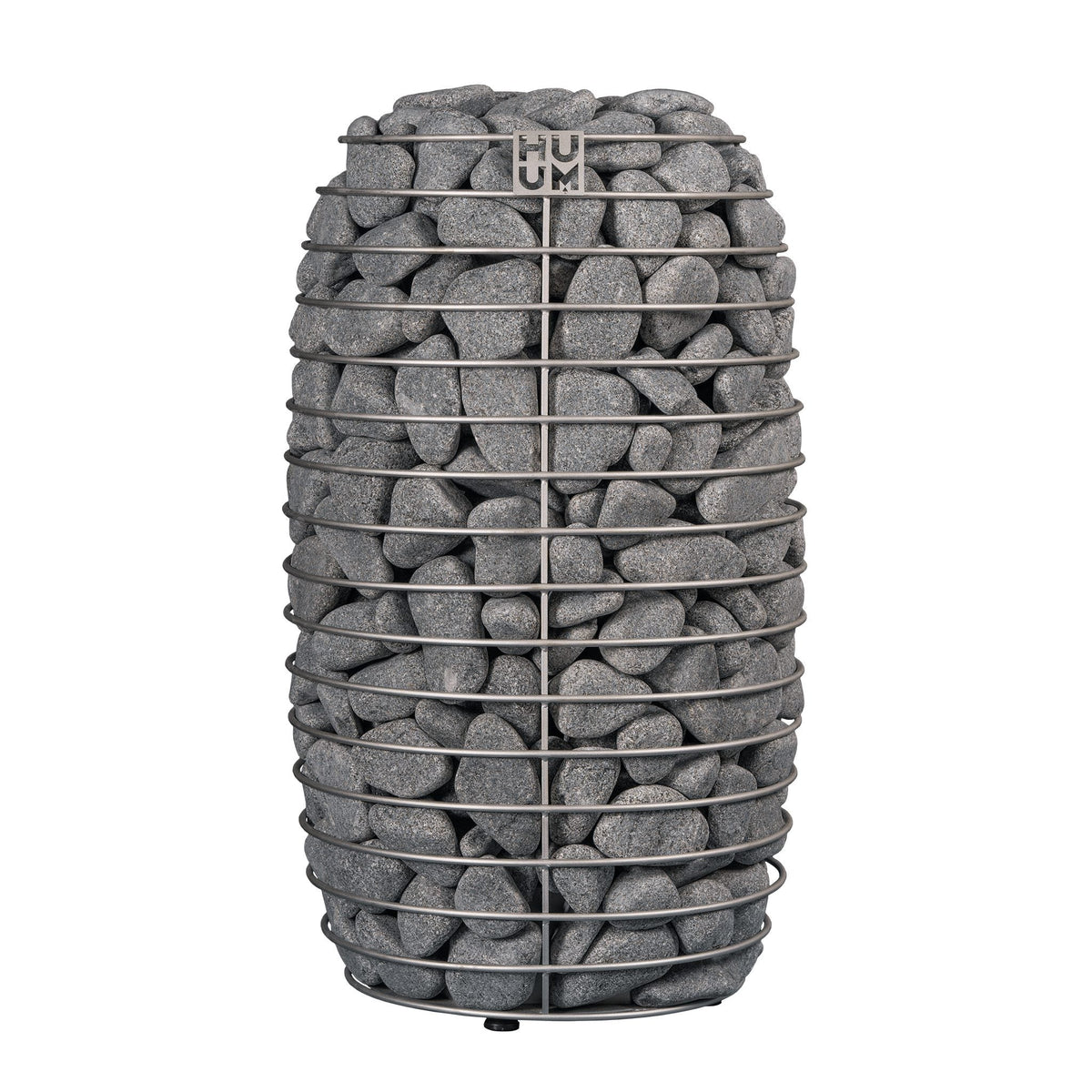

The HUUM HIVE Mini is a floor-standing electric sauna heater that brings the HIVE’s open steel lattice and very large stone mass to smaller sauna rooms. It holds up to 150 kg of stones, a capacity that gives long-lasting, even steam well beyond what its compact 460 mm diameter suggests. It is available in 6 kW, 9 kW and 10.5 kW outputs, covering sauna rooms of 5–16 m³, and connects to either a single-phase 230 V or three-phase 400 V supply; the HIVE air tunnel has been included as standard since April 2024. A HUUM UKU control console (Local or Wi-Fi) and around 150 kg of 5–10 cm stones are required and sold separately; for larger rooms there is the full-size HIVE.
Features
Technical Specification
| All models | |
| Type | Floor-standing electric sauna heater |
| Material | Stainless steel |
| Dimensions (H × diameter) | 750 × 460 mm |
| Stone capacity | 150 kg |
| Recommended stones | 5–10 cm natural stones, e.g. olivine diabase or olivine (sold separately) |
| Air tunnel | Included as standard (since April 2024) |

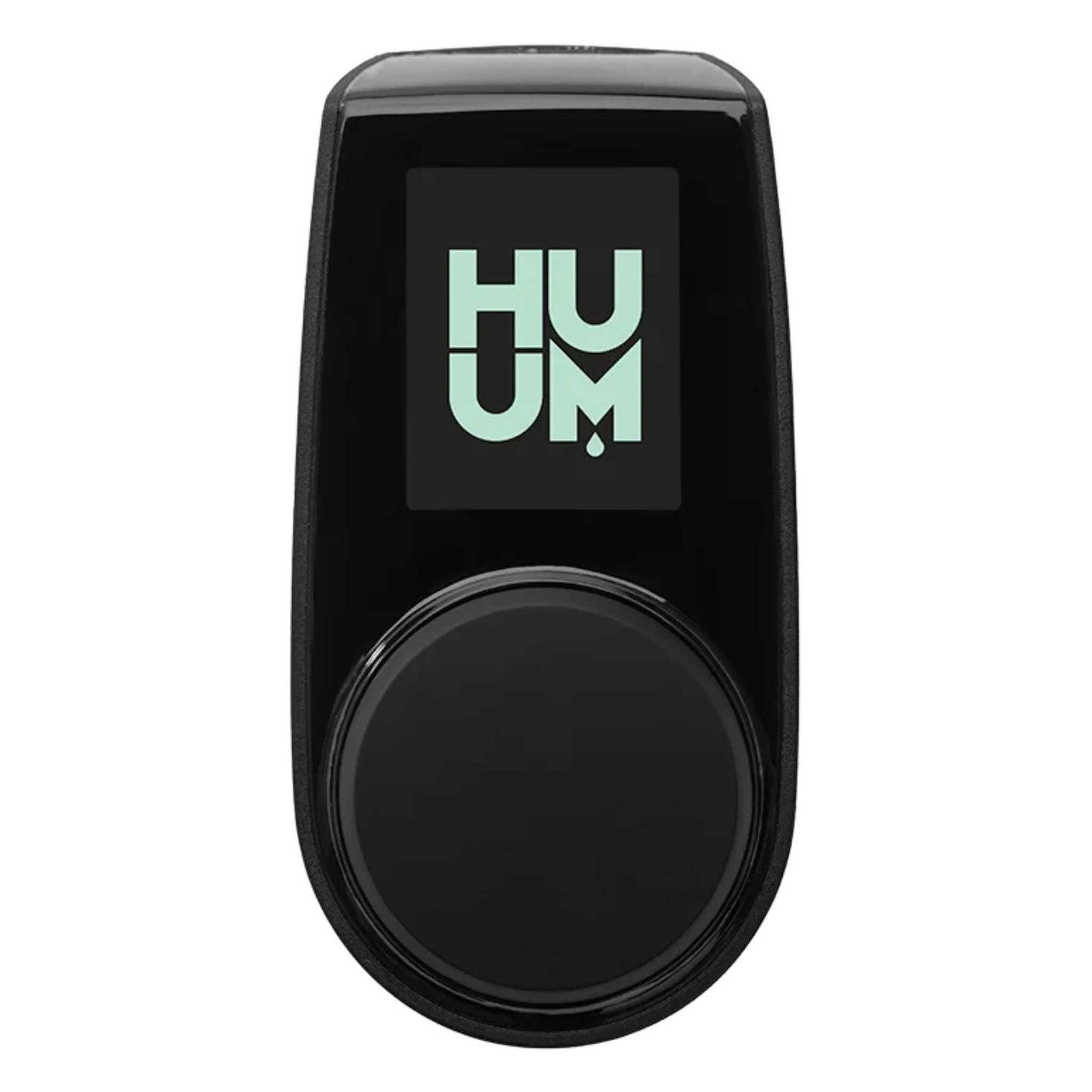

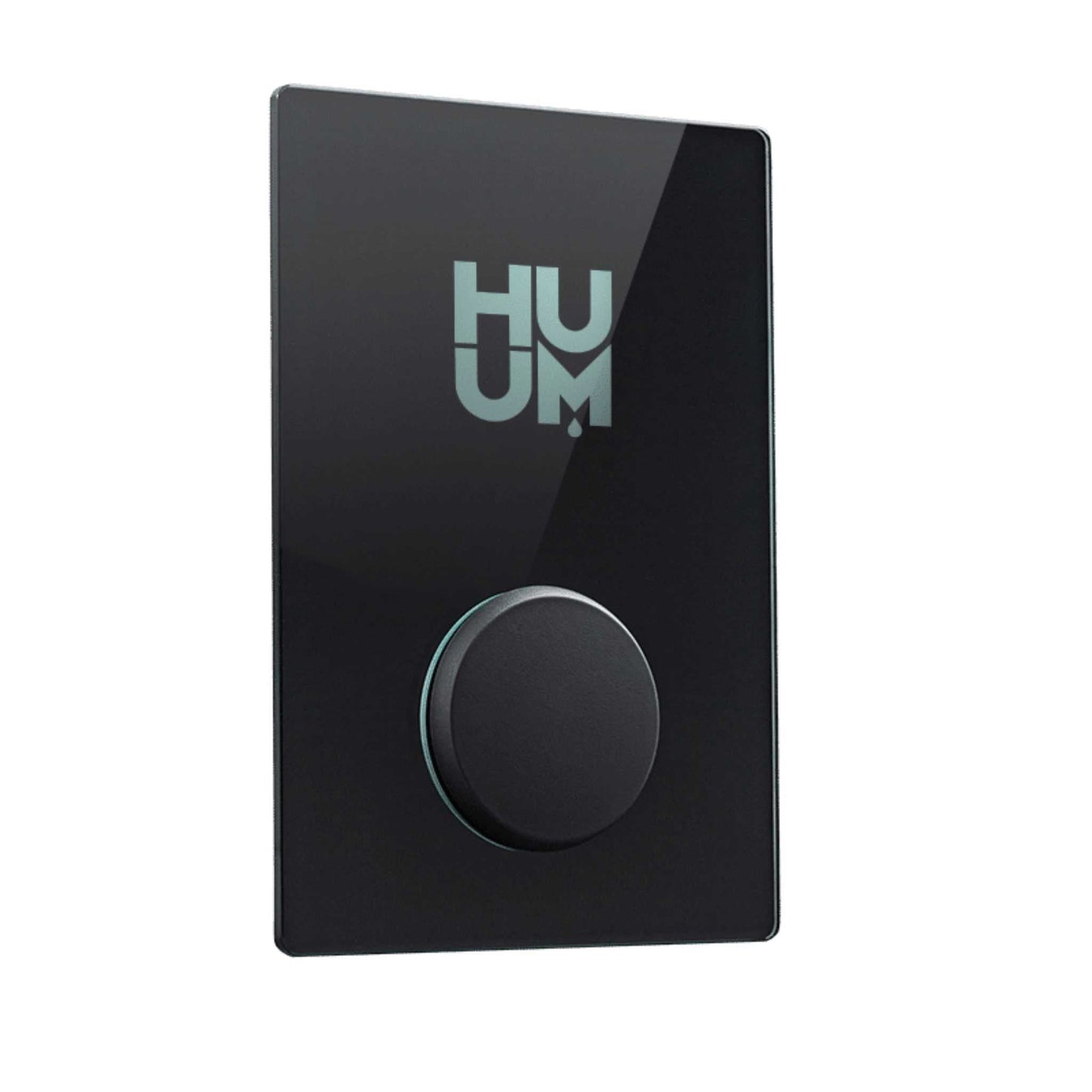

| Control | HUUM UKU console, Local or Wi-Fi (sold separately) |
| Supply options | 1N~ 230 V or 3N~ 400 V |
| Design standard | EN 60335-2-53:2011 |
| Certification | UKCA |
| HIVE Mini 6 (6 kW) | |
| Rated output | 6 kW |
| Recommended room volume | 5–9 m³ |
| Empty weight | 14 kg |
| Safety distance A (sides) | 60 mm |
| Safety distance B | 580 mm |
| Fuses (3N~ 400 V) | 3 × 10 A |
| Cable, UKU main module input (3N~ 400 V) | 5-core 2.5 mm² SWA |
| Cable, heater input (3N~ 400 V) | 5-core 2.5 mm² H07RN-F |
| Fuse (1N~ 230 V) | 1 × 32 A |
| Cable, UKU main module input (1N~ 230 V) | 3-core 6 mm² SWA |
| Cable, heater input (1N~ 230 V) | 7-core 2.5 mm² SiHF |
| HIVE Mini 9 (9 kW) | |
| Rated output | 9 kW |
| Recommended room volume | 8–13 m³ |
| Empty weight | 16 kg |
| Safety distance A (sides) | 90 mm |
| Safety distance B | 640 mm |
| Fuses (3N~ 400 V) | 3 × 16 A |
| Cable, UKU main module input (3N~ 400 V) | 5-core 2.5 mm² SWA |
| Cable, heater input (3N~ 400 V) | 5-core 2.5 mm² H07RN-F |
| Fuse (1N~ 230 V) | 1 × 40 A |
| Cable, UKU main module input (1N~ 230 V) | 3-core 10 mm² SWA |
| Cable, heater input (1N~ 230 V) | 7-core 2.5 mm² SiHF |
| HIVE Mini 11 (10.5 kW) | |
| Rated output | 10.5 kW |
| Recommended room volume | 10–16 m³ |
| Empty weight | 16 kg |
| Safety distance A (sides) | 110 mm |
| Safety distance B | 680 mm |
| Fuses (3N~ 400 V) | 3 × 16 A |
| Cable, UKU main module input (3N~ 400 V) | 5-core 2.5 mm² SWA |
| Cable, heater input (3N~ 400 V) | 5-core 2.5 mm² H07RN-F |
| Fuse (1N~ 230 V) | 1 × 50 A |
| Cable, UKU main module input (1N~ 230 V) | 3-core 10 mm² SWA |
| Cable, heater input (1N~ 230 V) | 7-core 2.5 mm² SiHF |
Installation

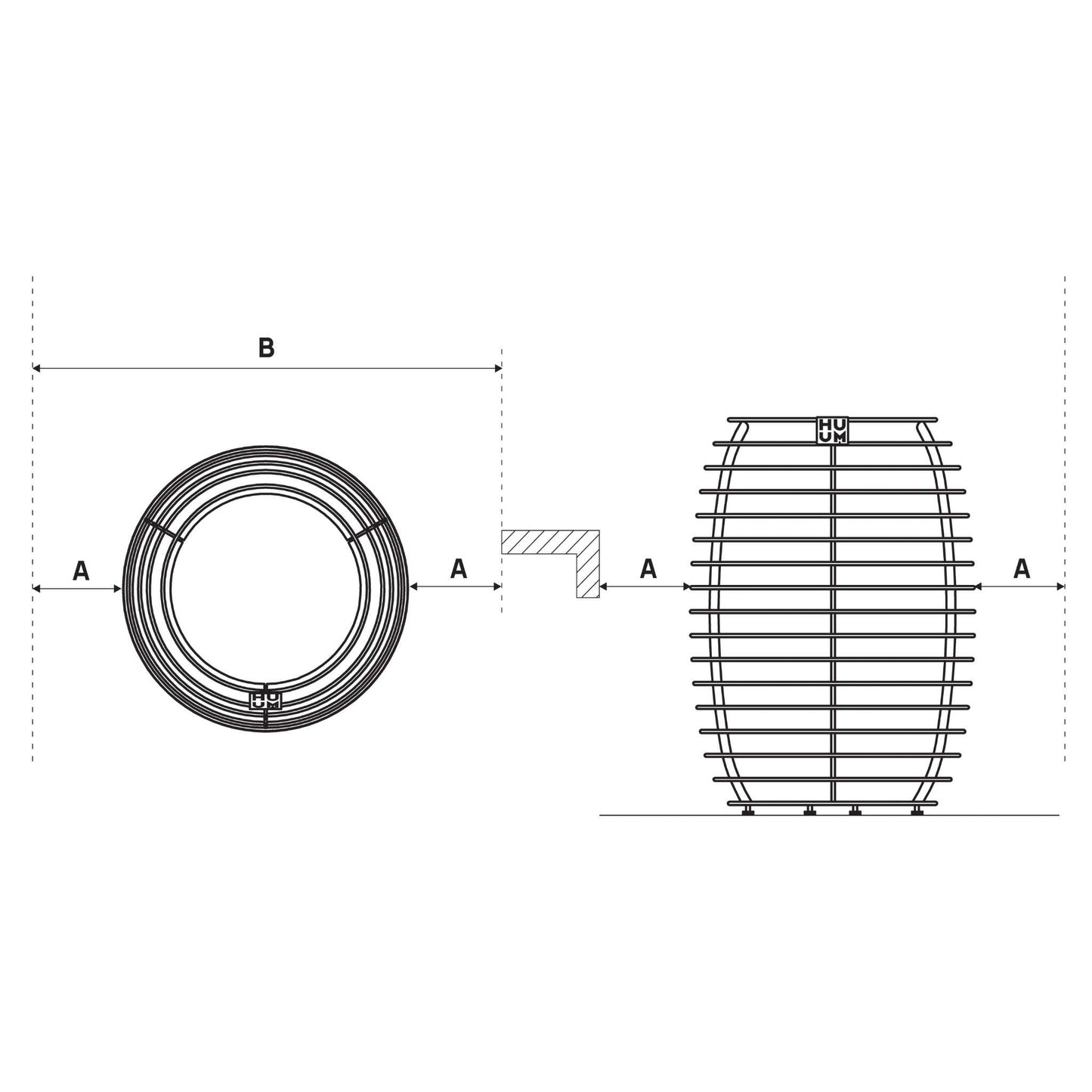

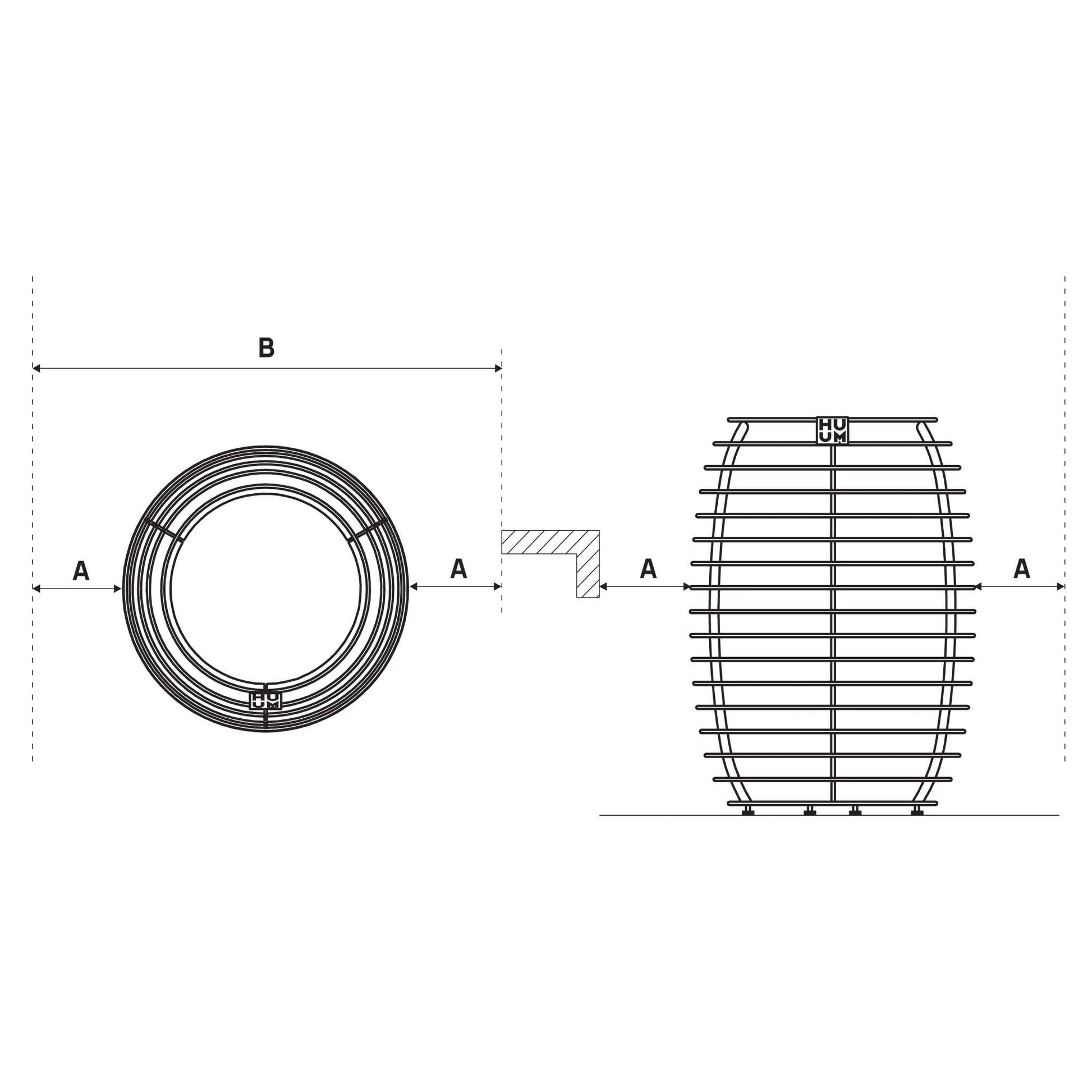

Installation and maintenance must be carried out by a certified electrician, with the electricity supply isolated at the fuse panel before any work begins. Under IEC 60364-7-703 and BS 7671:2018 an electric sauna heater does not have to be connected through an RCD, and for reliable operation the manufacturer recommends that the heater supply is not run through one; other electrical devices in the sauna room should be RCD protected. A local point of isolation covering all live conductors is recommended. The installation manual in the Downloads tab and local wiring regulations must be followed. The connection cable must be heat-resistant rubber-insulated cable (SIHF-JB or equivalent); PVC-insulated cable must not be used, and any junction box in the sauna room must be waterproof and mounted no higher than 500 mm from the floor. When sizing the heater, add 1 m³ of calculated room volume for every square metre of uninsulated brick, tile, glass or log wall in the sauna room. A diagram of the safety distances is provided in the image gallery.
Sauna stones

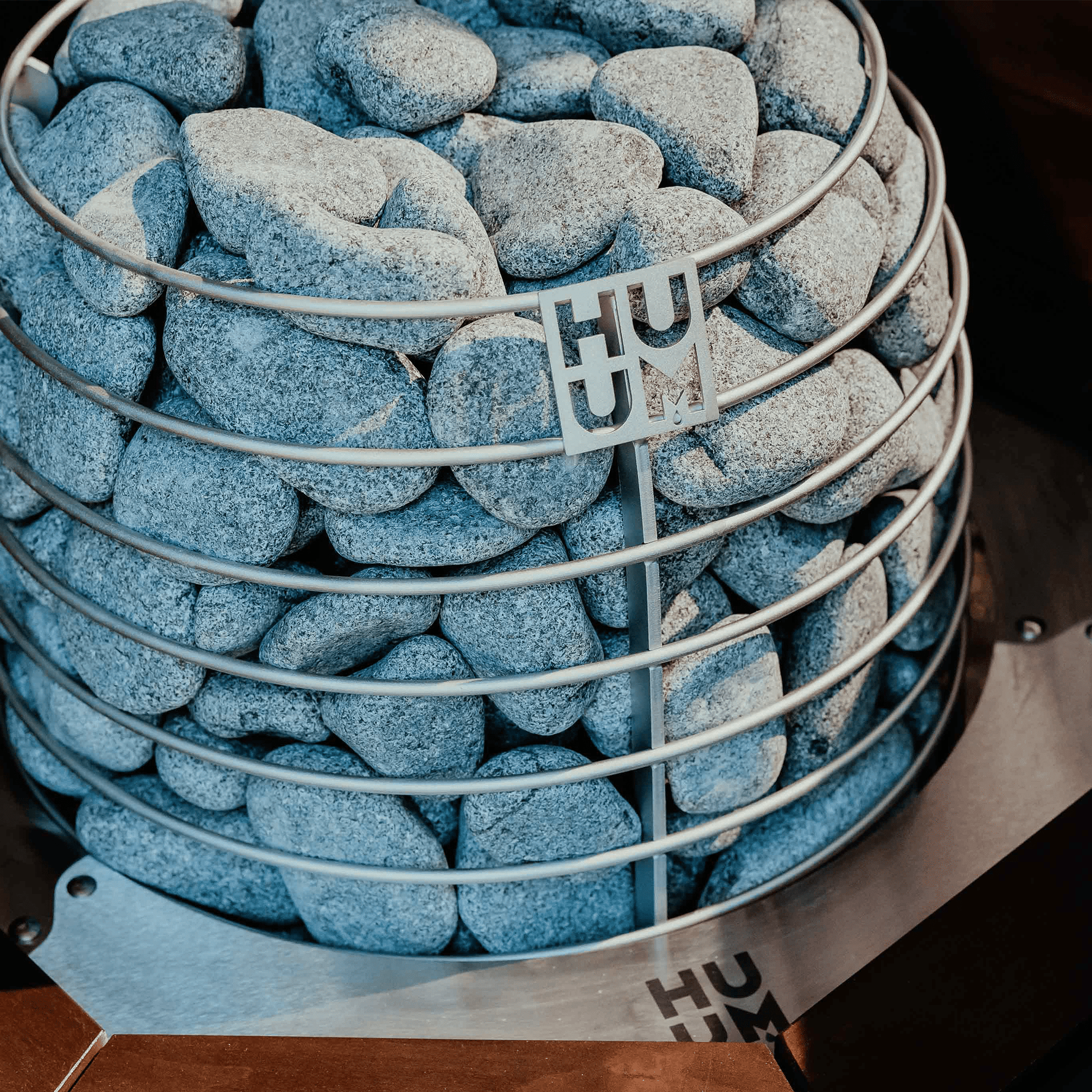

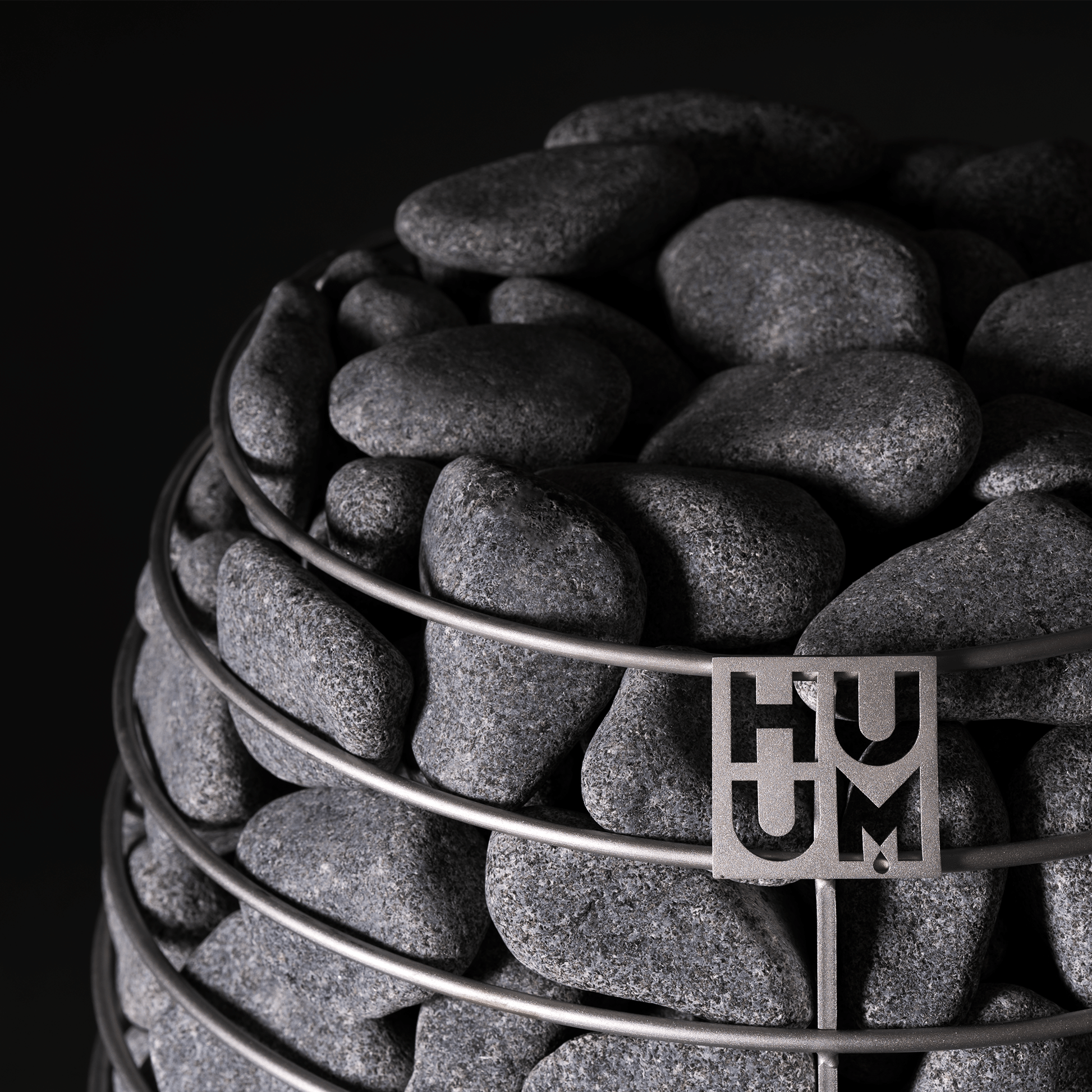

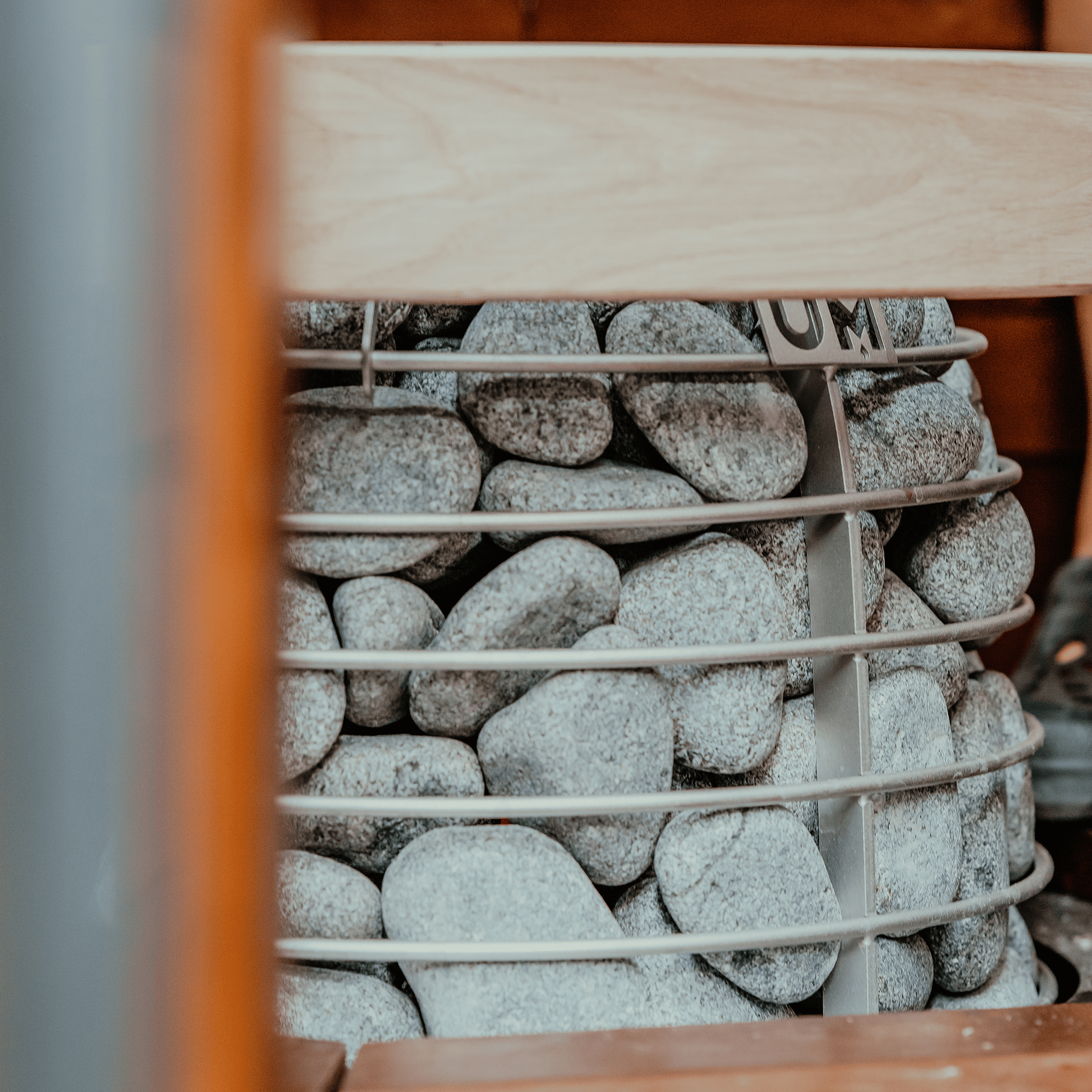

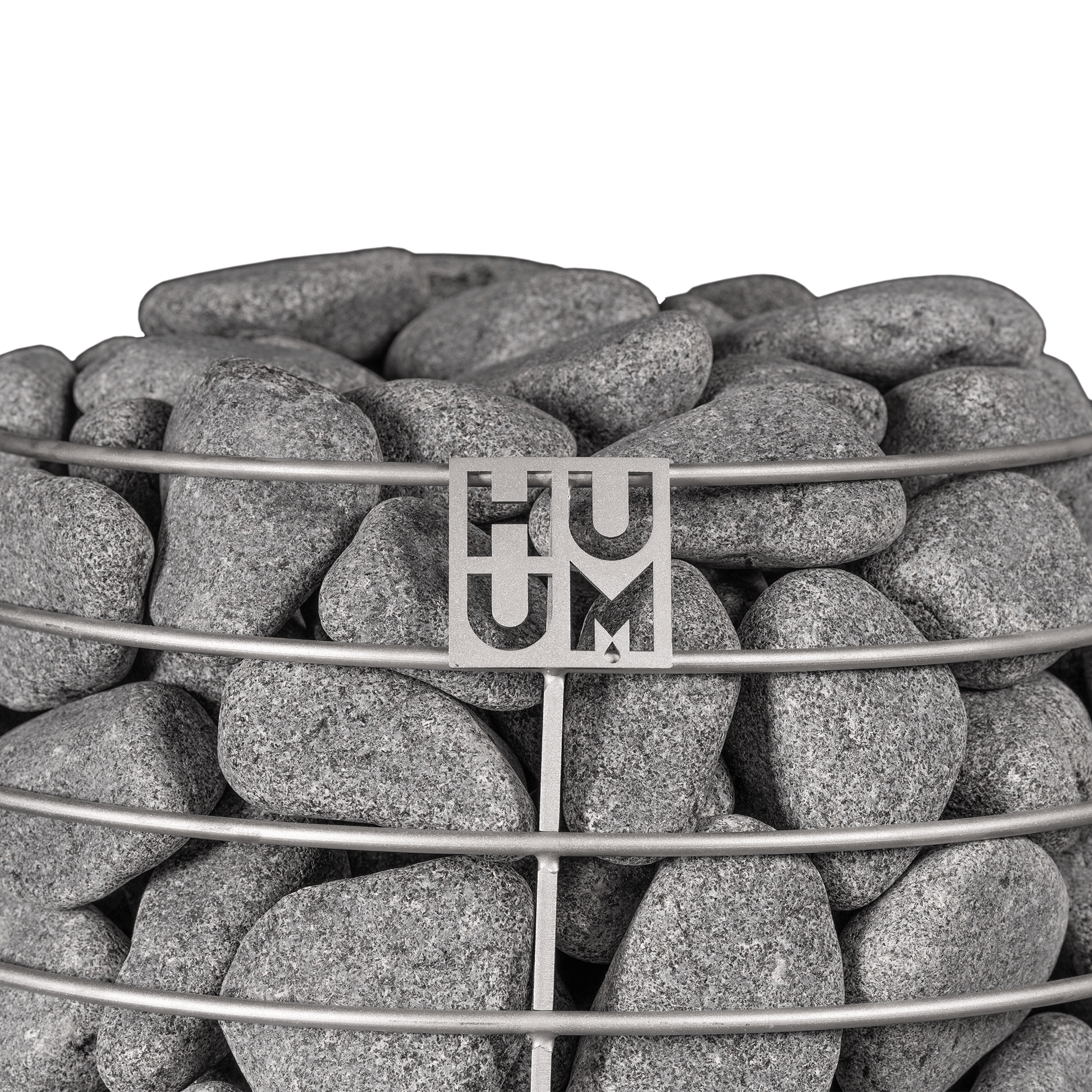

The HIVE Mini requires approximately 150 kg of 5–10 cm stones (around 10 boxes), sold separately; natural stones such as olivine diabase or olivine are recommended. Wash the stones before use and lay them one by one, keeping the air tunnel free of stones and making sure neither the air tunnel nor the tops of the heating elements remain visible, otherwise the stated safety distances no longer apply.
Brand
HUUM is an Estonian maker of design-led sauna heaters, pairing minimal Nordic forms with smart sauna technology; its DROP heater won a Red Dot Award for product design in 2015. HUUM heaters are manufactured in Estonia from stainless steel and are UKCA certified.
Warranty
For full details on product warranty, see HUUM’s Limited Warranty Terms and Conditions; the heating elements are not included in the warranty.
