HUUM HIVE Flow Wood Burning Sauna Heater
HUUM HIVE Flow Wood Burning Sauna Heater
Couldn't load pickup availability
Buy together with:
Description
Description

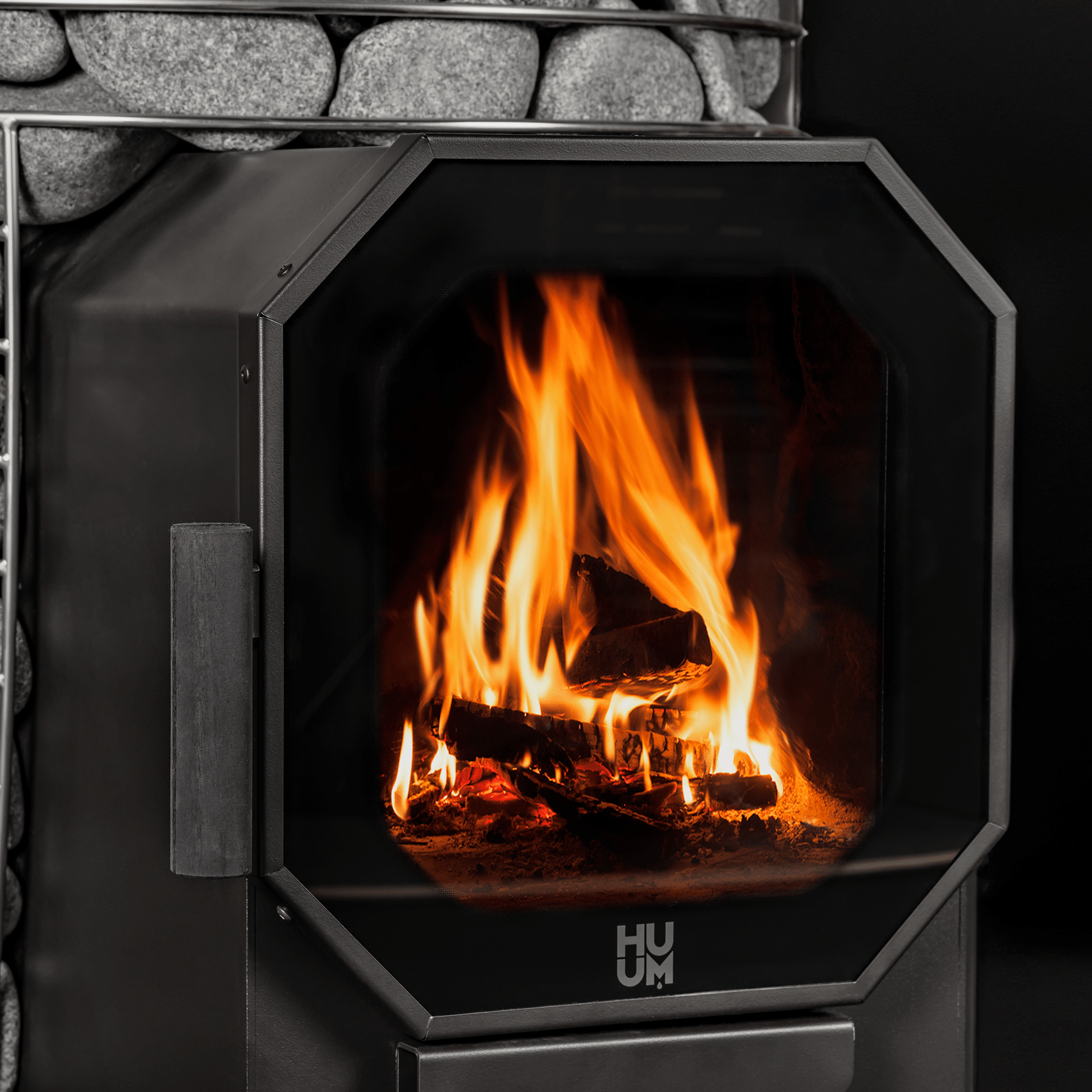

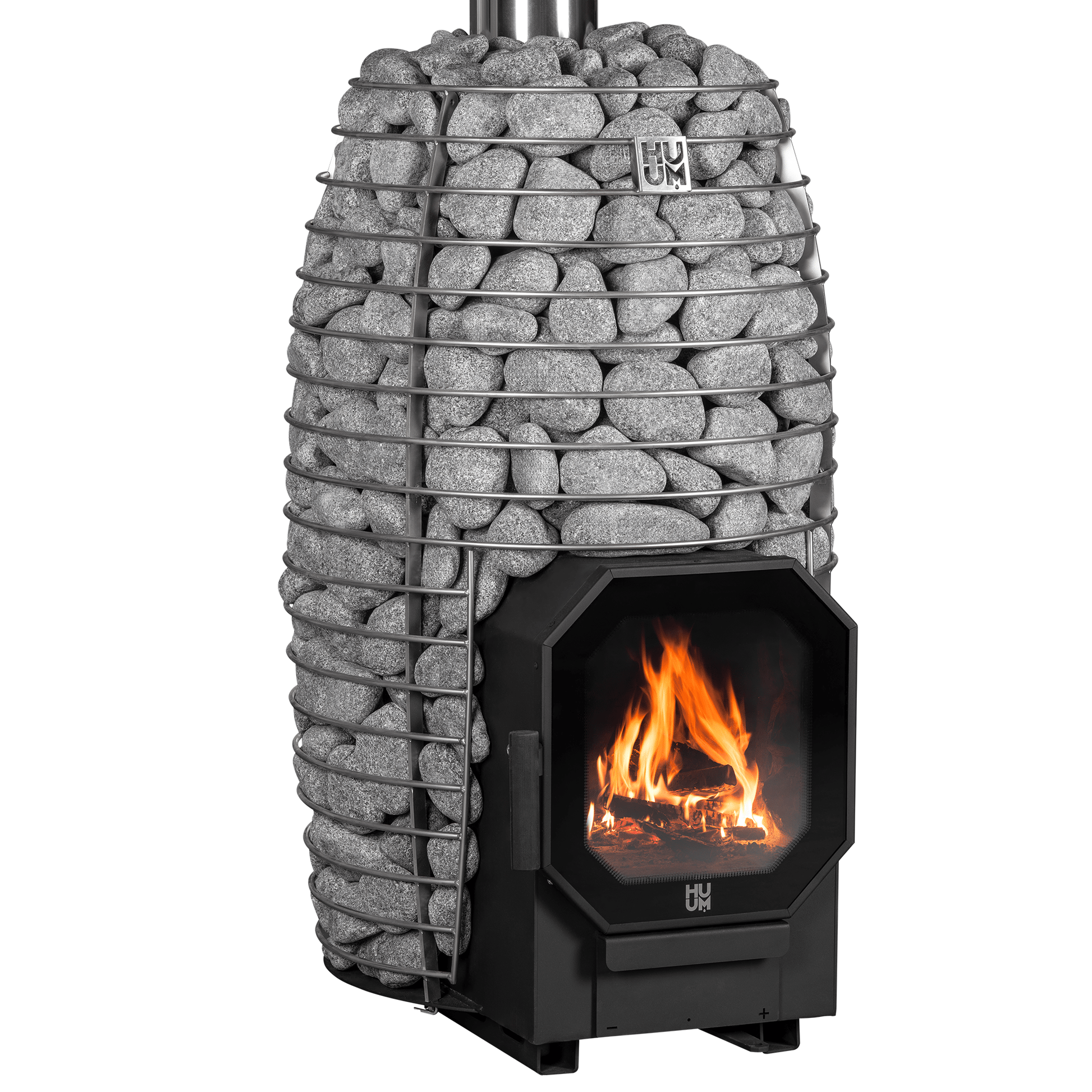

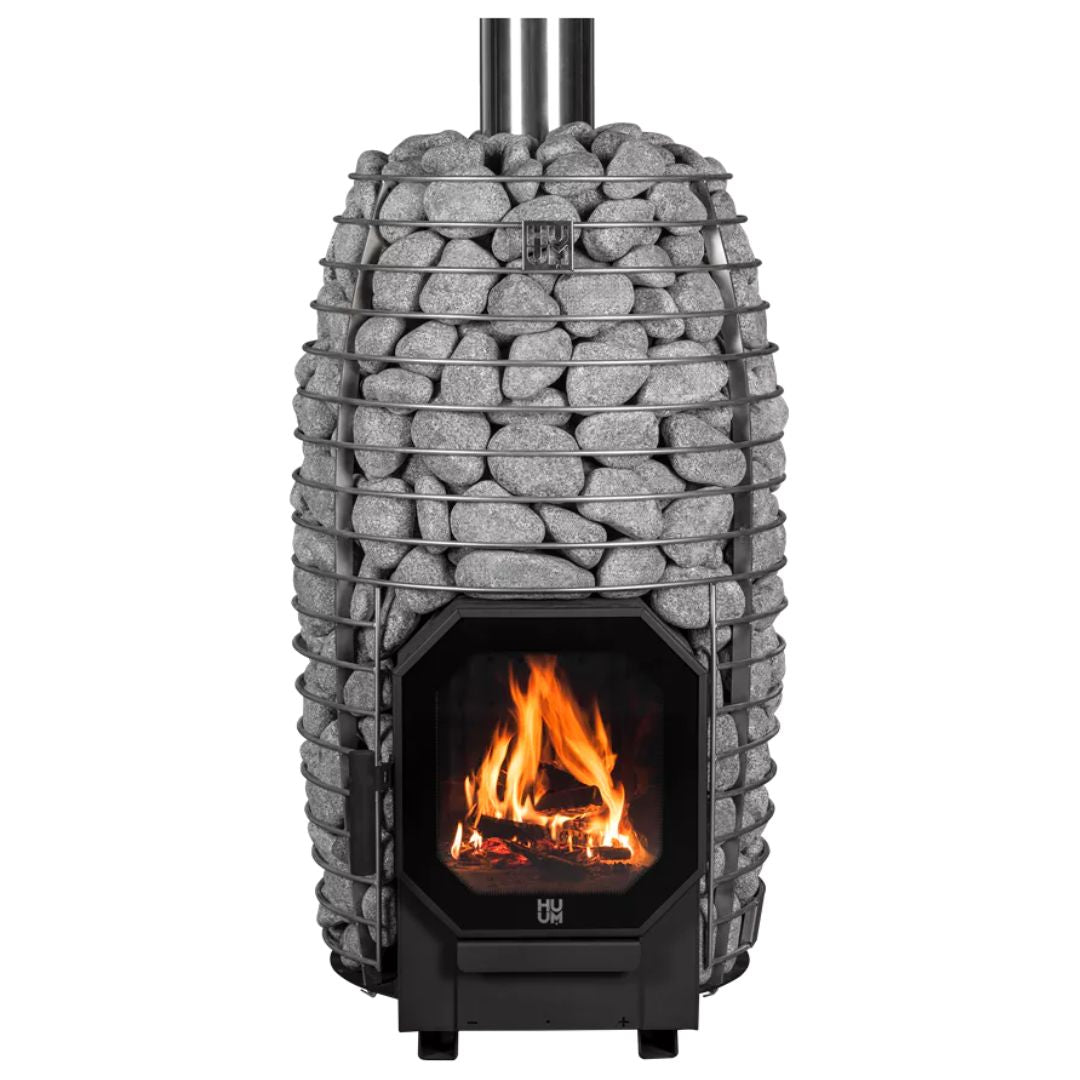

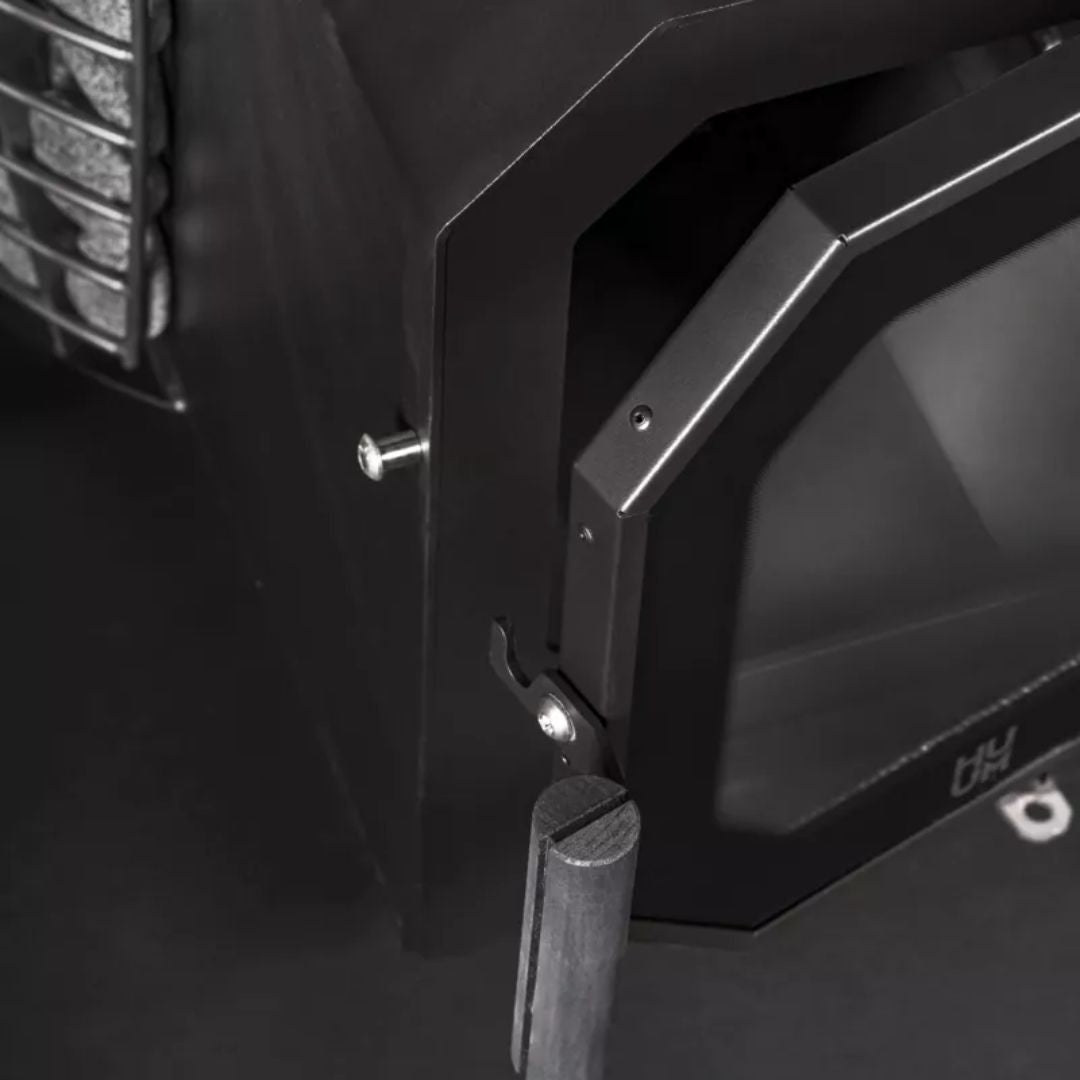

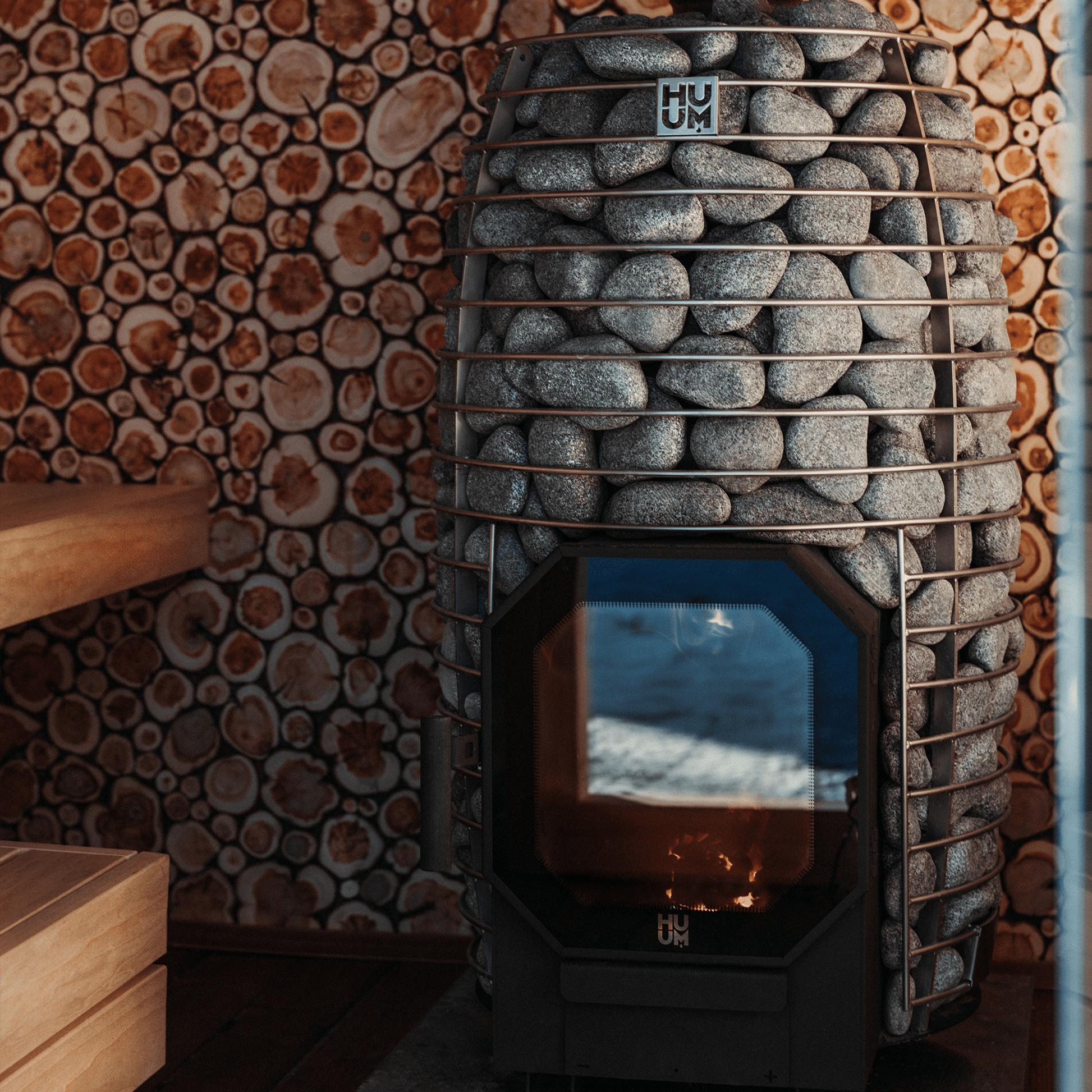

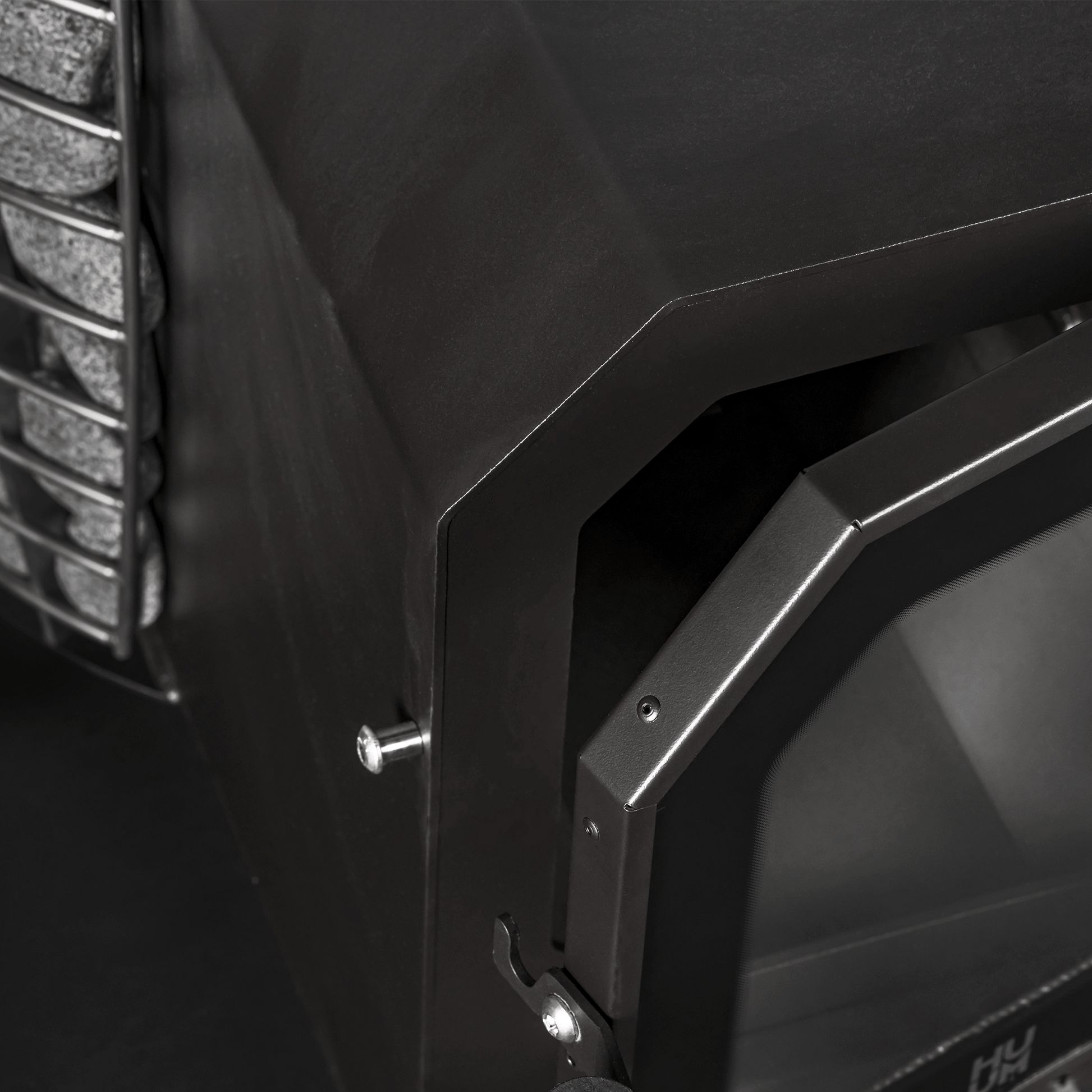

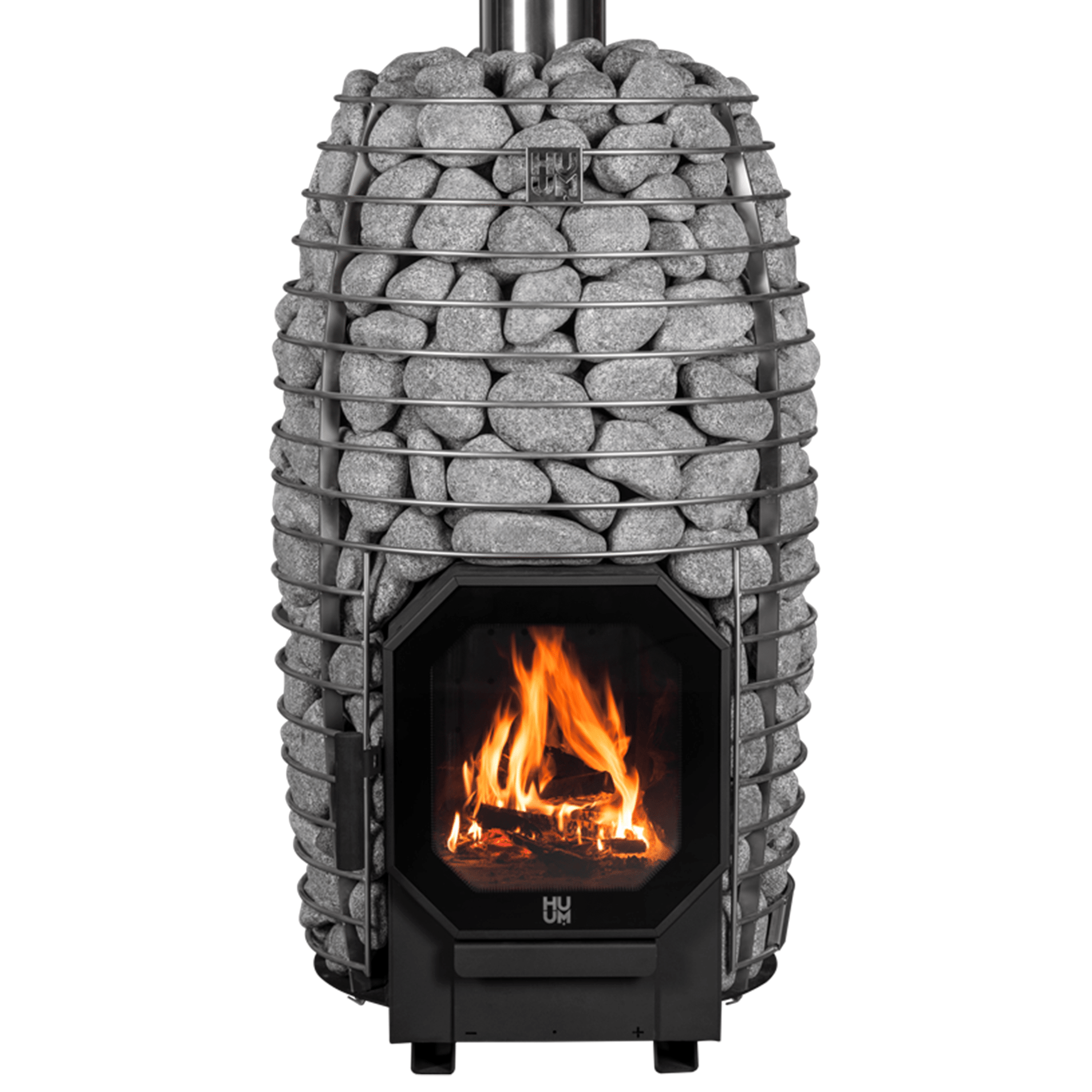

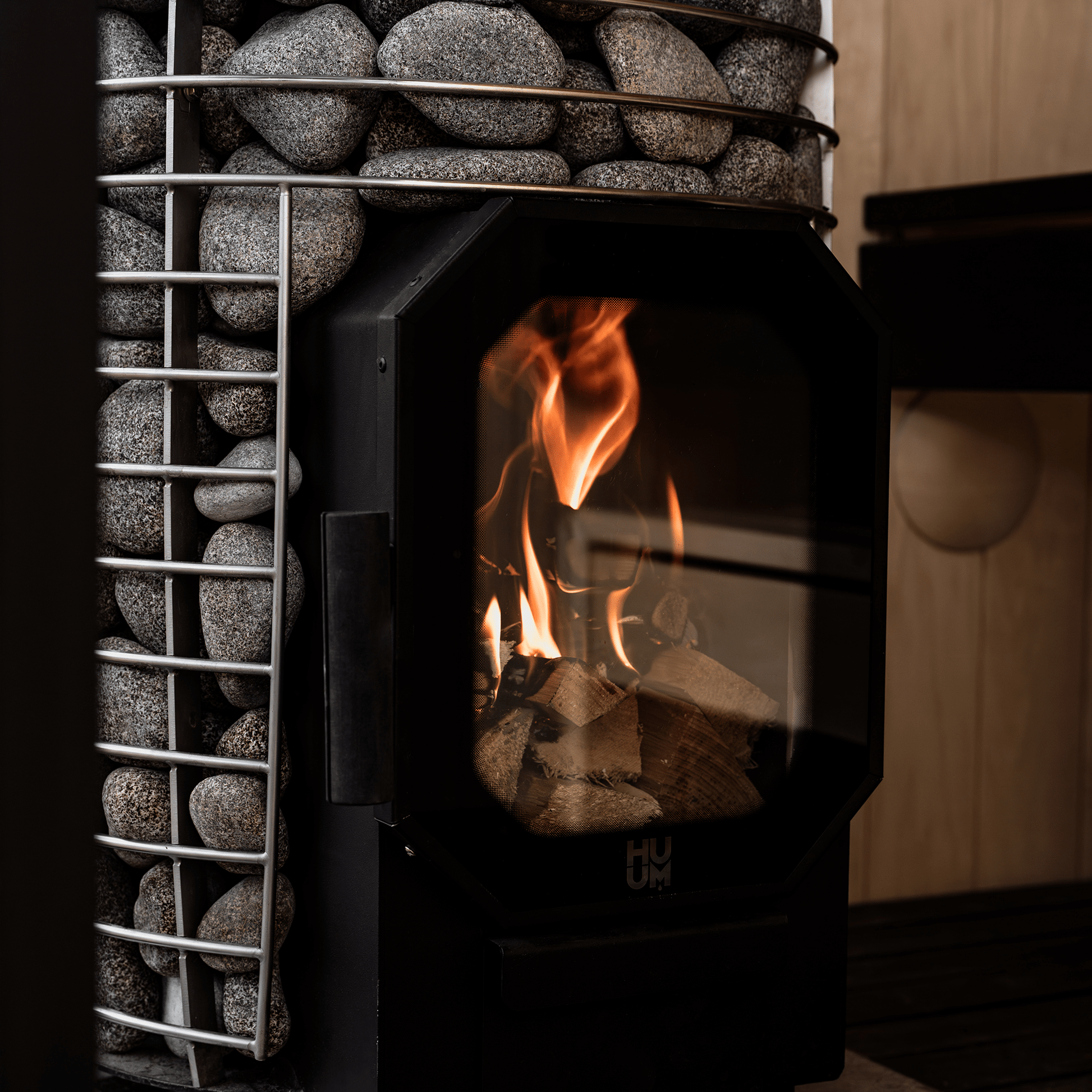

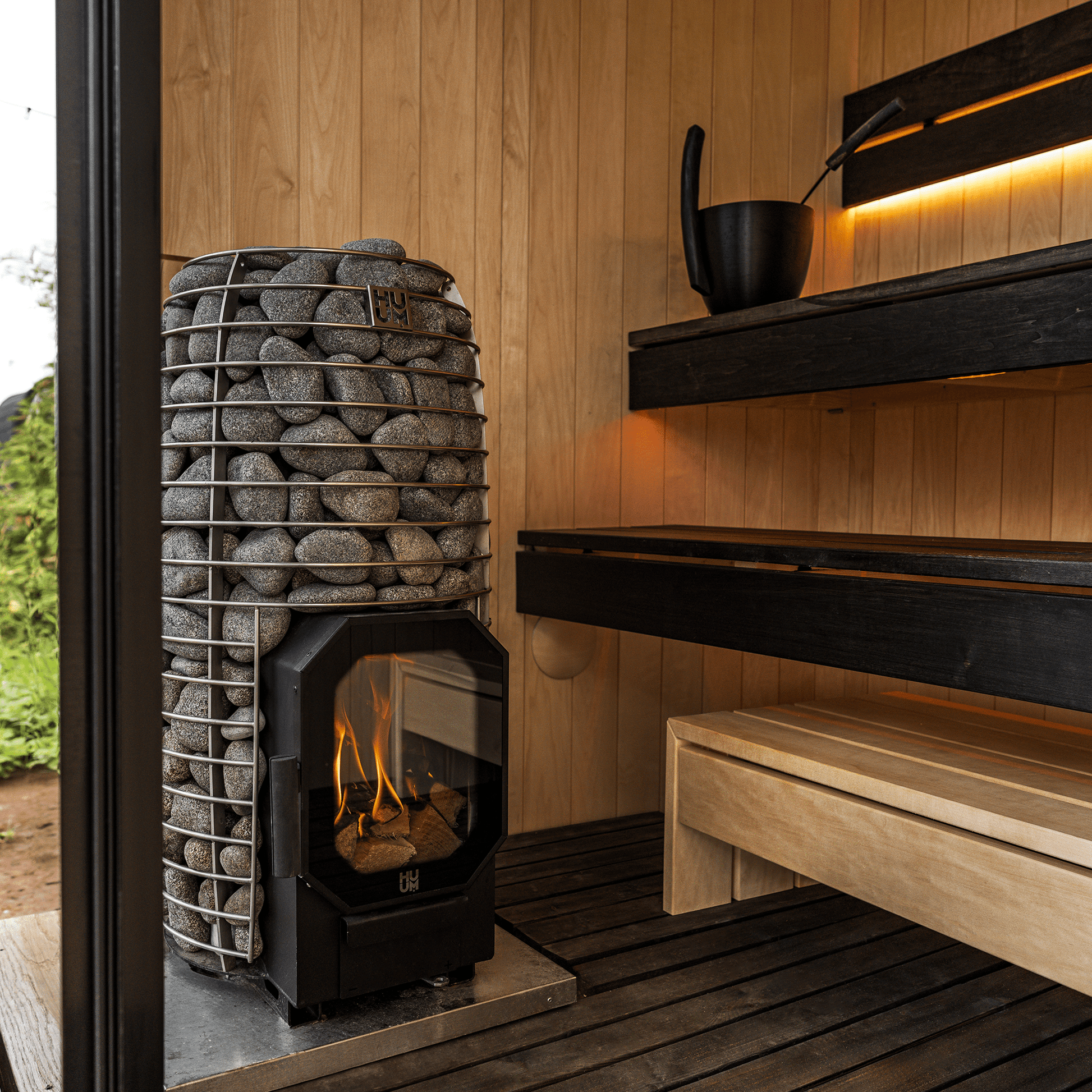

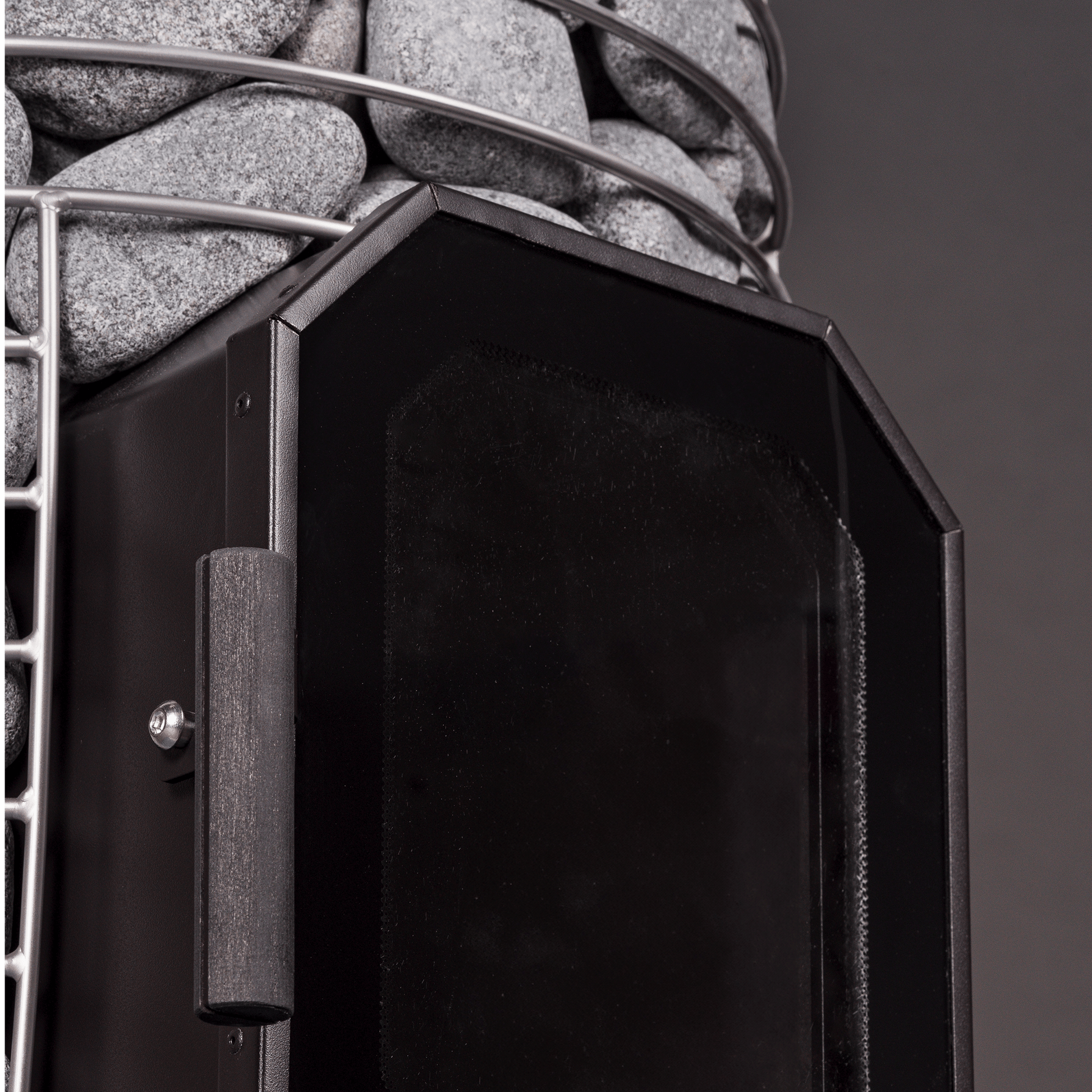

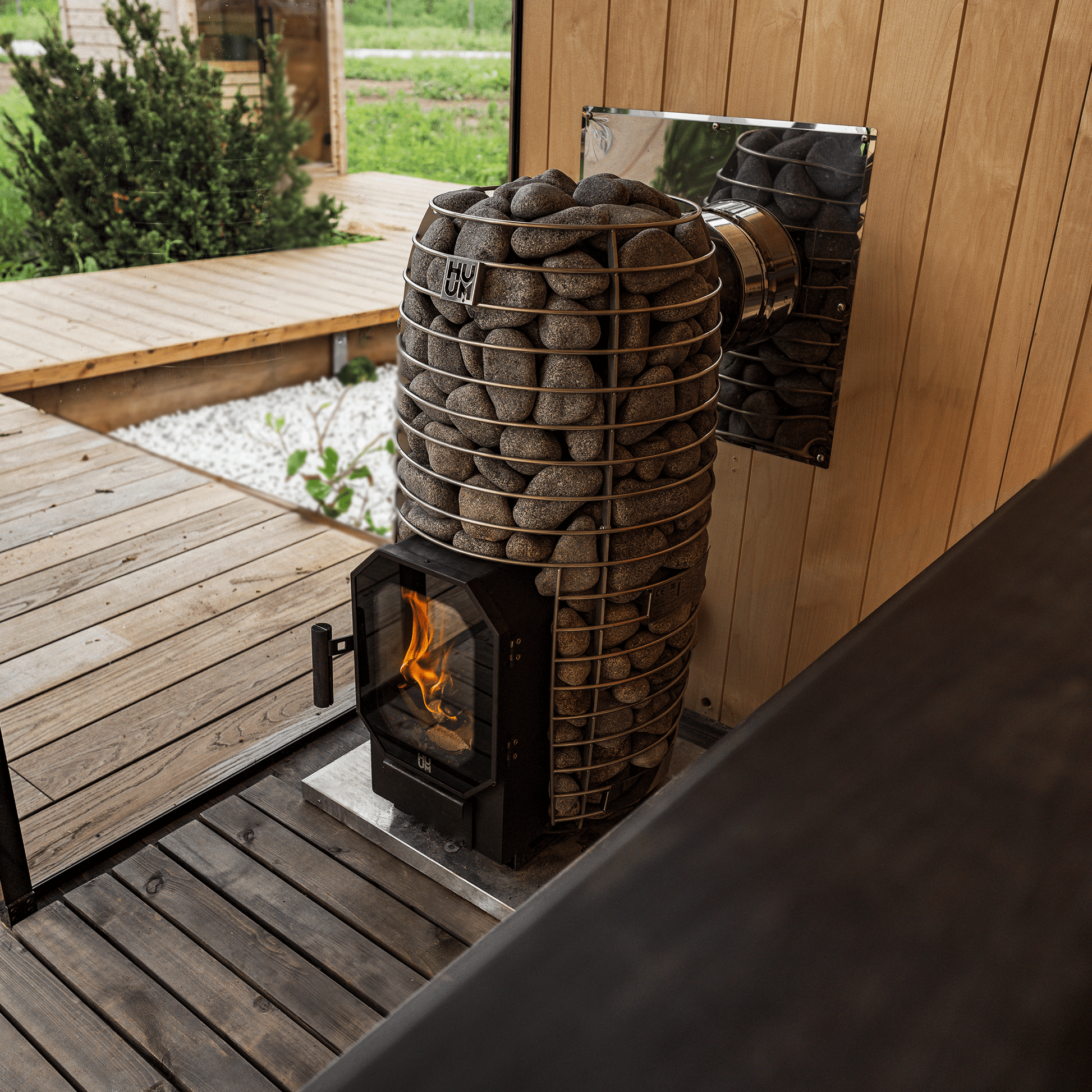

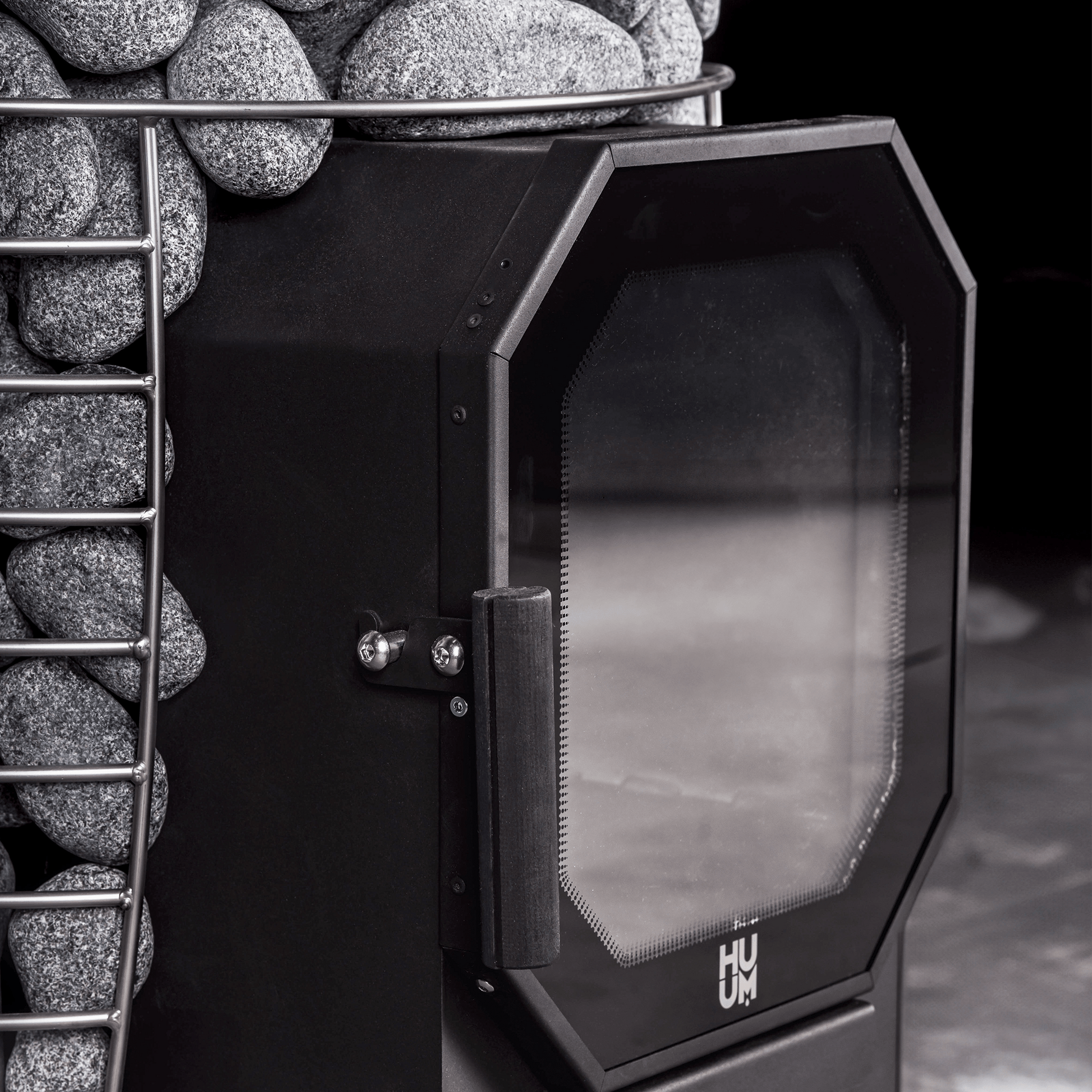

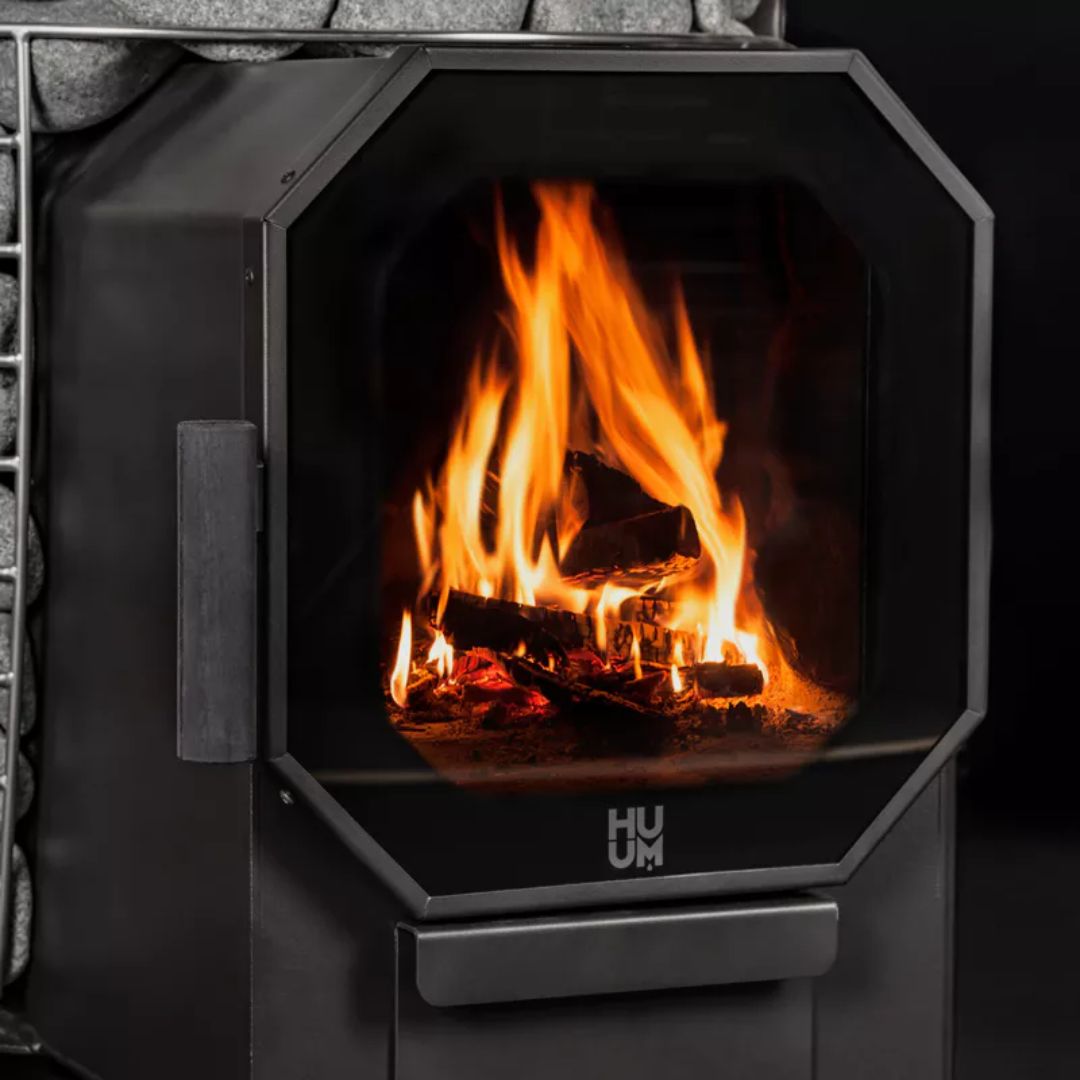

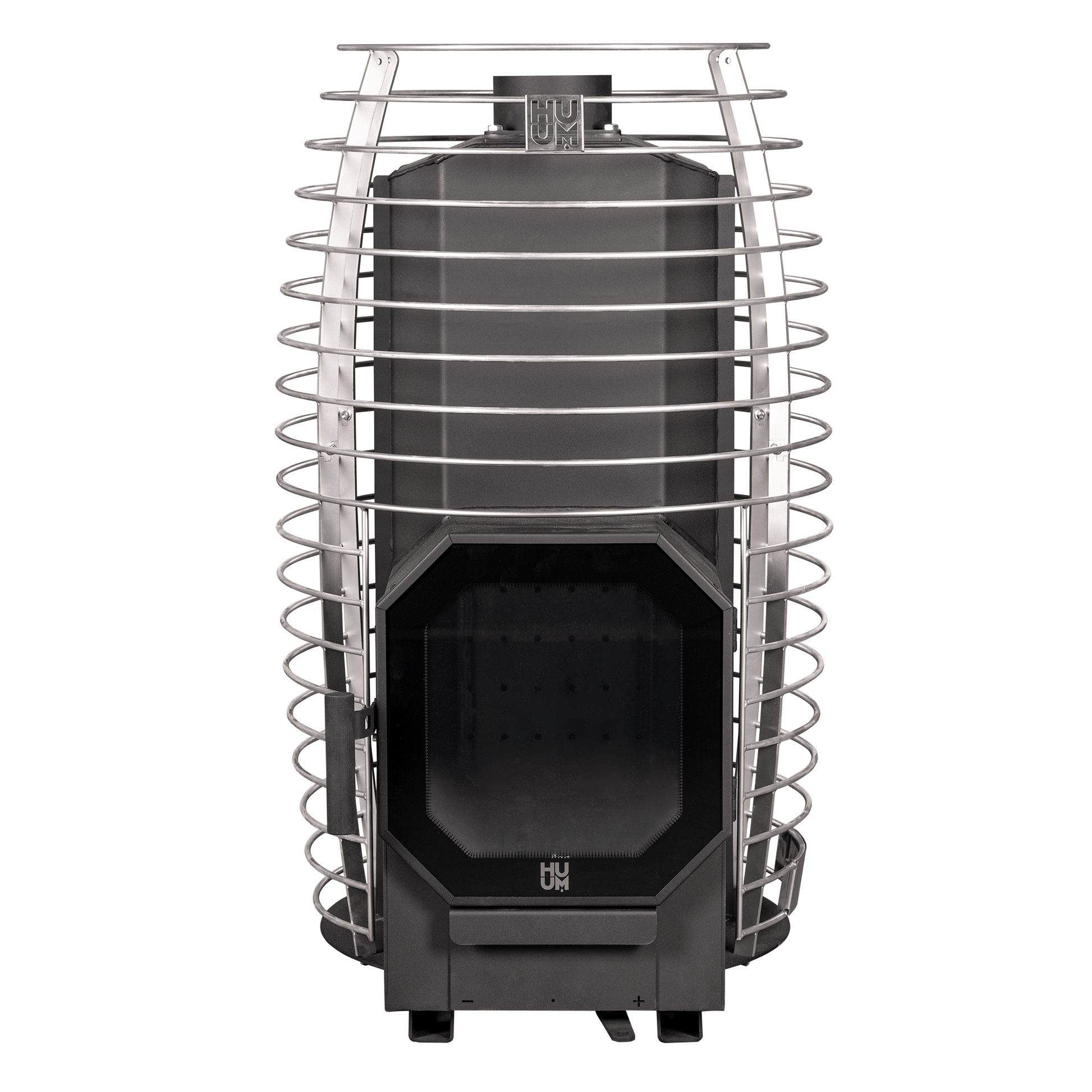

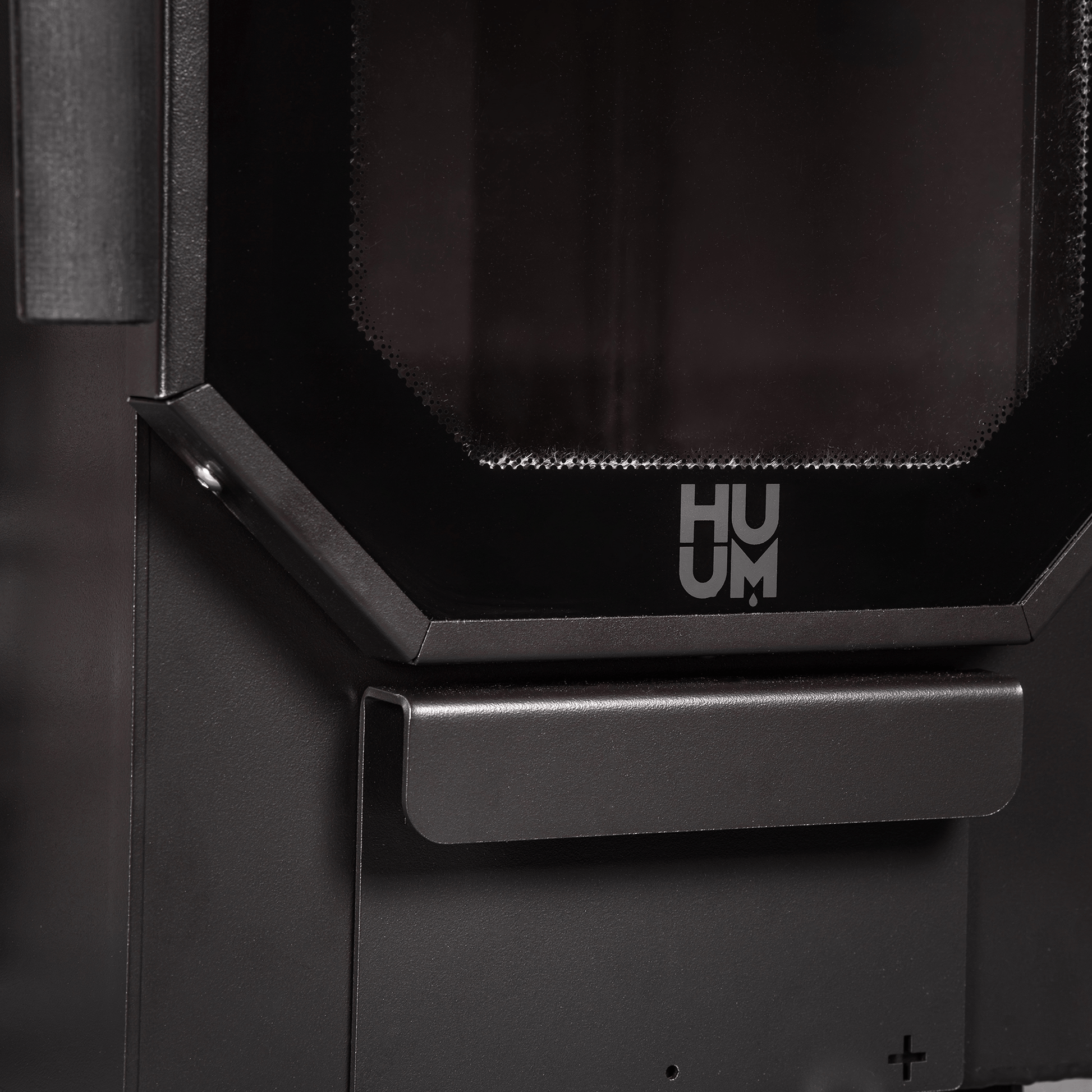

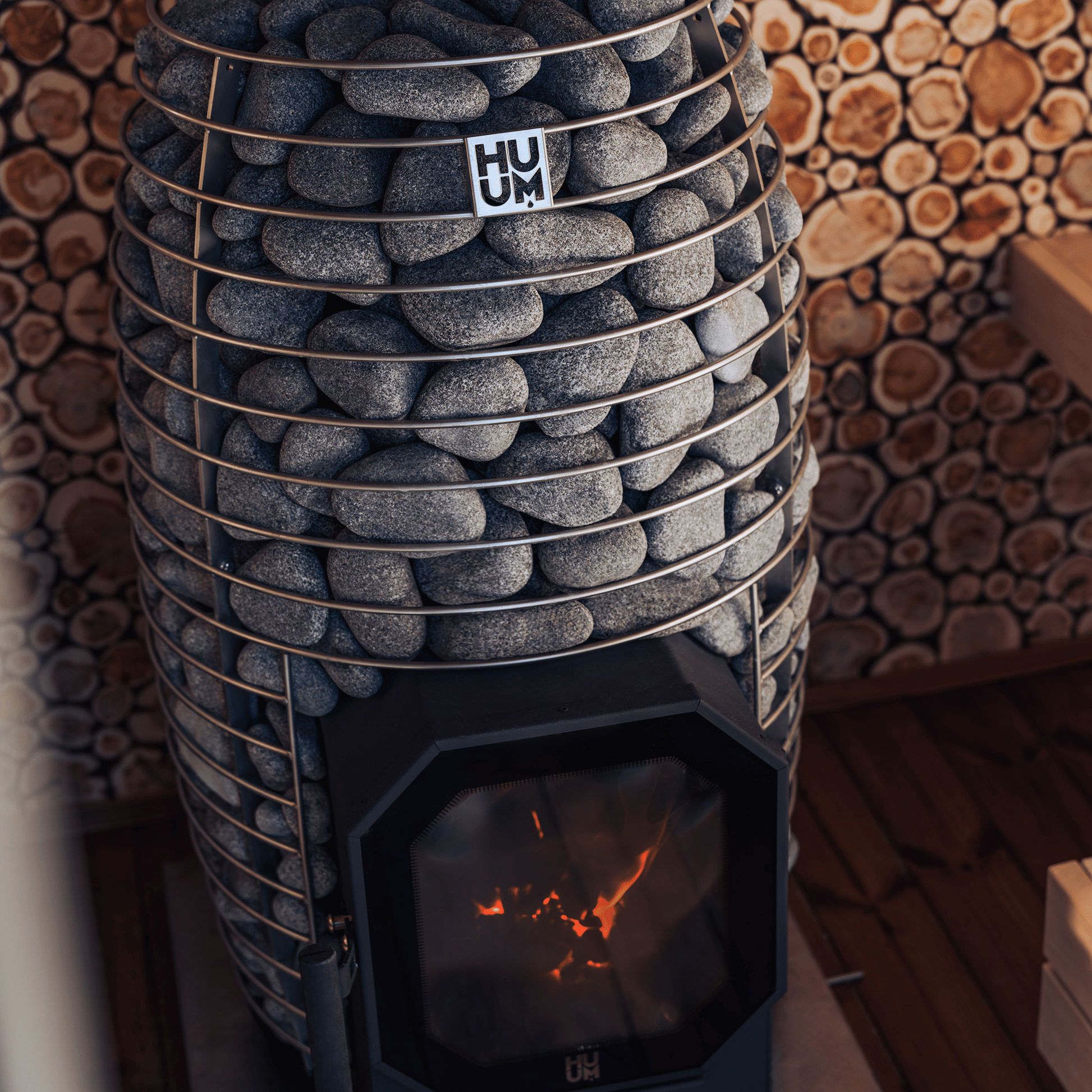

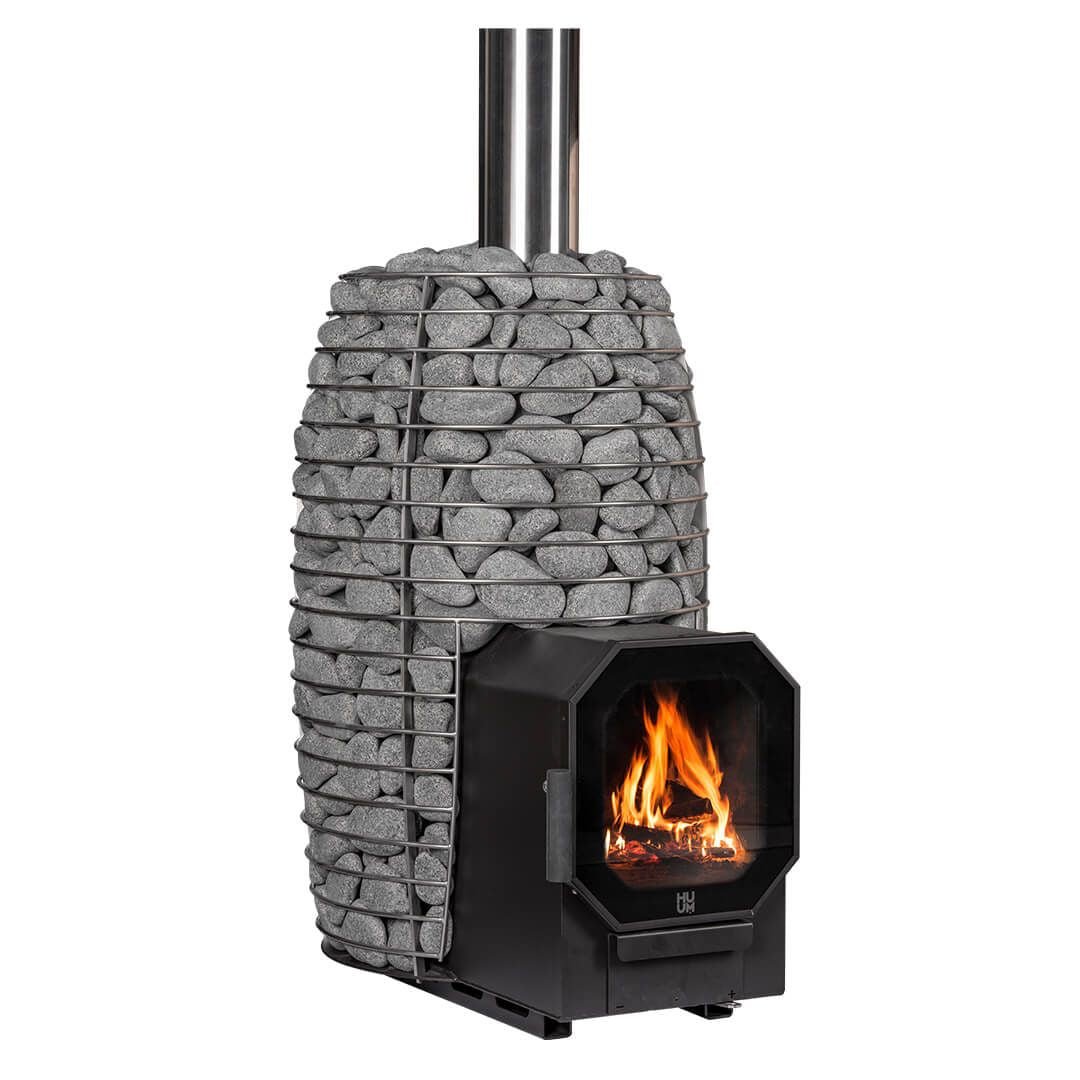

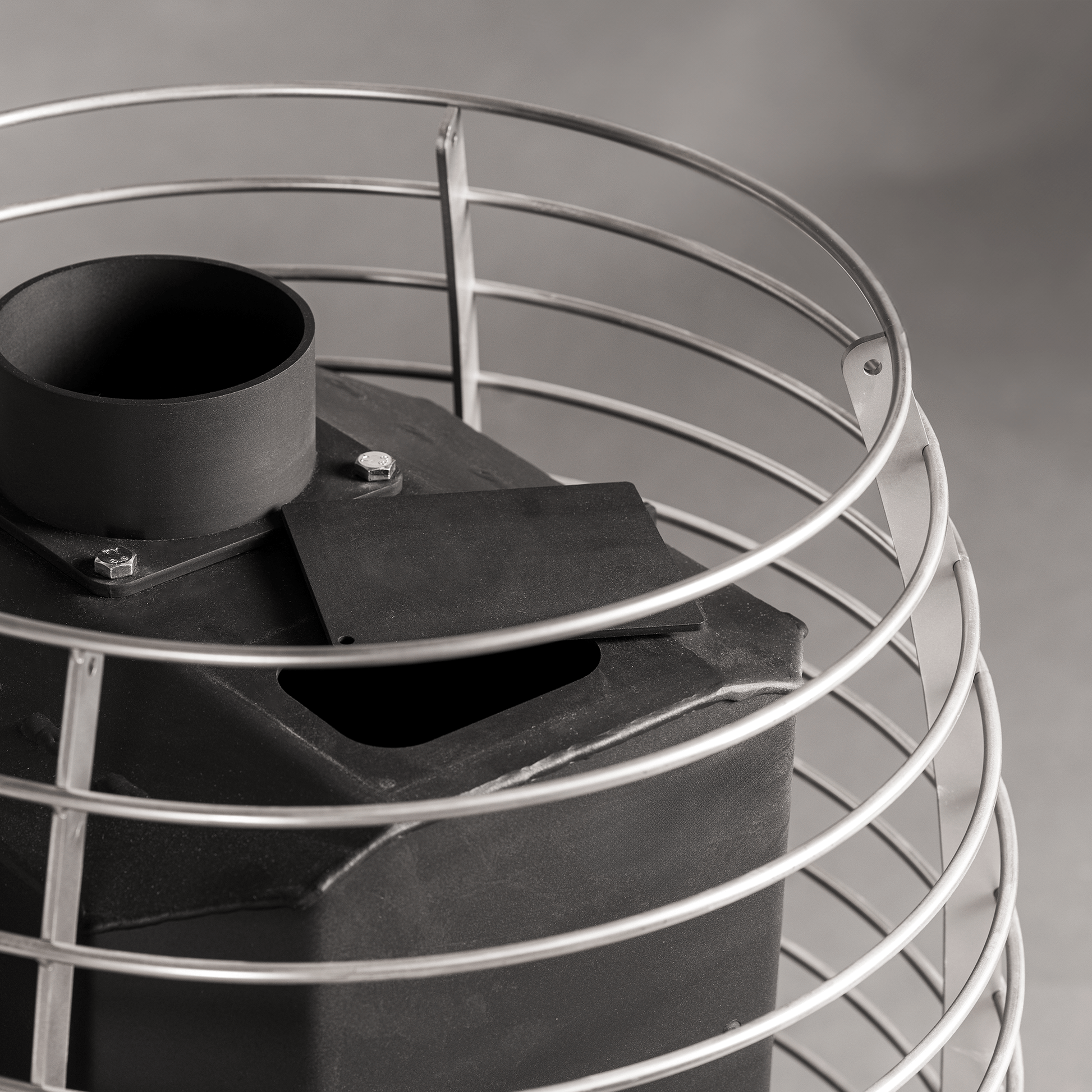

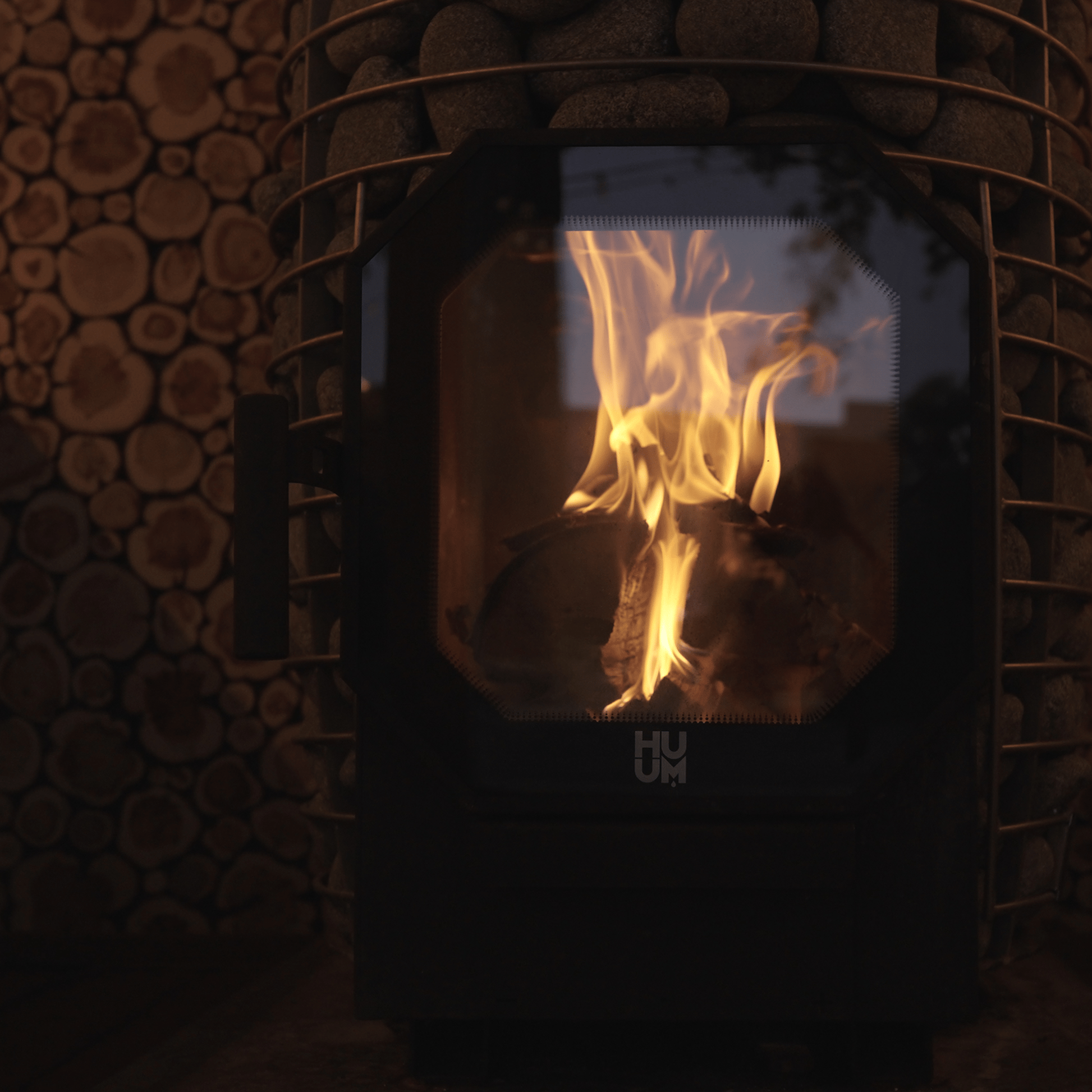

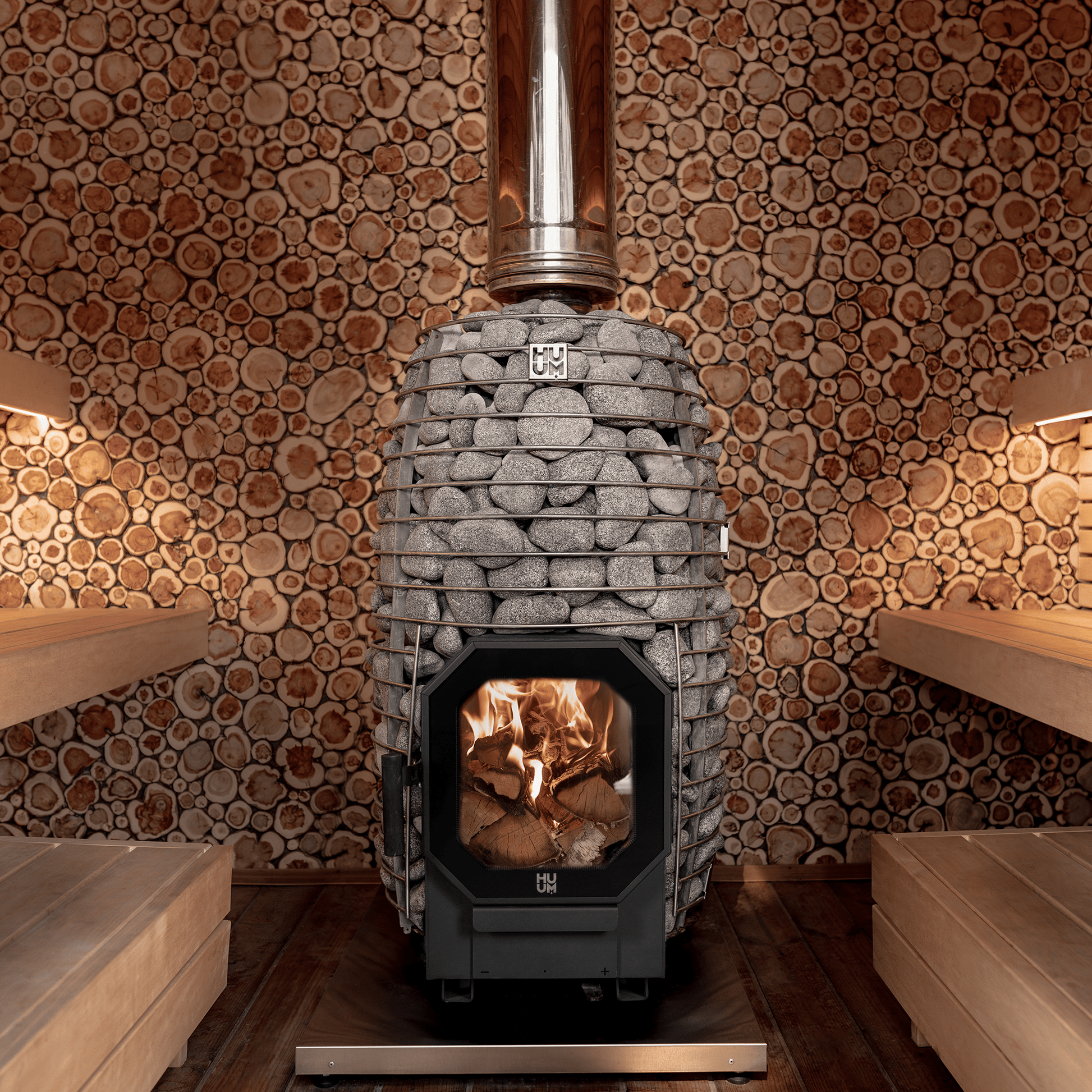

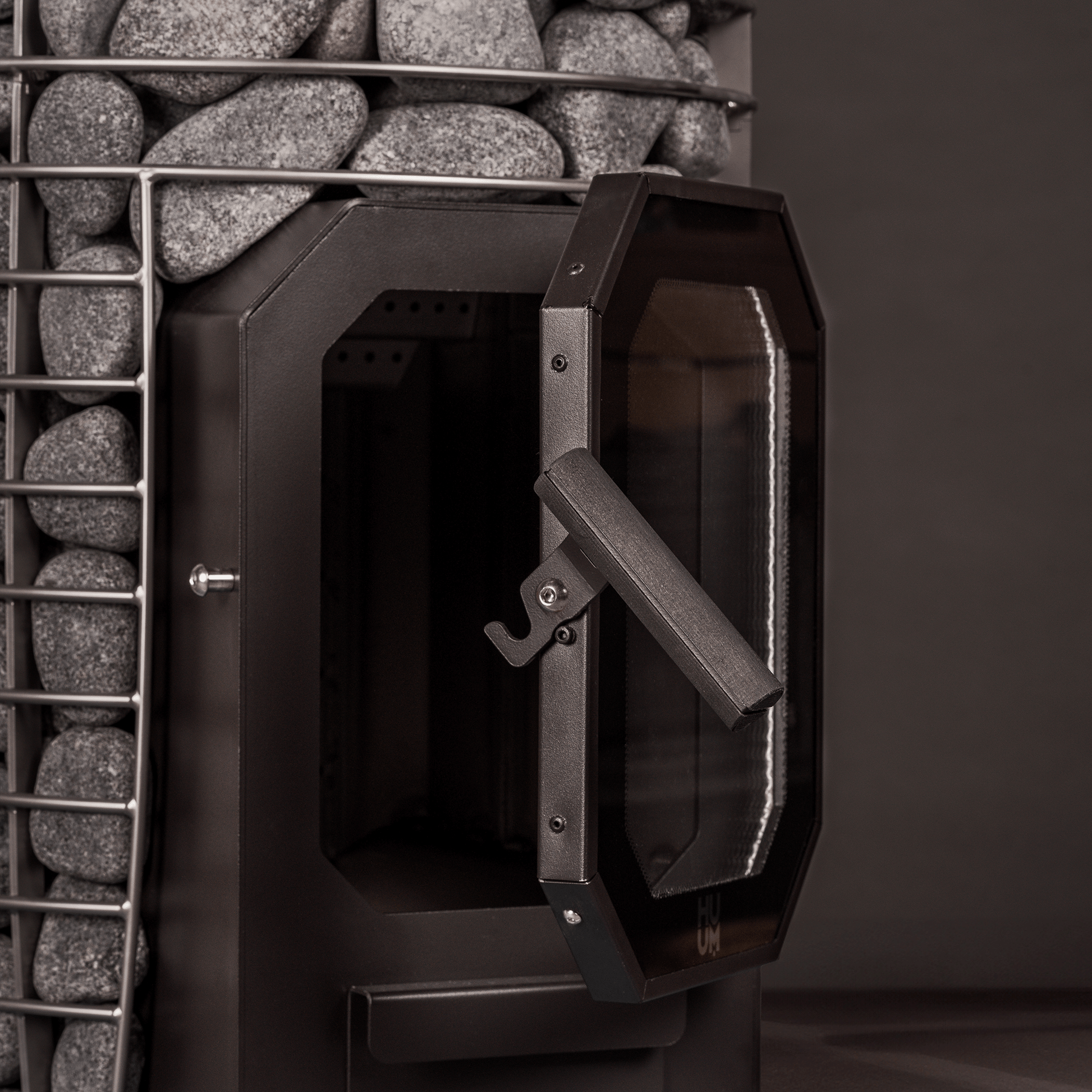

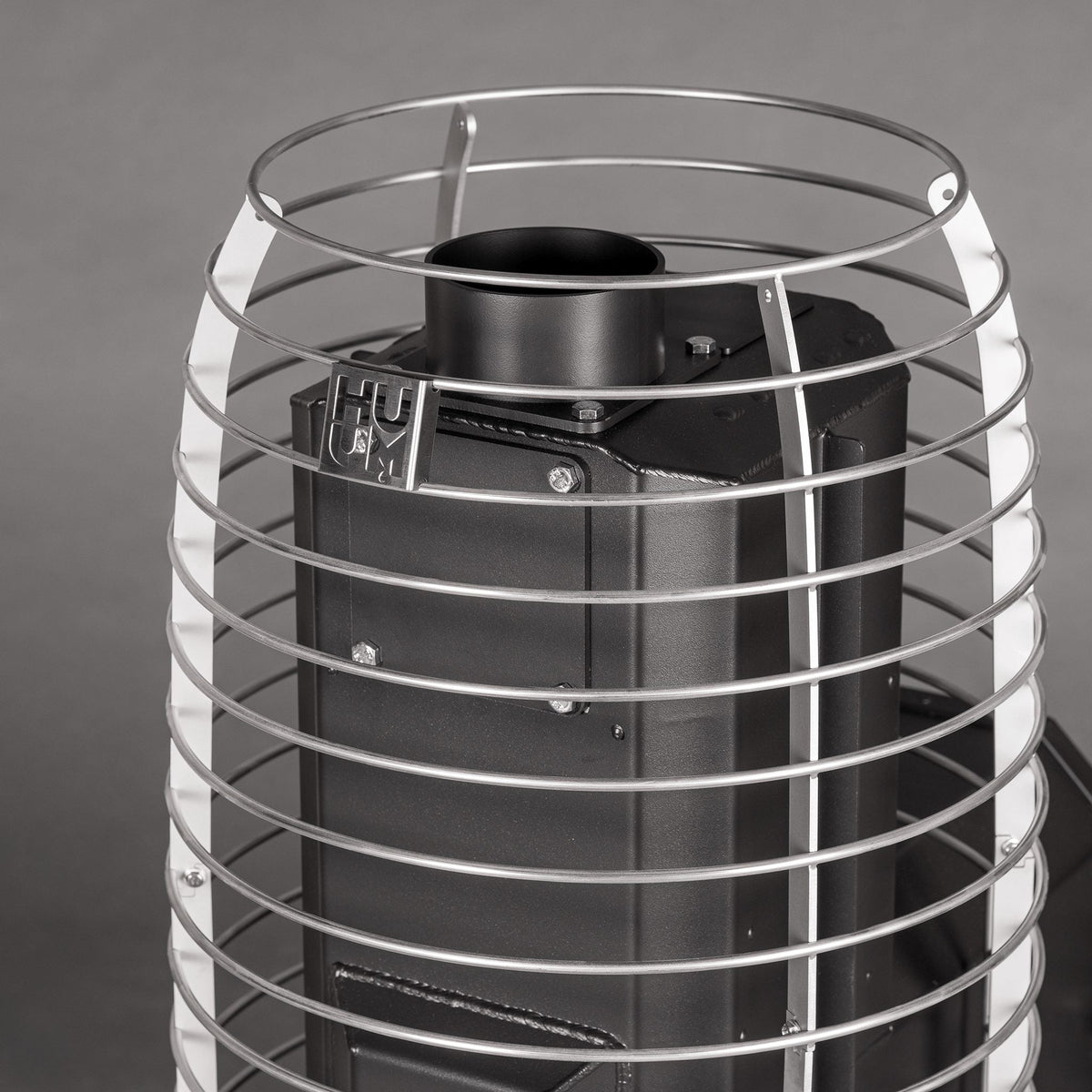

The HUUM HIVE Flow is a wood-burning sauna stove engineered for exceptional efficiency: around 75% of the heat from the firewood warms the sauna rather than escaping up the chimney, with an overall efficiency of 74.9% on the full-size model. A large glass furnace door brings the flames into view, a 5 mm thick top and 3 mm sides spread heat evenly, and up to 150 kg of stones (105 kg on the Mini) keeps the warmth and steam coming well after the fire has died down, with a further 35–40 kg possible in the stone cage. Four models are available: the HIVE Flow for rooms of 8–18 m³, the HIVE Flow Mini for 6–14 m³, and LS tunnel versions of each that are fired from an adjacent room. Sauna stones and the flue kit and chimney parts are sold separately.
Features

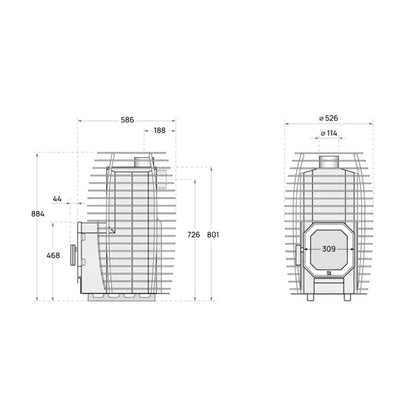

Technical Specification
| All models | |
| Type | Wood-burning sauna stove |
| Fuel | Natural firewood |

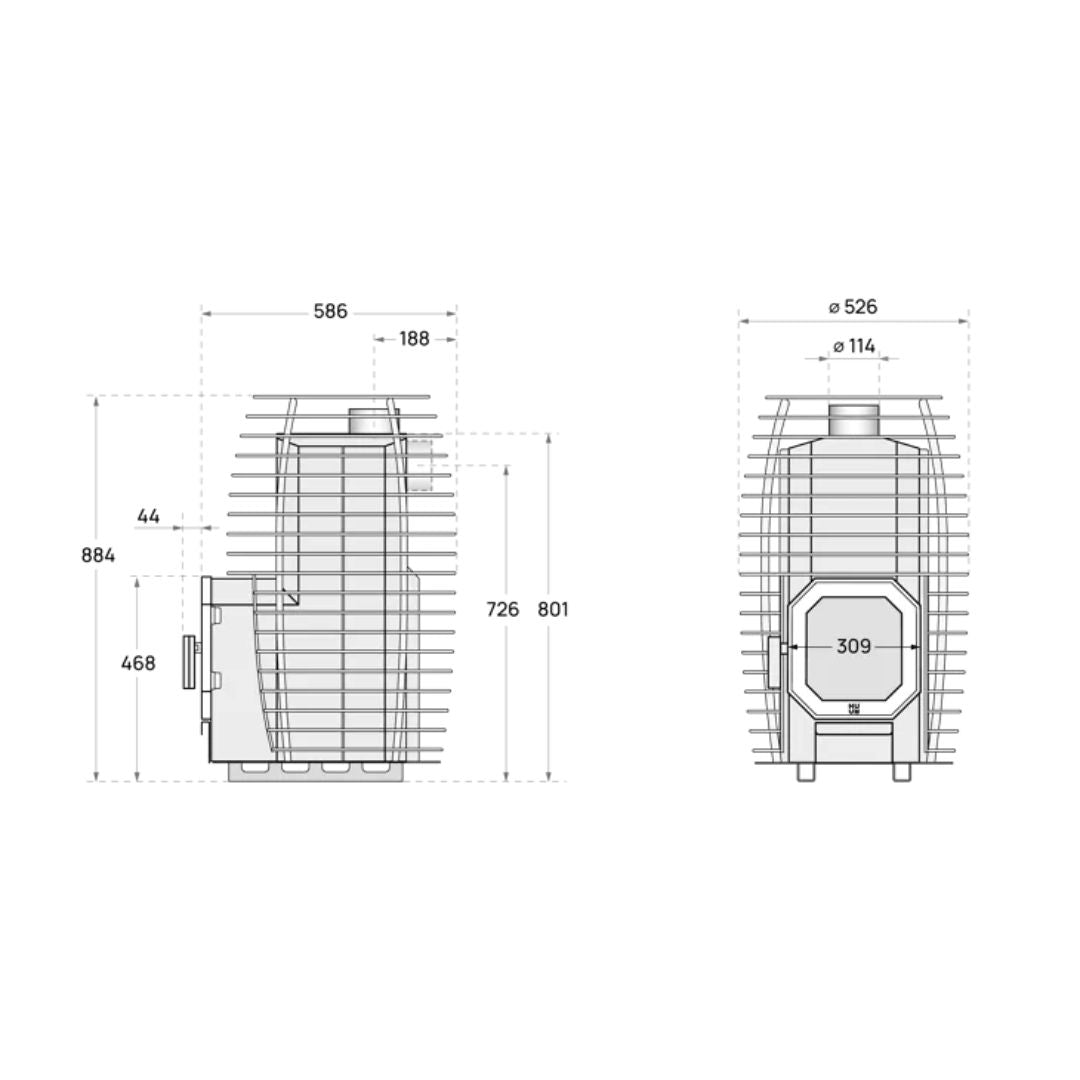

| Height | 884 mm |
| Flue connection (chimney leg) diameter | 114 mm |
| Chimney temperature class | T450 |
| Min. chimney cross-section | 10,400 mm² |
| Min. chimney draught | 12 Pa |
| Stone size | 50–150 mm (sold separately) |
| Stone cage capacity (optional) | 35–40 kg additional |
| Recommended firewood length | 300 mm |

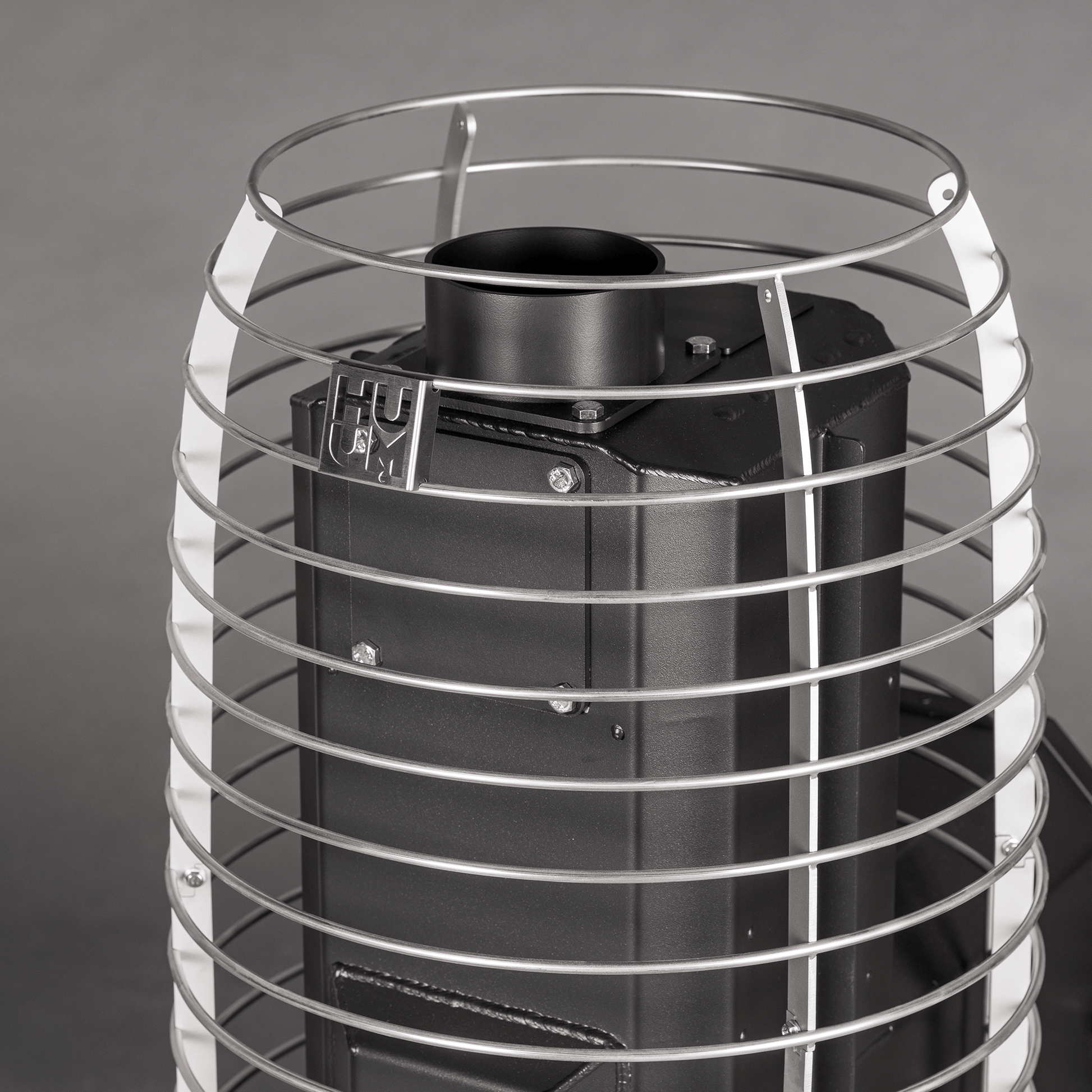

| Firebox construction | 5 mm top plate, 3 mm sides |
| Safety distance A | 150 mm |
| Safety distance B | 500 mm |
| Min. ceiling clearance | 1,000 mm |
| Standard | EN 15821:2010 |
| HIVE Flow | |
| Nominal heating capacity | 9.8 kW |
| Recommended room volume | 8–18 m³ |
| Stone capacity | 150 kg |
| Weight without stones | 67 kg |
| Width | 526 mm |
| Depth (without handle) | 586 mm |
| Max. firewood length | 400 mm |
| Gross efficiency | 74.9% |
| CO (13% O2) | 346 mg/m³ |
| PM (13% O2) | 17 mg/m³ |
| Safety distance C (front) | 826 mm |
| Ecodesign 2022 | Compliant |
| HIVE Flow LS (Tunnel) | |
| Nominal heating capacity | 9.8 kW |
| Recommended room volume | 8–18 m³ |
| Stone capacity | 150 kg |
| Weight without stones | 73 kg |
| Width | 526 mm |
| Depth (without handle) | 706 mm |
| Max. firewood length | 400 mm |
| Gross efficiency | 74.9% |
| CO (13% O2) | 346 mg/m³ |
| PM (13% O2) | 17 mg/m³ |
| Safety distance C (front) | 826 mm |
| Ecodesign 2022 | Compliant |
| HIVE Flow Mini | |
| Nominal heating capacity | 8.5 kW |
| Recommended room volume | 6–14 m³ |
| Stone capacity | 105 kg |
| Weight without stones | 54 kg |
| Width | 450 mm |
| Depth (without handle) | 493 mm |
| Max. firewood length | 300 mm |
| Gross efficiency | 75.1% |
| CO (13% O2) | 686 mg/m³ |
| PM (13% O2) | 14 mg/m³ |
| Safety distance C (front) | 750 mm |
| HIVE Flow Mini LS (Tunnel) | |
| Nominal heating capacity | 8.5 kW |
| Recommended room volume | 6–14 m³ |
| Stone capacity | 105 kg |
| Weight without stones | 59 kg |
| Width | 450 mm |
| Depth (without handle) | 613 mm |
| Max. firewood length | 300 mm |
| Gross efficiency | 75.1% |
| CO (13% O2) | 686 mg/m³ |
| PM (13% O2) | 14 mg/m³ |
| Safety distance C (front) | 750 mm |
Installation

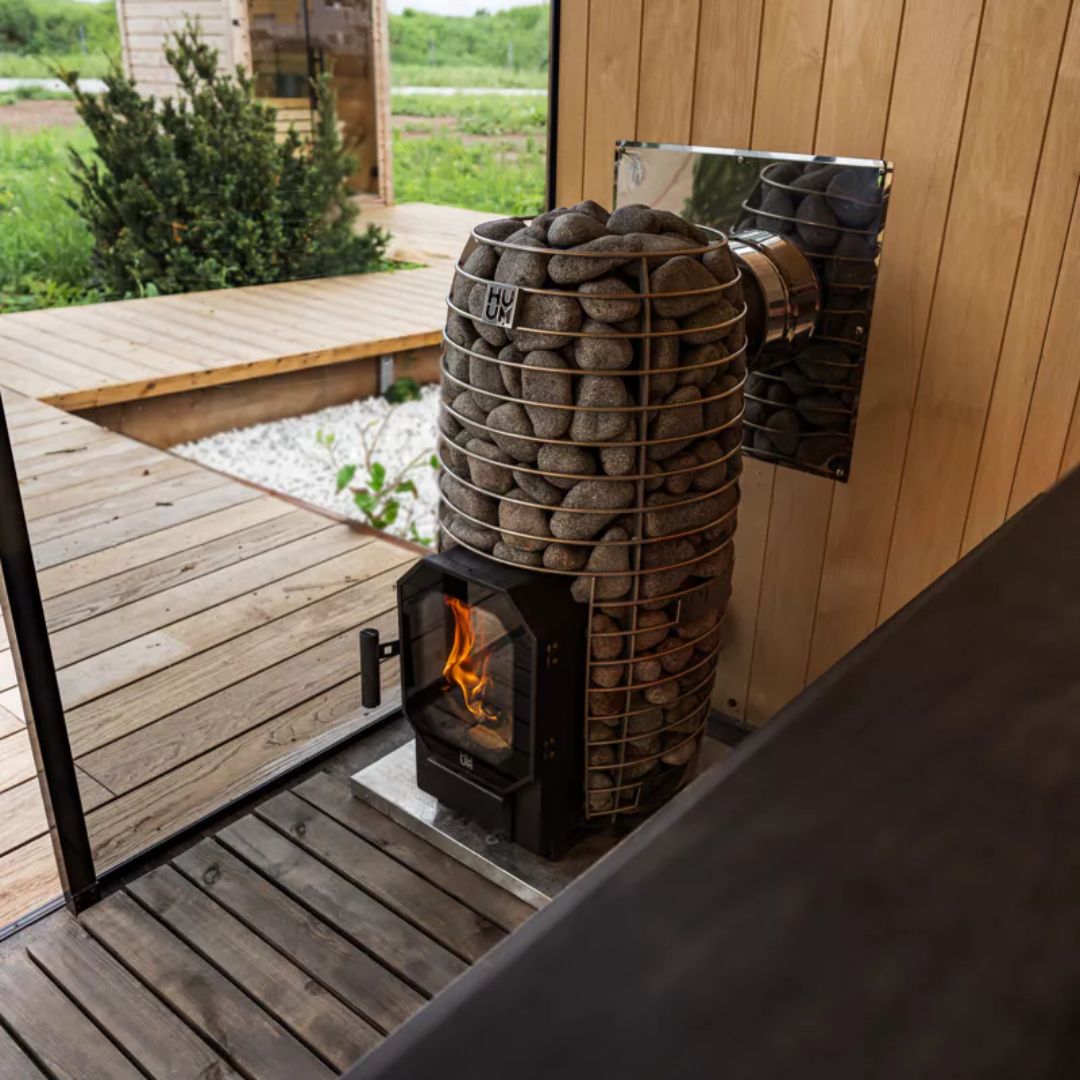

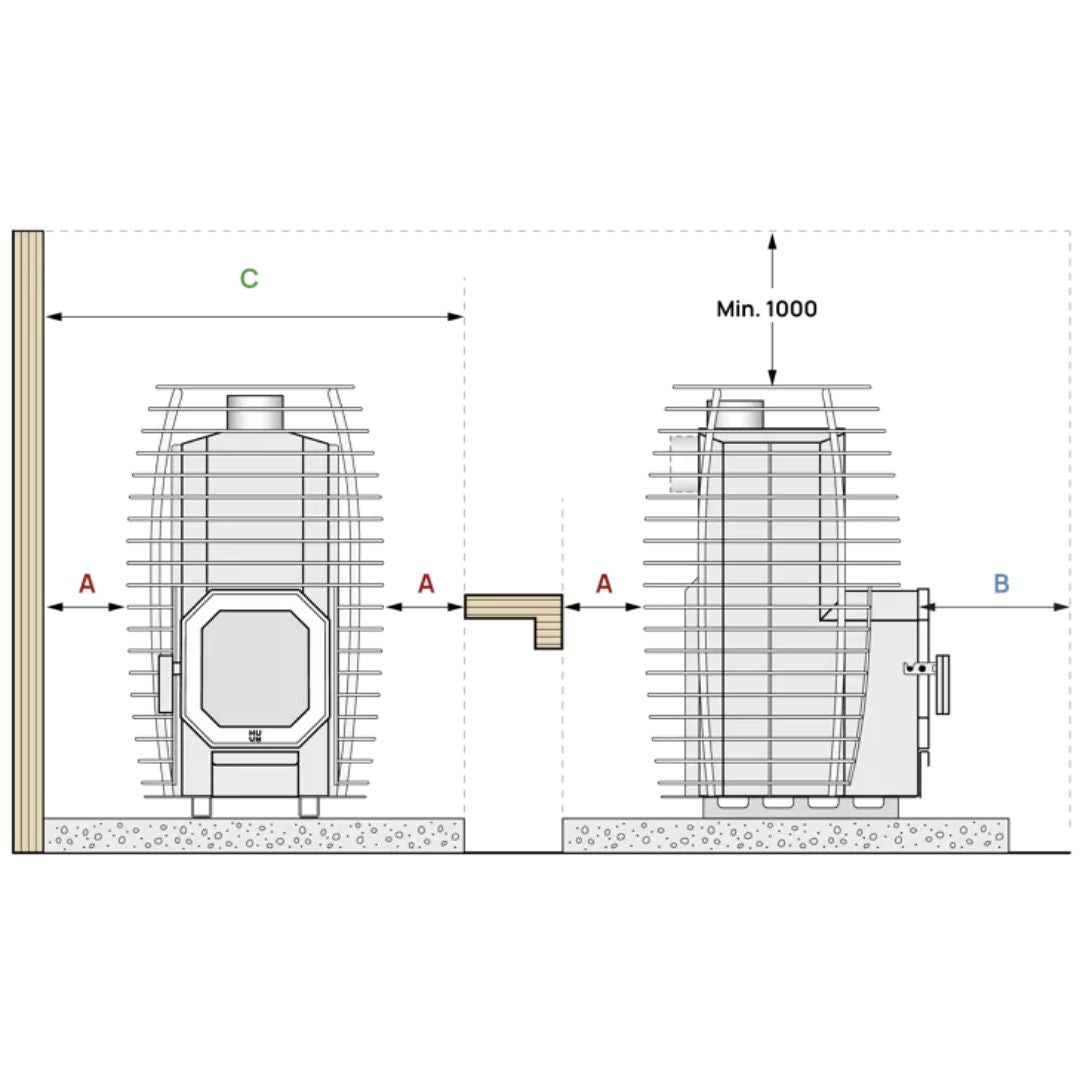

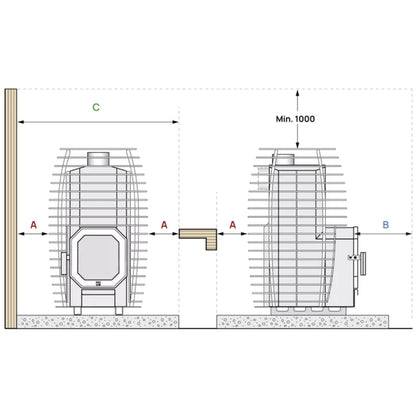

The stove connects to the chimney via its 114 mm chimney leg and requires a flue of temperature class T450 with a minimum cross-section of 10,400 mm² and a minimum draught of 12 Pa; flue kits and chimney parts are sold separately. Minimum clearances to combustible materials are 150 mm to the sides and back, 500 mm for distance B, 826 mm in front (750 mm on the Mini) and 1,000 mm to the ceiling; a single protective screen of non-combustible material halves the wall distances and a double screen reduces them by up to 75%, with the ceiling distance reducible by 25% using a single screen. On a combustible floor the stove must stand on the HUUM thermal plate or equivalent non-combustible protection with a ventilation gap of at least 30 mm beneath it, and the LS tunnel models are fired through an opening in a non-combustible wall. Installation must follow the manual in the Downloads tab, EN 15821:2010 and local building regulations, and the stove may only be connected to the chimney by a specialist.
Sauna stones

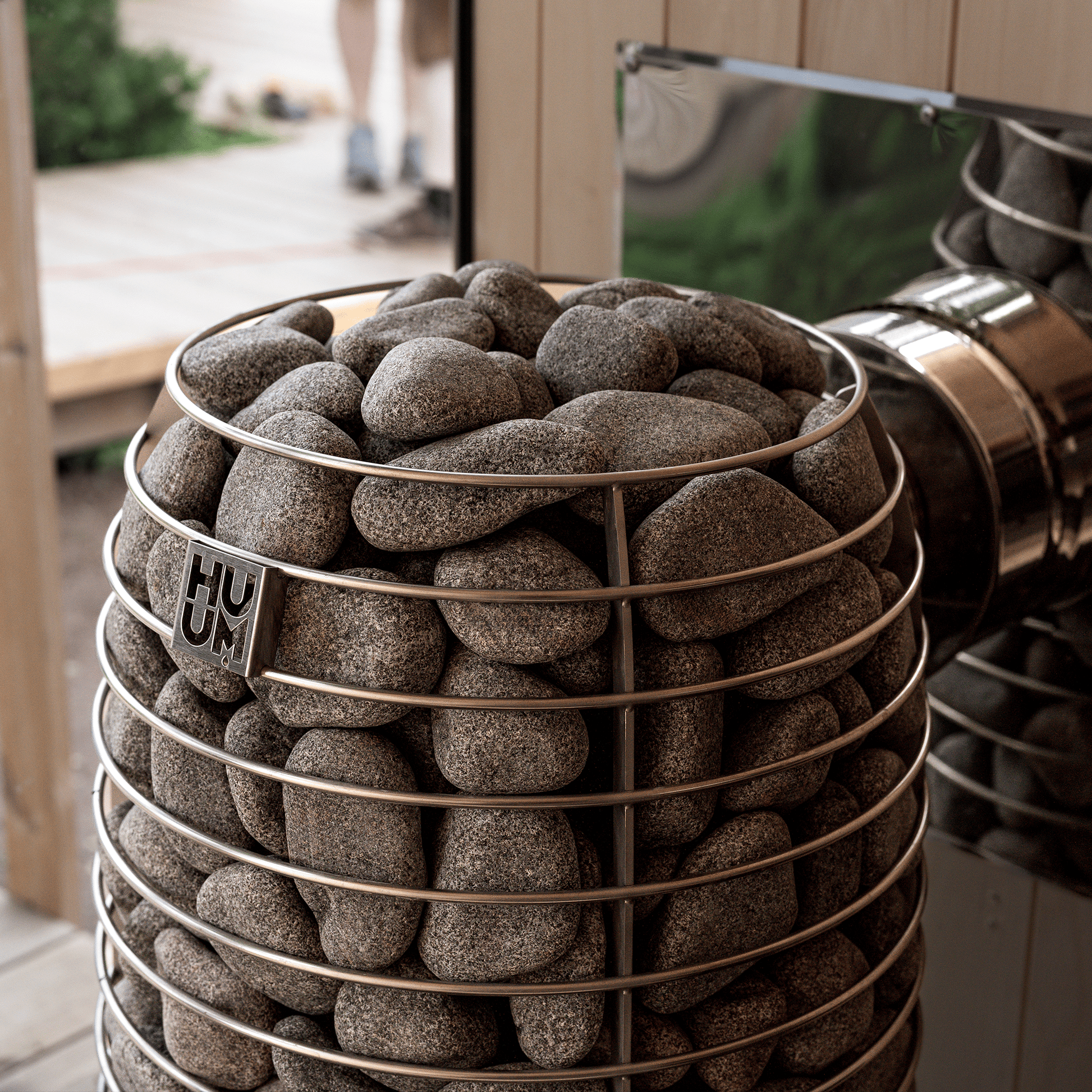

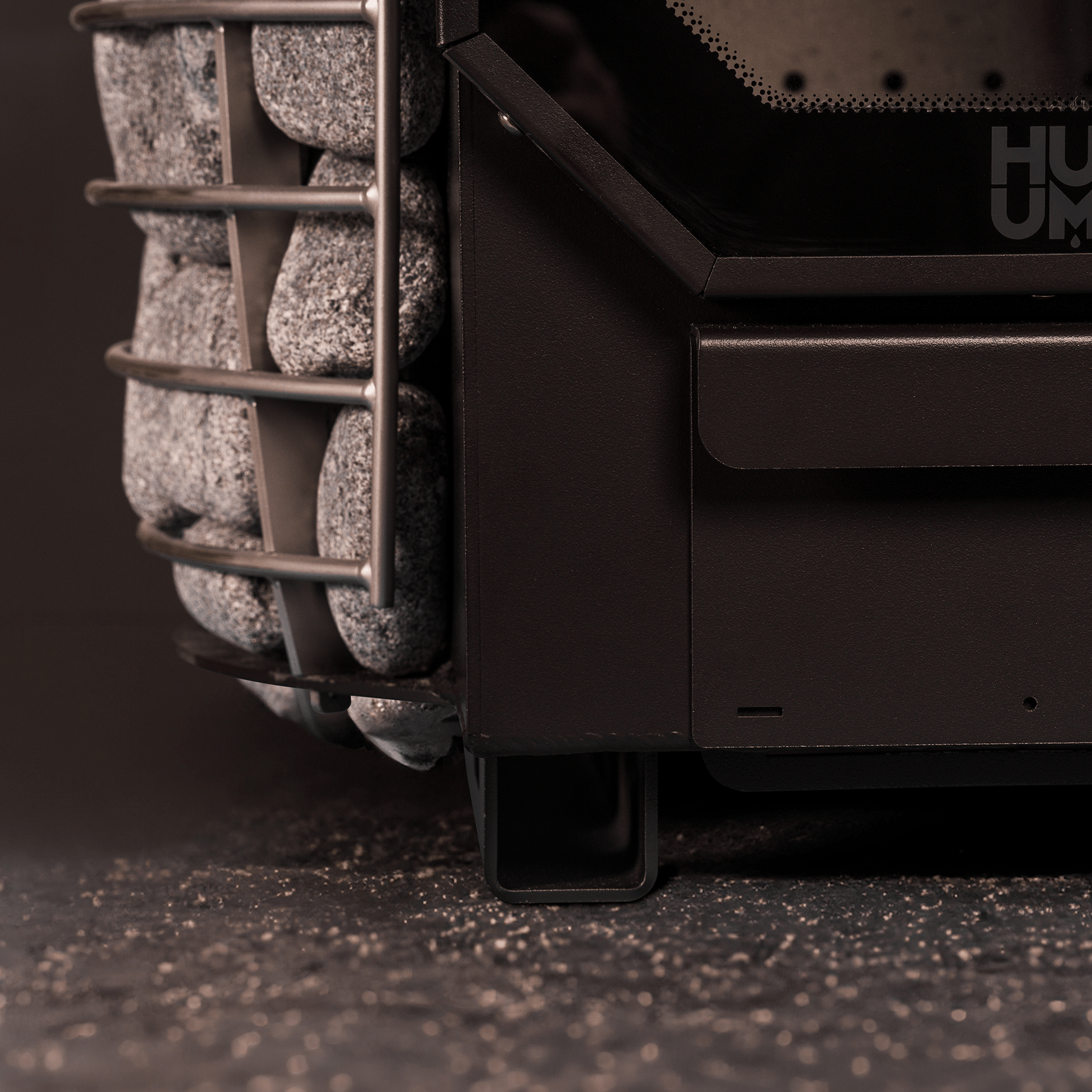

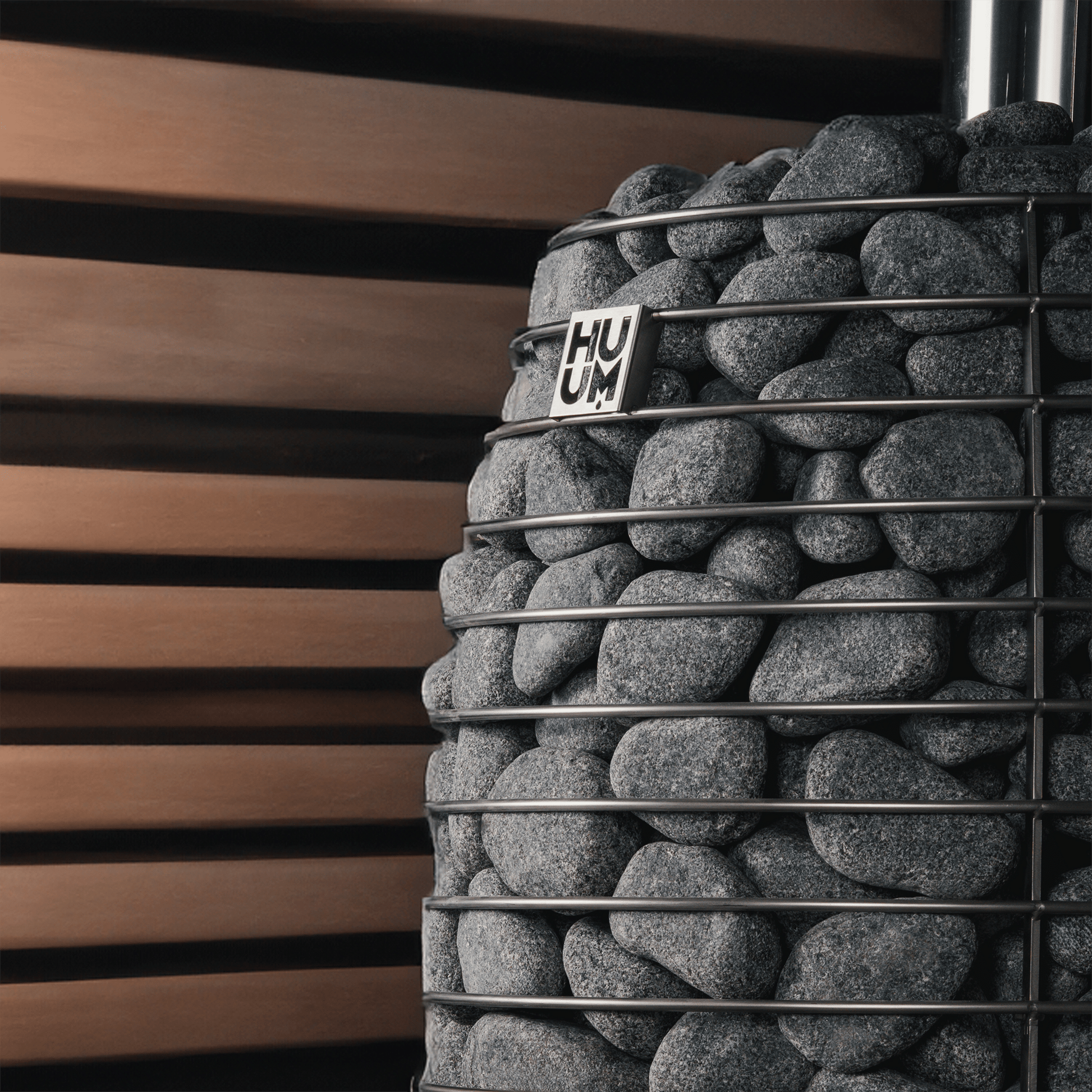

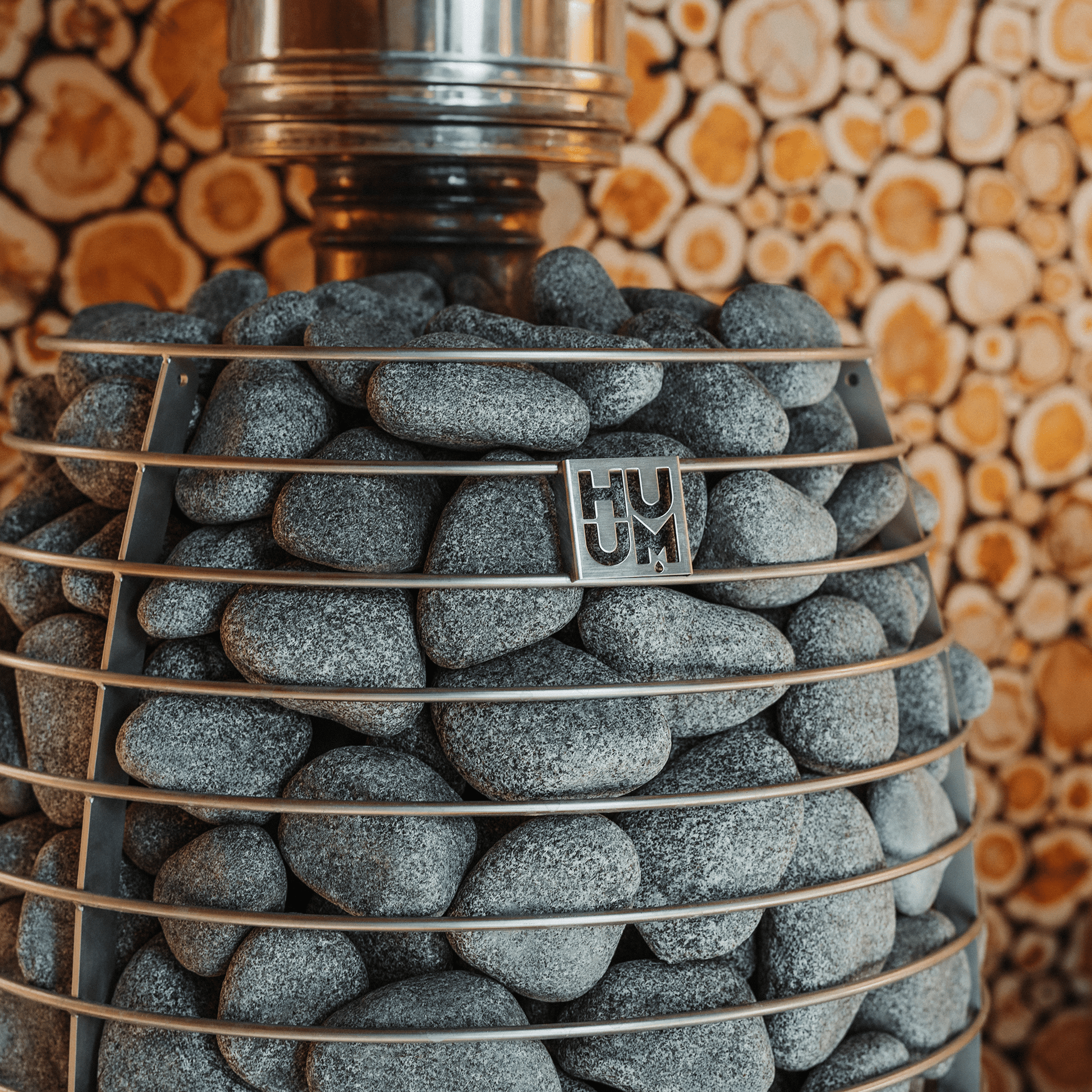

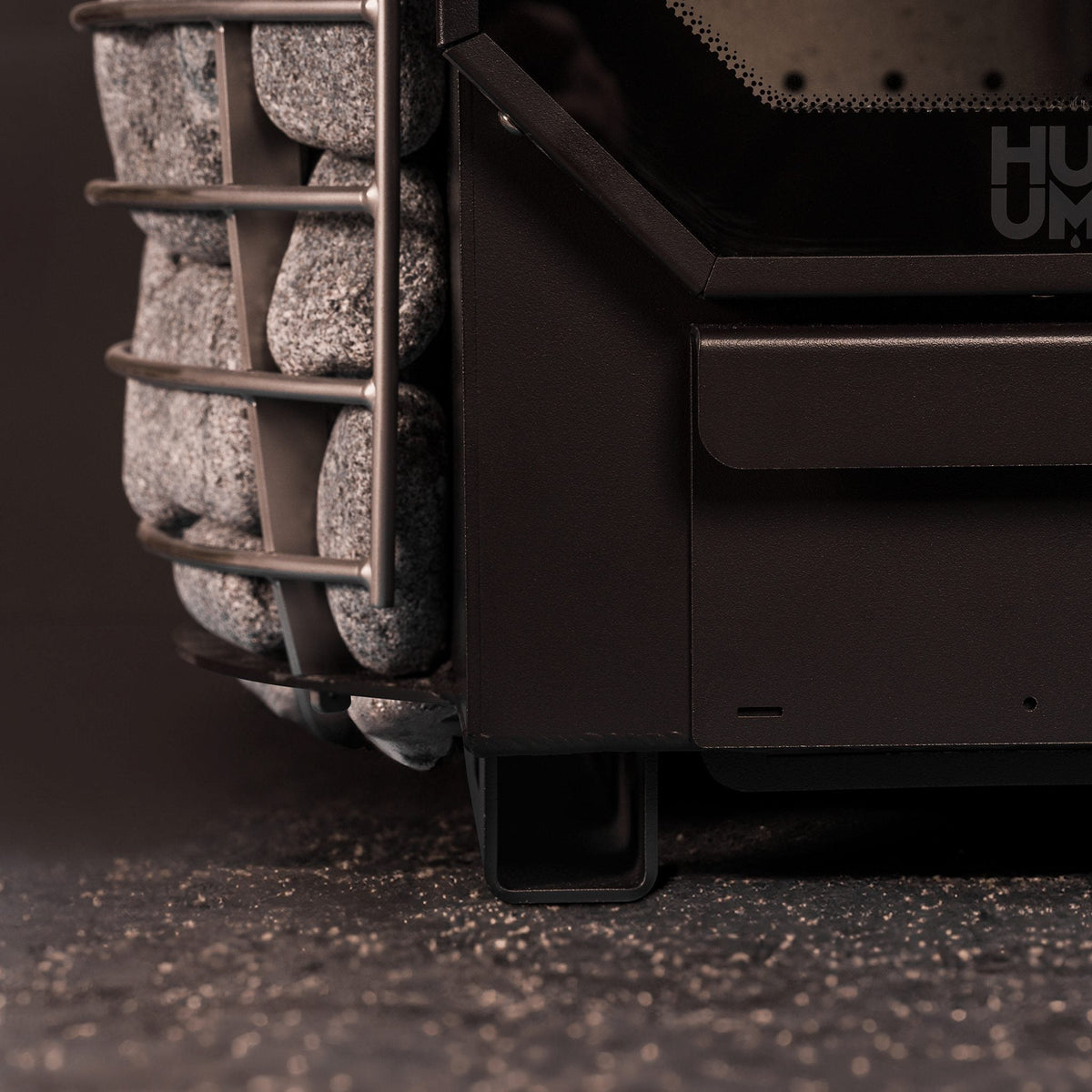

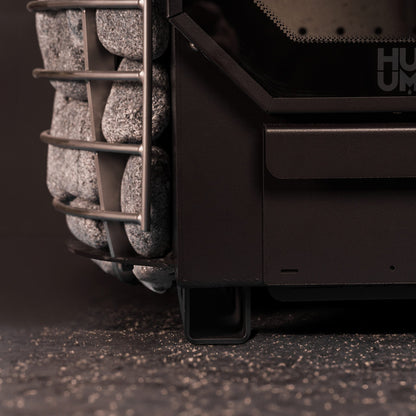

The Flow and Flow LS take up to 150 kg of 50–150 mm stones and the Mini models 105 kg, all sold separately, with a further 35–40 kg possible in the stone cage. Wash the stones before laying them.
Brand
HUUM is an Estonian maker of design-led sauna heaters and stoves, pairing minimal Nordic forms with smart sauna technology; its DROP heater won a Red Dot Award for product design in 2015.
Warranty
For full details on product warranty, see HUUM’s Limited Warranty Terms and Conditions.
