HUUM CLIFF Mini Electric Sauna Heater
HUUM CLIFF Mini Electric Sauna Heater
Couldn't load pickup availability
Buy together with:
Description
Description

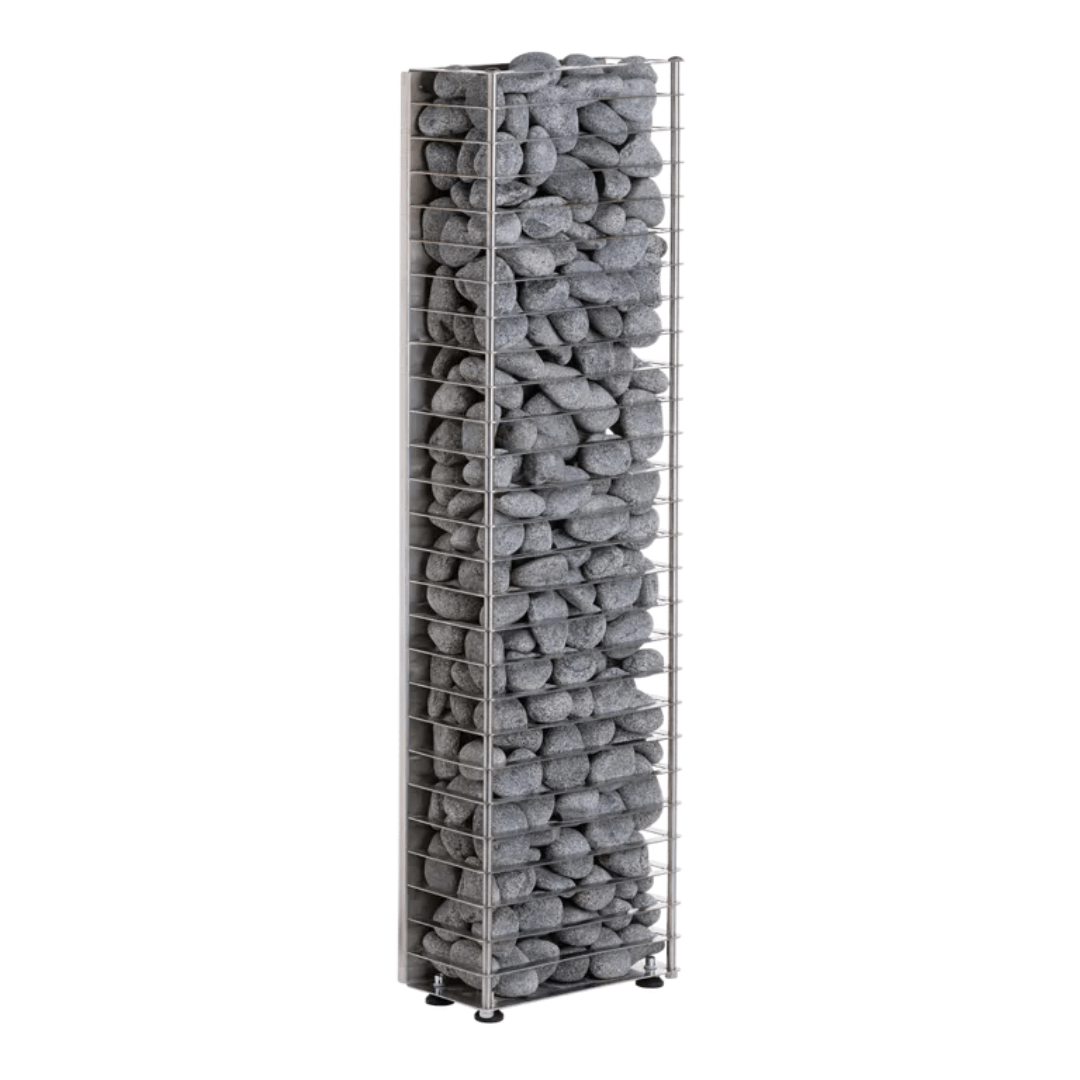

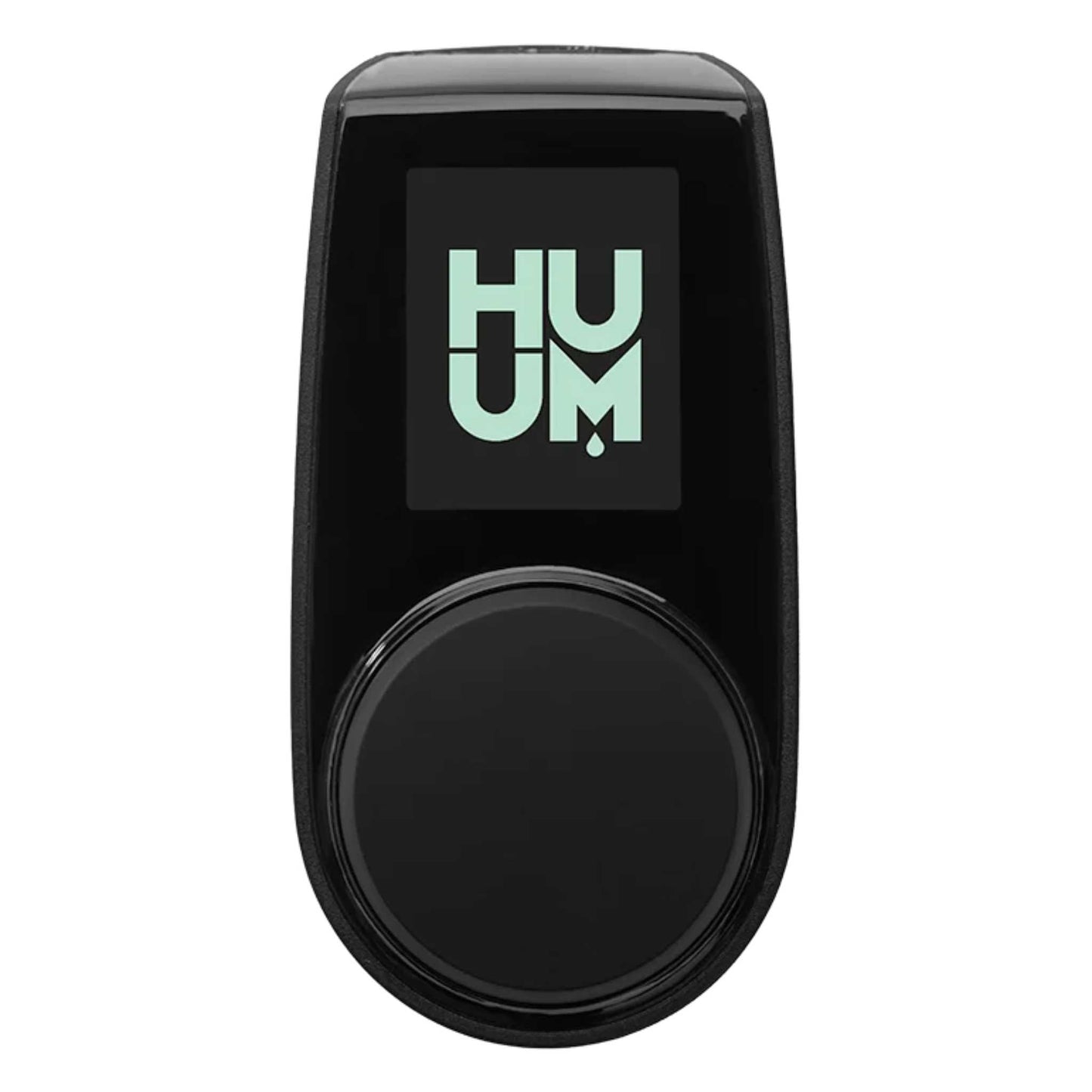

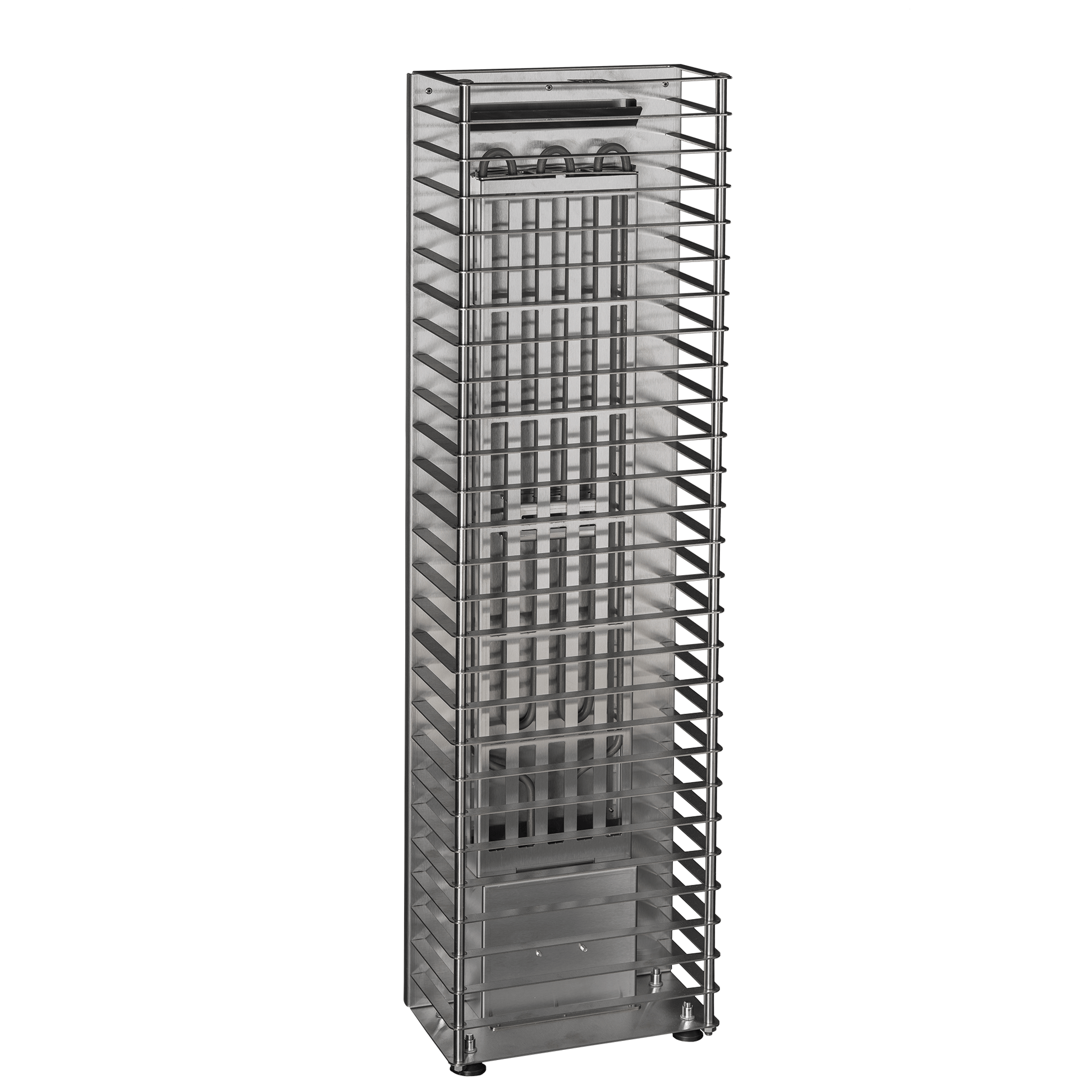

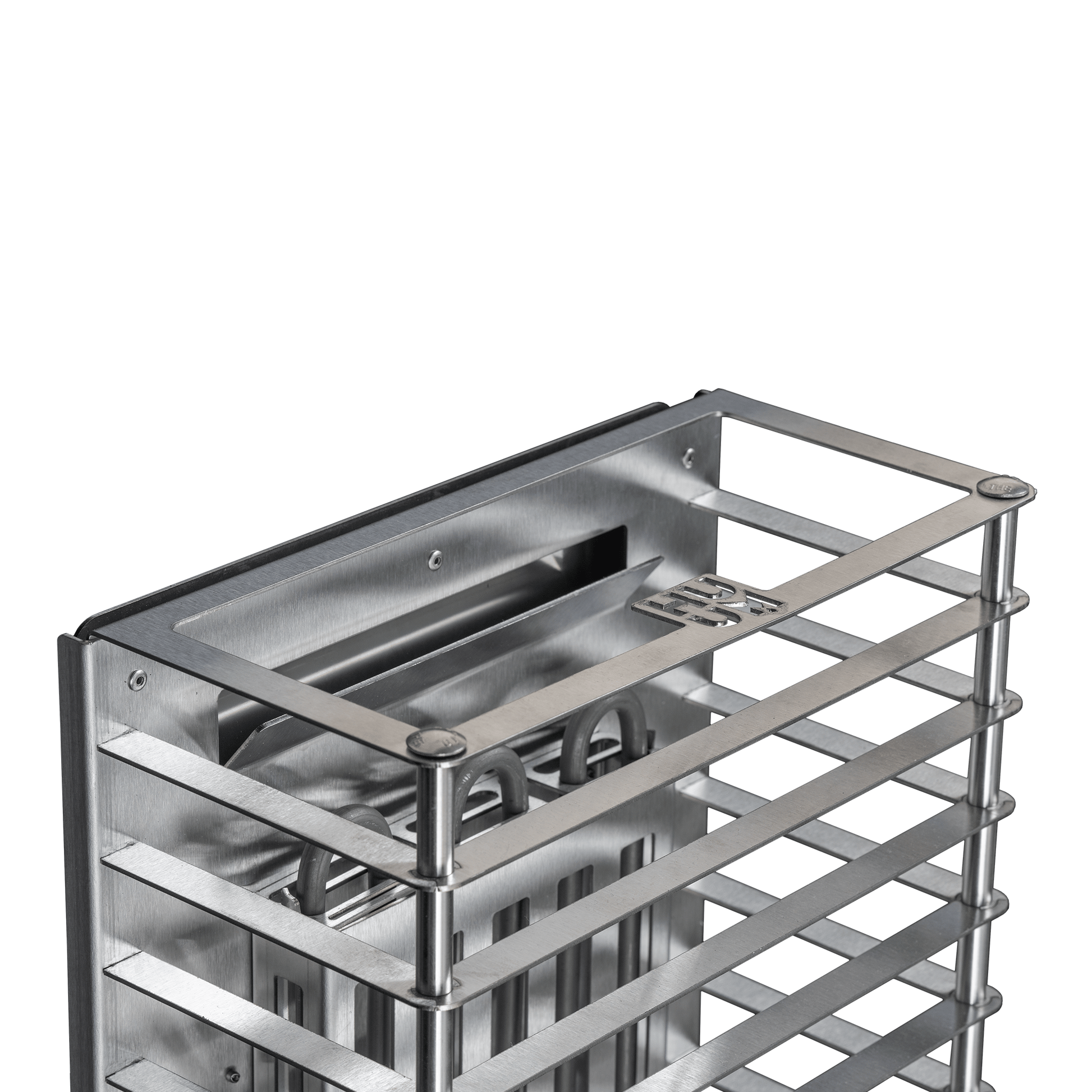

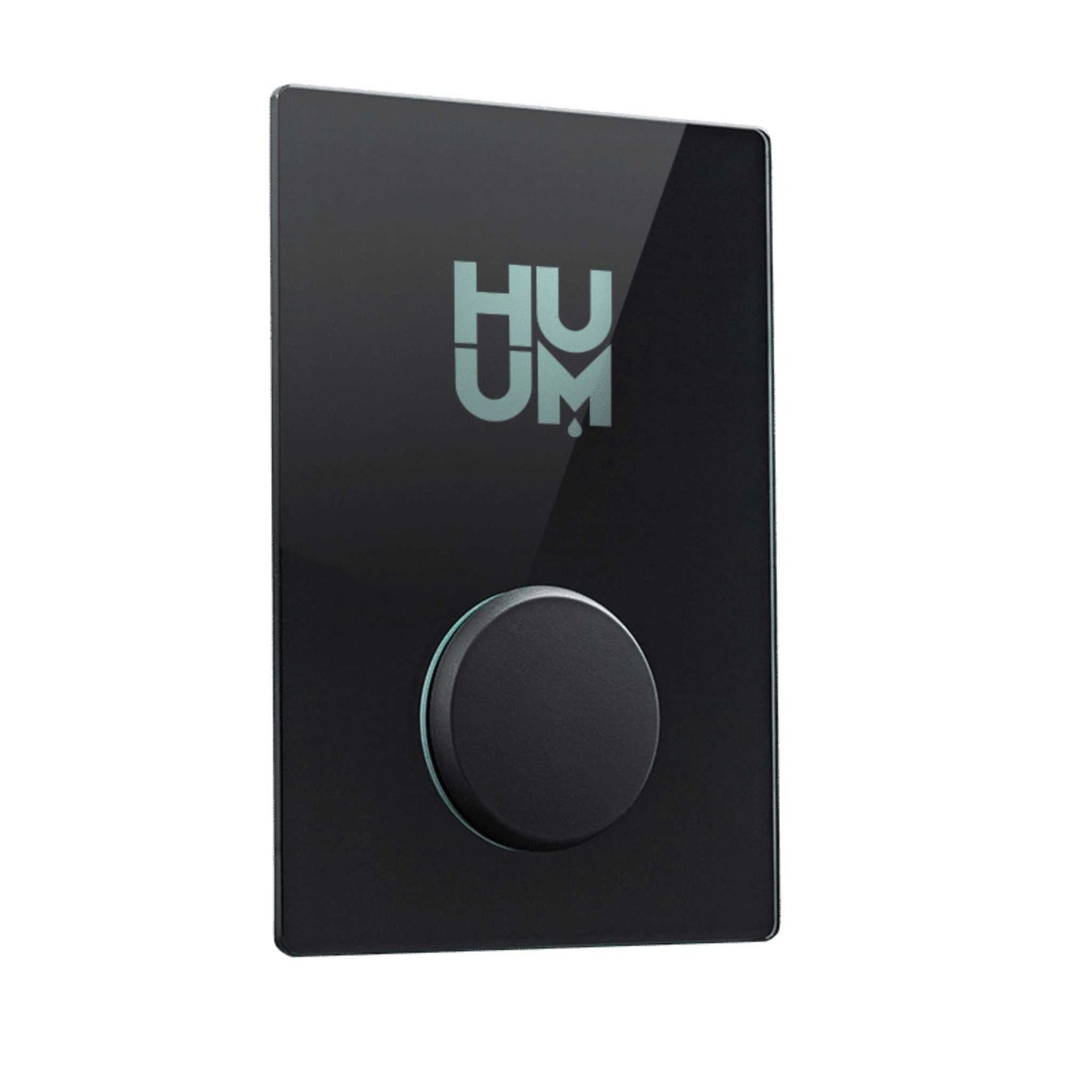

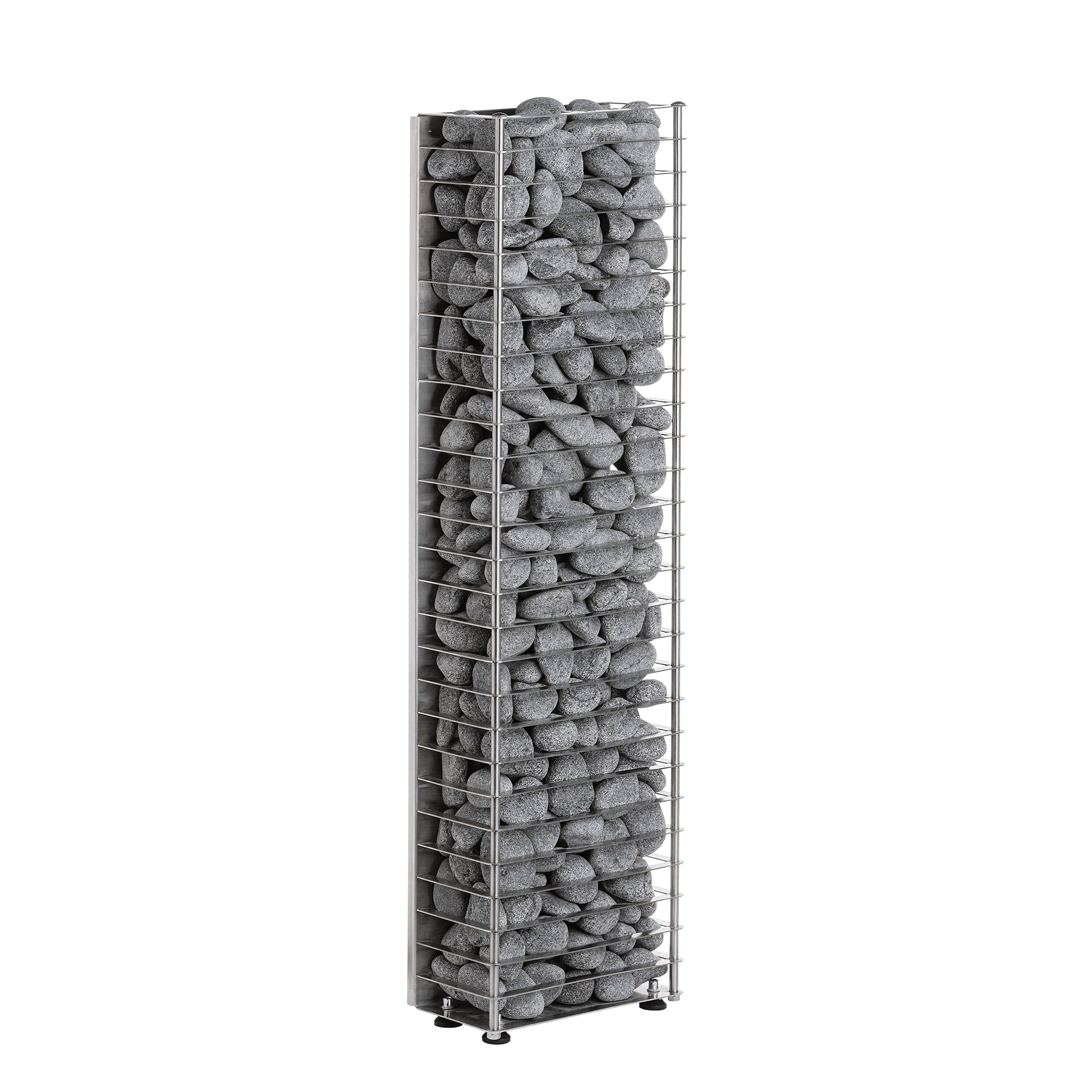

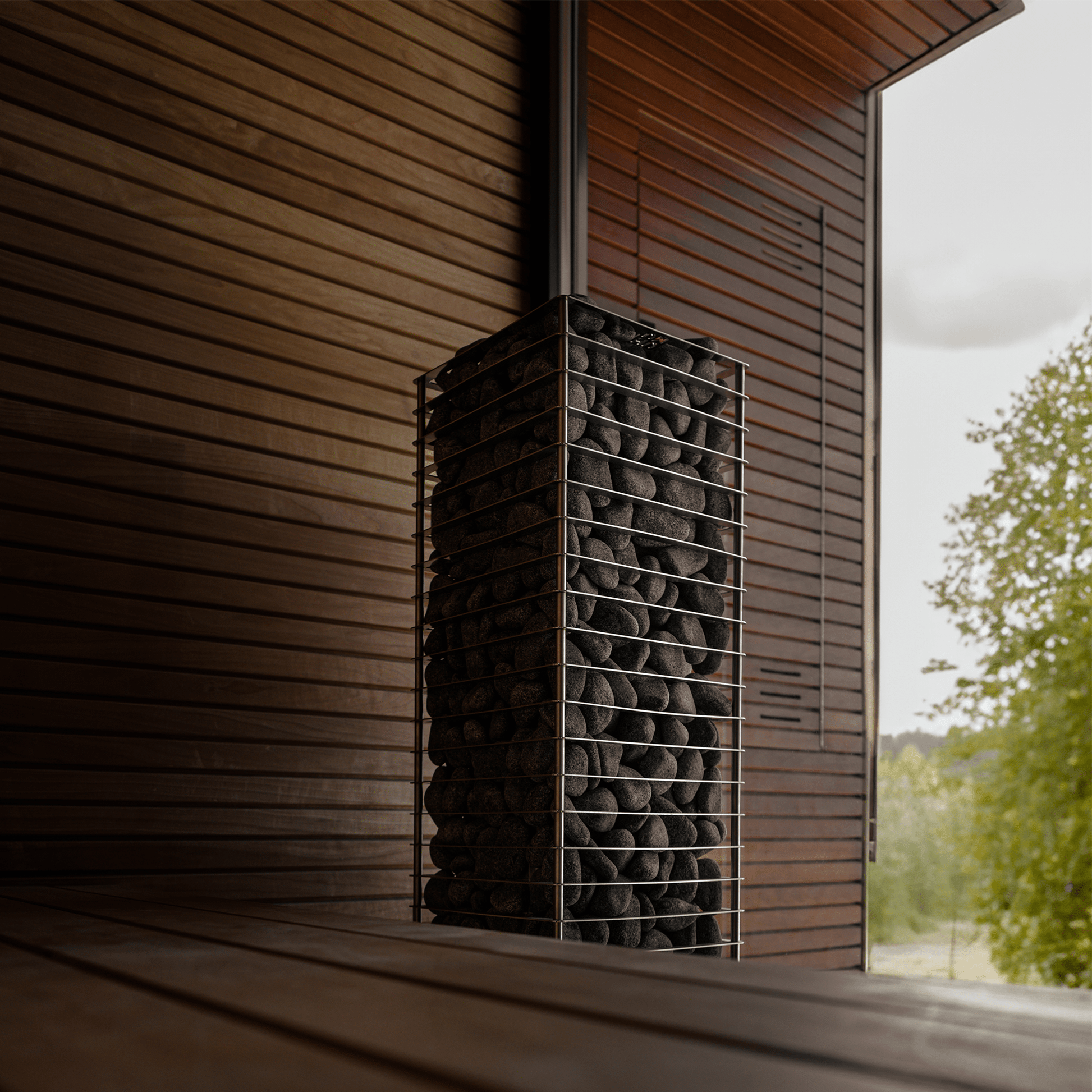

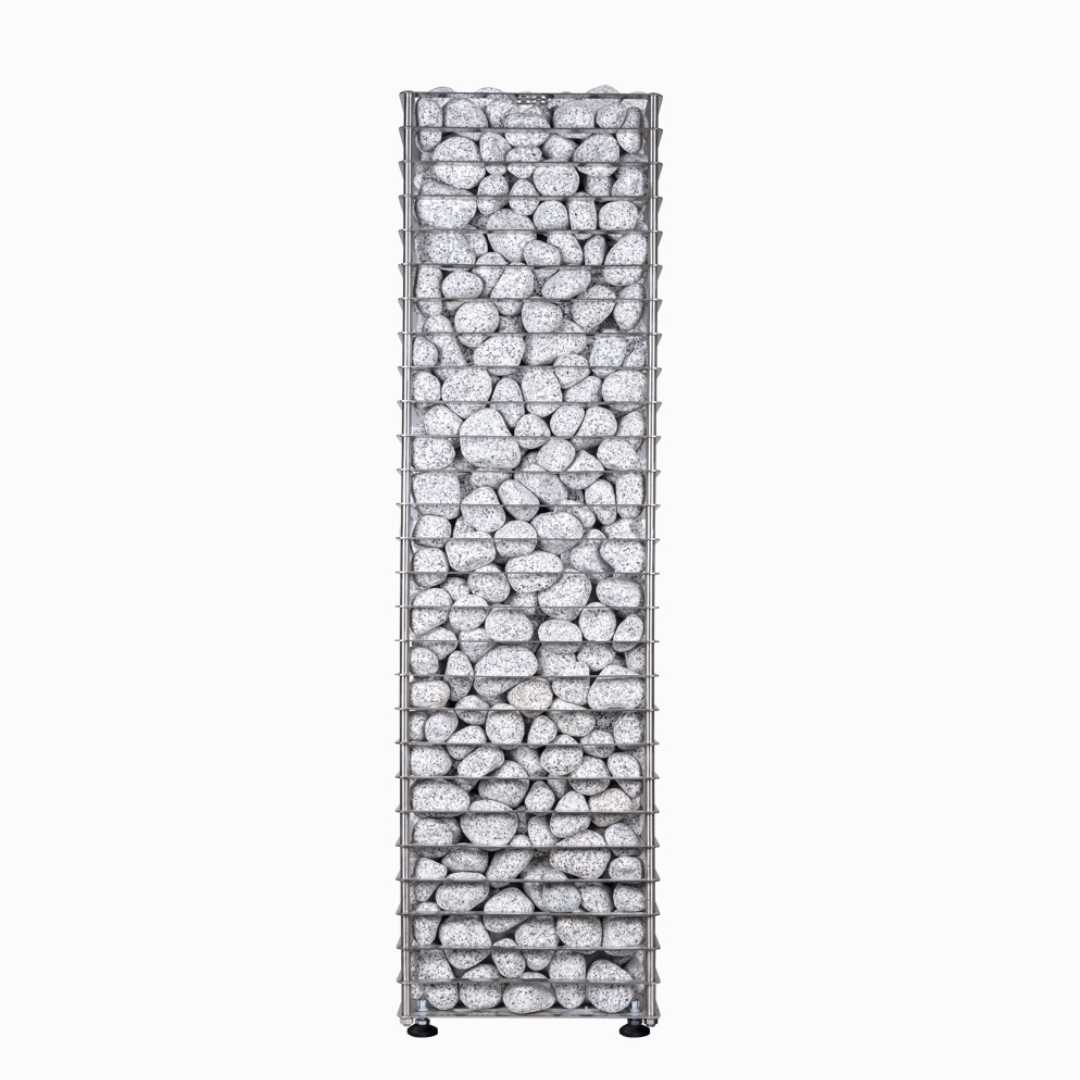

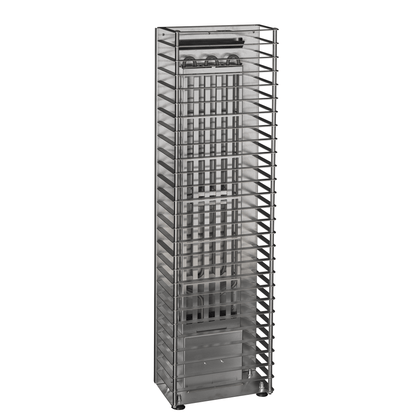

The HUUM CLIFF Mini is a slim, wall-mounted 3.5 kW electric sauna heater designed for small sauna rooms of 3–5 m³. A narrower version of the floor-standing CLIFF, it shares the same stylishly simple Nordic design and remarkably small safety distances, needing just 60 mm of clearance from the sides, and its 160 mm depth keeps it tight to the wall. The stainless-steel column holds 60 kg of stones for a soft, even steam, and an internal air duct speeds up heating by around 25%. It connects to a single-phase 230 V supply, and a HUUM UKU control console (Local or Wi-Fi) and around 60 kg of 3–5 cm rounded olivine diabase stones are required and sold separately.
Features
Technical Specification
| CLIFF Mini 4 (3.5 kW) | |
| Type | Wall-mounted electric sauna heater |
| Material | Stainless steel |
| Rated output | 3.5 kW |
| Recommended room volume | 3–5 m³ |
| Dimensions (H × W × D) | 975 × 270 × 160 mm |
| Empty weight | 15 kg |
| Stone capacity | 60 kg |
| Recommended stones | Rounded olivine diabase, 3–5 cm (sold separately) |
| Safety distance A (sides) | 60 mm |
| Safety distance B | 390 mm |
| Supply | 1N~ 230 V |
| Fuse (1N~ 230 V) | 1 × 16 A |
| Cable, UKU main module input (1N~ 230 V) | 3-core 2.5 mm² SWA |
| Cable, heater input (1N~ 230 V) | 3-core 2.5 mm² H07RN-F |

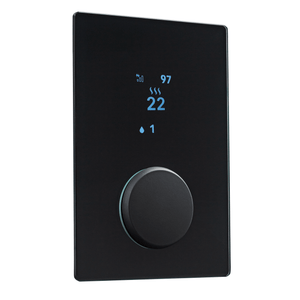

| Control | HUUM UKU console, Local or Wi-Fi (sold separately) |
| Design standard | EN 60335-2-53:2011 |
| Certification | UKCA |
Installation

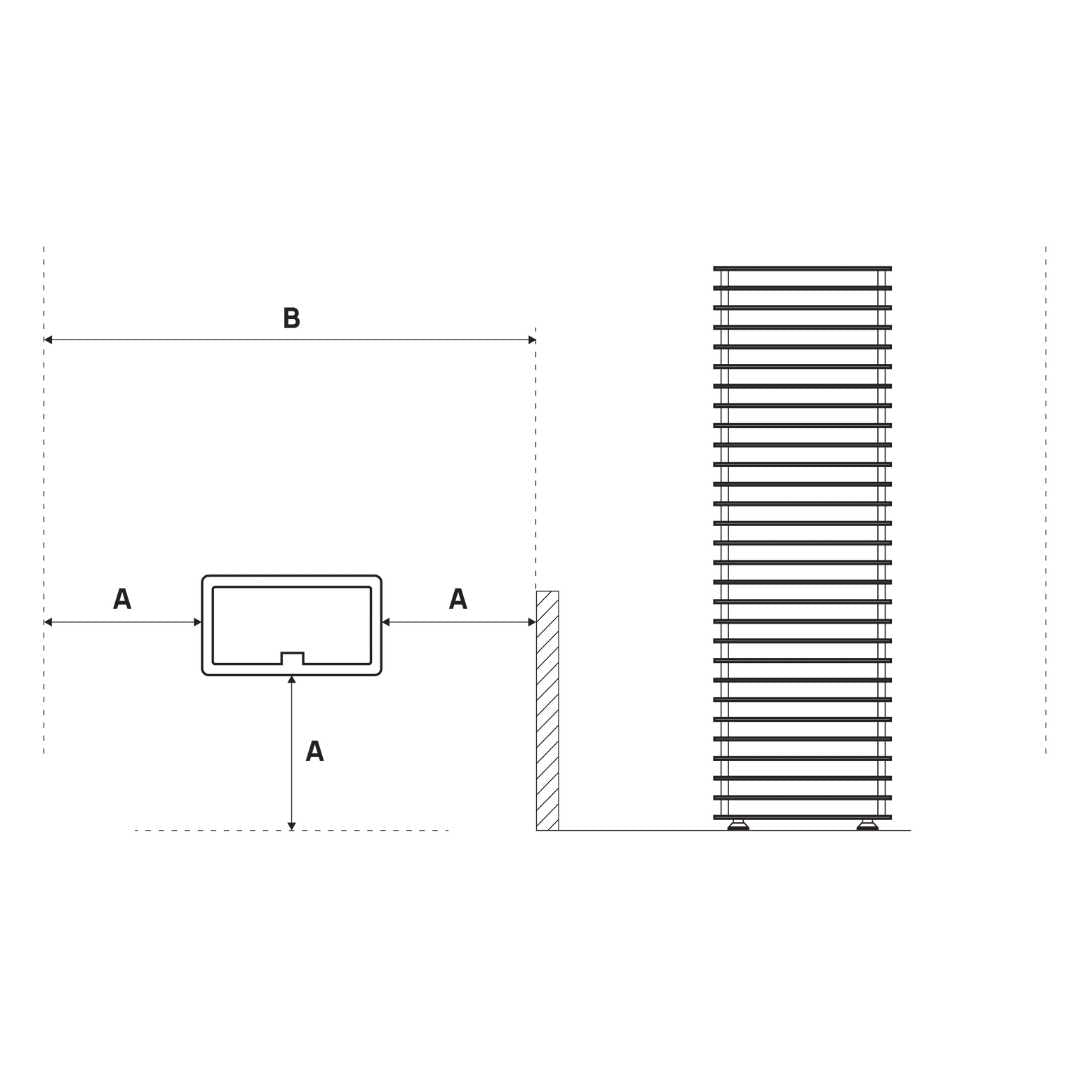

Installation and maintenance must be carried out by a certified electrician, with the electricity supply isolated at the fuse panel before any work begins. Under IEC 60364-7-703 and BS 7671:2018 an electric sauna heater does not have to be connected through an RCD, and for reliable operation the manufacturer recommends that the heater supply is not run through one; other electrical devices in the sauna room should be RCD protected. A local point of isolation covering all live conductors is recommended. The installation manual in the Downloads tab and local wiring regulations must be followed. The connection cable must be heat-resistant rubber-insulated cable (SIHF-JB or equivalent); PVC-insulated cable must not be used, and any junction box in the sauna room must be waterproof and mounted no higher than 500 mm from the floor. When sizing the heater, add 1 m³ of calculated room volume for every square metre of uninsulated brick, tile, glass or log wall in the sauna room. The CLIFF Mini is attached to the sauna wall using the mounting plate included in the package. A safety railing around the heater is recommended, and a diagram of the safety distances is provided in the image gallery.
Sauna stones

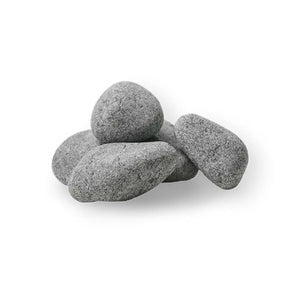

The CLIFF Mini requires approximately 60 kg of 3–5 cm stones, sold separately; rounded olivine diabase or olivine stones are recommended. Wash the stones before use and lay them one by one, keeping the air tunnel free of stones and making sure neither the air tunnel nor the tops of the heating elements remain visible, otherwise the stated safety distances no longer apply.
Brand
HUUM is an Estonian maker of design-led sauna heaters, pairing minimal Nordic forms with smart sauna technology; its DROP heater won a Red Dot Award for product design in 2015. HUUM heaters are manufactured in Estonia from stainless steel and are UKCA certified.
Warranty
HUUM heaters carry a 36-month guarantee for private use; the heating elements are not included in the warranty. Full details are set out in HUUM’s Limited Warranty Terms and Conditions.
Downloads
