HUUM CLIFF Electric Sauna Heater
HUUM CLIFF Electric Sauna Heater
Couldn't load pickup availability
Buy together with:
Description
Description

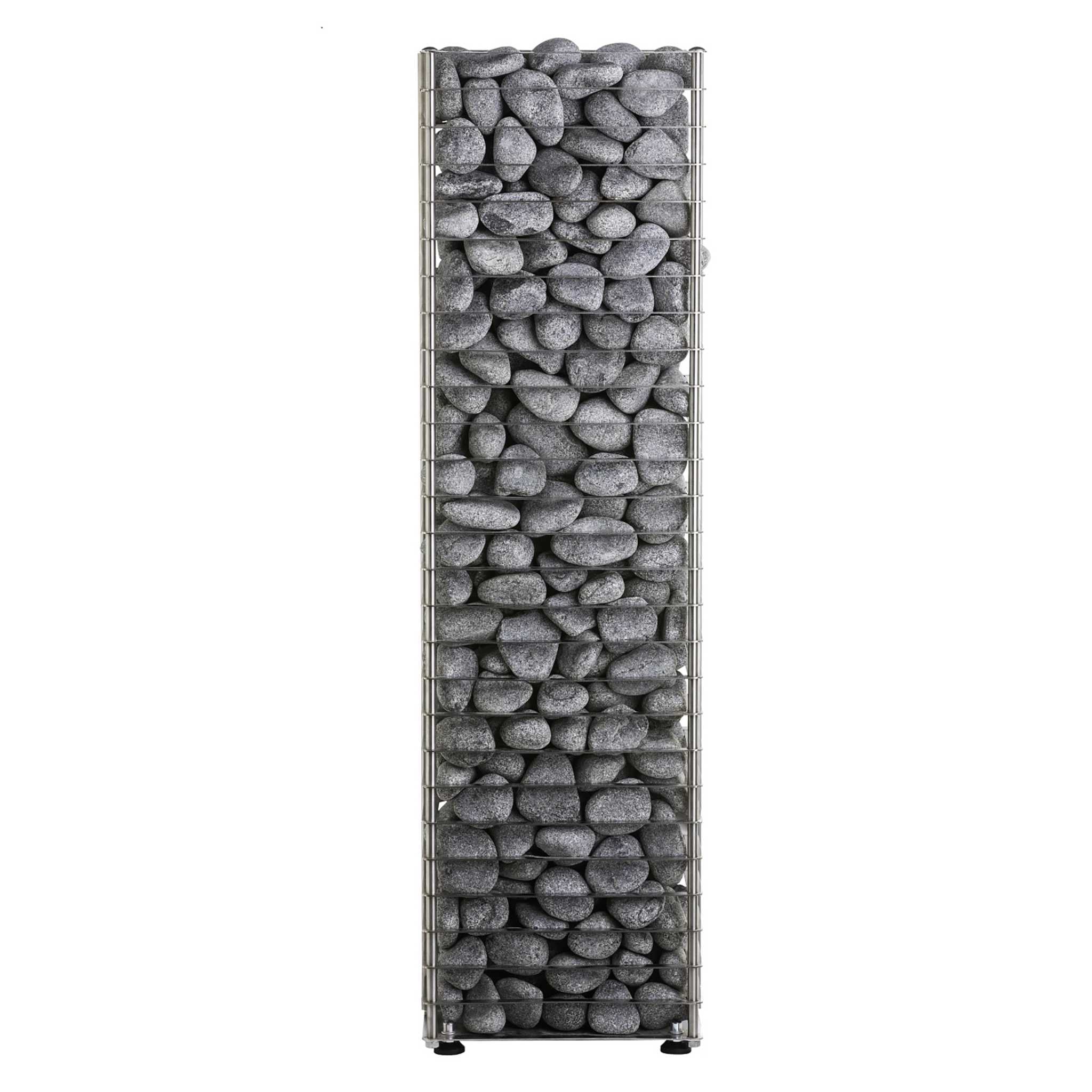

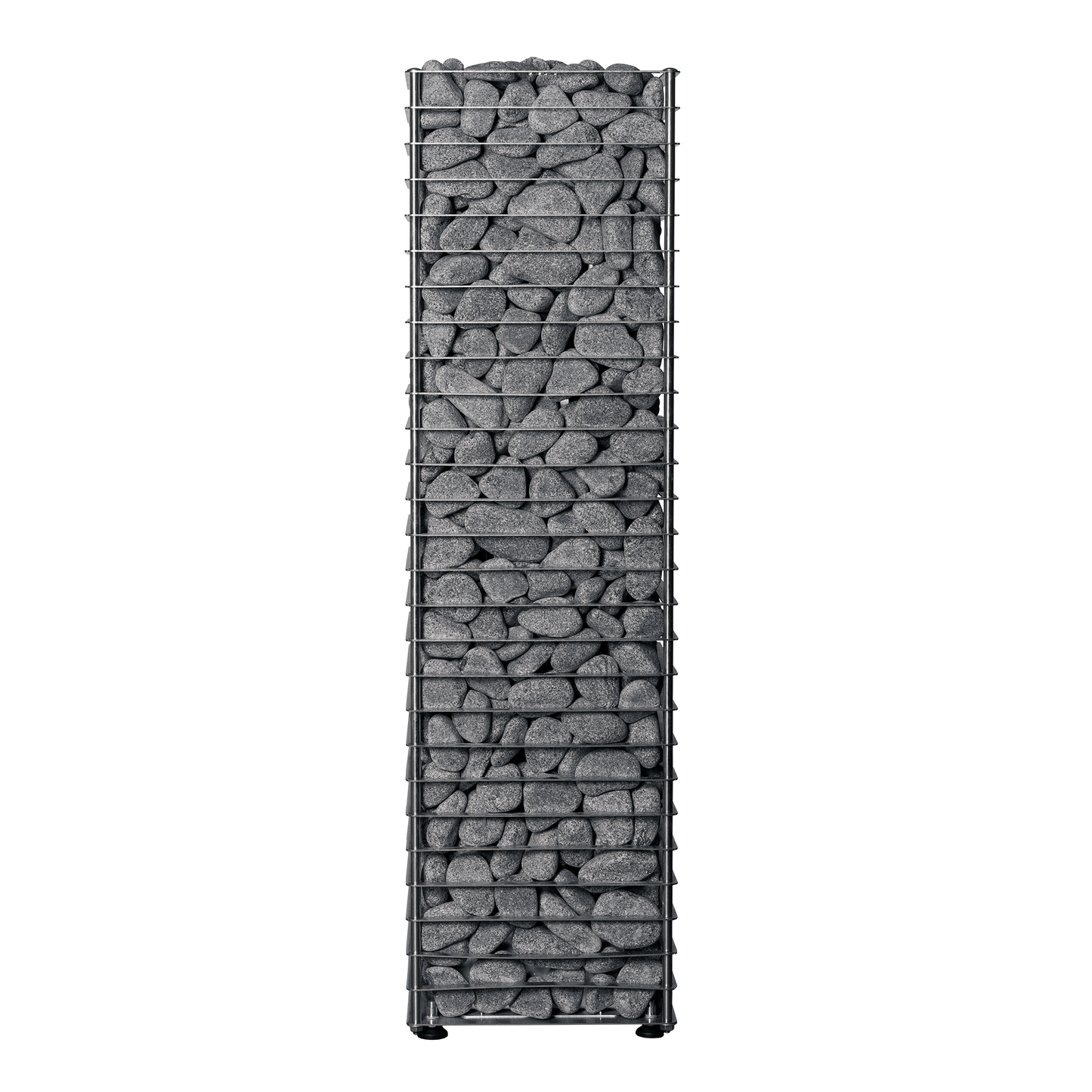

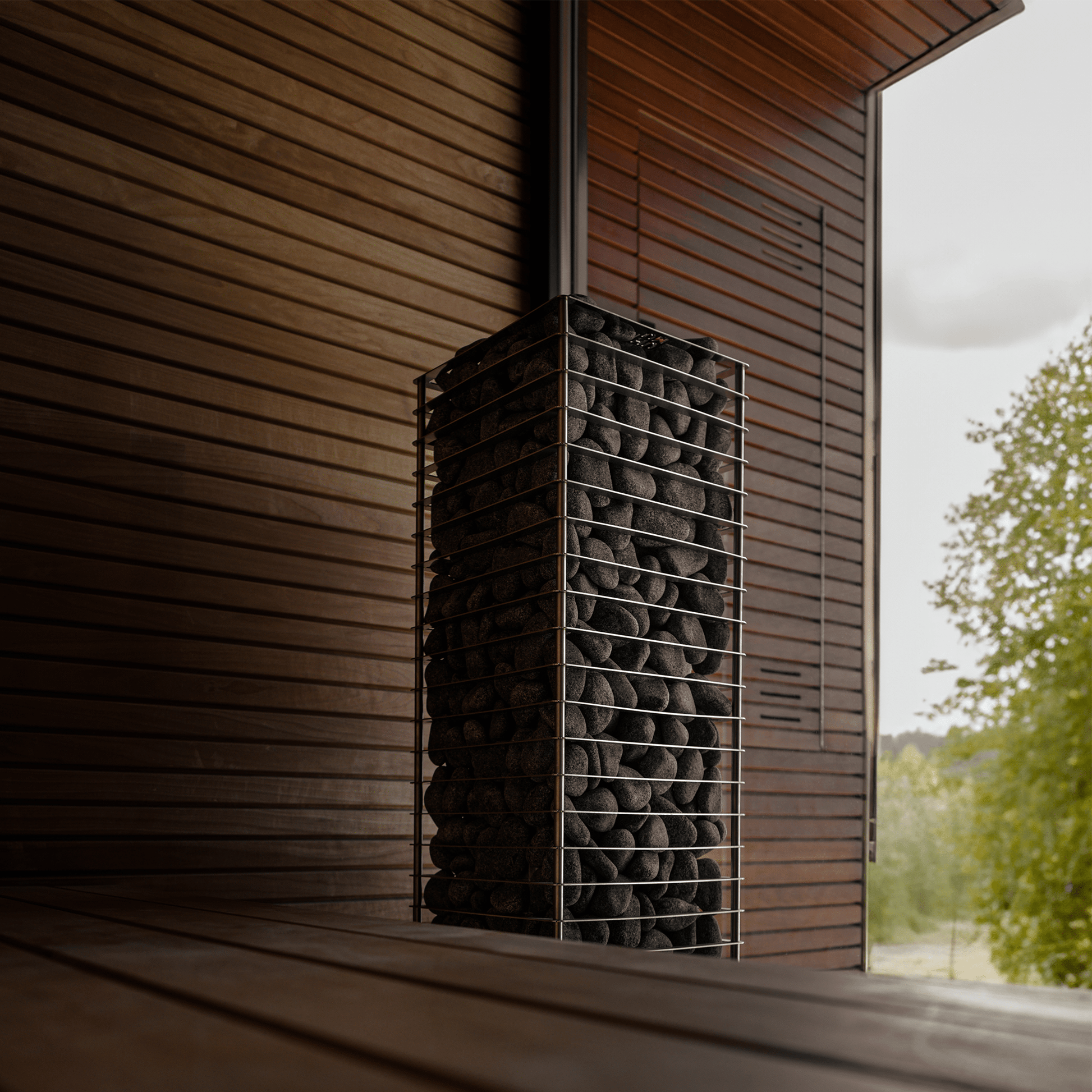

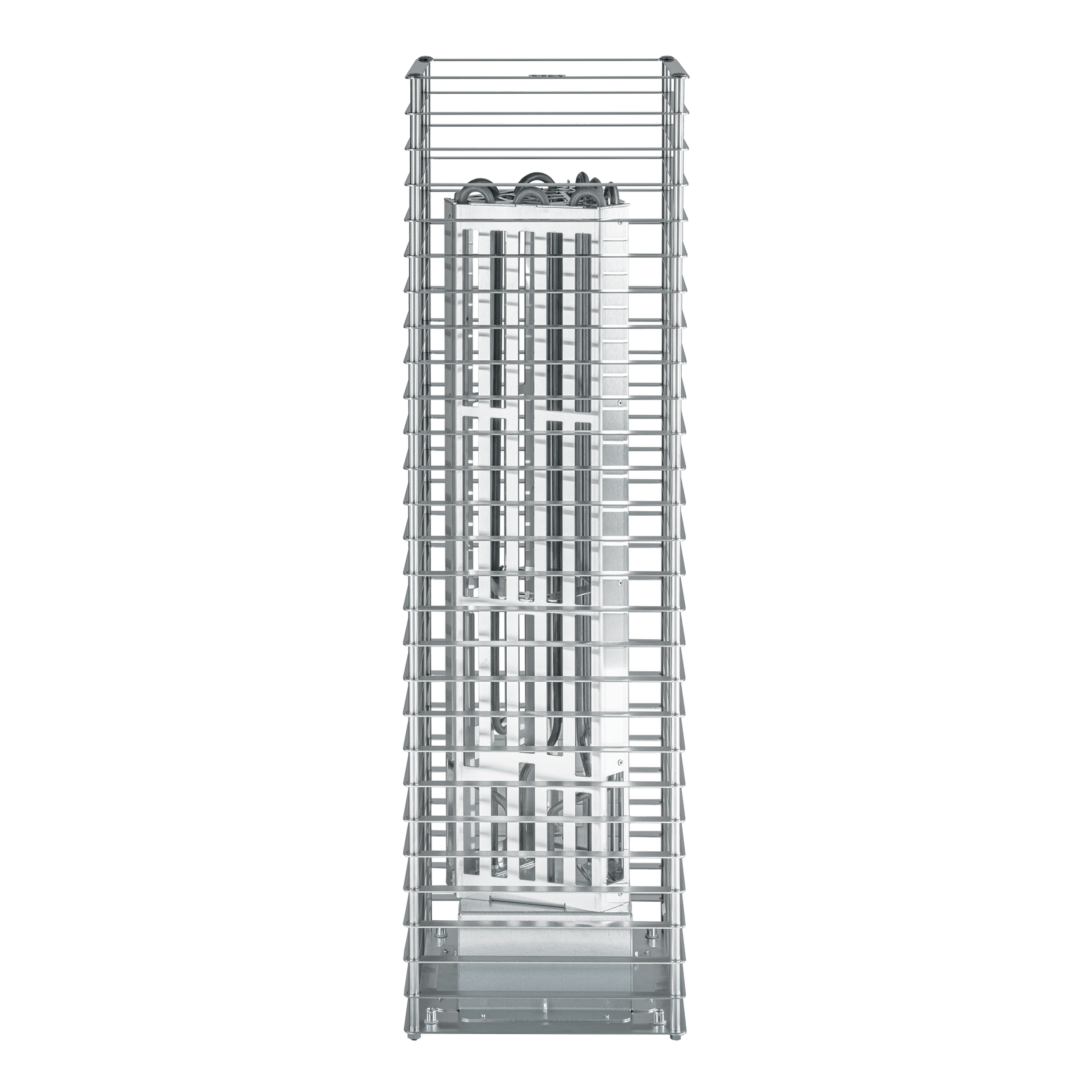

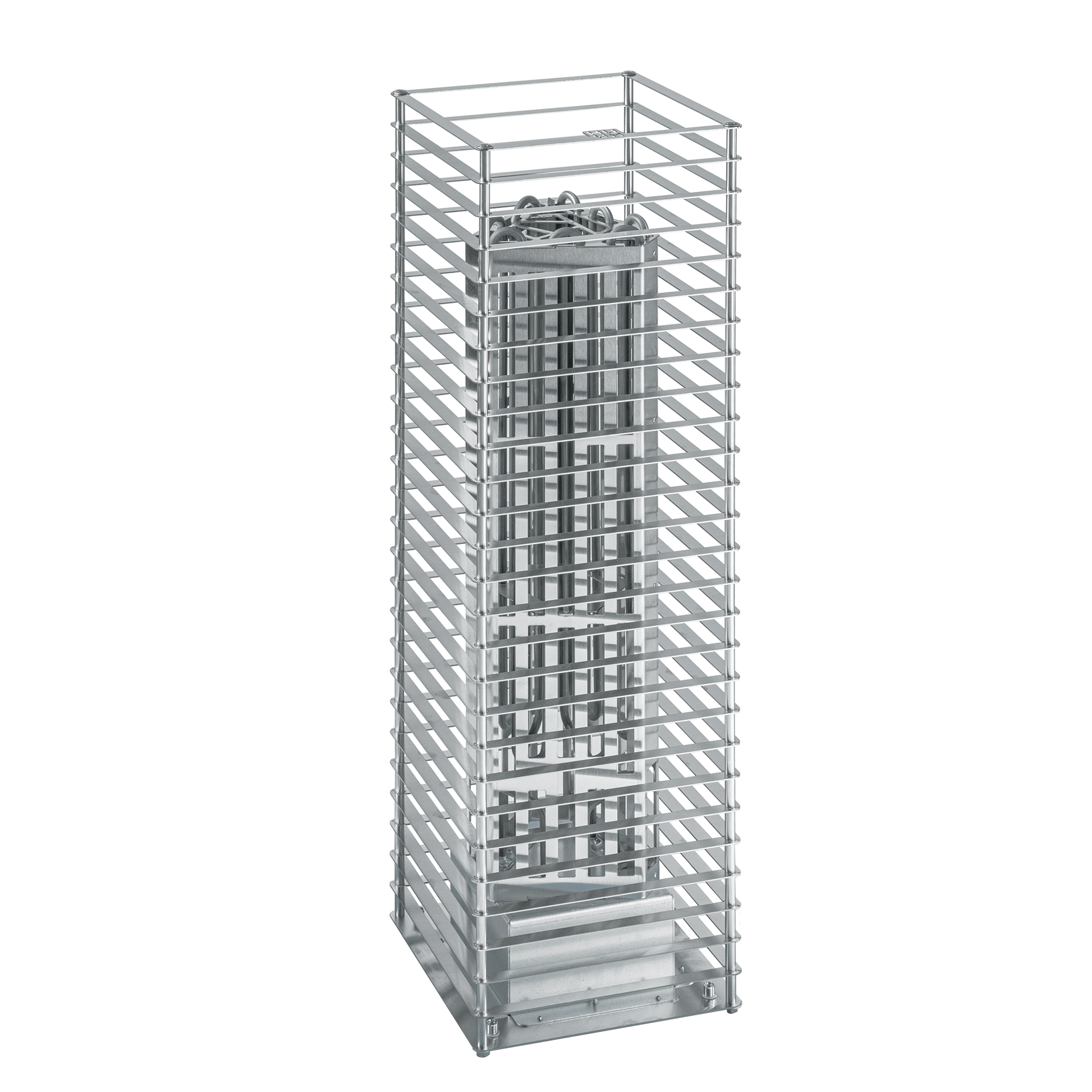

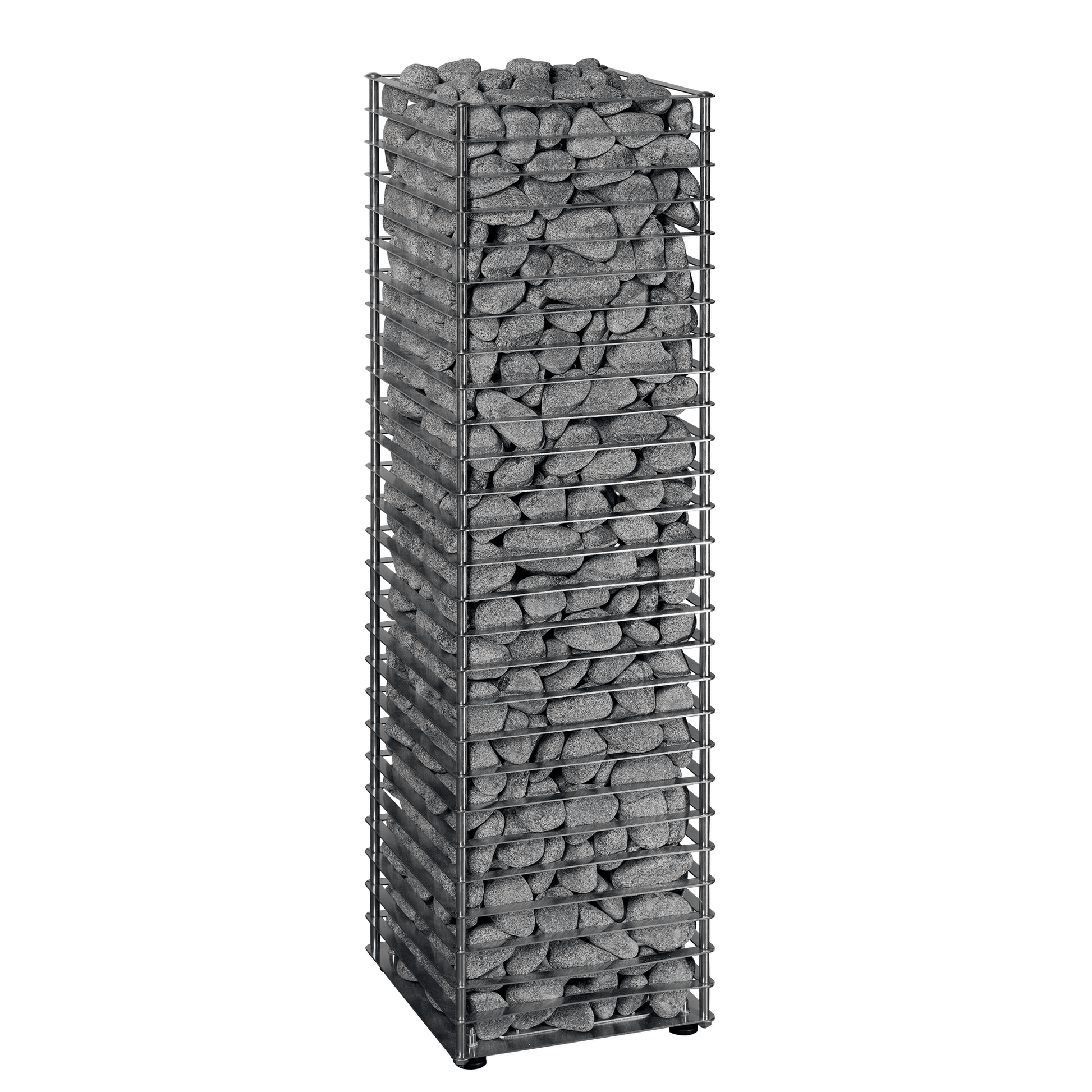

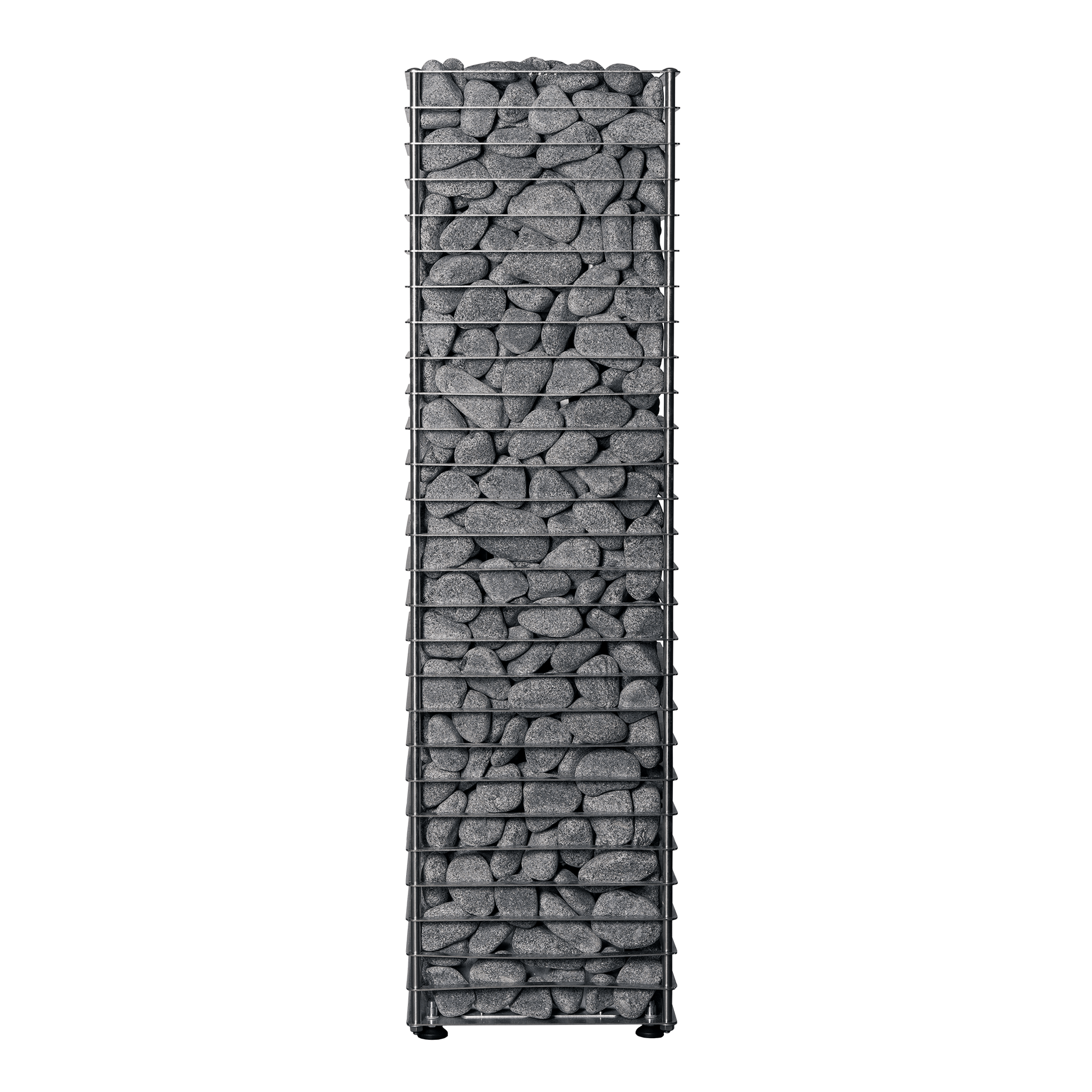

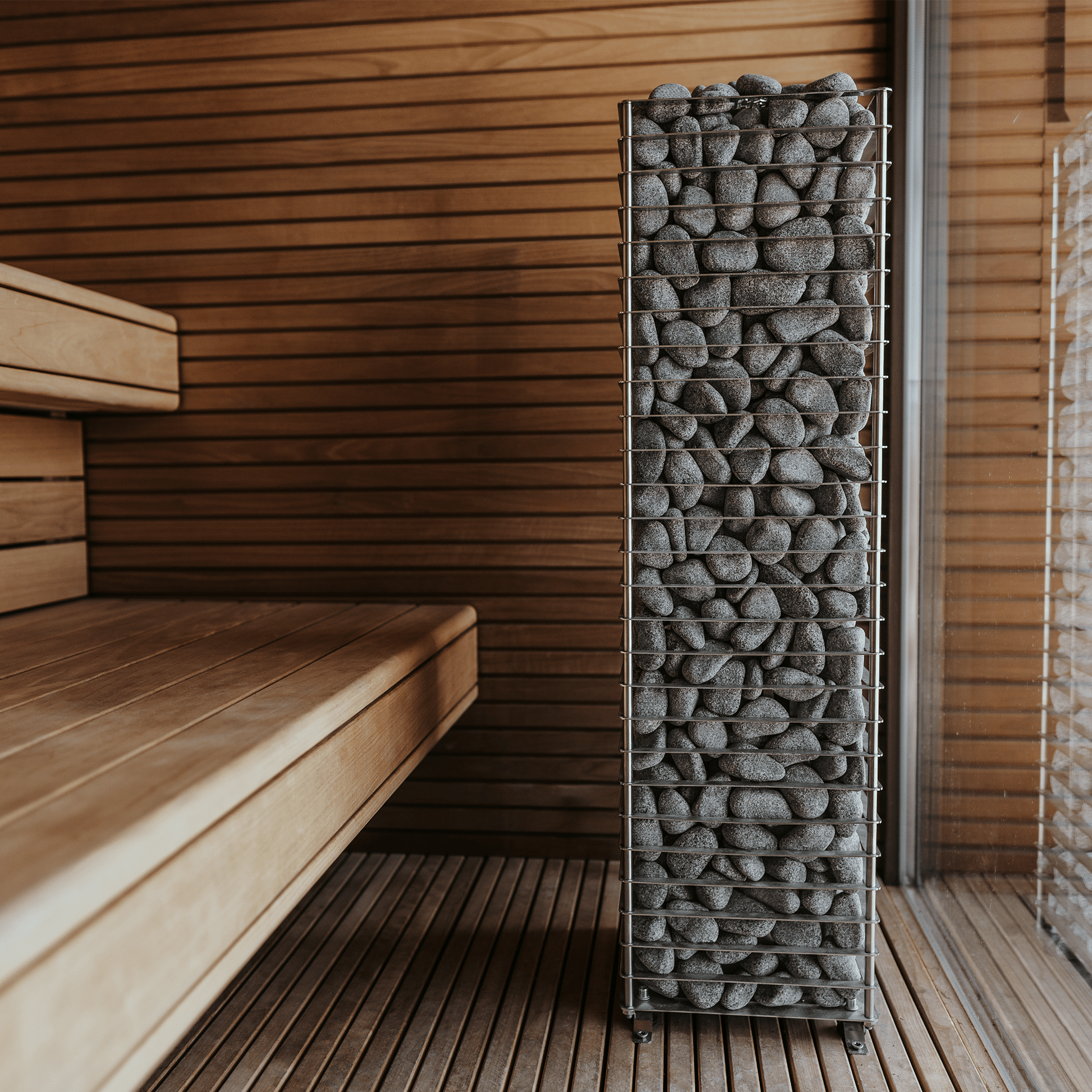

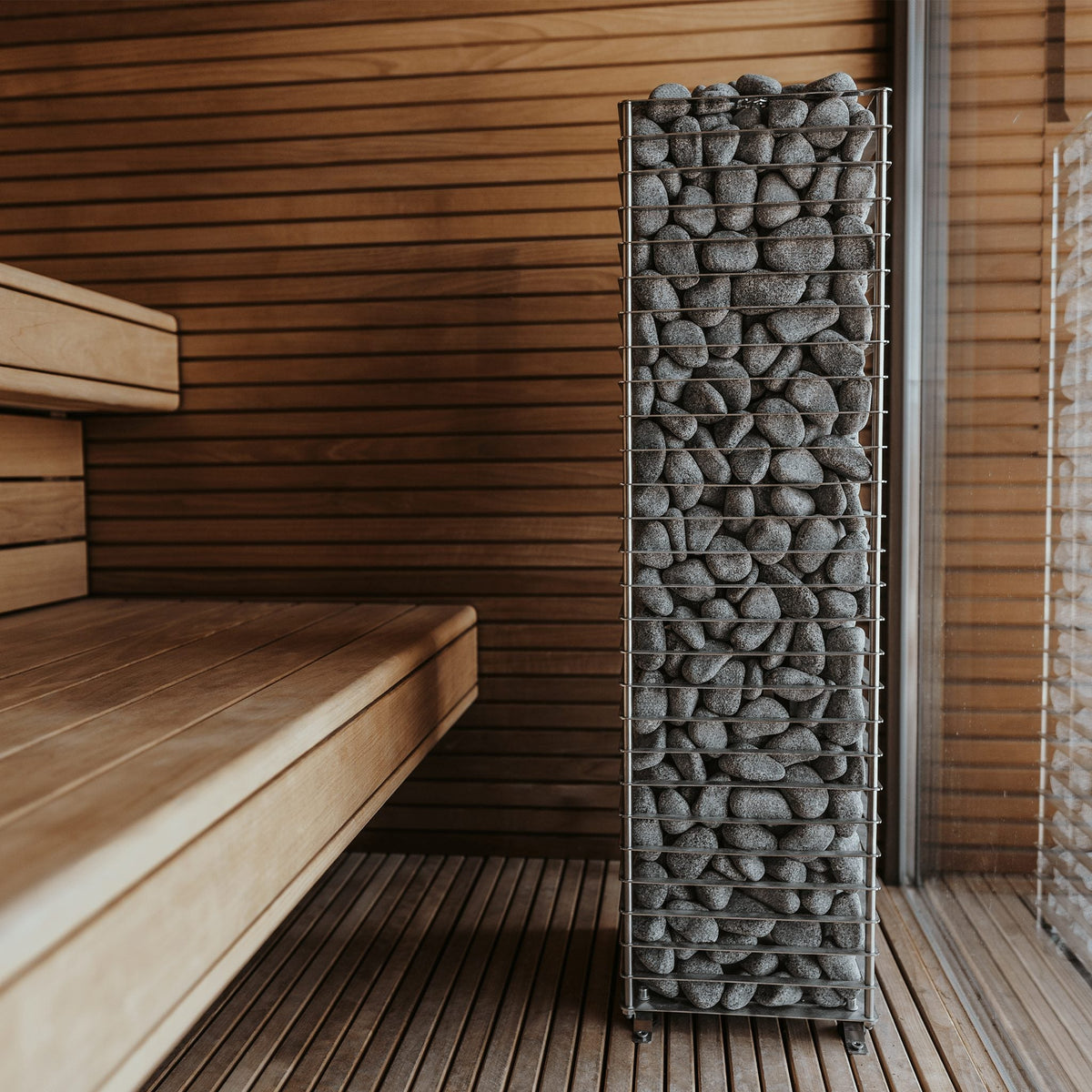

The HUUM CLIFF is a slim, floor-standing electric sauna heater with an award-winning Nordic design and unusually small safety distances: just 60 mm from the sides on the 6 kW model. Its tall stainless-steel column holds 75 kg of stones for a soft, generous steam, and an internal air duct at its centre speeds up heating by around 25%. The CLIFF is available in 6 kW, 9 kW and 10.5 kW outputs, covering sauna rooms of 5–16 m³, and connects to either a single-phase 230 V or three-phase 400 V supply. A HUUM UKU control console (Local or Wi-Fi) and around 75 kg of 3–5 cm rounded olivine diabase stones are required and sold separately; for smaller rooms there is also the wall-mounted CLIFF Mini.
Features
Technical Specification
| All models | |
| Type | Floor-standing electric sauna heater |
| Material | Stainless steel |
| Dimensions (H × W × D) | 975 × 270 × 270 mm |
| Stone capacity | 75 kg |
| Recommended stones | Rounded olivine diabase, 3–5 cm (sold separately) |
| Control | HUUM UKU console, Local or Wi-Fi (sold separately) |
| Supply options | 1N~ 230 V or 3N~ 400 V |
| Design standard | EN 60335-2-53:2011 |
| Certification | UKCA |
| CLIFF 6 (6 kW) | |
| Rated output | 6 kW |
| Recommended room volume | 5–9 m³ |
| Empty weight | 16 kg |

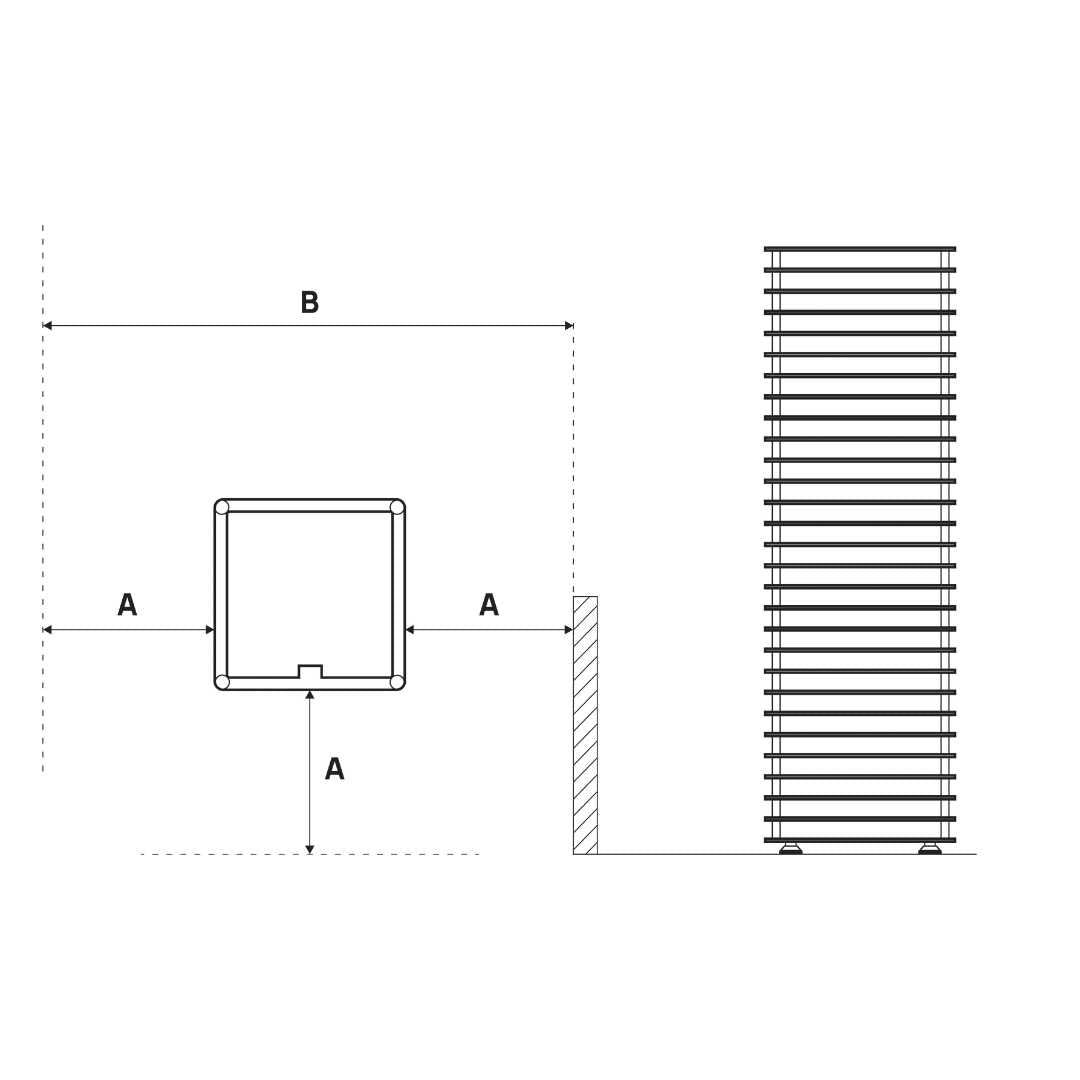

| Safety distance A (sides) | 60 mm |
| Safety distance B | 390 mm |
| Fuses (3N~ 400 V) | 3 × 10 A |
| Cable, UKU main module input (3N~ 400 V) | 5-core 2.5 mm² SWA |
| Cable, heater input (3N~ 400 V) | 5-core 2.5 mm² H07RN-F |
| Fuse (1N~ 230 V) | 1 × 32 A |
| Cable, UKU main module input (1N~ 230 V) | 3-core 6 mm² SWA |
| Cable, heater input (1N~ 230 V) | 7-core 2.5 mm² SiHF |
| CLIFF 9 (9 kW) | |
| Rated output | 9 kW |
| Recommended room volume | 8–13 m³ |
| Empty weight | 16 kg |
| Safety distance A (sides) | 240 mm |
| Safety distance B | 750 mm |
| Fuses (3N~ 400 V) | 3 × 16 A |
| Cable, UKU main module input (3N~ 400 V) | 5-core 2.5 mm² SWA |
| Cable, heater input (3N~ 400 V) | 5-core 2.5 mm² H07RN-F |
| Fuse (1N~ 230 V) | 1 × 40 A |
| Cable, UKU main module input (1N~ 230 V) | 3-core 10 mm² SWA |
| Cable, heater input (1N~ 230 V) | 7-core 2.5 mm² SiHF |
| CLIFF 11 (10.5 kW) | |
| Rated output | 10.5 kW |
| Recommended room volume | 10–16 m³ |
| Empty weight | 17 kg |
| Safety distance A (sides) | 240 mm |
| Safety distance B | 750 mm |
| Fuses (3N~ 400 V) | 3 × 16 A |
| Cable, UKU main module input (3N~ 400 V) | 5-core 2.5 mm² SWA |
| Cable, heater input (3N~ 400 V) | 5-core 2.5 mm² H07RN-F |
| Fuse (1N~ 230 V) | 1 × 50 A |
| Cable, UKU main module input (1N~ 230 V) | 3-core 10 mm² SWA |
| Cable, heater input (1N~ 230 V) | 7-core 2.5 mm² SiHF |
Installation

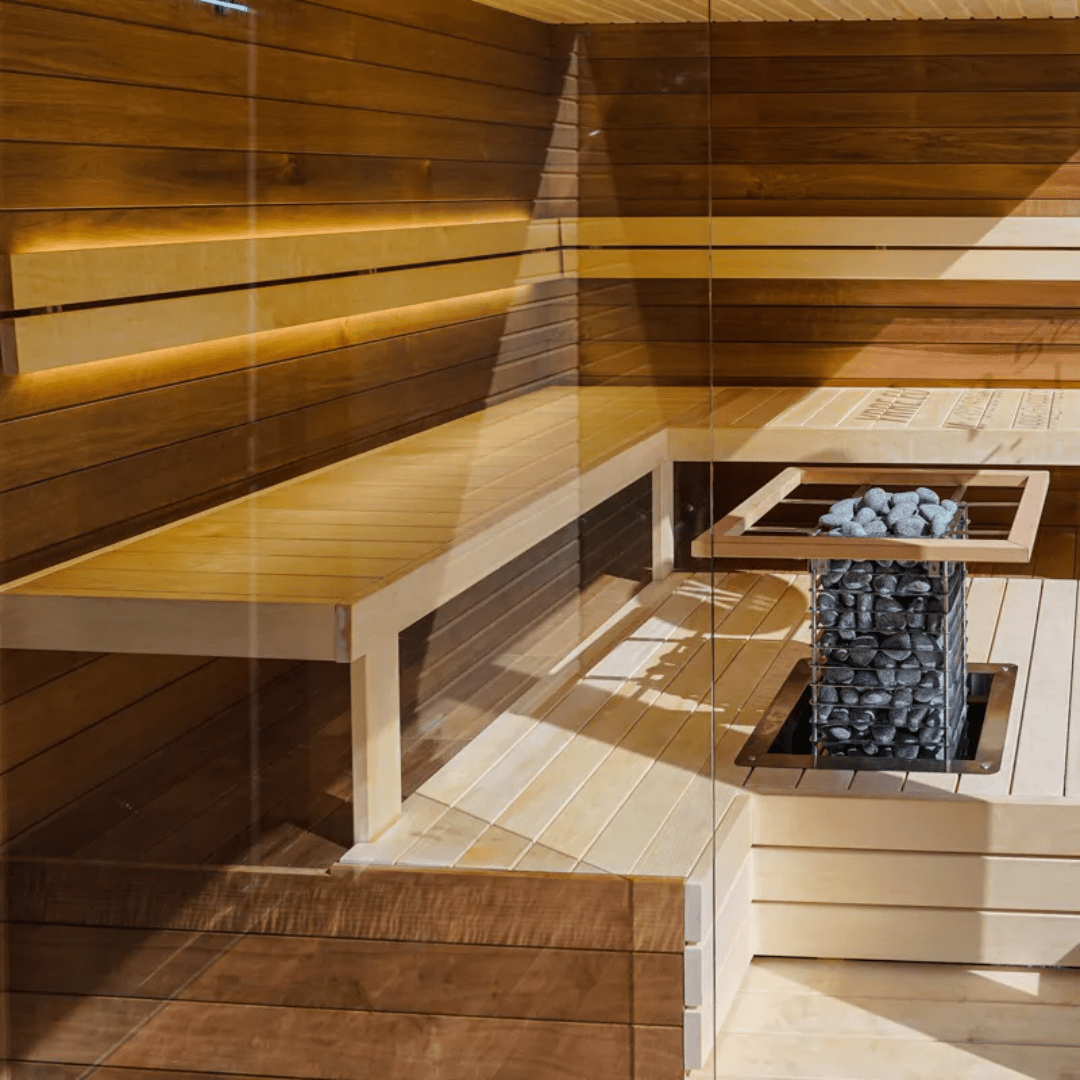

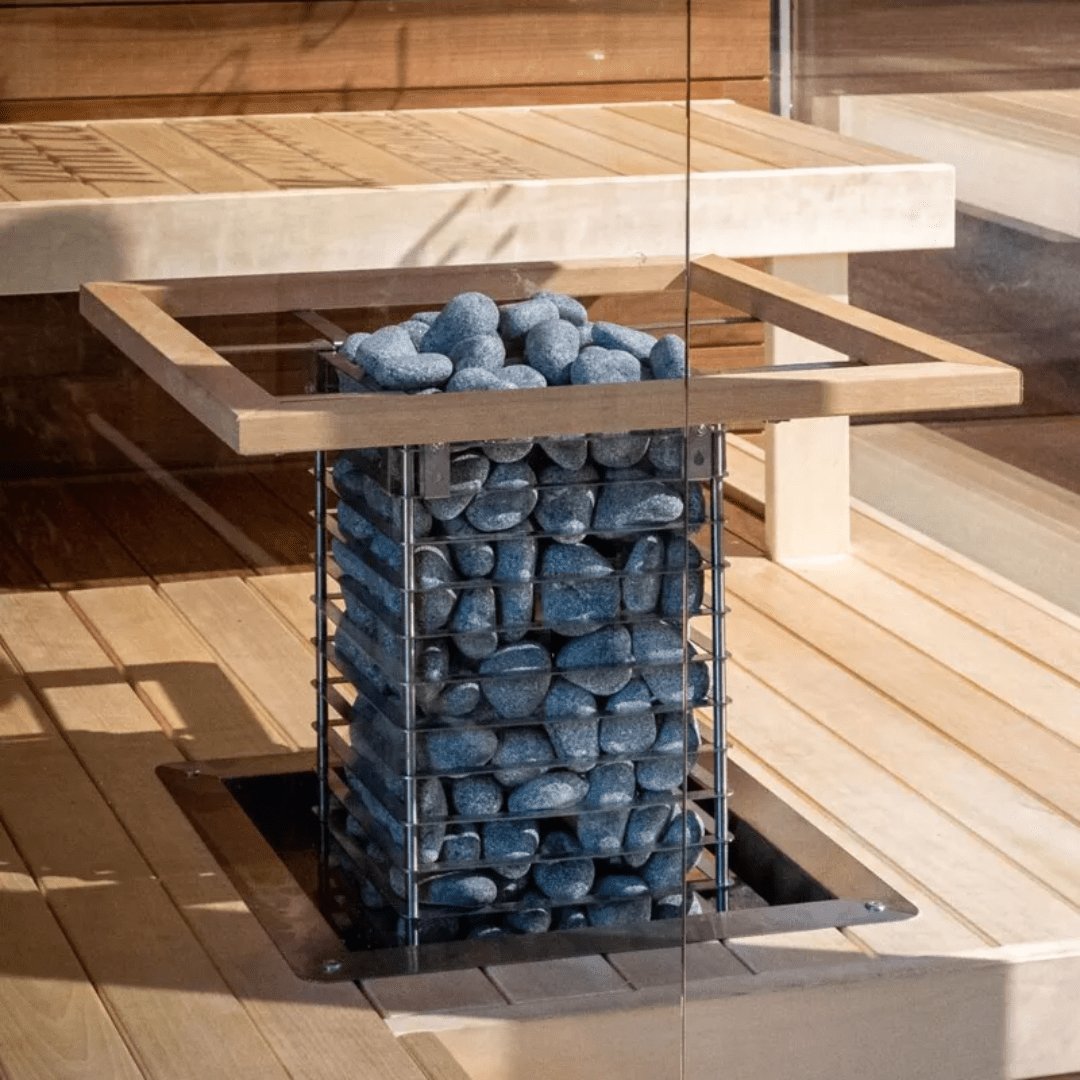

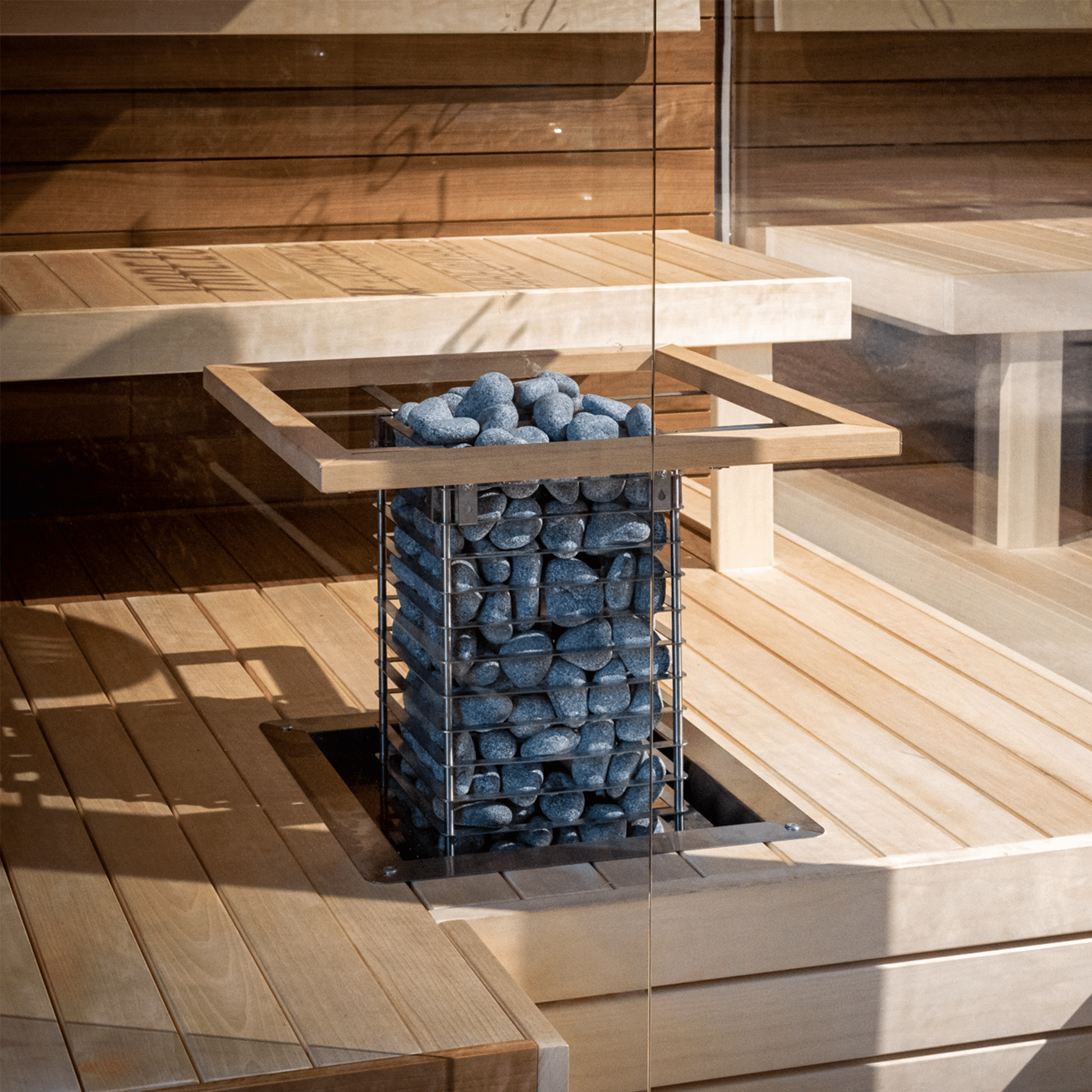

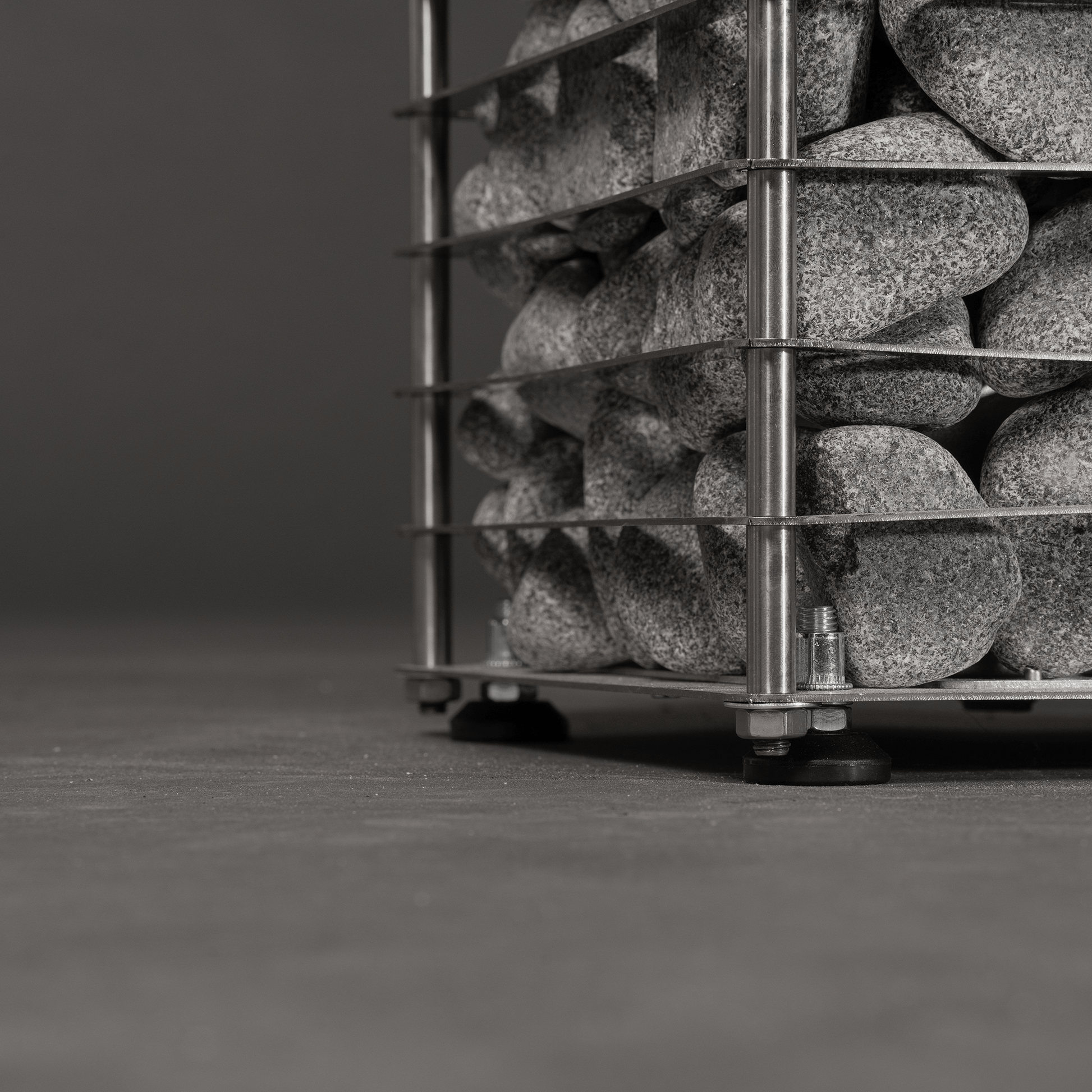

Installation and maintenance must be carried out by a certified electrician, with the electricity supply isolated at the fuse panel before any work begins. Under IEC 60364-7-703 and BS 7671:2018 an electric sauna heater does not have to be connected through an RCD, and for reliable operation the manufacturer recommends that the heater supply is not run through one; other electrical devices in the sauna room should be RCD protected. A local point of isolation covering all live conductors is recommended. The installation manual in the Downloads tab and local wiring regulations must be followed. The connection cable must be heat-resistant rubber-insulated cable (SIHF-JB or equivalent); PVC-insulated cable must not be used, and any junction box in the sauna room must be waterproof and mounted no higher than 500 mm from the floor. When sizing the heater, add 1 m³ of calculated room volume for every square metre of uninsulated brick, tile, glass or log wall in the sauna room. The CLIFF stands on four adjustable legs and is fixed to the floor with the included brackets; it can also be partially recessed into the sauna bench or floor, with at least 550 mm of the heater protruding and the optional embedding flange covering the opening. A safety railing around the heater is recommended, and a diagram of the safety distances is provided in the image gallery.
Sauna stones

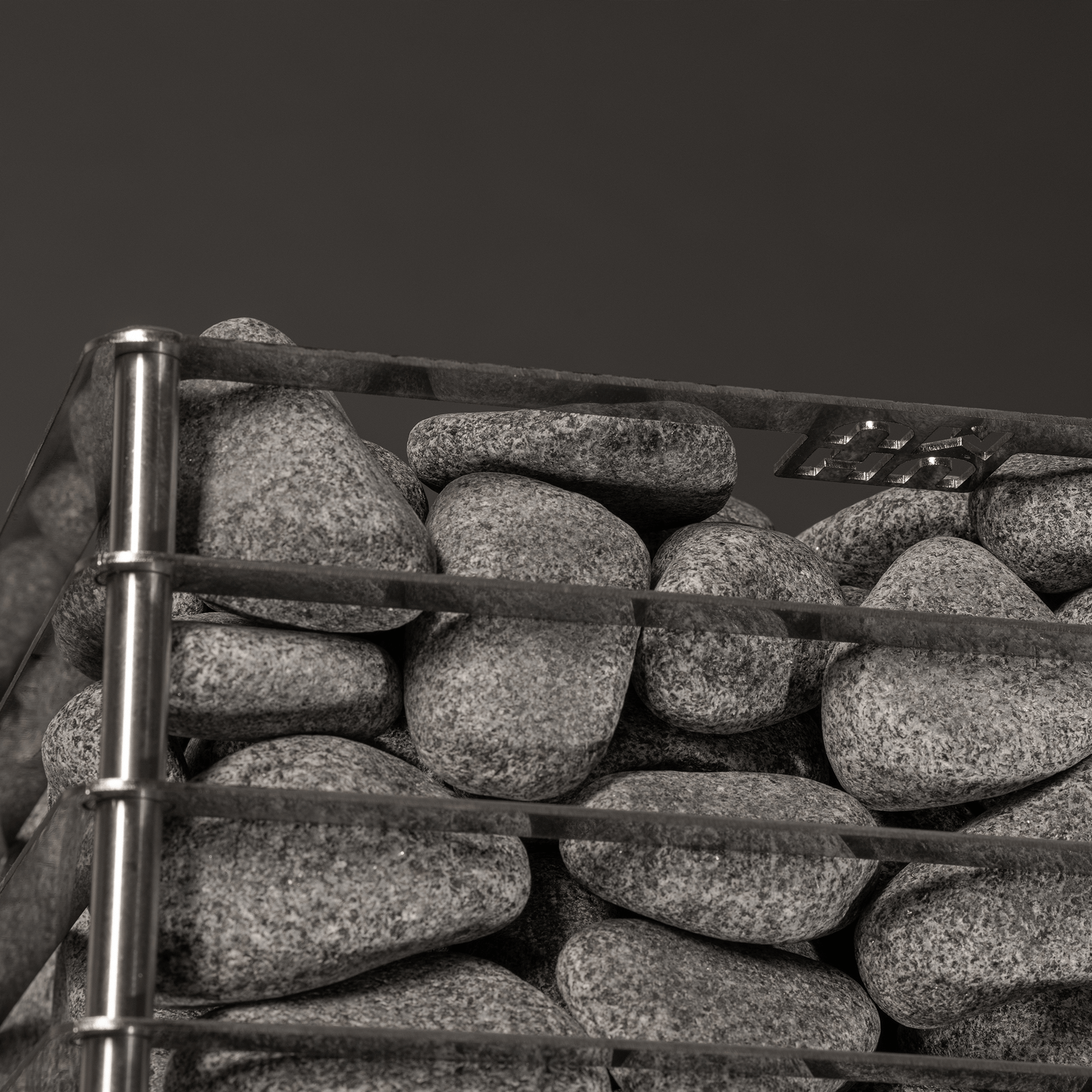

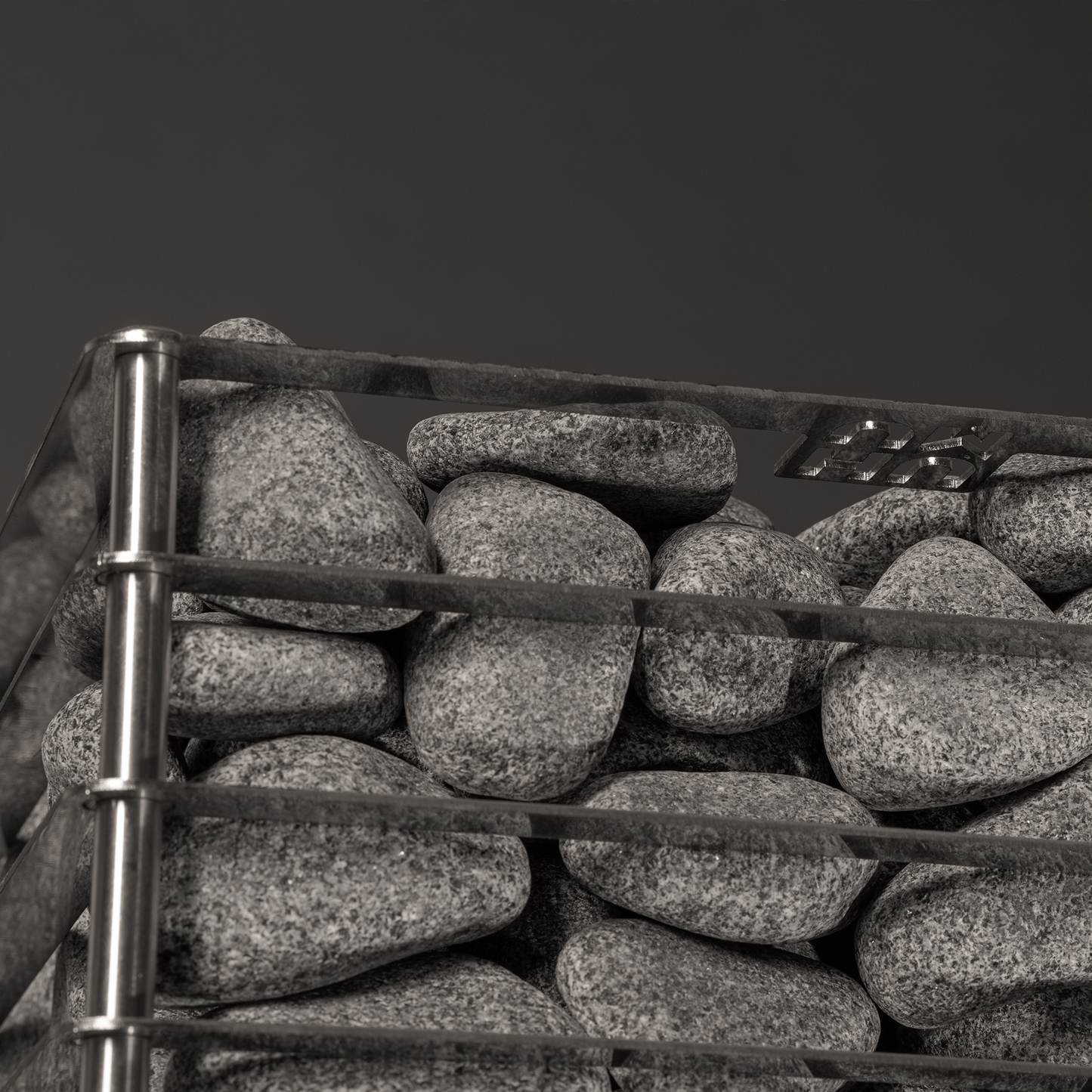

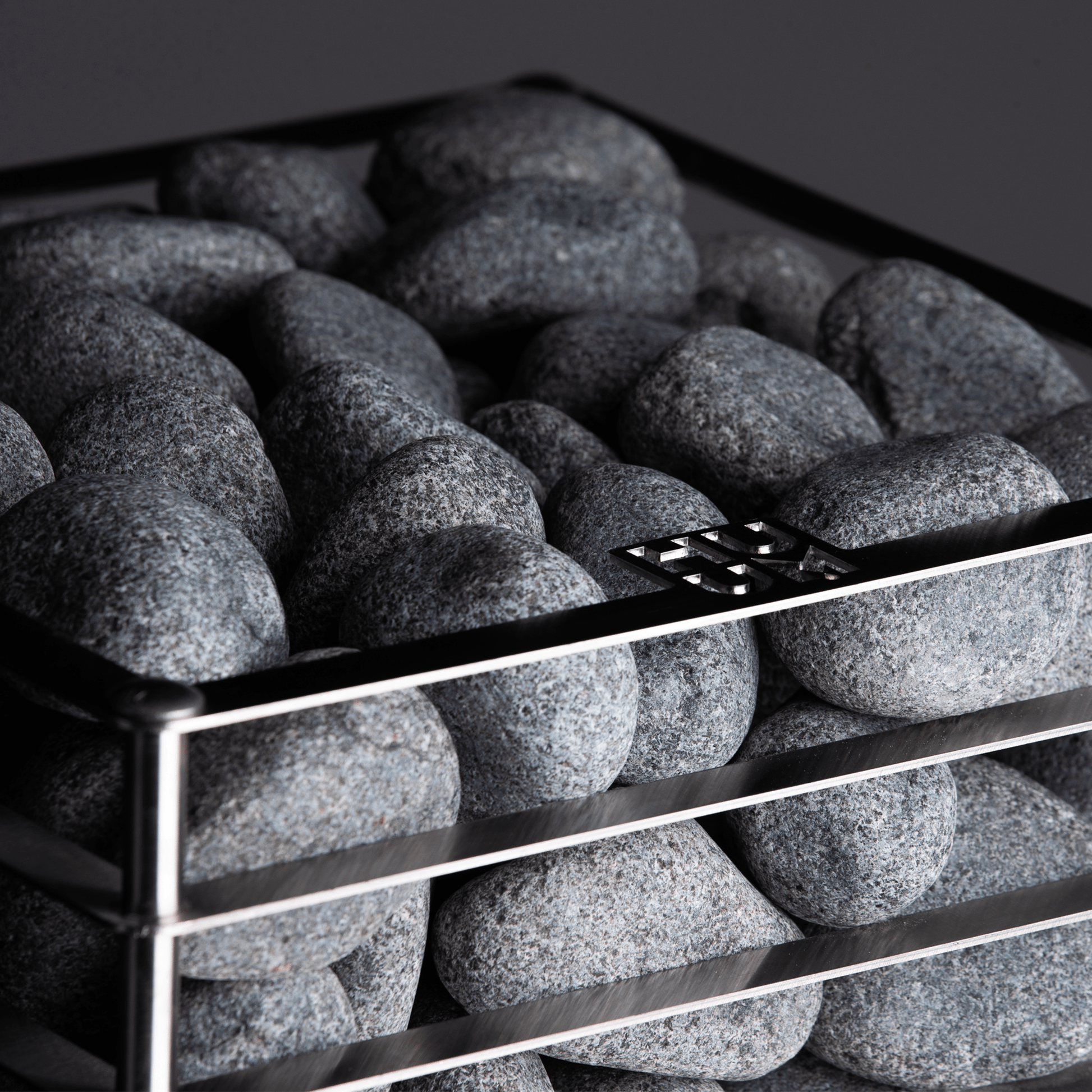

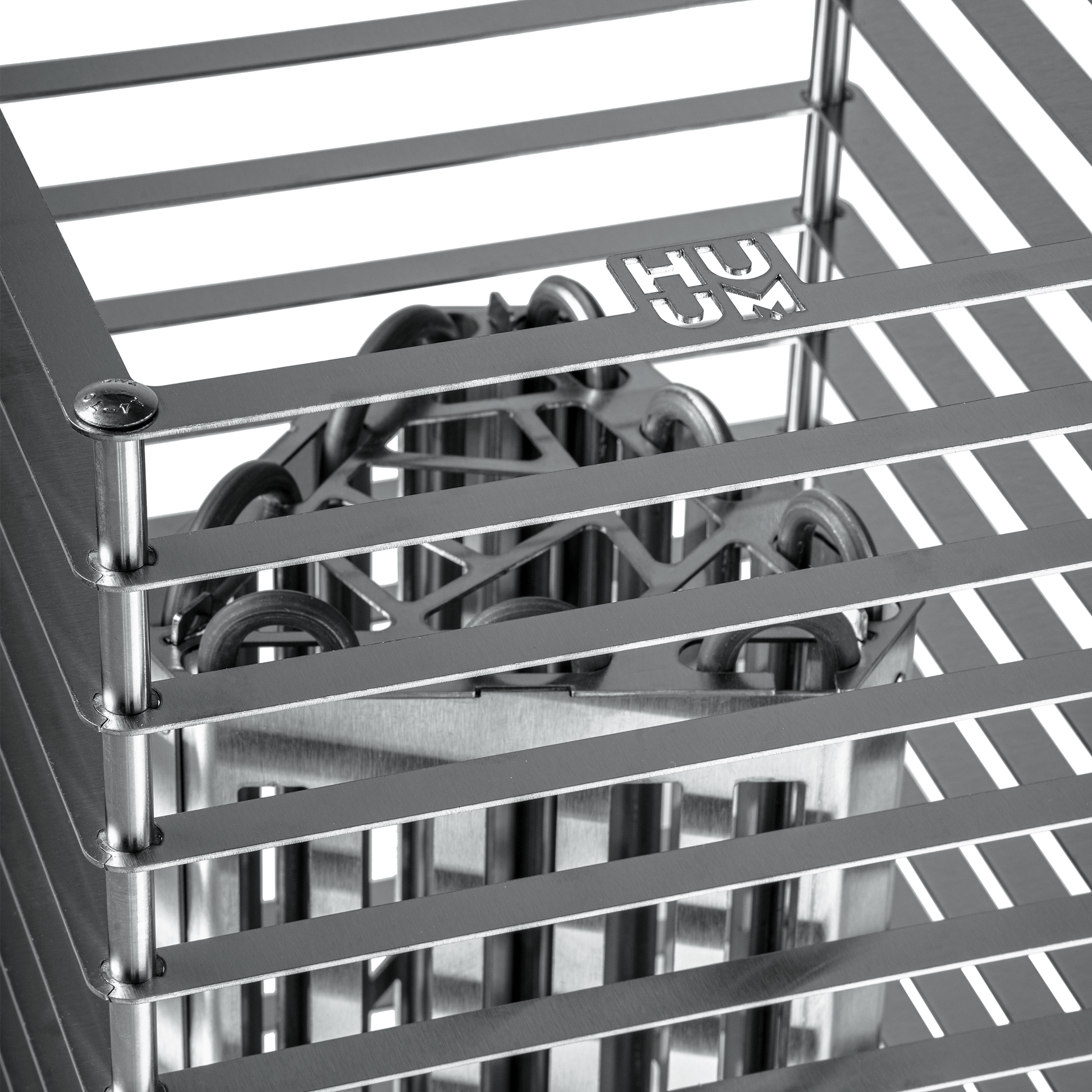

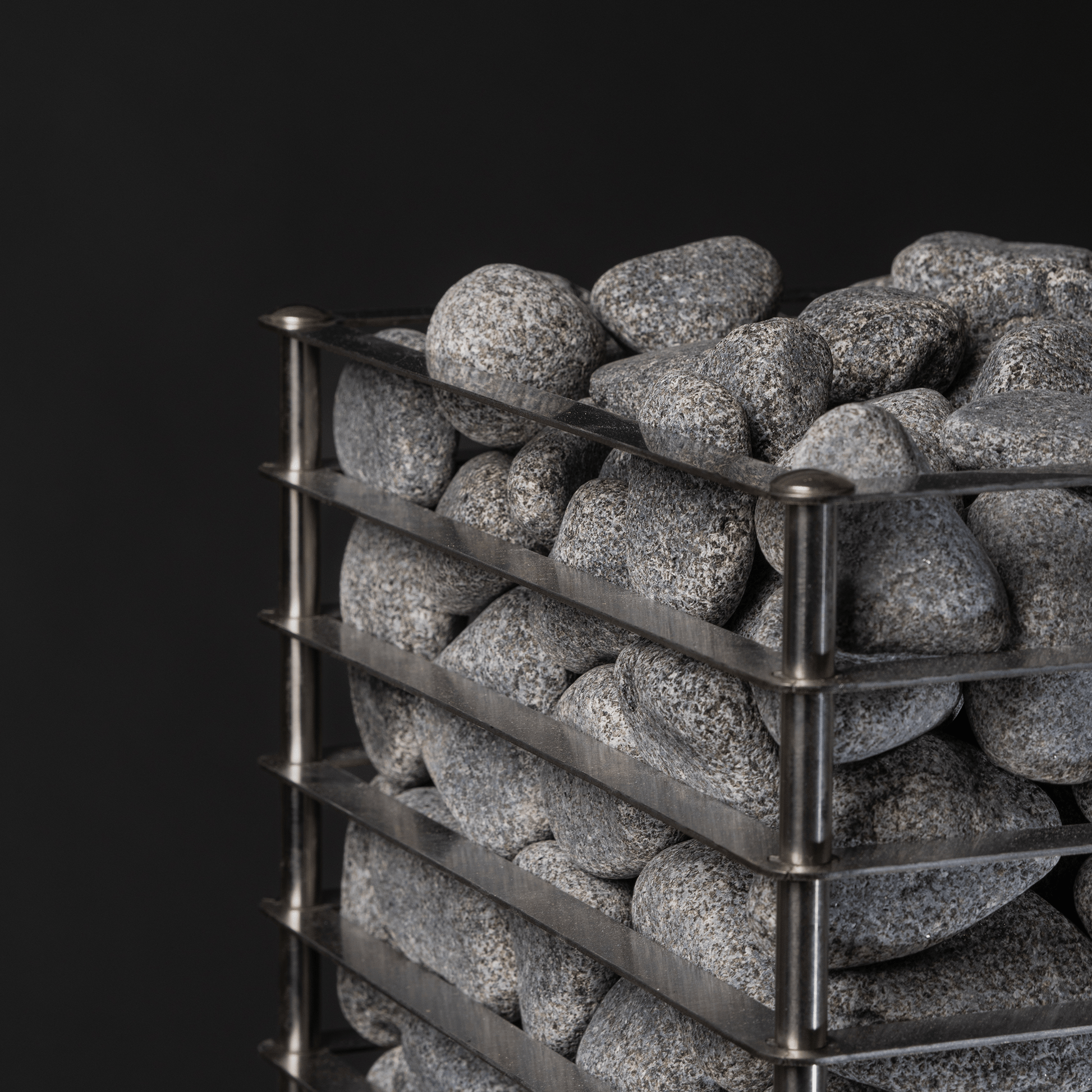

The CLIFF requires approximately 75 kg of 3–5 cm stones, sold separately; rounded olivine diabase or olivine stones are recommended. Wash the stones before use and lay them one by one, keeping the air tunnel free of stones and making sure neither the air tunnel nor the tops of the heating elements remain visible, otherwise the stated safety distances no longer apply.
Brand
HUUM is an Estonian maker of design-led sauna heaters, pairing minimal Nordic forms with smart sauna technology; its DROP heater won a Red Dot Award for product design in 2015. HUUM heaters are manufactured in Estonia from stainless steel and are UKCA certified.
Warranty
HUUM heaters carry a 36-month guarantee for private use; the heating elements are not included in the warranty. Full details are set out in HUUM’s Limited Warranty Terms and Conditions.
