Helo Himalaya Electric Sauna Heater (Chrome)
Helo Himalaya Electric Sauna Heater (Chrome)
Black Friday£25 Off When You Spend £500 on Selected Heaters & Stones
Couldn't load pickup availability
Description
Description

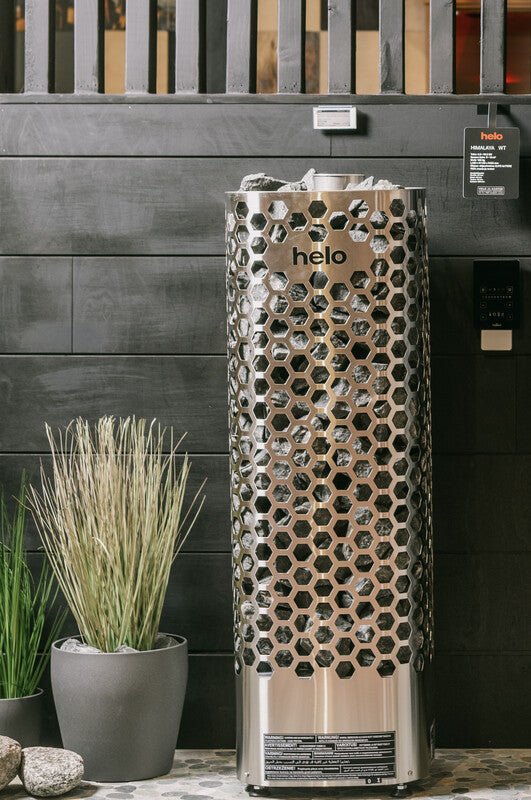

The Himalaya is Helo’s statement tower heater, its full-height mesh frame holding up to 100 kg of stones for an exceptionally soft, rolling steam. This 10.5 kW chrome model is supplied with Helo’s external Elite control unit and the integrated WT water tank, a passive evaporator set between the heating elements that raises humidity and makes gentle bathing at 55–60 °C possible. It suits sauna rooms of 9–15 m³ and requires a three-phase supply. The heater stands on the floor or can be set into the benching with a steel or glass collar, sold separately. Sauna stones are also sold separately; Helo recommends larger olivine diabase or vulcanite stones over 10 cm.
Features
Technical Specification
| Model | Helo Himalaya 105 Elite |
| Output | 10.5 kW |
| Recommended sauna room volume | 9–15 m³ |
| Dimensions (H × W × D) | 1,030 × 330 × 330 mm |
| Weight without stones | 13 kg |
| Stone capacity | Up to 100 kg |
| Colour | Chrome |
| Controls | Helo Elite external control unit (included) |
| Water tank | Integrated Helo WT passive evaporator |
| Installation | Floor-standing, or set into benching with a steel or glass collar (sold separately) |
| Safety clearances | |
| To the side walls | 60 mm |
| To the front | 60 mm |
| To the back wall | 60 mm |
| Above the heater | 870 mm |
| Electrical connection | |
| Supply | Three-phase only |
| Cable and fuses, 400 V 3N~ | 5 × 2.5 mm²; 3 × 16 A |
| Cable and fuses, 230 V 3~ | 4 × 6 mm²; 3 × 35 A |
Installation
Installation and maintenance must be carried out by a certified electrician, with the electricity supply isolated at the fuse panel before any work begins. Under IEC 60364-7-703 and BS 7671:2018 an electric sauna heater does not have to be connected through an RCD, and for reliable operation Helo recommends that the heater supply is not run through one; other electrical devices in the sauna room should be RCD protected. A local point of isolation covering all live conductors is recommended. The connection cable is heat-resistant H07RN-F (60245 IEC 66), and the installation manual in the Downloads tab and local wiring regulations must be followed.
Helo WT water technology
The WT water tank sits among the heating elements and works as a passive evaporator, adding humidity to the sauna air. It allows three ways of bathing: a gentle sauna at 50–60 °C with enveloping steam and longer sessions, a flexi-sauna at 60–80 °C with more humidity at a lower temperature, or a classic hot sauna at 80–100 °C with the tank left dry. The gentle and flexi settings also suit bio-aroma or salt sauna use.
Sauna stones
Sauna stones are purchased separately. The Himalaya takes up to 100 kg, and Helo recommends larger olivine diabase or vulcanite stones over 10 cm for the best performance.
Brand
Helo was founded in 1919 and was the first manufacturer of electric sauna heaters. Its heaters are still handcrafted in Hanko, Finland, and the company is part of the Sauna360 group.
Warranty
The warranty card is available in the Downloads tab. Helo does not provide a warranty for Himalaya D-model heaters used without the manufacturer’s own contactor box and control panels; this model is supplied with the Elite control unit.
Downloads
Delivery & Returns
Delivery
We offer fast and reliable delivery to customers across the UK and beyond. For full details on shipping times and costs, please review our delivery policy.
Returns
We offer hassle-free returns within 30 days of purchase, so you can shop with complete confidence. For details, see our returns policy.
Warranty & Quality Promise
We are committed to delivering products of the highest quality, for details surrounding warranty please contact us.
Description
The Himalaya is Helo’s statement tower heater, its full-height mesh frame holding up to 100 kg of stones for an exceptionally soft, rolling steam. This 10.5 kW chrome model is supplied with Helo’s external Elite control unit and the integrated WT water tank, a passive evaporator set between the heating elements that raises humidity and makes gentle bathing at 55–60 °C possible. It suits sauna rooms of 9–15 m³ and requires a three-phase supply. The heater stands on the floor or can be set into the benching with a steel or glass collar, sold separately. Sauna stones are also sold separately; Helo recommends larger olivine diabase or vulcanite stones over 10 cm.
Features
| Model | Helo Himalaya 105 Elite |
| Output | 10.5 kW |
| Recommended sauna room volume | 9–15 m³ |
| Dimensions (H × W × D) | 1,030 × 330 × 330 mm |
| Weight without stones | 13 kg |
| Stone capacity | Up to 100 kg |
| Colour | Chrome |
| Controls | Helo Elite external control unit (included) |
| Water tank | Integrated Helo WT passive evaporator |
| Installation | Floor-standing, or set into benching with a steel or glass collar (sold separately) |
| Safety clearances | |
| To the side walls | 60 mm |
| To the front | 60 mm |
| To the back wall | 60 mm |
| Above the heater | 870 mm |
| Electrical connection | |
| Supply | Three-phase only |
| Cable and fuses, 400 V 3N~ | 5 × 2.5 mm²; 3 × 16 A |
| Cable and fuses, 230 V 3~ | 4 × 6 mm²; 3 × 35 A |
Installation
Installation and maintenance must be carried out by a certified electrician, with the electricity supply isolated at the fuse panel before any work begins. Under IEC 60364-7-703 and BS 7671:2018 an electric sauna heater does not have to be connected through an RCD, and for reliable operation Helo recommends that the heater supply is not run through one; other electrical devices in the sauna room should be RCD protected. A local point of isolation covering all live conductors is recommended. The connection cable is heat-resistant H07RN-F (60245 IEC 66), and the installation manual in the Downloads tab and local wiring regulations must be followed.
Helo WT water technology
The WT water tank sits among the heating elements and works as a passive evaporator, adding humidity to the sauna air. It allows three ways of bathing: a gentle sauna at 50–60 °C with enveloping steam and longer sessions, a flexi-sauna at 60–80 °C with more humidity at a lower temperature, or a classic hot sauna at 80–100 °C with the tank left dry. The gentle and flexi settings also suit bio-aroma or salt sauna use.
Sauna stones
Sauna stones are purchased separately. The Himalaya takes up to 100 kg, and Helo recommends larger olivine diabase or vulcanite stones over 10 cm for the best performance.
Brand
Helo was founded in 1919 and was the first manufacturer of electric sauna heaters. Its heaters are still handcrafted in Hanko, Finland, and the company is part of the Sauna360 group.
Warranty
The warranty card is available in the Downloads tab. Helo does not provide a warranty for Himalaya D-model heaters used without the manufacturer’s own contactor box and control panels; this model is supplied with the Elite control unit.
