Helo
Helo Elite Free Control Panel
Helo Elite Free Control Panel
Couldn't load pickup availability
Description
Description

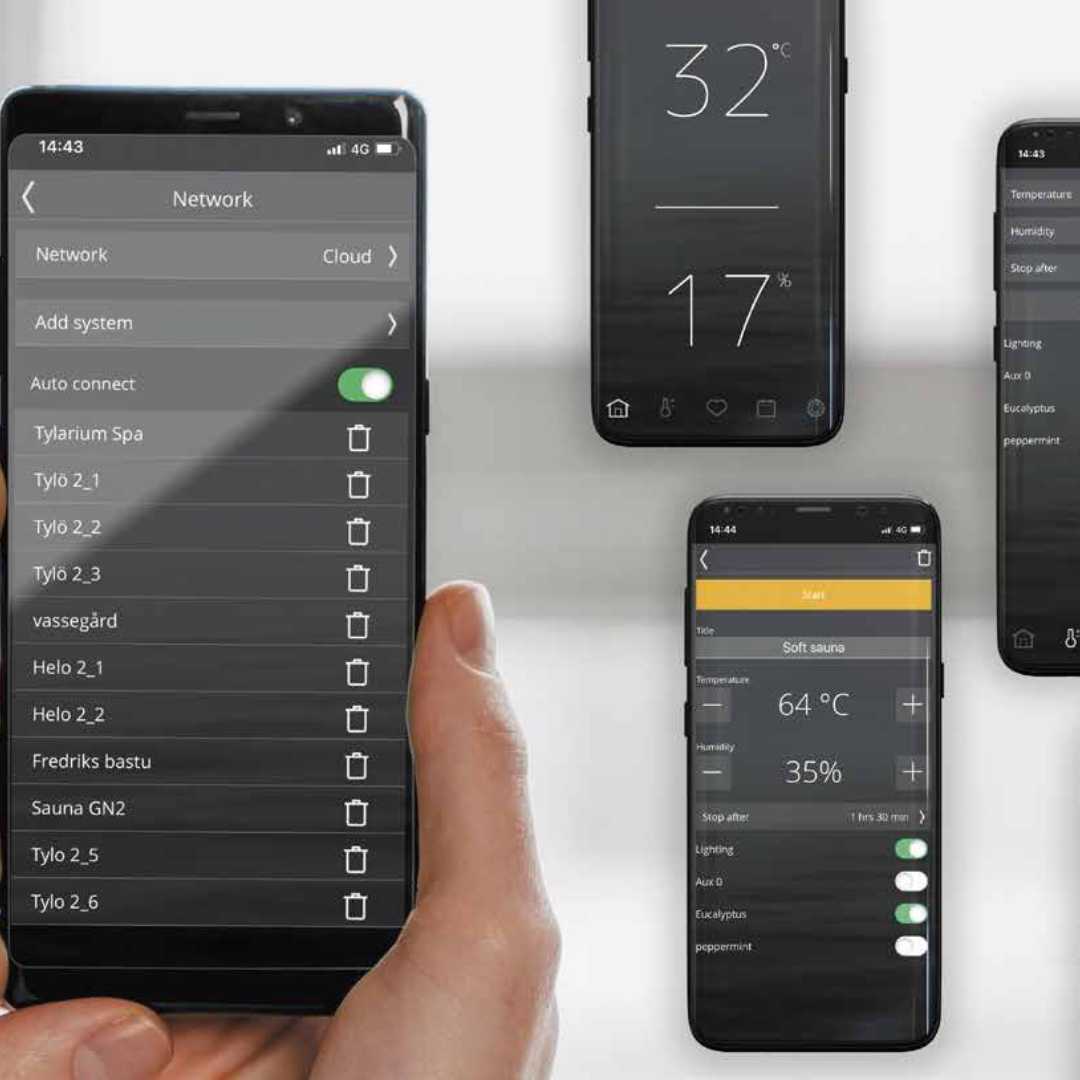

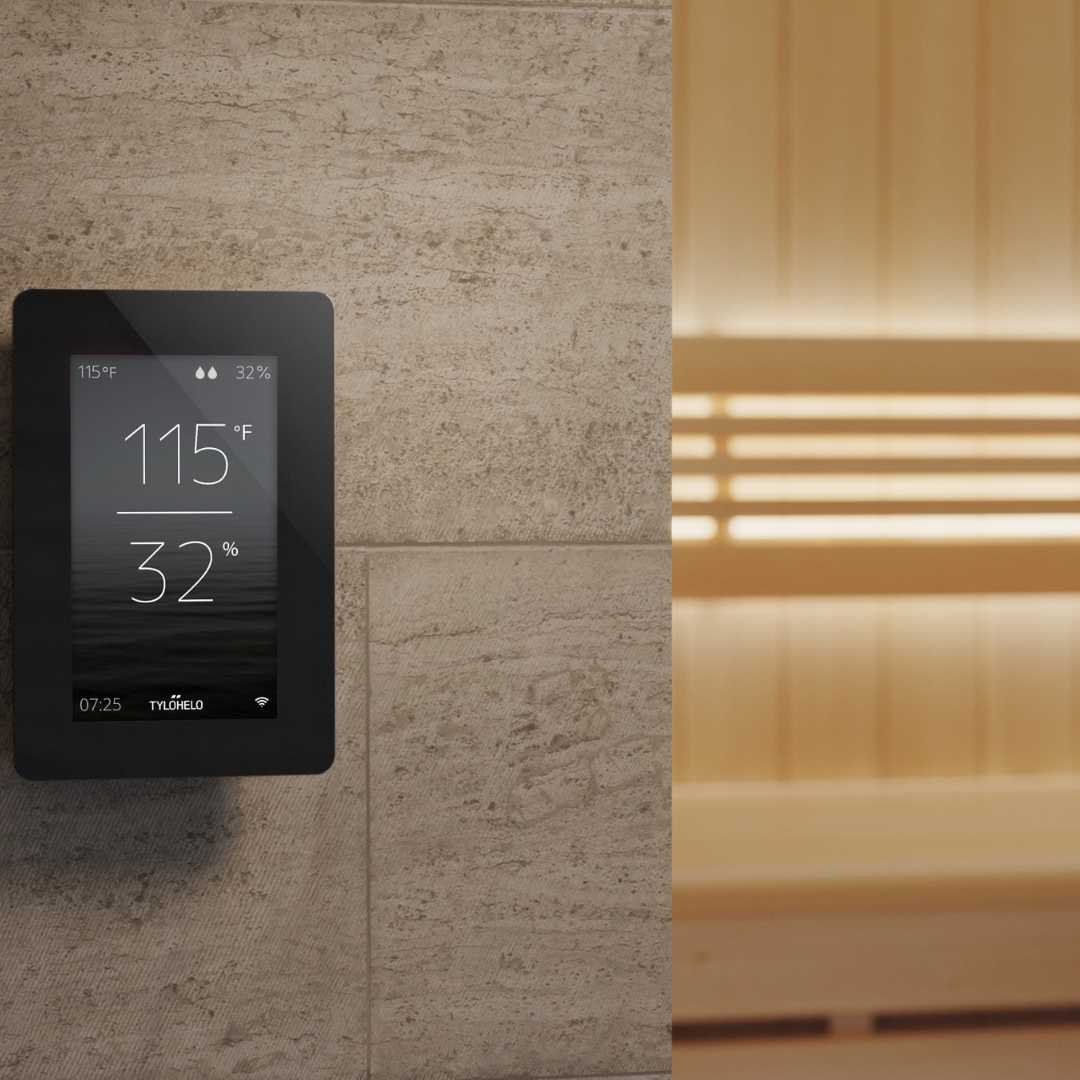

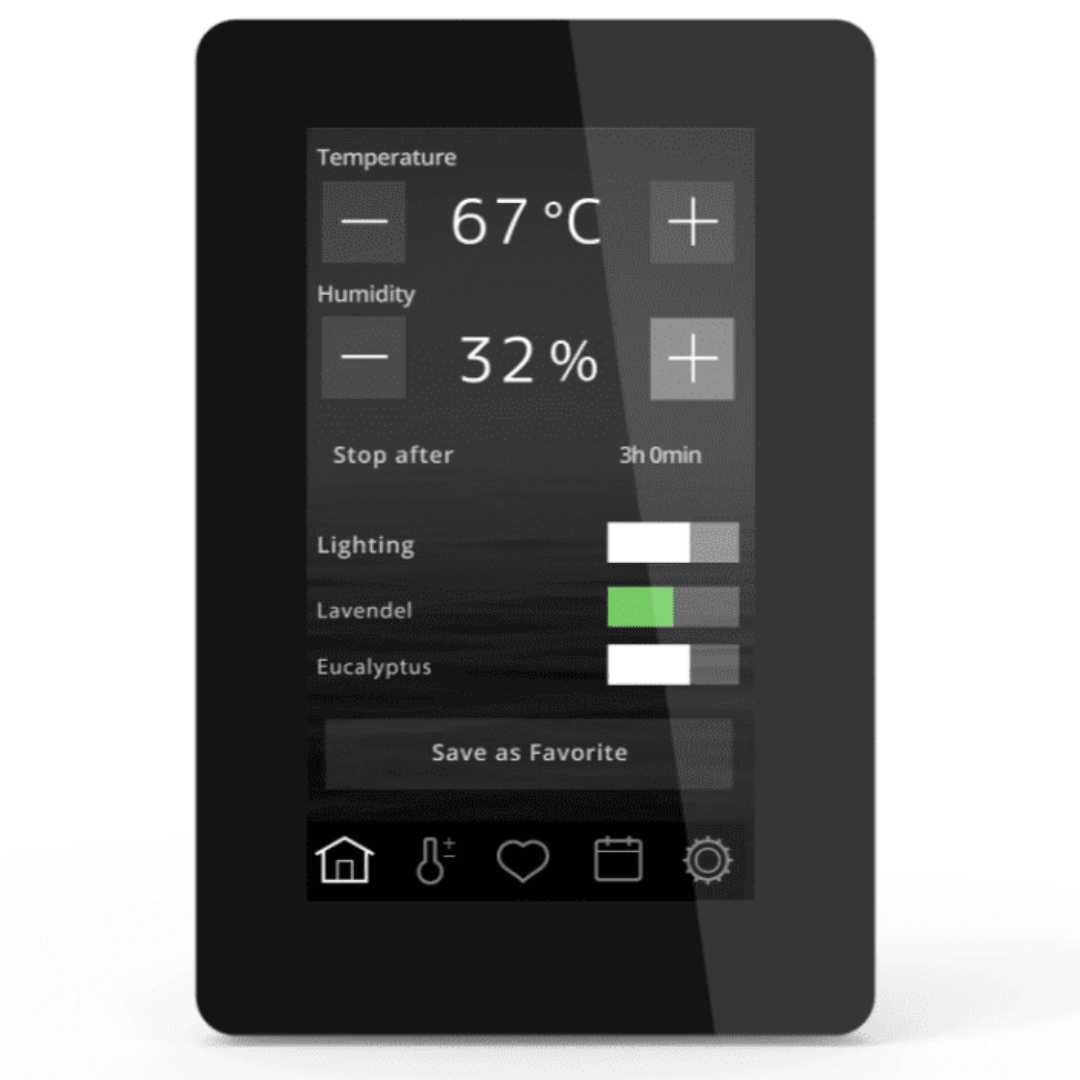

The Helo Elite Free is a cloud-connected touchscreen control panel for Helo electric sauna heaters and steam generators, letting you start, schedule and monitor your sauna from the 4.5 inch (11.4 cm) screen or from the Helo Control app wherever you are. It connects over a local 2.4 GHz Wi-Fi network, comes pre-registered for the cloud, and can also run additional equipment such as lighting, auxiliary fans and fragrance pumps. It works directly with the Elite versions of the Himalaya, Rocher and Roxx heaters, and controls the Hanko D, Cup D, Vienna D, Havanna D, Laine D, Laava, Magma, SKLE and SKLA heaters through a WE contactor box, which is sold separately. The panel is best placed just outside the sauna; installed inside, the ambient temperature must stay below 80 °C, and a door switch (sold separately) is required for the calendar functions and for Wi-Fi use with sauna and Combi heaters.
Features
Technical Specification
| Control panel | |
| Colour | Black |
| Weight | 0.41 kg |
| Dimensions (W × H × D) | 85 × 127 × 14 mm |
| Screen | 4.5 inch (11.4 cm) touchscreen |
| App control | Helo Control app (Apple App Store and Google Play), cloud pre-registered |
| Wi-Fi requirements | 2.4 GHz band, channels 1–11, WPA/WPA2, signal strength at least 60% at the panel |
| Door switch | Part no. 11000326, required for calendar functions and Wi-Fi use with sauna and Combi heaters; sold separately |
| Placement | Best outside the sauna; inside, upper edge max 800 mm above the floor, at least 300 mm from the heater, ambient below 80 °C |
| Compatible heaters (direct) | Himalaya 70 WT Elite, Himalaya 105 WT Elite, Rocher 70 Elite, Rocher 105 Elite, Roxx 60 Elite, Roxx 90 Elite |
| Compatible via WE contactor box | Hanko D, Cup D, Vienna D, Havanna D, Laine D, Laava, Magma, SKLE, SKLA |
Installation
Installation and maintenance must be carried out by a certified electrician, with the electricity supply isolated before any work begins. The panel mounts on the supplied bracket or double-sided adhesive, with a 30 mm hole through the wall for the cable when wall-mounted; inside the sauna or steam room it must be fixed directly to the wall with the adhesive or the Helo embedding frame (item no. 90001056), and the Wi-Fi signal strength should be checked before the panel is finally fixed. The installation manual in the Downloads tab and local wiring regulations must be followed.
Brand
Helo, founded in 1919, was the first manufacturer of electric sauna heaters, and its heaters and controls are made in Hanko, Finland. The company is part of the Sauna360 group.
Warranty
The warranty card is available in the Downloads tab.
Ordering note
Check your heater model, heater power and controller generation before ordering, and confirm that the matching control panel or contactor box is in place. Electrical installation must be carried out by a certified electrician.
