Description
Description

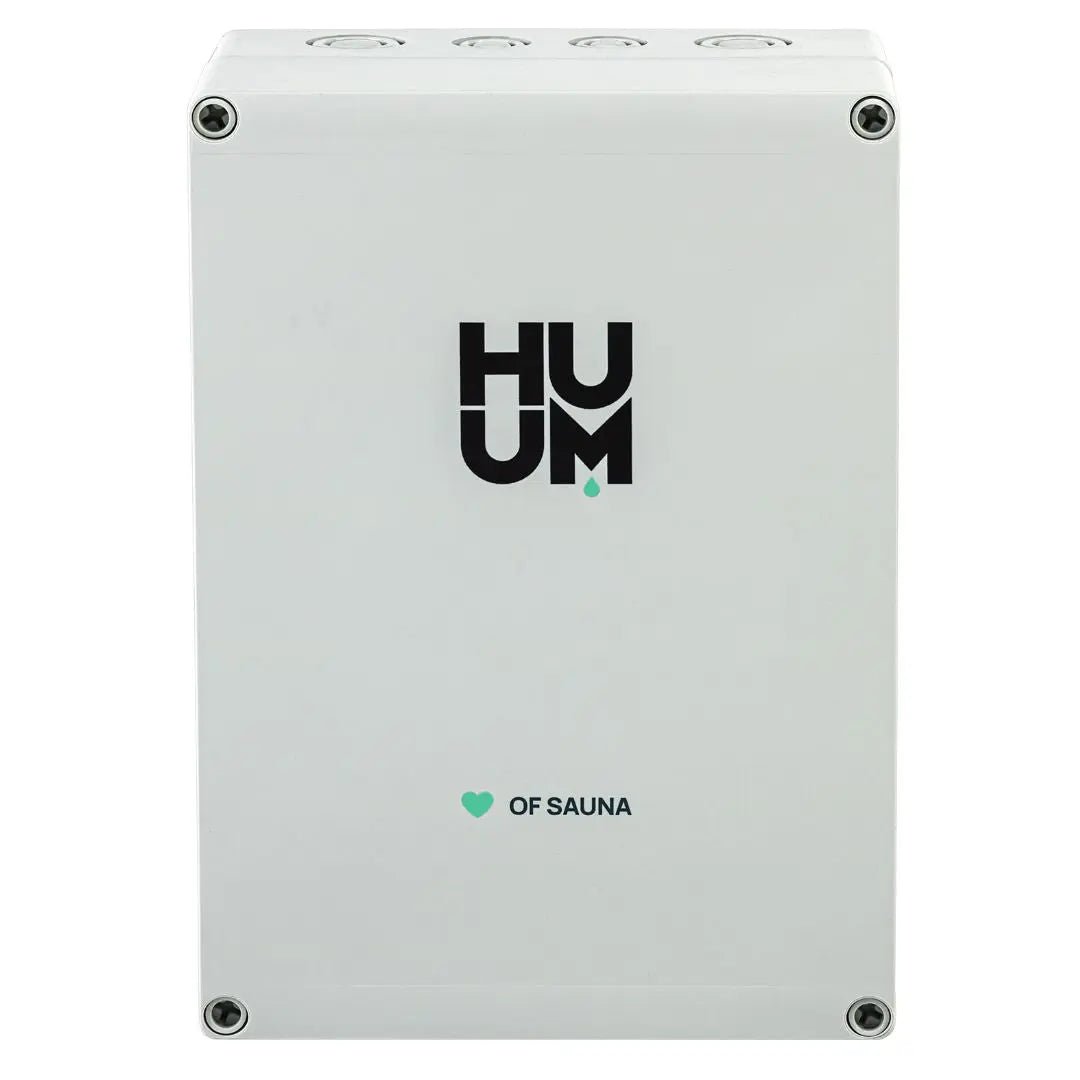

The extension module for the UKU sauna control system extends the capacity of the UKU main module, which on its own switches electric sauna heaters up to 18 kW. It is required when the heater’s output exceeds that limit and is suitable for heaters up to 38 kW, with the wiring scheme written for HUUM’s HIVE heaters above 18 kW. The module works only with the UKU Wi-Fi, UKU Local and UKU GSM control systems, runs on a 400 V 3N supply with 2 × 63 A protection, and must sit on a separate circuit breaker from the main module. It mounts outside the steam room, close to the main module, and extends an existing UKU system rather than replacing it; the control system itself is sold separately.
Features
Technical Specification
| Compatible control systems | UKU Wi-Fi, UKU Local, UKU GSM |
| Designed for | HUUM HIVE heaters above 18 kW |
| Maximum heater power | 38 kW |
| Electrical supply | 400 V 3N~, 50 Hz |
| Circuit protection | 2 × 63 A; separate circuit breaker from the main module |
| Mounting | Wall-mounted with four screws, outside the steam room, near the main module |
| SKU | H2003011 |
Installation
The extension box must be installed outside the steam room, close to the UKU main module, and fixed to the wall with four screws. The main module and the extension box must be connected under separate circuit breakers, and the wiring drawing supplied with the extension box replaces the installation drawing in the UKU manual. Installation and maintenance must be carried out by a certified electrician, with the electricity supply isolated before any work begins. The installation manual in the Downloads tab and local wiring regulations must be followed.
Brand
HUUM is an Estonian sauna brand that pairs age-old sauna knowledge with modern Nordic design. Its DROP heater won the Red Dot Award for Product Design in 2015.
Warranty
The warranty card is available in the Downloads tab.
Ordering note
Check your heater model, heater power and controller generation (UKU 4.1 or 4.2) before ordering. Electrical installation must be carried out by a certified electrician.
