Narvi

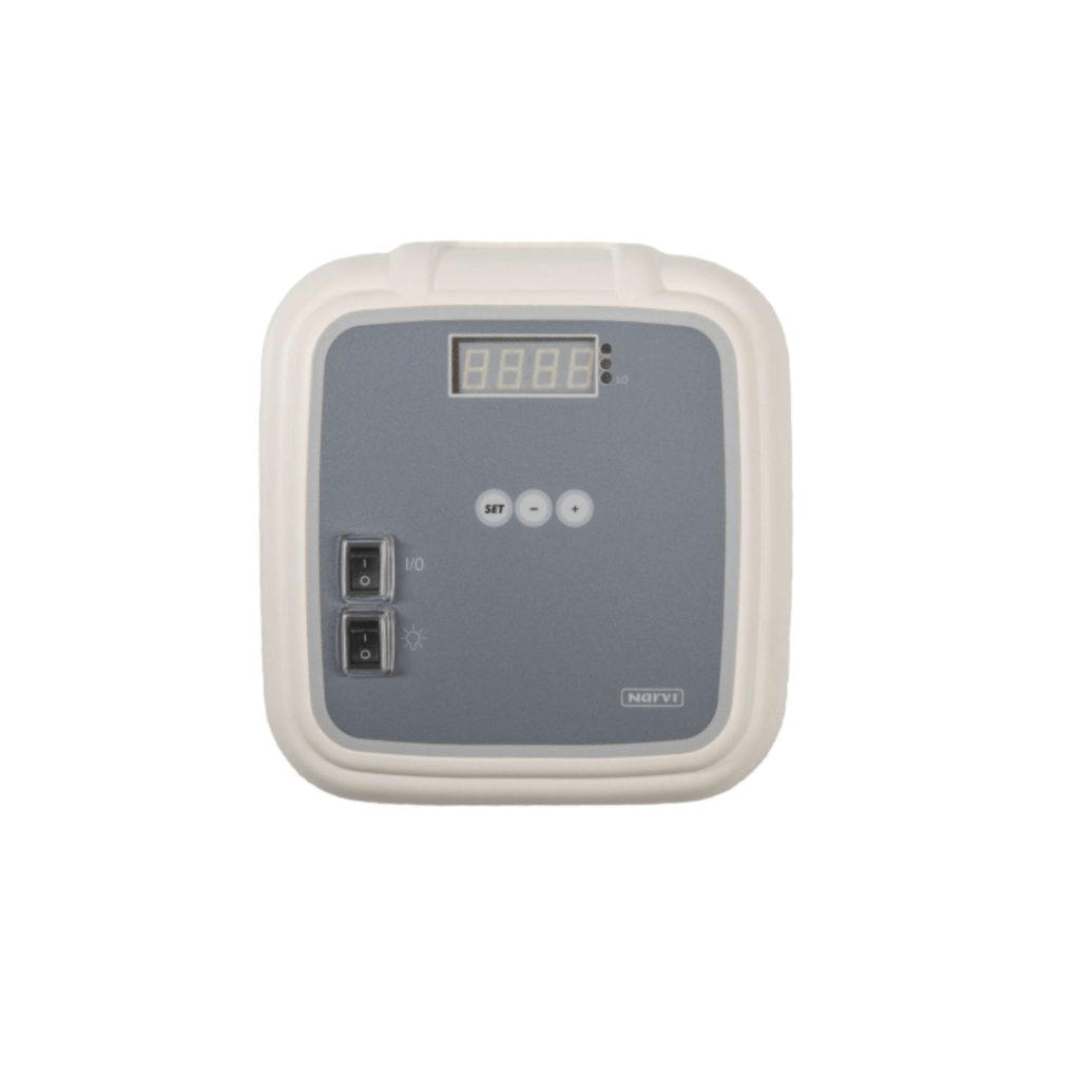

Narvi Control Unit B-2003 (9-15kW)

Narvi Control Unit B-2003 (9-15kW)

Free UK Delivery Over £1500*
Regular price €783,95
Sale price €783,95 Regular price
Learn more about finance
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
View full details
Description

Description

The Narvi B-2003 is a weekly-programmable control centre for 9–15 kW electric sauna heaters on a 400V 3N~ supply, designed for commercial and public saunas. Its weekly clock holds seven memory slots, each storing a start time, stop time and day, so a busy sauna can run to a set schedule without daily attention. The control unit and power card share a single enclosure, the temperature sensor is external, and the unit is installed outside the sauna room at up to 20 metres from the heater. A lighting switch on the panel controls sauna lights of up to 100 W. For a simpler daily timer on the same heaters, see the Narvi T-2003 control unit.

Features

  • For 9–15 kW heaters: Switches electric sauna heaters of 9 to 15 kW on a 400V 3N~ supply.
  • Weekly programming: Seven memory slots each hold a start time, stop time and day, so the sauna runs to a weekly schedule.
  • Built for commercial use: The installer can set the maximum heating period at 4, 6 or 12 hours, with the 12-hour setting reserved for public saunas.

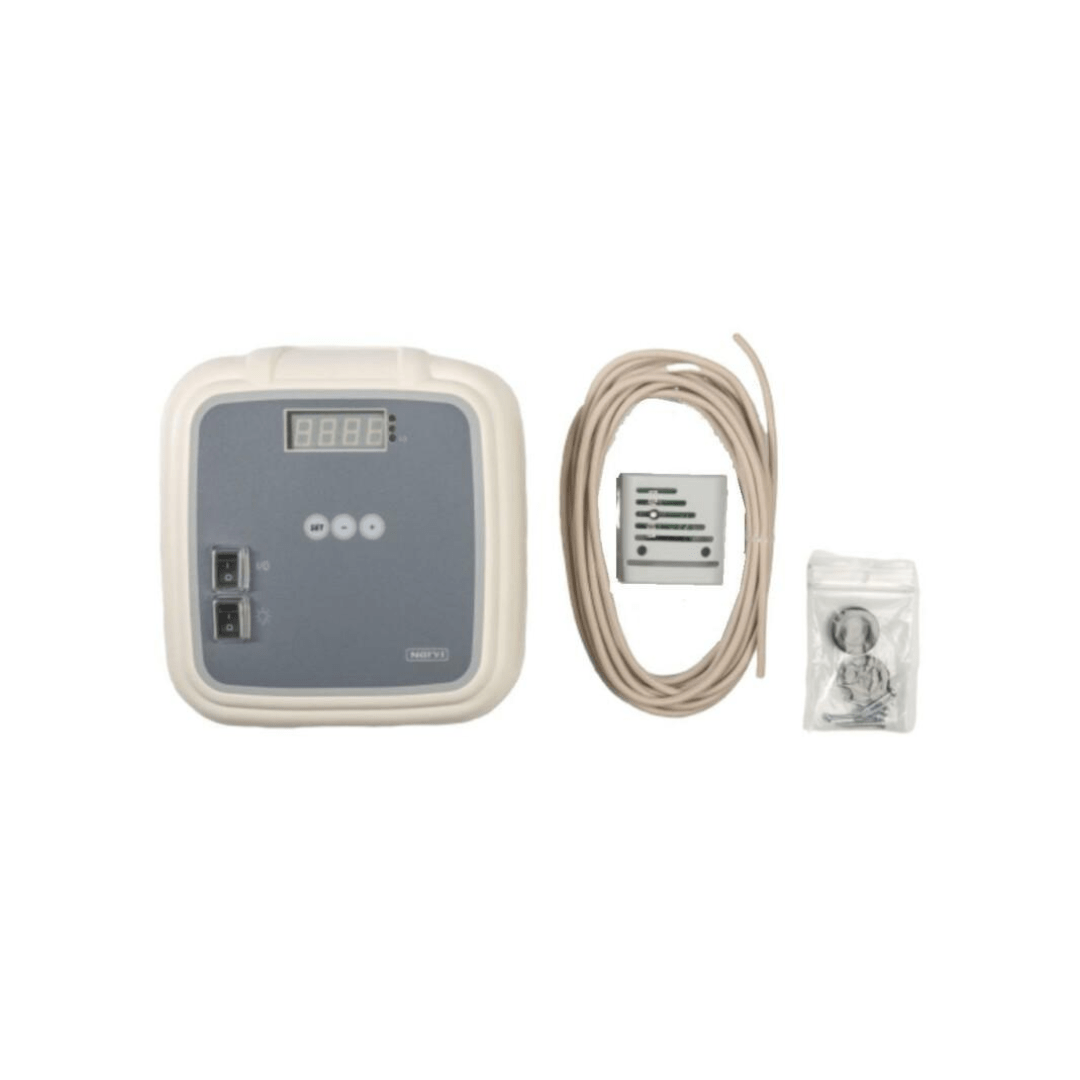

  • All-in-one enclosure: The control unit and power card are housed in a single box, keeping the installation tidy.
  • Remote placement: Installs outside the sauna room, up to 20 metres from the heater.
  • Lighting control: Sauna lighting of up to 100 W connects to the unit and is switched from the panel.
  • External thermostat included: The supplied external temperature sensor keeps readings accurate and includes an overheat protection circuit.
Technical Specification
Suitable heater output9–15 kW (15 kW maximum)
Electrical connection400V 3N~
Dimensions (H × W × D)215 × 205 × 80 mm
Temperature adjustment range40–115°C, in 1°C steps
Temperature display range20–125°C
Pre-selection timerUp to 24 h, in 30-minute steps (1-minute steps under 1 h)
Weekly clock7 programmable memory slots (start, stop and day for each)
Maximum switching-on time4, 6 or 12 h, set by the installer (12 h for public saunas only)
Lighting outputMax 100 W
Temperature sensorExternal thermostat included
Maximum distance from heater20 m
MountingSurface-mounted outside the sauna room; not suitable for flush mounting

Installation

The control centre must be installed outside the sauna room, surface-mounted and fixed to the wall with three screws, with the external sensor box installed inside the sauna as shown in the manual. The weekly clock automatically rejects programmes that run longer than 12 hours or leave less than 6 hours between sessions. The maximum switching-on time is set by the installer using the DIP switches inside the enclosure. Electrical installation must be carried out by a certified electrician, following the installation manual and local wiring regulations.

Brand

Narvi is a Finnish manufacturer of sauna heaters and control equipment, based in Lappi, Finland. Narvi equipment is CE tested and carries the Finnish Key Flag as a mark of genuine Finnish design and manufacture.

Ordering note

Check your heater model, its rated output and, where relevant, the controller generation before ordering. Electrical installation and replacement of control equipment must be carried out by a certified electrician.
