Description

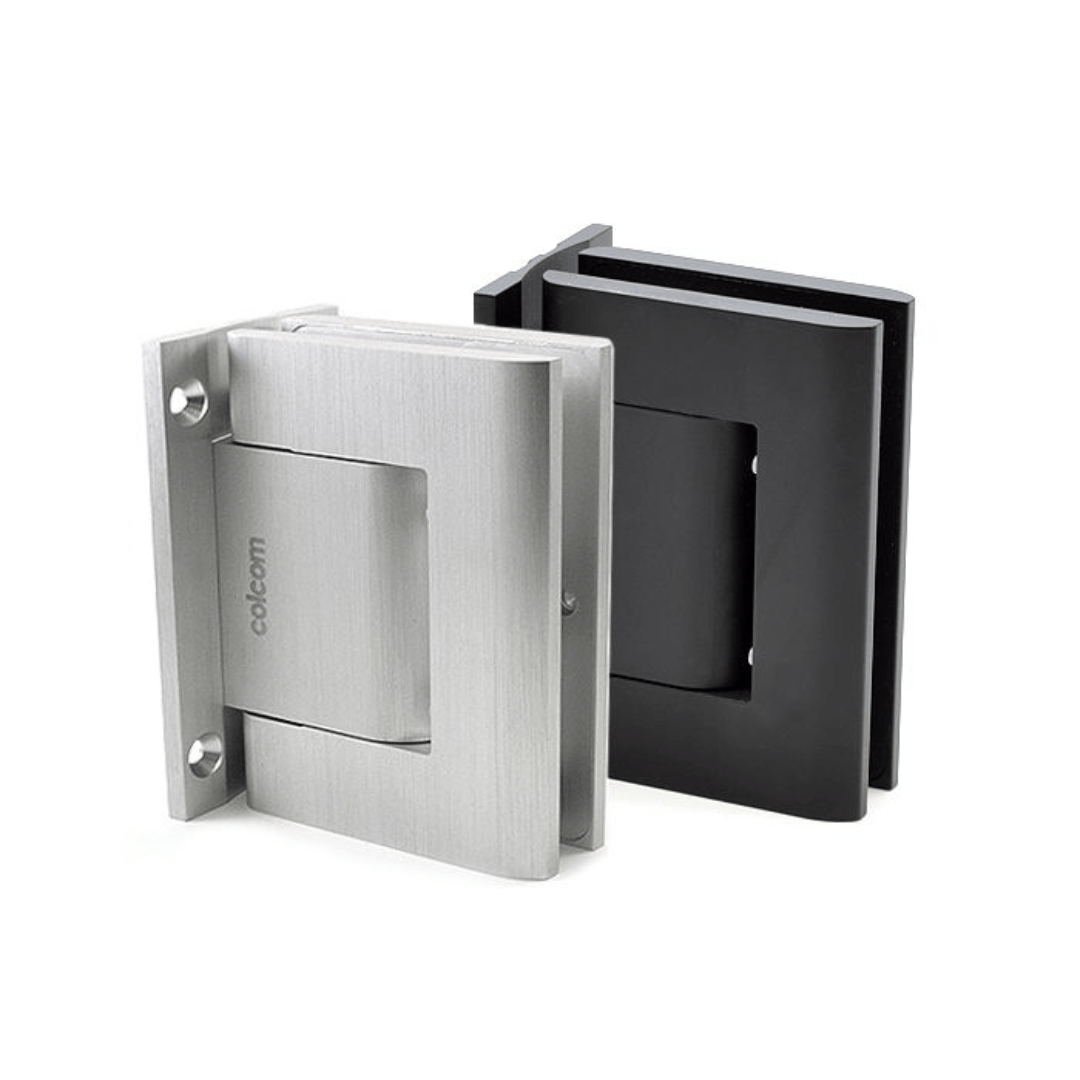

Colcom Biloba 8010BT double side fixing glass to wall door automatic hydraulic hinge with adjustable closing speed for 'all-glass' doors. Stop at 0° +90° -90°. Conceived for applications in damp environments and high temperature like saunas.
Manufactured in aluminium with a special deep oxidation 20 micron finish. The BT series hinge mounts the pin in INOX AISI 420 stainless steel and Viton O-rings, therefore they resist much higher temperatures of up to +100°C.
Available in Satin Stainless Steel or Matt Black
Prices shown are per 1 item.
Specification:
- Mounting: Glass to wall 90°
- Door: Double action - Opens inwards and outwards
- Glass thickness: 8 - 12mm
- Door weight maximum using 2 hinges: 100kg
- Door maximum width using 2 hinges: 1000mm
- Finish: Satin Stainless Steel or Matte Black
- Maximum operating temperature: +100°C.
