32 amp, 4 Pole IP65 Enclosed Switch Isolator Boxed LB324P
32 amp, 4 Pole IP65 Enclosed Switch Isolator Boxed LB324P
Couldn't load pickup availability
Description
Description

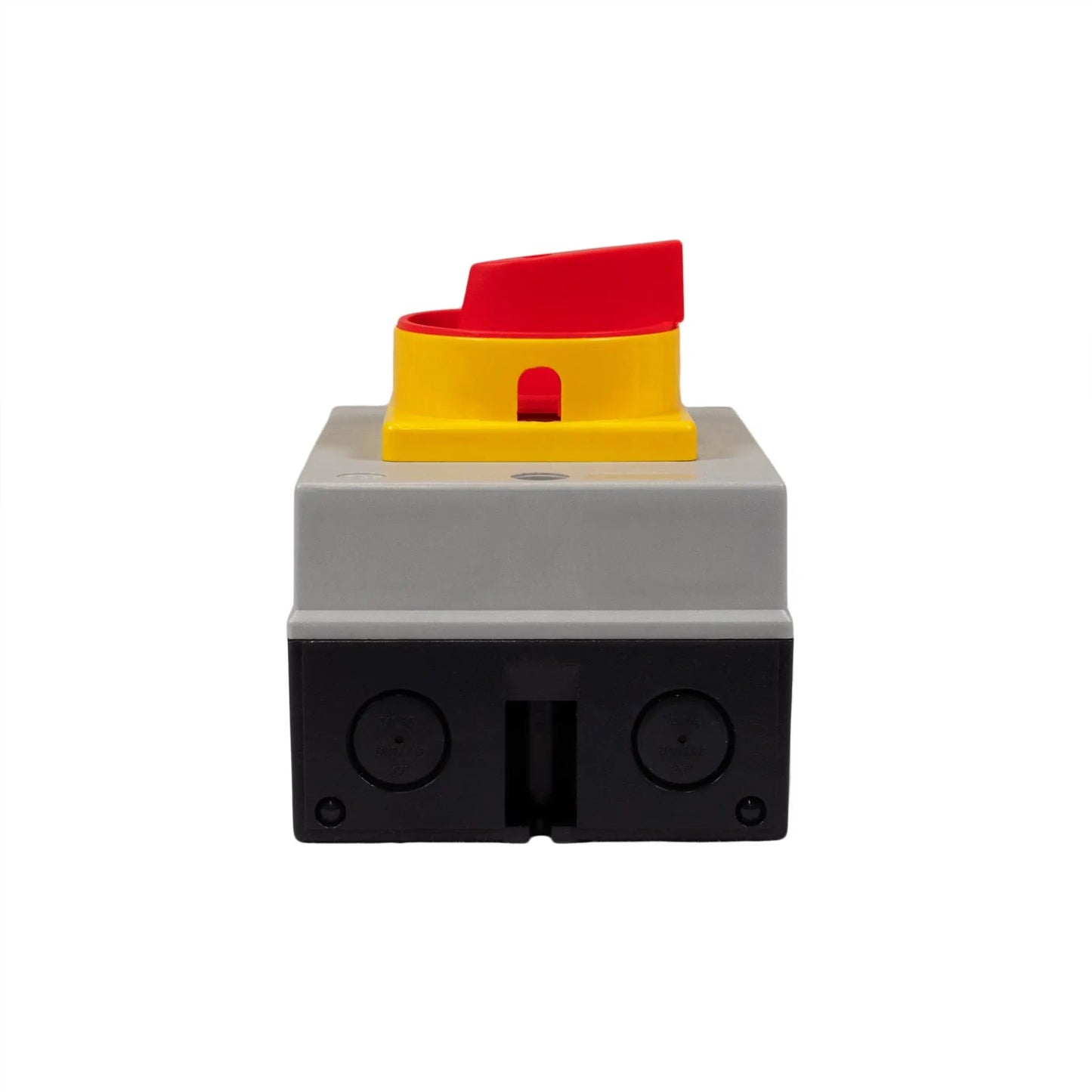

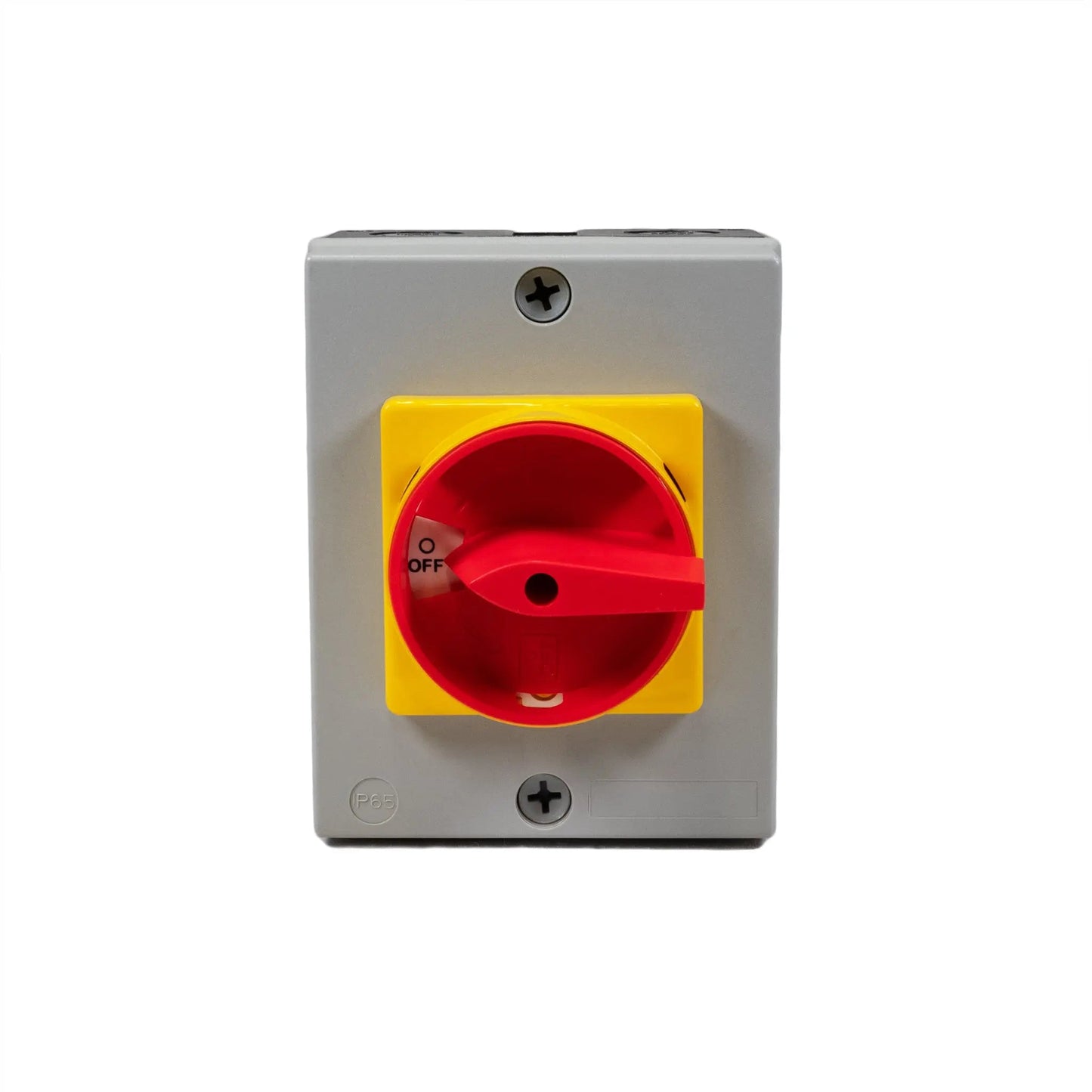

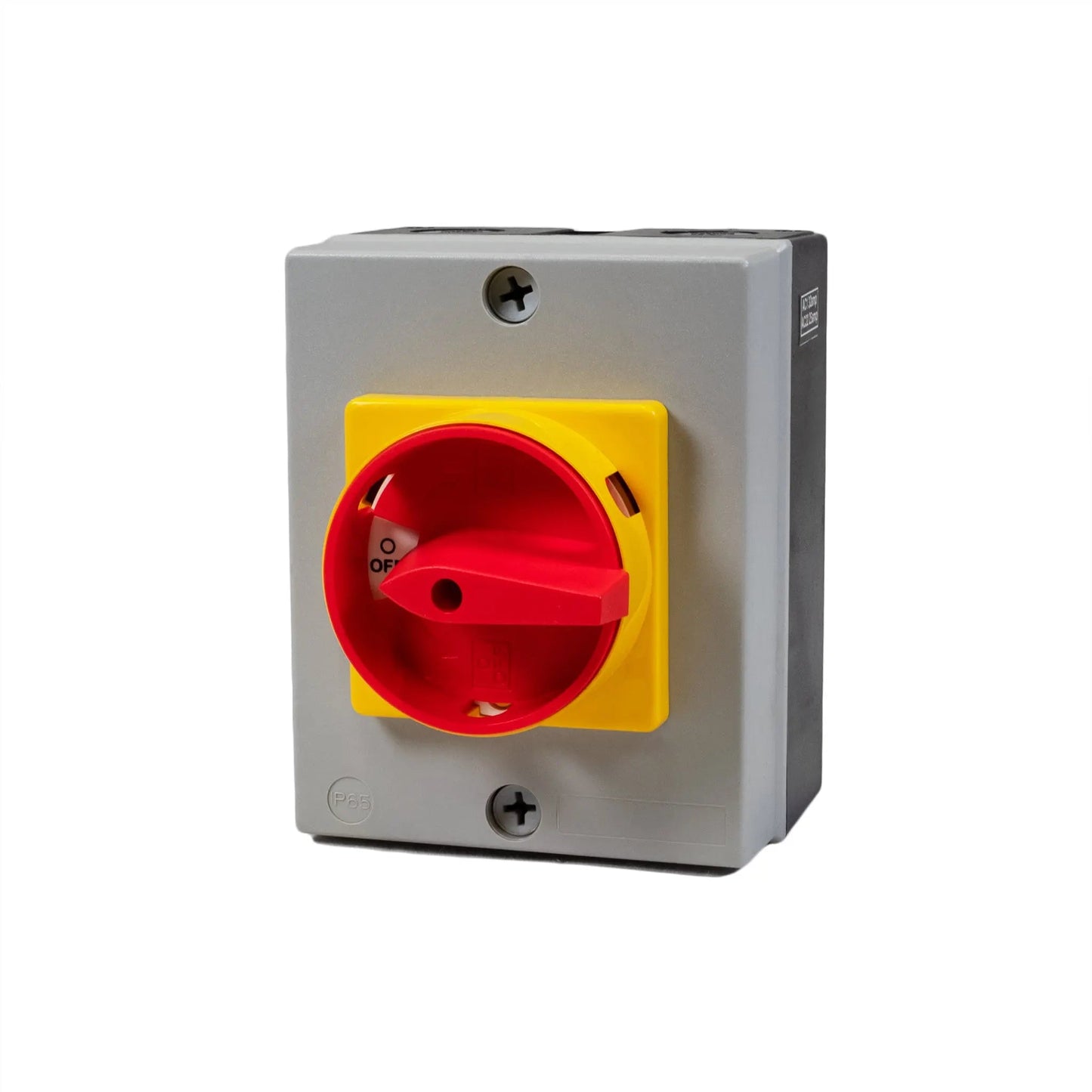

This Europa rotary switch isolator provides a dedicated 32 amp, four-pole point of isolation for sauna electrical installations. The switch sits in a robust, flame-retardant enclosure rated to IP65, with generous space inside for ease of installation and 20 mm knockouts for cable entry. An interlocking lid can only be removed with the switch in the OFF position, and the padlockable handle lets the supply be locked off securely during maintenance. It complies with EN 60947 and measures 125 × 100 × 74 mm. 20 amp and 63 amp versions are also available.
Features
Technical Specification
| Current rating | 32 amp |
| Poles | 4 |
| IP rating | IP65 |
| Standard | EN 60947 |
| Enclosure | Flame-retardant material |
| Cable entries | 20 mm knockouts |
| Lid | Interlocking; removable in the OFF position only |
| Handle | Padlockable |
| Dimensions (H × W × D) | 125 × 100 × 74 mm |
| SKU | LB324P |
Installation
Installation must be carried out by a qualified electrician, with the electricity supply isolated before any work begins. A local point of isolation covering all live conductors is recommended for electric sauna heaters, and a four-pole rotary isolator is suited to that role. All relevant wiring regulations must be followed.
Ordering note
Check the current rating and number of poles your circuit requires before ordering. The range includes 20 amp, 32 amp and 63 amp versions; your electrician can confirm the correct rating for your installation.
