How to Choose the Best Sauna Controller for Your Setup

Oct 02, 2023

If your electric sauna heater doesn't come with built-in manual controls, you'll need an external sauna controller to manage temperature and timing. Most leading sauna heater brands - such as HUUM, Narvi, Helo, Tulikivi and IKI - offer compatible control systems, with options ranging from basic wall-mounted units to smart controllers with Wi-Fi and mobile app connectivity. Whether you're looking for a simple nearby controller or a Wi-Fi controller to manage your sauna remotely, this guide will help you choose the best sauna controller for your setup.



HUUM Sauna Controllers

HUUM has a wide selection of modern sauna controllers, all of which are compatible with many other manufacturer’s electric heater models. Deciding between HUUM's control panels will depend on your electric heater model, power rating and how much flexibility you would like for setting the time and temperature of your sauna. Do you want the convenience of switching your sauna on from your phone while you're out, or would you prefer a simple, budget-friendly control panel nearby?

HUUM UKU Wood Sauna Heater Control Panel

HUUM has control panels and casings for a variety of tastes. The UKU Wood is a stylish panel that is best installed right outside the sauna. Image from HUUM.



All UKU controllers share similar functions. The entry- level option is UKU Local, which is made for on-the-spot-use. UKU Wi-Fi can be controlled through the HUUM mobile app.



UKU Local

UKU Local is a great option if you are looking for a simple, easy-to-use controller for your sauna. It has the same features as the other UKU-range controllers, apart from mobile app compatibility. The available heating periods are 3, 8 and 12 hours.

With UKU Local, the heater is controlled from a wall-mounted panel. The panel has a minimalistic design with black, white or wood finish. The controller set includes the console, cable, main module, temperature sensor, door sensor and the sensor cable.

UKU Local Sauna Heater Controller

The UKU Local Black controller is compact and simple to use. Image from HUUM.



Main features of UKU Local

  • Temperature range of +40-110ºC
  • Suitable for heaters up to 18kW
  • Supply voltage: 40A, 240V
  • Heating period: 3h, 8h and 12h



UKU Wi-Fi

UKU Wi-Fi controls the sauna heater through a panel and the HUUM mobile app. In order to use your phone to control and adjust the time and heating functions, there needs to be a strong Wi-Fi network around the sauna area.

UKU Wi-Fi is a great option for remotely controlling a modern-day sauna. You can also use the controller on the spot, without the app. The UKU Wi-Fi panel has a sleek design with the choice of a classic, glass or wood finish. HUUM have designed a surface mounting frame as an addition for the UKU Wi-Fi panel.



HUUM app for UKU sauna heater controller

 You can control the UKU Wi-Fi from the HUUM app. Image from HUUM.



 UKU Black Glass Control Panel for HUUM

The black glass surface of the UKU control panel.



Main features of UKU sauna controllers

All UKU controllers are suitable for other manufacturer’s electric sauna heaters, providing the heater is designed to have an external control panel, has a temperature control function, and a maximum output of 18kW.

  • Choose a target temperature between +40-110ºC
  • Choose a heating period of 3, 6, 12 or 18 hours
  • A timer function
  • Connection to sauna lights and ventilation
  • Safety features: Overheating protection, a door sensor and a child safety lock



Narvi Sauna Controllers

Narvi has control units for home saunas, as well as larger commercial settings with high-power electric heaters.

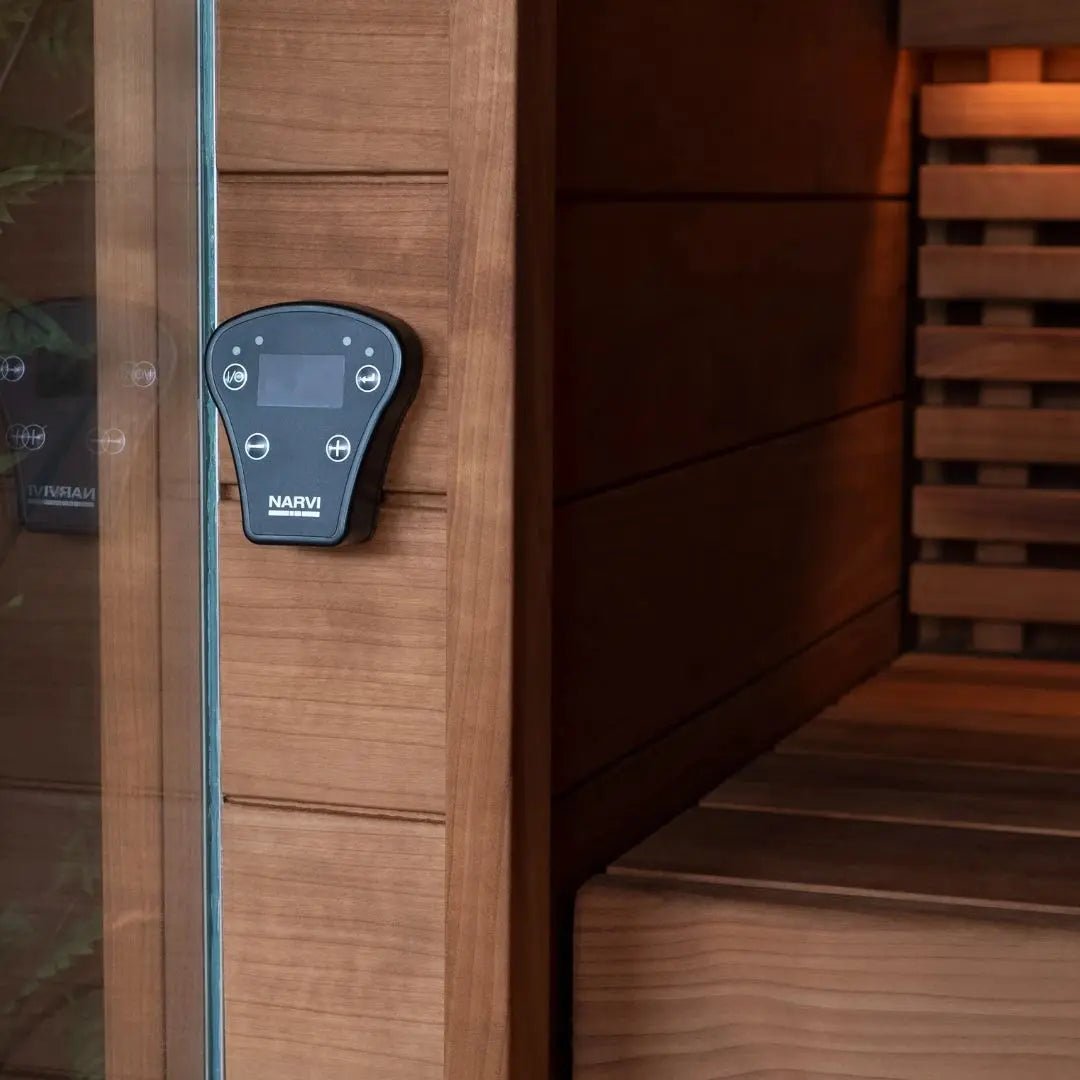

 Narvi N2014E sauna controller - Finnmark Sauna

The Narvi N2014E control panel can be installed outside the sauna area, or inside given it is a suitable distance away from the heater. The minimum required distances from the heater and floor level are specified in heater manuals.






Narvi N2014E

Narvi N2014E comes as a standard controller for most of Narvi’s electric sauna heater models. It contains an external control unit, an external thermostat and a power card. The N2014E is multi voltage, so it can be connected to 400V 3N~, 230V 1N~or 230V 3~.

The maximum heater output N2014E can be connected is 10.5kW. It is also important to note that any electric heaters above 9kW must be installed on a 3-phase supply.

*Please note that all heaters and controllers should be installed by a qualified electrician.



Feautures of Narvi N2014E control unit



  • Can be installed either inside or outside the sauna. Please refer to the heater and controller instructions for information regarding the required distances from the heater body and maximum distance from the sauna area
  • 24 h pre-timing function
  • Temperature range of +60 to +90ºC
  • Overheat protector for the temperature sensor



 Narvi N2014E updated square casing

The updated square N2014E control panel cover on the external wall of the sauna.






Narvi B-2003 and T-2003 controllers for commercial electric heaters

The Narvi B and T-2003 controllers are commercial- grade options for larger electric heater model. The B- and T- controllers from Narvi are equipped with set-and-forget timers, which make them excellent controlling systems for health clubs and hotels that are open long hours, 7 days a week.



Narvi B-2003 (9-15kW)

Narvi B-2003 is a controller for 9-15kW electric Narvi heaters. The controller is designed for commercial use only.

The B-2003 consists of the control unit and power card, and the temperature sensor is external. The B-2003 is installed outside the sauna, maximum 20m distance from the room.



Features of Narvi B-2003

  • Pre-timer with 7 memory slots
  • Lighting switch that can be connected to the sauna lights
  • *Compatible with most other manufacturer’s commercial grade electric heaters



Narvi T-2003 (9-15kW)

Narvi T-2003 is also suitable for 9-15kW commercial electric heaters. Similarly to the B-2003 controller, the control unit and power card are in one box, whereas the temperature sensor is external. The Narvi T-2003 has a 24-hour pre-timing function and the option to have the sauna lights connected to it.



Features of Narvi T-2003

  • 24-hour pre-timer
  • Lighting switch
  • *Compatible with most other manufacturer’s commercial electric heaters.

*If you have an enquiry about a specific heater model and compatibility with commercial grade control units, please don’t hesitate to get in touch with us.

 Narvi Peak Big Commercial Electric Heater

Larger commercial electric sauna heaters often require separate controllers and power units. The Narvi Peak Big electric heater is compatible with the Narvi C-2003 + F-2003 combination.





Narvi C-2003 + F-2003

The C-2003 controller and F-2003 power unit are designed for 18-33kW commercial sauna heaters in public settings, such as health clubs and spas. The controller has 14 memory slots, which allows for programming two daily sauna sessions. The controller should be installed outside the sauna into a technical room, office or a reception. The controller has an external temperature sensor and a light switch.



Features of Narvi C-2003 + F-2003

  • Suitable for 18-33kW electric heaters
  • 14 memory slots
  • External temperature sensor
  • Light switch



Helo Sauna Controllers


Pure

The Pure controller by Helo is a great choice if you are looking for simplicity. The Pure controller is mounted onto the sauna wall and works for the Helo range sauna heaters and steam generators. The controller is best placed right outside the sauna area but can be installed inside given that the top of the panel is placed maximum 80cm from floor level and at a minimum 30cm distance from the heater body. The maximum temperature at the level of the control panel should not exceed +80ºC.

Helo Pure Controller

Pure controller by Helo.



Helo Elite Free

The Elite Free is Helo’s newest controller and provides an option to control the sauna from your phone, similarly to HUUM's UKU Wi-Fi. Elite Free has personalized settings that can be programmed to a specified schedule. You can also add control features such as auxiliary fans and lighting. Elite Free is controlled from the Helo Control (TM) app.



Elite Free is compatible with the following Helo electric heaters

  • Himalaya 70 WT and 105 WT
  • Rocher 70 and 105
  • Roxx 60 and 90
  • Wall mounted Helo electric D- models with WE40 contactor box

The controller can also be purchased with a separate contactor box WE40 or WE50 for the following models and combinations:

  • Laava (Elite Free + WE40)
  • Magma (Elite Free + WE50)
  • SKLE (Elite Free + WE40 contactor box)
  • SKLA (Elite Free + WE50 contactor box)

Helo Elite Free Controller for Electric Sauna Heaters


Helo Elite Free has a stylish appearance and is compatible with the most recent additions to the Helo electric heater range between 6kW-10.5kW. It can also power larger heaters with a suitable contactor box.



Helo WE 50 Contactor Box

The relay box WE 50 from Helo is designed for electric sauna heaters between 18kW to 26kW. It is developed as an add- on for the Pure and Elite Free controllers to make them work seamlessly with commercial heater models. The contactor box connects the electric heater and the control panel. WE 50 is compatible with Helo’s own commercial electric heater models, such as SKLA and the Magma.



Tulikivi Sauna Controllers - Complete Wi-Fi Control System



The Complete Wi-Fi Control System is a newly improved electric heater controller from Tulikivi. The panel itself has a classic looking minimalistic design with a black finish. Tulikivi's controller is equipped with advanced features allowing for precise temperature and steam adjustments, so you can customise the sauna experience to your liking. Energy efficiency is built ion, preventing unnecessary heating and saving power. The controller allows you to create personalised user profiles and adjust the settings before and during your session.

Tulikivi Complete Wi-Fi Control System

The black Tulikivi Touch Screen is small and stylish, while providing advanced features of a Wi-Fi Sauna Heater Controller.



Features of Tulikivi Wi-Fi Controller

  • Monitor time spent in sauna
  • Adjust the quality and intensity of the "löyly" - steam
  • Create your own profiles and preferred sauna climate
  • Maximum temperature: 110ºC
  • Private use: up to 6 hours
  • Public use: up to 24 hours with a 6-hour break



 Tulikivi touch screen sauna heater controller in black

The easy-to-use Tulikivi black touch screen complements darker interiors, such as the dark thermo alder in this installation.



IKI Sauna Controllers



The IKI- range has two main controllers. The Pro-B2 and and the Wave



Pro-B2

This controller is a standard option for the IKI- range electric sauna heaters up to 10.5kW. It can be connected to up to 30kW electric heater models with a contactor unit, which is the S2-30. The controller is IP 24- rated and should be installed outside the sauna room within a temperature range of –10ºC to +40ºC.



Wave Control Unit

IKI’s Wave control unit is also compatible with all IKI electric heaters up to 10kW with an option to be connected to more powerful heaters with the S2-30 contactor. The set includes the control panel and a power unit. Wave has three sleek wooden finish options, which are dark wood, light wood and black. The unit can be installed inside the sauna.

Wave sauna heater controller by IKI Kiuas

The Wave controller comes in three wood finishings.

Wave Features

  • LED display
  • Pre-run timer
  • Control panel IP54
  • Key-lock function



Ultimately, the choice of a sauna heater controller will depend on your heater model, the power rating, and your personal preference of controlling options. Many modern electric sauna heaters have the choice to be bought together with a recommended controller.

Finnmark Sauna Installation with Tulikivi Touch Screen Heater Controller

If you have any questions about the different controlling options for your sauna, please don’t hesitate to get in touch with our team to enquire.



*Please refer to the manufacturer's instruction manuals for each controller and electric heater. Requirements may differ between controllers and heaters. All heaters and controllers must be installed by a qualified electrician.
