HUUM Embedding Flange for DROP Electric Sauna Heater
HUUM Embedding Flange for DROP Electric Sauna Heater
Couldn't load pickup availability
Description
Description

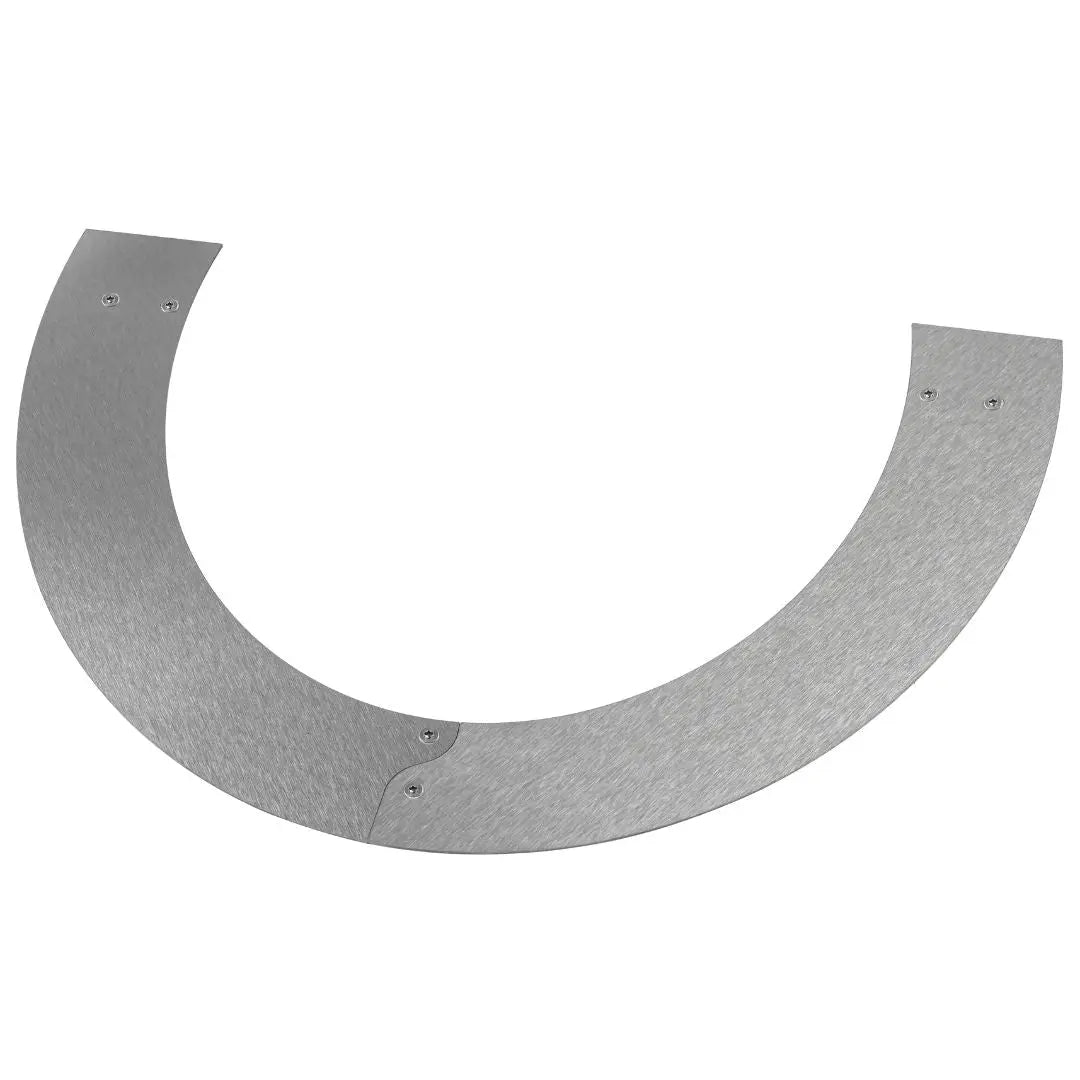

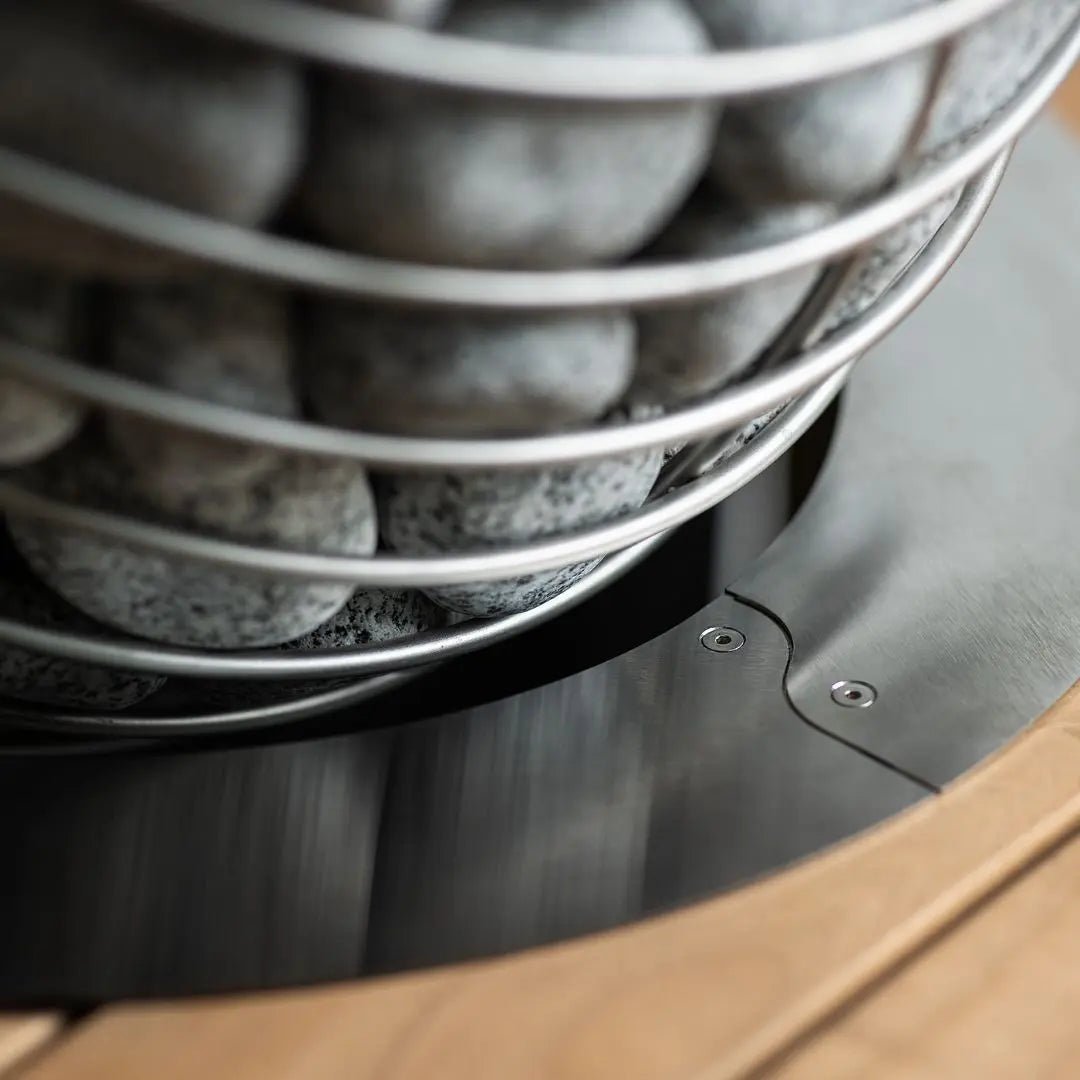

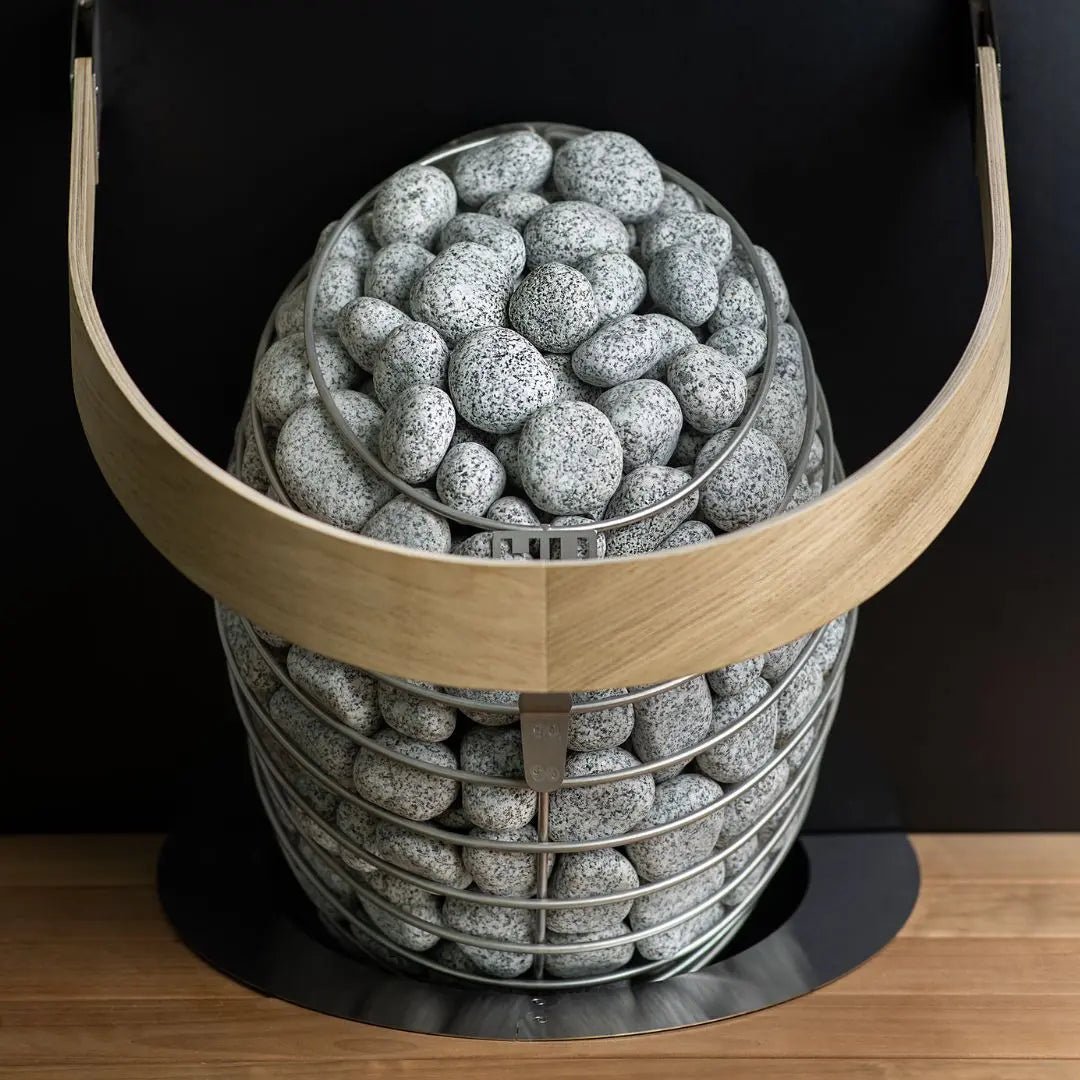

This stainless steel embedding flange gives a clean finish where a HUUM DROP electric sauna heater is partly integrated into the benching, covering any rough edges cut around the heater for a refined result. The fitting guide sets out how to mark and cut the opening, with the cut line drawn 52 mm outside the flange’s inner edge, and specifies a minimum heater height of 380 mm above the bench once installed. Brackets, bolts and screws are supplied; the installation manual is available in the Downloads tab.
Features
Technical Specification
| Compatibility | HUUM DROP electric sauna heater |
| Material | Stainless steel |
| Cut-out allowance | 52 mm outside the marked inner edge of the flange |
| Minimum heater height above bench | 380 mm |
| Fixings included | 6 bolts with nuts and 6 screws |
| Part number | H3001021 |
Installation
Place the flange plates in position on the bench boarding with their end edges against the wall, mark the inner edge of the flange, then draw a second contour 52 mm outwards and cut the opening along the wider line. Attach the brackets to the plates with the bolts and nuts, fit the flange into the opening, adjusting the cut edge if necessary, and fasten the brackets to the platform boards with the screws. The DROP heater can then be installed, keeping the minimum 380 mm height shown in the guide. The installation manual is available in the Downloads tab.
Brand
HUUM is an Estonian sauna manufacturer known for minimalist design and smart heater technology; its DROP heater won the Red Dot Award for Product Design in 2015.
Ordering note
Check your heater model before ordering: this flange suits the HUUM DROP heater. The CLIFF, STEEL, HIVE and HIVE Mini heaters each take their own embedding flange, listed separately.
